Isuzu WW
▶
TRUCKS
▶
NQR
▶
51294 - NQR INDONESIA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

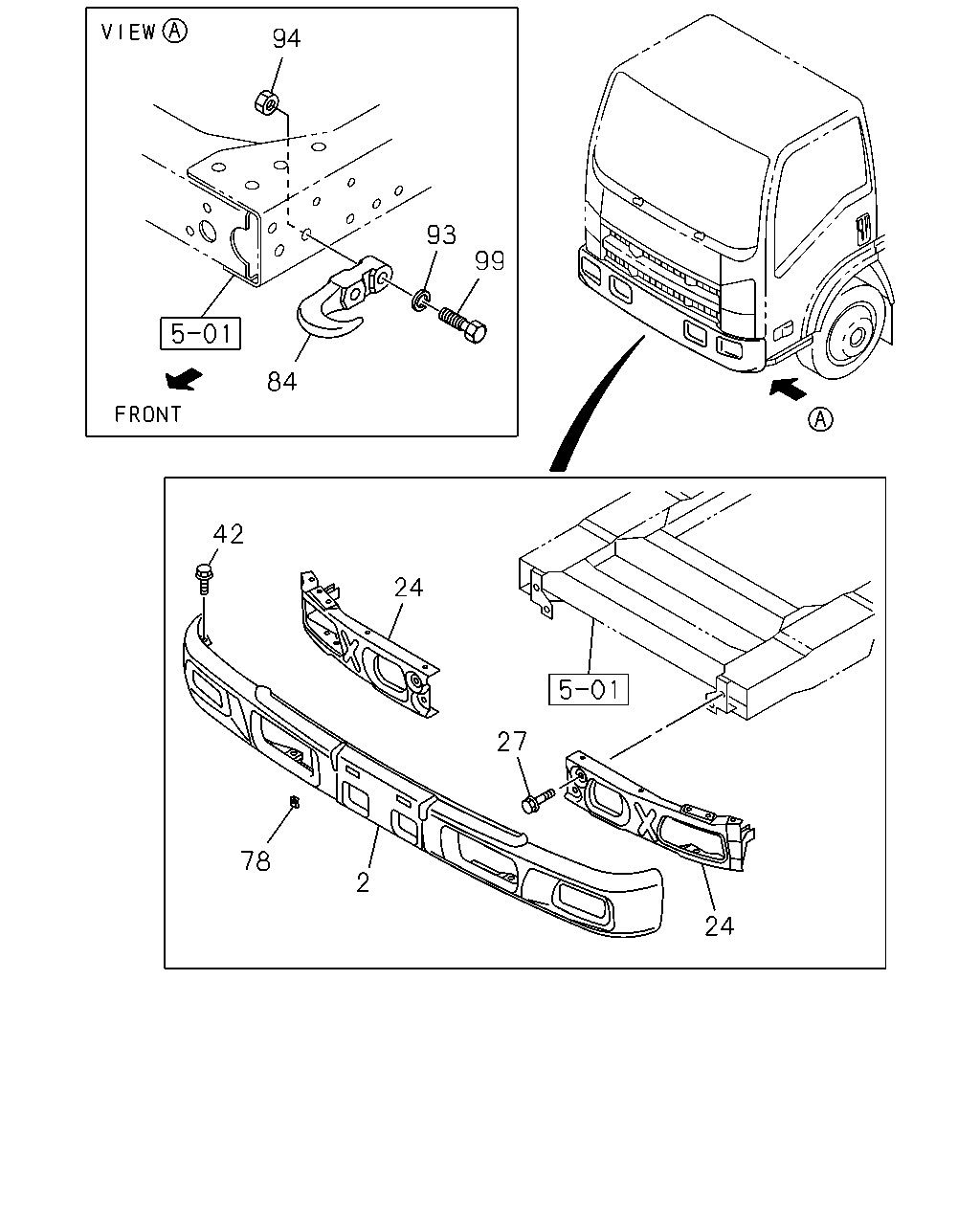

6-01 - FRONT BUMPER
▶
6-01 — FRONT BUMPER
(#95232) — 13 parça
24
27
24
42
2
78
84
99
93
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
07.831 BUMPER; FRT,CENTER
FRONT BUMPER PAINTED<VB5> PRIMER
8-98055-080-2
01
1
1208-
2
07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> DARK GRAY IDN
8-97405-634-5
01
1
1208-
2
07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> WHITE IDN
8-97405-635-5
01
1
1208-
2
07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> BLUE IDN
8-97405-636-5
01
1
1208-
24
07.869 BAR; FRT BUMPER
IDN
8-98025-184-5
01
1
1208-
24
07.869 BAR; FRT BUMPER
IDN
8-98025-185-5
01
1
1208-
27
07.833 BOLT; BUMPER TO BACK BAR
M10X30 W/TORQUES IDN
8-98092-250-0
04
1
1208-
42
07.874 BOLT; BUMPER
08.143 M6X16 W/LK&PL WASHER IDN
0-52010-616-0
10
1
1208-
78
07.874 NUT; SPIRE
M6 IDN
8-98029-416-0
02
1
1208-
84
07.068 HOOK
8-97387-665-0
01
1
1208-
93
07.068 WASHER; LK,HOOK
06.174 ID=14.2
0-91510-814-0
02
1
1208-
94
07.068 NUT; HOOK
07.833 M14
0-91110-514-0
01
1
1208-
99
07.039 BOLT; HOOK
M14X55
8-97301-262-0
02
1
1208-
