Isuzu WW
▶
TRUCKS
▶
NQR
▶
51294 - NQR INDONESIA
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

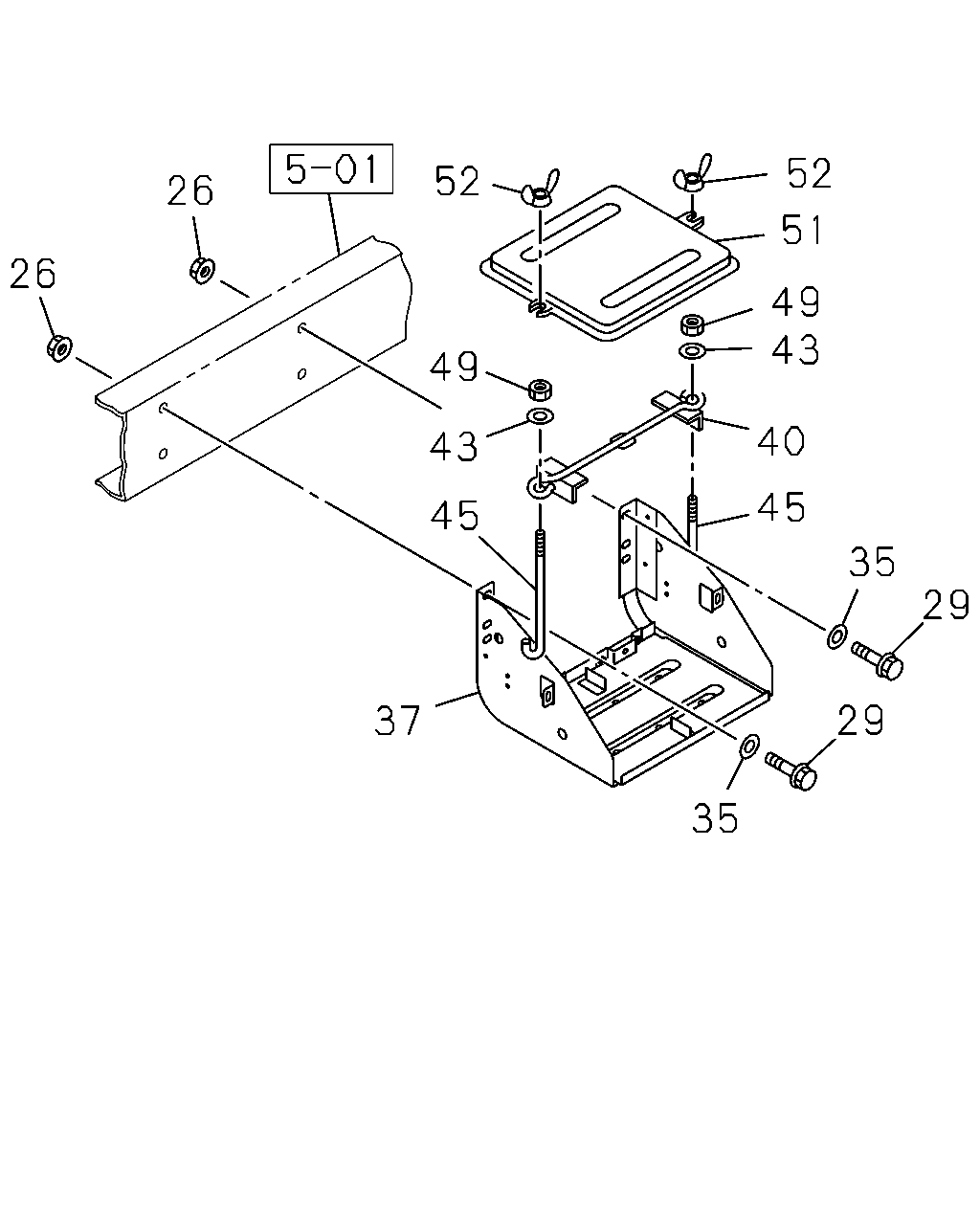

5-20 — BATTERY CARRIER
(#95230) — 11 parça
35
29
29
35
45
40
43
49
51
52
52
49
45
43
37
26
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
02.334 NUT; BRKT
04.085 M10 FLANGE
0-91180-210-0
04
1
1208-
29
02.334 BOLT; BRKT TO FRAME
03.023 M10X35 FLANGE
0-28661-035-0
04
1
1208-
35
02.334 WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 04.046 ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
1208-
37
02.333 BRACKET; BATTERY
BATTERY 80D26L<TM1> IDN
8-97384-067-2
01
1
1208-
37
02.333 BRACKET; BATTERY
BATTERY 75D23L<8LZ> IDN
8-97384-068-2
01
1
1208-
40
02.335 CLAMP; BATTERY
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> IDN
5-53615-004-1
01
1
1208-
43
02.334 WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22 IDN
0-91614-708-0
02
1
1208-
45
02.334 ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> L=120 IDN
9-53616-615-0
02
1
1208-
49
02.334 NUT; ROD,BATTERY
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 01.062 M8 FLANGE IDN
0-91180-108-0
02
1
1208-
51
02.335 COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> IDN
8-97120-747-0
01
1
1208-
52
02.335 NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> M8 WING NUT IDN
0-91118-408-0
02
1
1208-
