Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#9523) — 248 parça

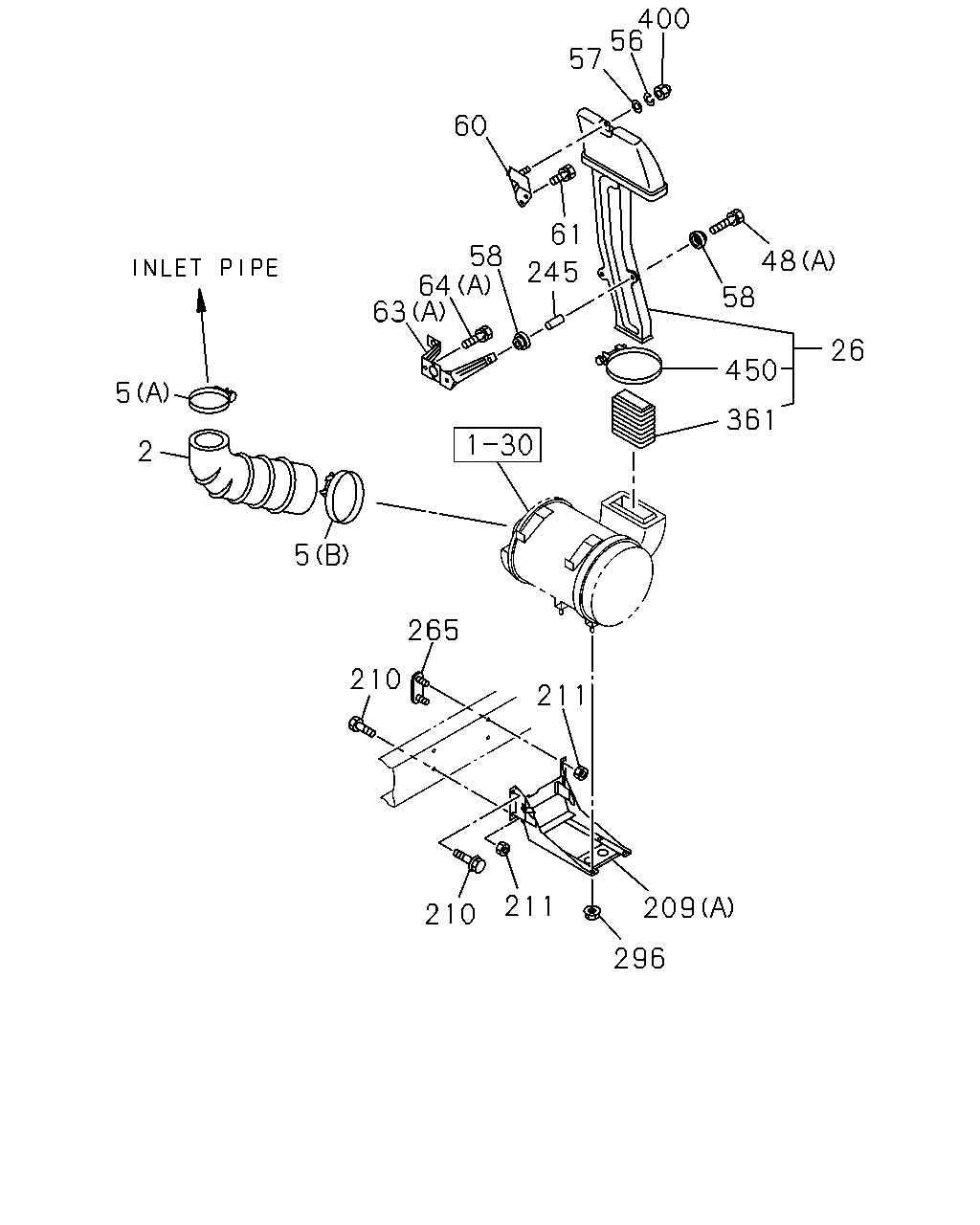

400 56 57 60 61 58 64 63 48 245 58 26 450 5 361 2 5 265 210 211 211 209 210 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL	1-14231-854-0	01	1	0005-0210	●
2	HOSE; ACL STD CAB(FT*M)	1-14232-126-0	01	1	0211-		●
2	HOSE; ACL	1-14231-941-1	01	1	0005-0210			●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	0005-0210	●
5	CLIP; AIR DUCT STD CAB(FT*M) (A) ID=77-95	1-09707-114-0	01	1	0211-0212		●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-198-0	01	1	0301-0810	●
5	CLIP; AIR DUCT STD CAB(FT*M) (A) ID=75-95	8-98133-357-0	01	1	0811-		●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	0005-0210	●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	0005-0210			●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	0005-0210			●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	0211-0212		●
5	CLIP; AIR DUCT (B) ID=130-165	1-09707-201-0	01	1	0301-0810		●
5	CLIP; AIR DUCT (B) ID=130-150	8-98133-360-0	01	1	0811-		●
26	DUCT; AIR INT	1-14230-173-0	01	1	0005-0210	●
26	DUCT; AIR INT	1-14230-173-2	01	1	0211-		●
26	DUCT; AIR INT	1-14230-142-0	01	1	0005-0210			●
48	BOLT; AIR DUCT (A) M10X26	1-09030-044-1	02	1	0005-0210	●		●
48	BOLT; AIR DUCT (A) M10X26	1-09030-044-1	02	1	0211-		●
48	BOLT; AIR DUCT (B) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210			●
48	BOLT; AIR DUCT DOUBLE CAB(FT*W) (B) M8X20 FLANGE	0-28680-820-0	04	1	0211-0512		●
48	BOLT; AIR DUCT DOUBLE CAB(FT*W) (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0005-0210	●		●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0211-		●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0005-0210	●		●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0211-		●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0005-0210	●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0211-		●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	06	1	0005-0210			●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	0005-0210	●
60	BRACKET; AIR DUCT,UPR STD CAB(FT*M)	1-79998-748-2	01	1	0211-		●
60	BRACKET; AIR DUCT,UPR	1-79998-571-2	01	1	0005-0210			●
60	BRACKET; AIR DUCT,UPR DOUBLE CAB(FT*W)	1-79996-596-1	01	1	0211-		●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0210	●
61	BOLT; BRKT,AIR DUCT STD CAB(FT*M) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0211-		●
61	BOLT; BRKT,AIR DUCT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0210			●
61	BOLT; BRKT,AIR DUCT DOUBLE CAB(FT*W) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-		●
63	BRACKET; AIR DUCT,LWR (A)	1-79998-749-3	01	1	0005-0210	●
63	BRACKET; AIR DUCT,LWR STD CAB(FT*M) (A)	1-79998-749-3	01	1	0211-		●
63	BRACKET; AIR DUCT,LWR (B)	1-79998-572-2	01	1	0005-0210			●
63	BRACKET; AIR DUCT,LWR DOUBLE CAB(FT*W) (B)	1-79998-572-2	01	1	0211-		●
63	BRACKET; AIR DUCT,LWR DOUBLE CAB(FT*W) (C)	1-79996-597-0	01	1	0211-		●
64	BOLT; BRKT,AIR DUCT (A) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0210	●		●
64	BOLT; BRKT,AIR DUCT (A) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0211-		●
64	BOLT; BRKT,AIR DUCT DOUBLE CAB(FT*W) (B) M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0211-		●
209	BRACKET; ACL DOUBLE CAB(FT*W) (E)	1-53497-688-2	01	1	0212-		●
209	BRACKET; ACL (A)	1-53497-525-0	01	1	0005-0210	●
209	BRACKET; ACL STD CAB(FT*M) (A)	1-53497-589-0	01	1	0211-		●
209	BRACKET; ACL (B)	1-53497-554-0	01	1	0005-0210			●
209	BRACKET; ACL DOUBLE CAB(FT*W) (C)	1-53497-478-2	01	1	0211-		●
209	BRACKET; ACL DOUBLE CAB(FT*W) (D)	1-53497-695-0	01	1	0211-		●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28681-235-0	02	1	0005-0210	●
210	BOLT; ACL BRKT STD CAB(FT*M) M12X35 FLANGE	0-28681-235-0	02	1	0211-0512		●
210	BOLT; ACL BRKT STD CAB(FT*M) M12X35 FLANGE	0-28651-235-0	02	1	0601-0610		●
210	BOLT; ACL BRKT STD CAB(FT*M) M12X40 FLANGE	0-28651-240-0	02	1	0611-		●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28681-235-0	04	1	0005-0210			●
210	BOLT; ACL BRKT DOUBLE CAB(FT*W) M12X35 FLANGE	0-28681-235-0	04	1	0211-0512		●
210	BOLT; ACL BRKT DOUBLE CAB(FT*W) M12X35 FLANGE	0-28651-235-0	04	1	0601-		●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	04	1	0005-0210	●
211	NUT; BRKT STD CAB(FT*M) M12 FLANGE	0-91150-212-0	04	1	0211-0602		●
211	NUT; BRKT STD CAB(FT*M) M12 FLANGE	0-91180-212-0	04	1	0603-		●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0005-0210	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0211-		●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	03	1	0005-0210			●
265	BRACKET; STUD,ACL	1-53497-454-1	01	1	0005-0210	●
265	BRACKET; STUD,ACL STD CAB(FT*M)	1-53497-454-1	01	1	0211-		●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	0005-0210	●
296	NUT; ACL STD CAB(FT*M) M8 FLANGE	0-91150-108-0	04	1	0211-0602		●
296	NUT; ACL STD CAB(FT*M) M8 FLANGE	0-91180-108-0	04	1	0603-		●
296	NUT; ACL DOUBLE CAB(FT*W) M8 FLANGE	0-91150-108-0	06	1	0211-0602		●
296	NUT; ACL DOUBLE CAB(FT*W) M8 FLANGE	0-91180-108-0	06	1	0603-		●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-0	01	1	0005-0210	●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-1	01	1	0211-		●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0005-0210	●		●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0211-		●
450	CLAMP; HOSE	9-09915-504-1	01	1	0005-0210	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0211-		●

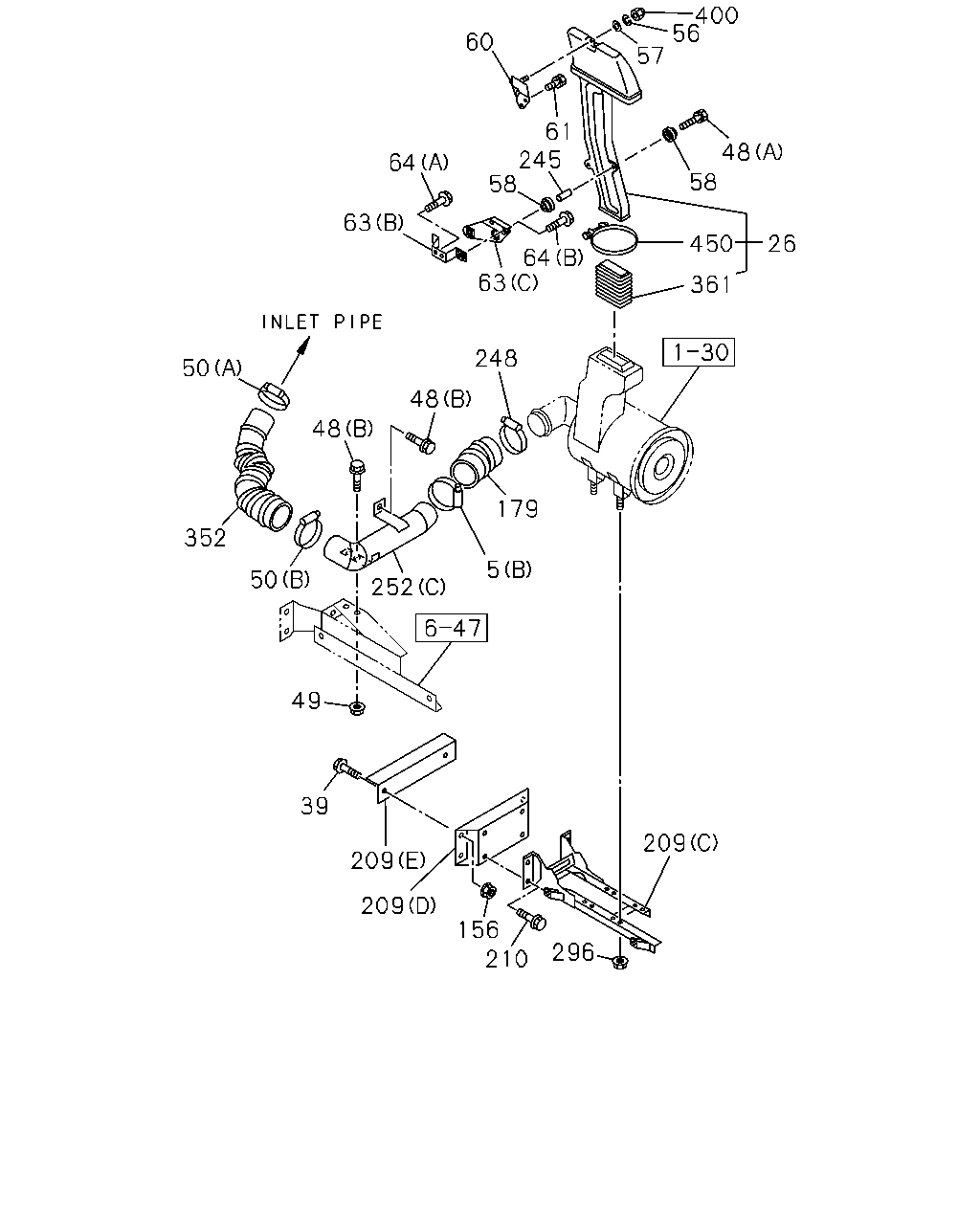

400 56 57 60 61 245 58 48 64 58 63 450 26 64 63 361 248 50 48 48 179 352 5 50 252 49 39 209 209 209 156 210 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	0005-0210	●
5	CLIP; AIR DUCT STD CAB(FT*M) (A) ID=77-95	1-09707-114-0	01	1	0211-0212		●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-198-0	01	1	0301-0810	●
5	CLIP; AIR DUCT STD CAB(FT*M) (A) ID=75-95	8-98133-357-0	01	1	0811-		●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	0005-0210	●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	0005-0210			●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	0005-0210			●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	0211-0212		●
5	CLIP; AIR DUCT (B) ID=130-165	1-09707-201-0	01	1	0301-0810		●
5	CLIP; AIR DUCT (B) ID=130-150	8-98133-360-0	01	1	0811-		●
26	DUCT; AIR INT	1-14230-173-0	01	1	0005-0210	●
26	DUCT; AIR INT	1-14230-173-2	01	1	0211-		●
26	DUCT; AIR INT	1-14230-142-0	01	1	0005-0210			●
39	BOLT; BRKT DOUBLE CAB(FT*W) M12X35 FLANGE	0-28681-235-0	06	1	0211-0512		●
39	BOLT; BRKT DOUBLE CAB(FT*W) M12X35 FLANGE	0-28651-235-0	06	1	0601-		●
48	BOLT; AIR DUCT (A) M10X26	1-09030-044-1	02	1	0005-0210	●		●
48	BOLT; AIR DUCT (A) M10X26	1-09030-044-1	02	1	0211-		●
48	BOLT; AIR DUCT (B) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210			●
48	BOLT; AIR DUCT DOUBLE CAB(FT*W) (B) M8X20 FLANGE	0-28680-820-0	04	1	0211-0512		●
48	BOLT; AIR DUCT DOUBLE CAB(FT*W) (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
49	NUT; AIR DUCT DOUBLE CAB(FT*W) M8 FLANGE	0-91150-108-0	02	1	0211-0602		●
49	NUT; AIR DUCT DOUBLE CAB(FT*W) M8 FLANGE	0-91180-108-0	02	1	0603-		●
50	CLIP; JOINT HOSE DOUBLE CAB(FT*W) (A) ID=77-95	1-09707-114-0	01	1	0211-0212		●
50	CLIP; JOINT HOSE DOUBLE CAB(FT*W) (A) ID=77-95	1-09707-198-0	01	1	0301-0810		●
50	CLIP; JOINT HOSE DOUBLE CAB(FT*W) (A) ID=75-95	8-98133-357-0	01	1	0811-		●
50	CLIP; JOINT HOSE DOUBLE CAB(FT*W) (B) ID=130-169	1-09707-157-0	01	1	0211-0212		●
50	CLIP; JOINT HOSE DOUBLE CAB(FT*W) (B) ID=130-165	1-09707-201-0	01	1	0301-0810		●
50	CLIP; JOINT HOSE DOUBLE CAB(FT*W) (B) ID=130-150	8-98133-360-0	01	1	0811-		●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0005-0210	●		●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0211-		●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0005-0210	●		●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0211-		●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0005-0210	●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0211-		●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	06	1	0005-0210			●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	0005-0210	●
60	BRACKET; AIR DUCT,UPR STD CAB(FT*M)	1-79998-748-2	01	1	0211-		●
60	BRACKET; AIR DUCT,UPR	1-79998-571-2	01	1	0005-0210			●
60	BRACKET; AIR DUCT,UPR DOUBLE CAB(FT*W)	1-79996-596-1	01	1	0211-		●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0210	●
61	BOLT; BRKT,AIR DUCT STD CAB(FT*M) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0211-		●
61	BOLT; BRKT,AIR DUCT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0210			●
61	BOLT; BRKT,AIR DUCT DOUBLE CAB(FT*W) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-		●
63	BRACKET; AIR DUCT,LWR (A)	1-79998-749-3	01	1	0005-0210	●
63	BRACKET; AIR DUCT,LWR STD CAB(FT*M) (A)	1-79998-749-3	01	1	0211-		●
63	BRACKET; AIR DUCT,LWR (B)	1-79998-572-2	01	1	0005-0210			●
63	BRACKET; AIR DUCT,LWR DOUBLE CAB(FT*W) (B)	1-79998-572-2	01	1	0211-		●
63	BRACKET; AIR DUCT,LWR DOUBLE CAB(FT*W) (C)	1-79996-597-0	01	1	0211-		●
64	BOLT; BRKT,AIR DUCT (A) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0210	●		●
64	BOLT; BRKT,AIR DUCT (A) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0211-		●
64	BOLT; BRKT,AIR DUCT DOUBLE CAB(FT*W) (B) M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0211-		●
156	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0210			●
156	NUT; BRKT DOUBLE CAB(FT*W) M12 FLANGE	0-91150-212-0	05	1	0211-0602		●
156	NUT; BRKT DOUBLE CAB(FT*W) M12 FLANGE	0-91180-212-0	05	1	0603-		●
179	HOSE; AIR INT	1-14231-810-1	01	1	0005-0210			●
179	HOSE; AIR INT DOUBLE CAB(FT*W)	1-14232-131-0	01	1	0211-		●
209	BRACKET; ACL DOUBLE CAB(FT*W) (E)	1-53497-688-2	01	1	0212-		●
209	BRACKET; ACL (A)	1-53497-525-0	01	1	0005-0210	●
209	BRACKET; ACL STD CAB(FT*M) (A)	1-53497-589-0	01	1	0211-		●
209	BRACKET; ACL (B)	1-53497-554-0	01	1	0005-0210			●
209	BRACKET; ACL DOUBLE CAB(FT*W) (C)	1-53497-478-2	01	1	0211-		●
209	BRACKET; ACL DOUBLE CAB(FT*W) (D)	1-53497-695-0	01	1	0211-		●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28681-235-0	02	1	0005-0210	●
210	BOLT; ACL BRKT STD CAB(FT*M) M12X35 FLANGE	0-28681-235-0	02	1	0211-0512		●
210	BOLT; ACL BRKT STD CAB(FT*M) M12X35 FLANGE	0-28651-235-0	02	1	0601-0610		●
210	BOLT; ACL BRKT STD CAB(FT*M) M12X40 FLANGE	0-28651-240-0	02	1	0611-		●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28681-235-0	04	1	0005-0210			●
210	BOLT; ACL BRKT DOUBLE CAB(FT*W) M12X35 FLANGE	0-28681-235-0	04	1	0211-0512		●
210	BOLT; ACL BRKT DOUBLE CAB(FT*W) M12X35 FLANGE	0-28651-235-0	04	1	0601-		●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0005-0210	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0211-		●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	03	1	0005-0210			●
248	CLIP; RUBBER HOSE DOUBLE CAB(FT*W) ID=130-169	1-09707-157-0	01	1	0211-0212		●
248	CLIP; RUBBER HOSE DOUBLE CAB(FT*W) ID=130-165	1-09707-201-0	01	1	0301-0810		●
248	CLIP; RUBBER HOSE DOUBLE CAB(FT*W) ID=130-150	8-98133-360-0	01	1	0811-		●
252	DUCT; AIR INT (A)	1-14219-222-0	01	1	0005-0210			●
252	DUCT; AIR INT (B)	1-14231-819-1	01	1	0005-0210			●
252	DUCT; AIR INT DOUBLE CAB(FT*W) (C)	1-14232-130-0	01	1	0211-		●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	0005-0210	●
296	NUT; ACL STD CAB(FT*M) M8 FLANGE	0-91150-108-0	04	1	0211-0602		●
296	NUT; ACL STD CAB(FT*M) M8 FLANGE	0-91180-108-0	04	1	0603-		●
296	NUT; ACL DOUBLE CAB(FT*W) M8 FLANGE	0-91150-108-0	06	1	0211-0602		●
296	NUT; ACL DOUBLE CAB(FT*W) M8 FLANGE	0-91180-108-0	06	1	0603-		●
352	HOSE; RUBBER,AIR DUCT TO ENG DOUBLE CAB(FT*W)	1-14232-151-0	01	1	0211-0305		●
352	HOSE; RUBBER,AIR DUCT TO ENG DOUBLE CAB(FT*W)	1-14232-161-0	01	1	0306-		●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-0	01	1	0005-0210	●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-1	01	1	0211-		●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0005-0210	●		●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0211-		●
450	CLAMP; HOSE	9-09915-504-1	01	1	0005-0210	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0211-		●

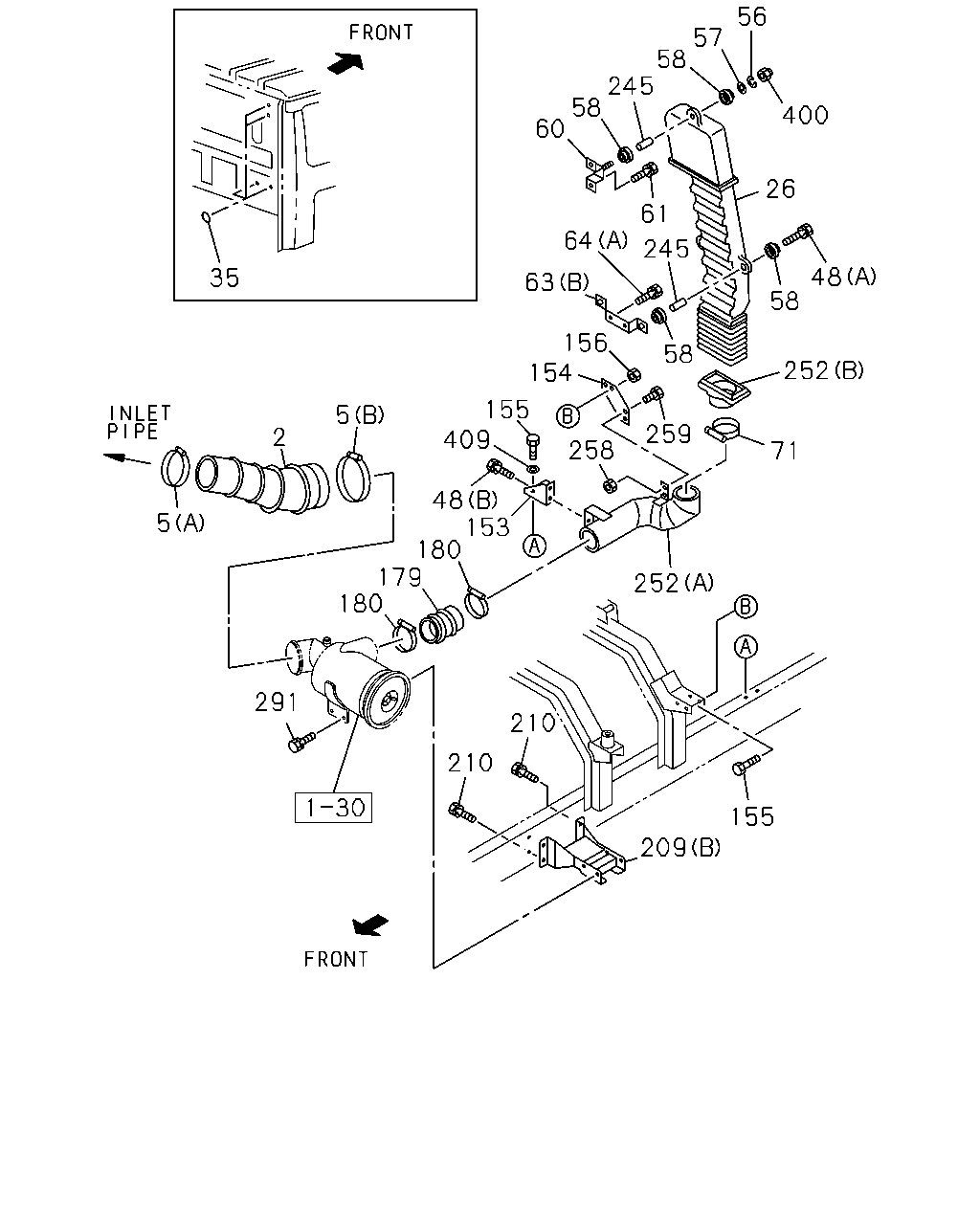

56 57 58 245 58 60 400 26 61 64 245 48 35 63 58 156 154 58 252 155 409 5 259 2 258 71 48 153 180 179 180 5 252 291 210 210 155 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL	1-14231-854-0	01	1	0005-0210	●
2	HOSE; ACL STD CAB(FT*M)	1-14232-126-0	01	1	0211-		●
2	HOSE; ACL	1-14231-941-1	01	1	0005-0210			●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	0005-0210	●
5	CLIP; AIR DUCT STD CAB(FT*M) (A) ID=77-95	1-09707-114-0	01	1	0211-0212		●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-198-0	01	1	0301-0810	●
5	CLIP; AIR DUCT STD CAB(FT*M) (A) ID=75-95	8-98133-357-0	01	1	0811-		●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	0005-0210	●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	0005-0210			●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	0005-0210			●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	0211-0212		●
5	CLIP; AIR DUCT (B) ID=130-165	1-09707-201-0	01	1	0301-0810		●
5	CLIP; AIR DUCT (B) ID=130-150	8-98133-360-0	01	1	0811-		●
26	DUCT; AIR INT	1-14230-173-0	01	1	0005-0210	●
26	DUCT; AIR INT	1-14230-173-2	01	1	0211-		●
26	DUCT; AIR INT	1-14230-142-0	01	1	0005-0210			●
35	SEAL; DUCT,INT OD=30 BLACK	1-76798-035-0	04	1	0005-0210			●
35	SEAL; DUCT,INT DOUBLE CAB(FT*W) OD=30 BLACK	1-76798-035-0	04	1	0211-		●
48	BOLT; AIR DUCT (A) M10X26	1-09030-044-1	02	1	0005-0210	●		●
48	BOLT; AIR DUCT (A) M10X26	1-09030-044-1	02	1	0211-		●
48	BOLT; AIR DUCT (B) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210			●
48	BOLT; AIR DUCT DOUBLE CAB(FT*W) (B) M8X20 FLANGE	0-28680-820-0	04	1	0211-0512		●
48	BOLT; AIR DUCT DOUBLE CAB(FT*W) (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0005-0210	●		●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0211-		●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0005-0210	●		●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0211-		●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0005-0210	●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0211-		●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	06	1	0005-0210			●
60	BRACKET; AIR DUCT,UPR	1-79998-748-2	01	1	0005-0210	●
60	BRACKET; AIR DUCT,UPR STD CAB(FT*M)	1-79998-748-2	01	1	0211-		●
60	BRACKET; AIR DUCT,UPR	1-79998-571-2	01	1	0005-0210			●
60	BRACKET; AIR DUCT,UPR DOUBLE CAB(FT*W)	1-79996-596-1	01	1	0211-		●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0210	●
61	BOLT; BRKT,AIR DUCT STD CAB(FT*M) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0211-		●
61	BOLT; BRKT,AIR DUCT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0210			●
61	BOLT; BRKT,AIR DUCT DOUBLE CAB(FT*W) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-		●
63	BRACKET; AIR DUCT,LWR (A)	1-79998-749-3	01	1	0005-0210	●
63	BRACKET; AIR DUCT,LWR STD CAB(FT*M) (A)	1-79998-749-3	01	1	0211-		●
63	BRACKET; AIR DUCT,LWR (B)	1-79998-572-2	01	1	0005-0210			●
63	BRACKET; AIR DUCT,LWR DOUBLE CAB(FT*W) (B)	1-79998-572-2	01	1	0211-		●
63	BRACKET; AIR DUCT,LWR DOUBLE CAB(FT*W) (C)	1-79996-597-0	01	1	0211-		●
64	BOLT; BRKT,AIR DUCT (A) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0210	●		●
64	BOLT; BRKT,AIR DUCT (A) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0211-		●
64	BOLT; BRKT,AIR DUCT DOUBLE CAB(FT*W) (B) M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0211-		●
71	CLIP; AIR DUCT ID=104-142	1-09707-155-0	01	1	0005-0210			●
153	BRACKET; ACL,FRT	1-14239-222-0	01	1	0005-0210			●
154	BRACKET; ACL,RR	1-14239-232-0	01	1	0005-0210			●
155	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0005-0210			●
156	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0210			●
156	NUT; BRKT DOUBLE CAB(FT*W) M12 FLANGE	0-91150-212-0	05	1	0211-0602		●
156	NUT; BRKT DOUBLE CAB(FT*W) M12 FLANGE	0-91180-212-0	05	1	0603-		●
179	HOSE; AIR INT	1-14231-810-1	01	1	0005-0210			●
179	HOSE; AIR INT DOUBLE CAB(FT*W)	1-14232-131-0	01	1	0211-		●
180	CLIP; AIR INT HOSE ID=104-142	1-09707-155-0	02	1	0005-0210			●
209	BRACKET; ACL DOUBLE CAB(FT*W) (E)	1-53497-688-2	01	1	0212-		●
209	BRACKET; ACL (A)	1-53497-525-0	01	1	0005-0210	●
209	BRACKET; ACL STD CAB(FT*M) (A)	1-53497-589-0	01	1	0211-		●
209	BRACKET; ACL (B)	1-53497-554-0	01	1	0005-0210			●
209	BRACKET; ACL DOUBLE CAB(FT*W) (C)	1-53497-478-2	01	1	0211-		●
209	BRACKET; ACL DOUBLE CAB(FT*W) (D)	1-53497-695-0	01	1	0211-		●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28681-235-0	02	1	0005-0210	●
210	BOLT; ACL BRKT STD CAB(FT*M) M12X35 FLANGE	0-28681-235-0	02	1	0211-0512		●
210	BOLT; ACL BRKT STD CAB(FT*M) M12X35 FLANGE	0-28651-235-0	02	1	0601-0610		●
210	BOLT; ACL BRKT STD CAB(FT*M) M12X40 FLANGE	0-28651-240-0	02	1	0611-		●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28681-235-0	04	1	0005-0210			●
210	BOLT; ACL BRKT DOUBLE CAB(FT*W) M12X35 FLANGE	0-28681-235-0	04	1	0211-0512		●
210	BOLT; ACL BRKT DOUBLE CAB(FT*W) M12X35 FLANGE	0-28651-235-0	04	1	0601-		●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0005-0210	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0211-		●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	03	1	0005-0210			●
252	DUCT; AIR INT (A)	1-14219-222-0	01	1	0005-0210			●
252	DUCT; AIR INT (B)	1-14231-819-1	01	1	0005-0210			●
252	DUCT; AIR INT DOUBLE CAB(FT*W) (C)	1-14232-130-0	01	1	0211-		●
258	NUT; AIR DUCT M8 FLANGE	0-91150-108-0	02	1	0005-0210			●
259	BOLT; AIR DUCT TO BRKT M8X20 FLANGE	0-28680-820-0	02	1	0005-0210			●
291	BOLT; ACL M8X25 FLANGE	0-28680-825-0	04	1	0005-0210			●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0005-0210	●		●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0211-		●
409	WASHER; PL,BRKT ID=8.4 OD=18	9-09160-608-0	02	1	0005-0210			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
