5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#95228) — 19 parça
◀

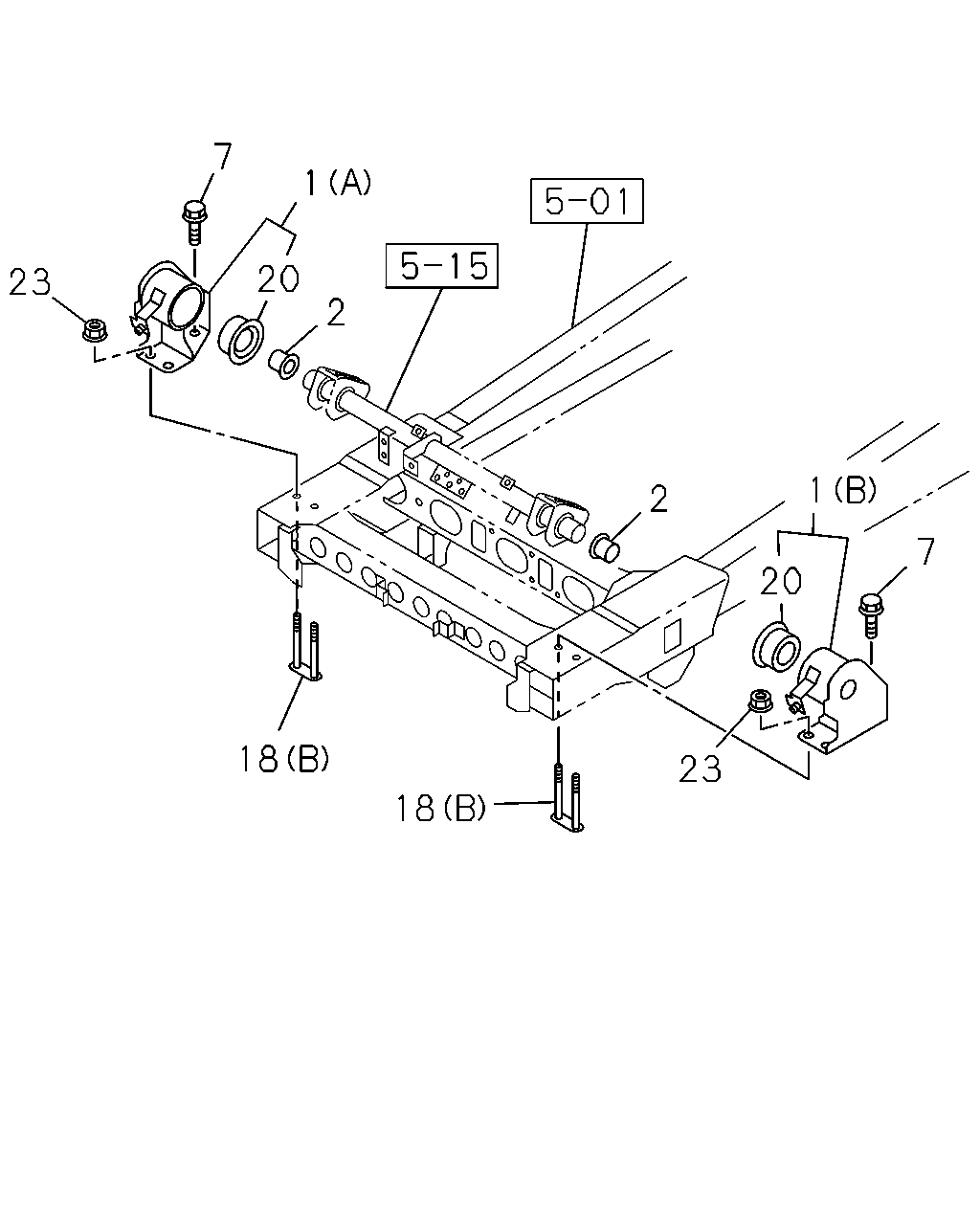

[510A] CAB MTG BRKT FRONT (9 parça)
[510A] CAB MTG BRKT REAR (10 parça)
▶
7
20
2
23
2
20
1
7
23
18
18
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.003 BRACKET; CAB MTG
16.545 (A) IDN
8-98074-798-2
01
1
1208-
1
09.003 BRACKET; CAB MTG
16.545 (B) IDN
8-98074-800-2
01
1
1208-
2
09.009 BUSHING; TORSION BAR
IDN
8-97061-514-0
02
1
1208-
7
09.003 BOLT; BRKT,CAB TILT
M14X40 FLANGE IDN
0-28661-440-0
02
1
1208-
18
09.003 PLATE; MTG BRKT FIX
(A)
8-97034-139-2
02
1
1208-
18
09.003 PLATE; MTG BRKT FIX
(B)
8-98029-285-1
02
1
1208-
20
09.003 RUBBER; MTG,CAB BRKT
8-98007-037-1
01
1
1208-
20
09.003 RUBBER; MTG,CAB BRKT
8-98007-037-1
01
1
1208-
23
09.003 NUT; MTG BRKT
M14
8-98039-989-0
04
1
1208-
156
151
300
149
199
199
149
156
151
300
191
191
192
18
199
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
09.003 PLATE; MTG BRKT FIX
(A)
8-97034-139-2
02
1
1208-
18
09.003 PLATE; MTG BRKT FIX
(B)
8-98029-285-1
02
1
1208-
149
09.023 RUBBER; MTG,CAB,UPR RR
H=94 IDN
8-98038-868-0
02
1
1208-
151
09.011 WASHER; CAB MTG,RR UPR
ID=16.5 OD=58 IDN
8-97359-040-1
02
1
1208-
156
07.529 NUT; CAB MTG RR
M14 FLANGE IDN
0-91180-114-0
02
1
1208-
191
09.003 BOLT; BRKT FIX
M12X40 FLANGE
0-28651-240-0
08
1
1208-
192
09.003 NUT; BRKT FIX
02.042 M12 FLANGE IDN
0-91180-112-0
08
1
1208-
199
09.003 BRACKET; CAB RR MTG
(B)
8-98024-778-1
01
1
1208-
199
09.003 BRACKET; CAB RR MTG
(A)
8-98099-144-1
01
1
1208-
300
09.003 BOLT; MTG RUBBER
02.343 M10X20 FLANGE IDN
0-28651-020-0
08
1
1208-
