Isuzu WW
▶
TRUCKS
▶
NQR
▶
51294 - NQR INDONESIA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

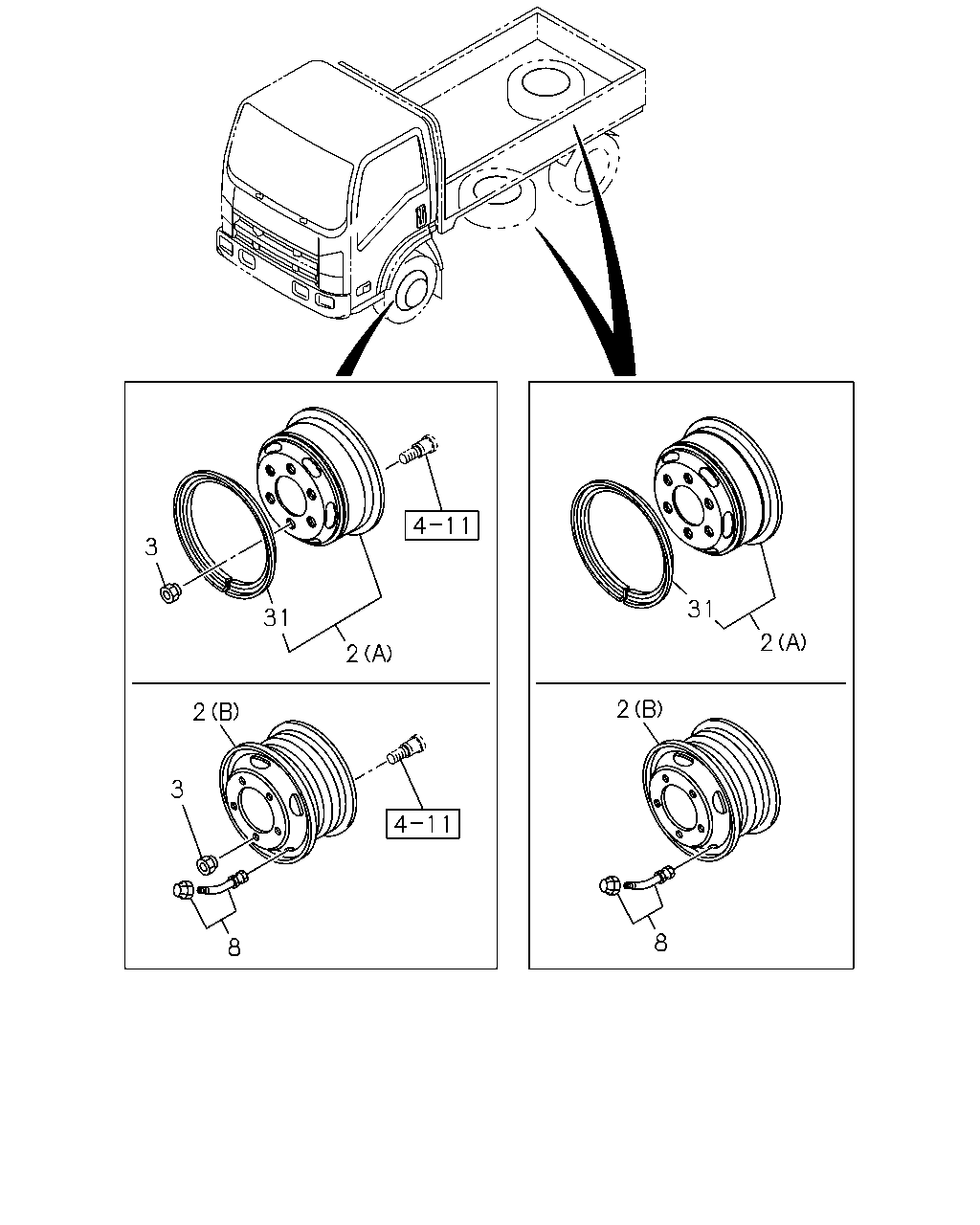

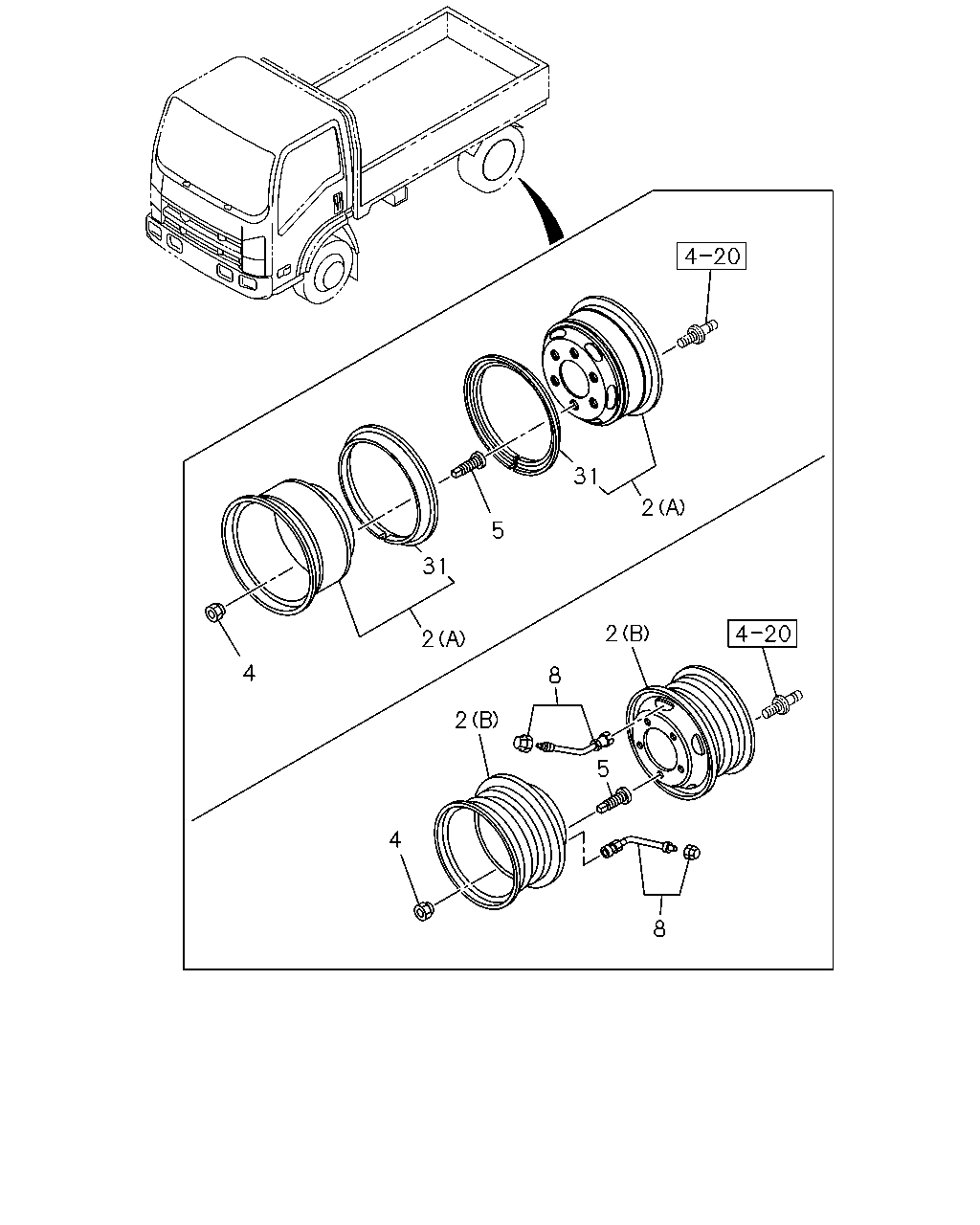

4-80 — ROAD WHEEL
(#95226) — 22 parça
◀
[480A] REAR (12 parça)
[480A] FRONT AND SPARE (10 parça)
▶
4
31
2
5
31
2
4
2
8
2
5
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98168-215-0
01
1
1208-
2
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98168-215-0
06
1
1208-
2
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN
8-94438-670-4
01
1
1208-
2
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN
8-94438-670-4
06
1
1208-
4
05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
06
1
1208-
4
05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
06
1
1208-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD IDN
8-97359-805-0
06
1
1208-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD IDN
8-97359-806-0
06
1
1208-
8
05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) SPARE IDN
8-98221-112-0
01
1
1208-
8
05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) FRONT,REAR IDN
8-98221-112-0
06
1
1208-
31
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) SPARE 16X6.00GS STAMP, BLACK IDN
8-94412-585-0
01
1
1208-
31
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRONT,REAR 16X6.00GS STAMP, BLACK IDN
8-94412-585-0
06
1
1208-
3
31
2
31
2
2
8
2
3
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98168-215-0
01
1
1208-
2
05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98168-215-0
06
1
1208-
2
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN
8-94438-670-4
01
1
1208-
2
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN
8-94438-670-4
06
1
1208-
3
05.813 NUT; WHEEL,FRT AXLE
M20 RH THREAD
8-97359-807-0
06
1
1208-
3
05.813 NUT; WHEEL,FRT AXLE
M20 LH THREAD
8-97359-808-0
06
1
1208-
8
05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) SPARE IDN
8-98221-112-0
01
1
1208-
8
05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) FRONT,REAR IDN
8-98221-112-0
06
1
1208-
31
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) SPARE 16X6.00GS STAMP, BLACK IDN
8-94412-585-0
01
1
1208-
31
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRONT,REAR 16X6.00GS STAMP, BLACK IDN
8-94412-585-0
06
1
1208-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
