Isuzu WW
▶
TRUCKS
▶
NQR
▶
51294 - NQR INDONESIA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶
4-60 — REAR SUSPENSION
(#95223) — 35 parça
◀

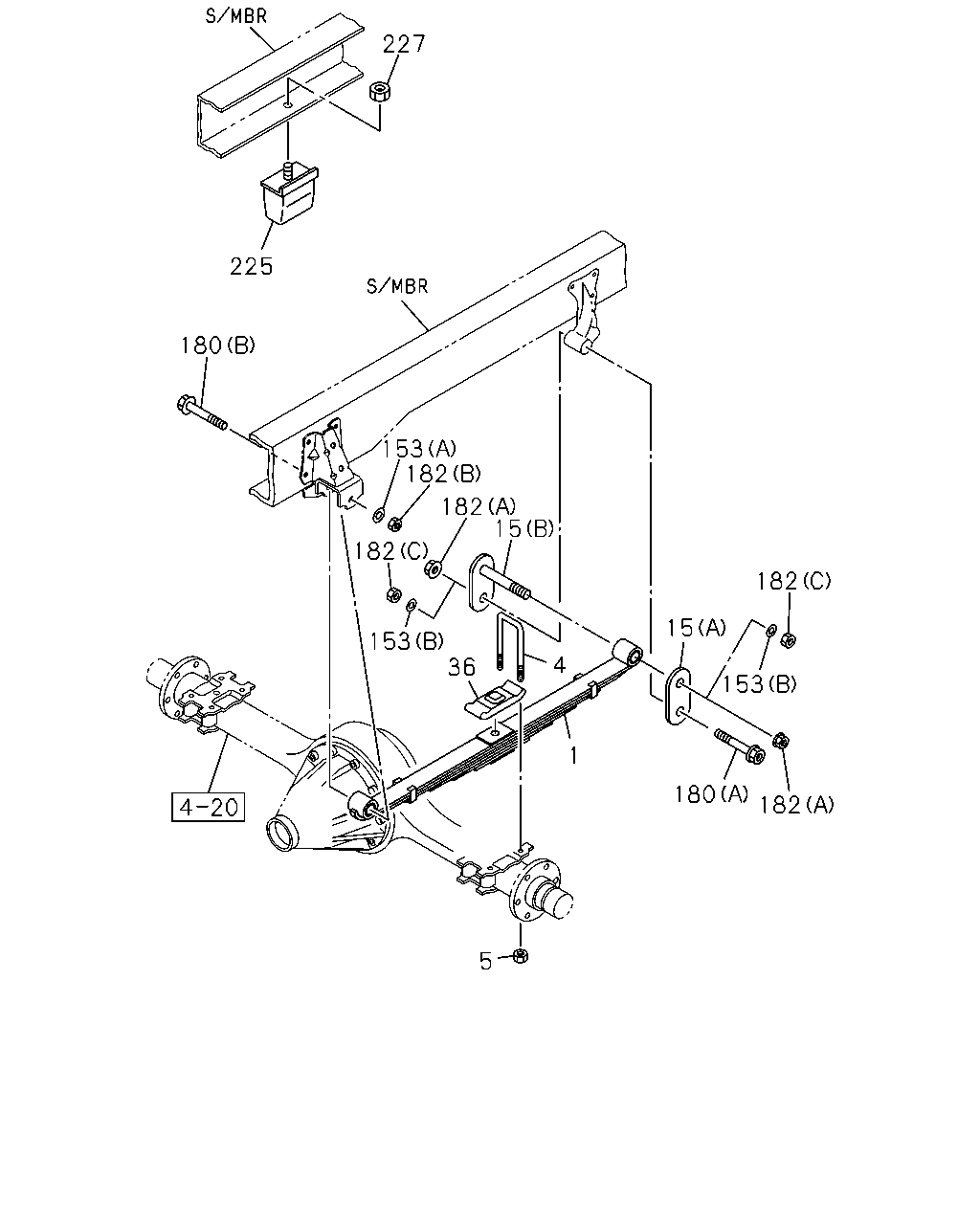

[460A] FIXING;LEAF SPRING (20 parça)

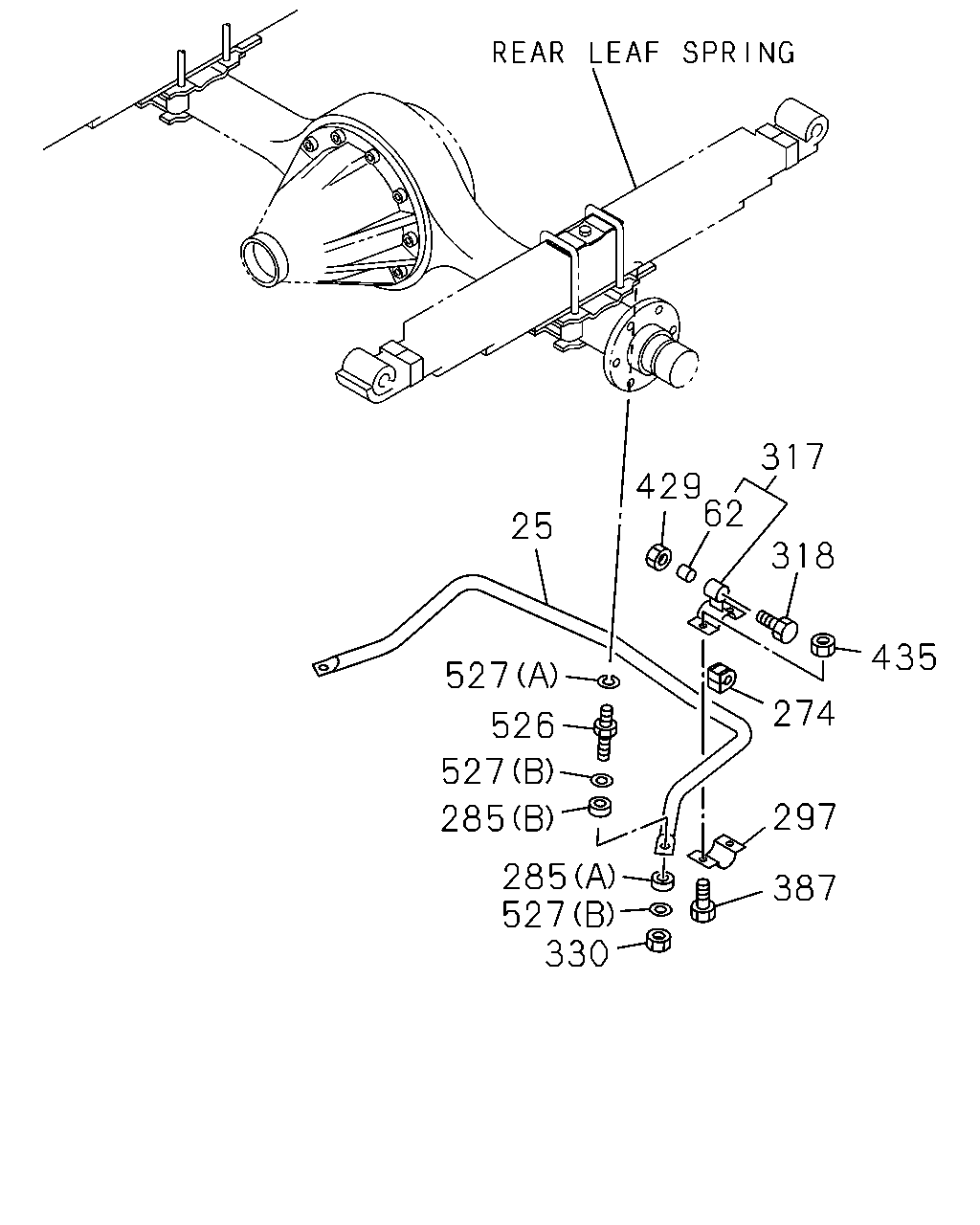

[460A] REAR STABILIZER (15 parça)
▶
227
225
180
153
182
182
15
182
153
36
4
1
5
180
182
153
15
182
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> 9-LEAF
8-98190-548-0
02
1
1208-1302
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> 9-LEAF
8-98236-705-0
02
1
1303-
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. STABILIZER REAR<GN1> 9-LEAF
8-98190-547-0
02
1
1208-1302
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. STABILIZER REAR<GN1> 9-LEAF
8-98236-704-0
02
1
1303-
4
07.516 U-BOLT; RR SPR
L=315
1-51371-194-2
04
1
1208-
5
07.529 NUT; U-BOLT,RR SPR
M18 FLANGE
1-09440-039-1
08
1
1208-
15
07.523 SHACKLE; RR SPR
(A) IDN
8-94118-511-3
02
1
1208-
15
07.523 SHACKLE; RR SPR
(B) IDN
8-97360-011-0
02
1
1208-
36
07.529 SEAT; HELPER RUBBER,RR SPR
07.518 IDN
1-51372-059-0
02
1
1208-
153
07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 IDN
8-98011-489-0
04
1
1208-
153
07.529 WASHER; PL,SPRING PIN
(A) ID=19 IDN
8-97360-119-0
02
1
1208-
180
07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 IDN
8-98011-487-0
02
1
1208-
180
07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 IDN
8-98011-488-0
02
1
1208-
180
07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE
8-97360-110-0
02
1
1208-
180
07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE
8-97360-112-0
02
1
1208-
182
07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (C) M16 IDN
0-91110-516-0
04
1
1208-
182
07.529 NUT; PIN,RR SPR
(B) M18 IDN
0-91110-518-0
02
1
1208-
182
07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE
8-97360-125-0
04
1
1208-
225
07.535 RUBBER; CUSHION,RR SPR
8-98187-342-0
02
1
1208-
227
07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE IDN
0-91180-112-0
02
1
1208-
25
527
526
527
285
285
527
330
387
297
274
435
318
62
429
317
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1>
8-98067-239-0
01
1
1208-
62
07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1>
8-97239-911-0
02
1
1208-
274
07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1>
8-94440-793-0
02
1
1208-
285
07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (A) L=18
8-97089-556-0
02
1
1208-
285
07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (B) L=29
8-97089-557-0
02
1
1208-
297
07.242 CAP; STAB BAR
STABILIZER REAR<GN1>
8-94178-430-2
02
1
1208-
317
07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1>
8-97239-907-0
02
1
1208-
318
07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> M14X70 FLANGE
0-28851-470-0
02
1
1208-
330
07.242 NUT; STAB
STABILIZER REAR<GN1> M12 LOCK NUT
0-91370-012-0
02
1
1208-
387
07.242 BOLT; CAP FIX,STAB BAR
STABILIZER REAR<GN1> 00.029 M10X25 FLANGE IDN
0-28651-025-0
04
1
1208-
429
07.242 NUT; LINK
STABILIZER REAR<GN1> 06.174 M14 FLANGE
8-97360-124-0
02
1
1208-
435
07.242 NUT; CAP
STABILIZER REAR<GN1> 03.162 M10 FLANGE IDN
0-91180-110-0
04
1
1208-
526
07.535 STUD; STABILIZER
STABILIZER REAR<GN1> 07.242
8-97360-120-0
02
1
1208-
527
07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> 05.605 (A) ID=14.2
0-91510-514-0
02
1
1208-
527
07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> (B) ID=12.5
8-97360-055-0
04
1
1208-
