4-55 — FRONT LEAF SPRING (#95222) — 64 parça

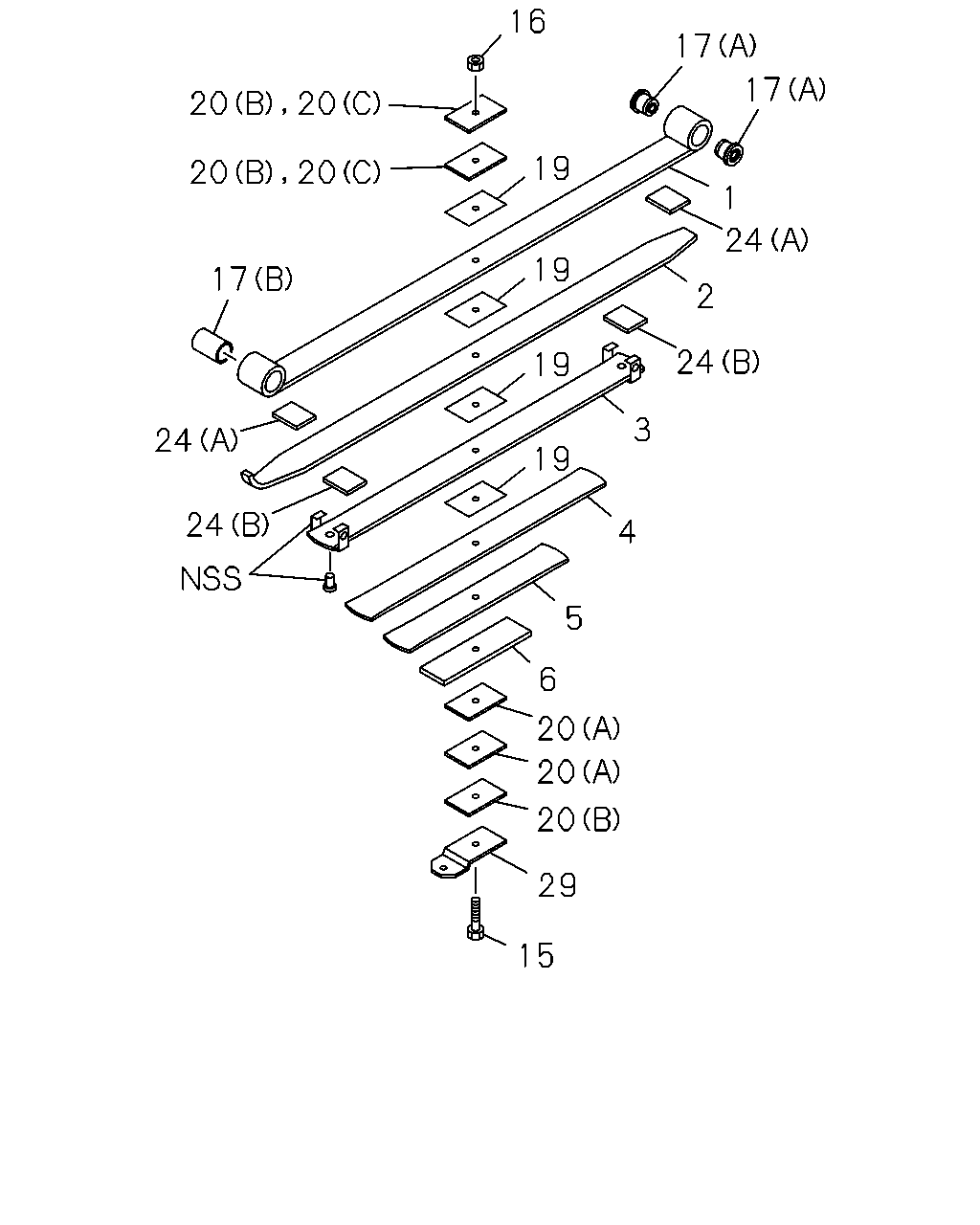

çizim 288495
16 17 17 19 1 24 19 2 19 24 3 19 4 5 6 20 20 20 29 15 24 24 17 20 20 20 20
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: H = 8-98190-546-1, 98190546 		8-98193-072-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
IDN ASM PART: A = 8-98190-539-1, 98190539 		8-98193-086-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
IDN ASM PART: B = 8-98190-540-1, 98190540 		8-98193-093-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-98190-541-1, 98190541 		8-98193-100-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: D = 8-98190-542-1, 98190542 		8-98193-107-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: E = 8-98190-543-1, 98190543 		8-98193-114-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: F = 8-98190-544-1, 98190544 		8-98193-121-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: G = 8-98190-545-1, 98190545 		8-98193-128-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: H = 8-98190-546-1, 98190546 		8-98193-073-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
IDN ASM PART: A = 8-98190-539-1, 98190539 		8-98193-087-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
IDN ASM PART: B = 8-98190-540-1, 98190540 		8-98193-094-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-98190-541-1, 98190541 		8-98193-101-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: D = 8-98190-542-1, 98190542 		8-98193-108-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: E = 8-98190-543-1, 98190543 		8-98193-115-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: F = 8-98190-544-1, 98190544 		8-98193-122-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: G = 8-98190-545-1, 98190545 		8-98193-129-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: H = 8-98190-546-1, 98190546 		8-98193-074-1 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
IDN ASM PART: A = 8-98190-539-1, 98190539 		8-98193-088-1 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
IDN ASM PART: B = 8-98190-540-1, 98190540 		8-98193-095-1 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: C = 8-98190-541-1, 98190541 		8-98193-102-1 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: D = 8-98190-542-1, 98190542 		8-98193-109-1 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: E = 8-98190-543-1, 98190543 		8-98193-116-1 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: F = 8-98190-544-1, 98190544 		8-98193-123-1 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: G = 8-98190-545-1, 98190545 		8-98193-130-1 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: H = 8-98190-546-1, 98190546 		8-98193-075-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
IDN ASM PART: A = 8-98190-539-1, 98190539 		8-98193-089-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
IDN ASM PART: B = 8-98190-540-1, 98190540 		8-98193-096-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: C = 8-98190-541-1, 98190541 		8-98193-103-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: D = 8-98190-542-1, 98190542 		8-98193-110-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: E = 8-98190-543-1, 98190543 		8-98193-117-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: F = 8-98190-544-1, 98190544 		8-98193-124-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: G = 8-98190-545-1, 98190545 		8-98193-131-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: H = 8-98190-546-1, 98190546 		8-98193-076-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
IDN ASM PART: A = 8-98190-539-1, 98190539 		8-98193-090-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
IDN ASM PART: B = 8-98190-540-1, 98190540 		8-98193-097-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: C = 8-98190-541-1, 98190541 		8-98193-104-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: D = 8-98190-542-1, 98190542 		8-98193-111-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: E = 8-98190-543-1, 98190543 		8-98193-118-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: F = 8-98190-544-1, 98190544 		8-98193-125-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: G = 8-98190-545-1, 98190545 		8-98193-132-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: H = 8-98190-546-1, 98190546 		8-98193-077-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
IDN ASM PART: A = 8-98190-539-1, 98190539 		8-98193-091-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
IDN ASM PART: B = 8-98190-540-1, 98190540 		8-98193-098-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: C = 8-98190-541-1, 98190541 		8-98193-105-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: D = 8-98190-542-1, 98190542 		8-98193-112-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: E = 8-98190-543-1, 98190543 		8-98193-119-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: F = 8-98190-544-1, 98190544 		8-98193-126-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: G = 8-98190-545-1, 98190545 		8-98193-133-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=110, IDN ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542 		8-98081-376-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=115 ASM PART: E = 8-98190-543-1, 98190543, F = 8-98190-544-1, 98190544, G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		8-98152-295-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542, E = 8-98190-543-1, 98190543, F = 8-98190-544-1, 98190544, G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.524, (A) ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542, E = 8-98190-543-1, 98190543, F = 8-98190-544-1, 98190544, G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		8-94118-588-1 02 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.105, (B) ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542, E = 8-98190-543-1, 98190543, F = 8-98190-544-1, 98190544, G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		8-94130-354-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1, IDN ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542, E = 8-98190-543-1, 98190543, F = 8-98190-544-1, 98190544, G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		8-97084-845-0 04 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A), IDN ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, E = 8-98190-543-1, 98190543, F = 8-98190-544-1, 98190544 		8-98039-233-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B), IDN ASM PART: G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		8-98041-368-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B), IDN ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542 		8-98041-368-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A) ASM PART: C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542 		8-98077-684-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(C) ASM PART: E = 8-98190-543-1, 98190543, F = 8-98190-544-1, 98190544, G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		8-98094-959-0 02 1 -
24 07.436 LINER; LEAF SPR,FWD FRT
(A), IDN ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542, E = 8-98190-543-1, 98190543, F = 8-98190-544-1, 98190544, G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		8-97084-848-0 02 1 -
24 07.436 LINER; LEAF SPR,FWD FRT
(B), IDN ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542, E = 8-98190-543-1, 98190543, F = 8-98190-544-1, 98190544, G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		8-98193-187-0 02 1 -1505
24 07.436 LINER; LEAF SPR,FWD FRT
07.506, (B) ASM PART: A = 8-98190-539-1, 98190539, B = 8-98190-540-1, 98190540, C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542, E = 8-98190-543-1, 98190543, F = 8-98190-544-1, 98190544, G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		8-98193-188-0 02 1 1506-
29 07.425 SUPPORTER; LEAF SPR,FRT
ASM PART: C = 8-98190-541-1, 98190541, D = 8-98190-542-1, 98190542 		8-94342-292-1 01 1 -
29 07.425 SUPPORTER; LEAF SPR,FRT
ASM PART: G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		8-98152-826-0 01 1 -
