4-50 — FRONT SUSPENSION (#95221) — 125 parça

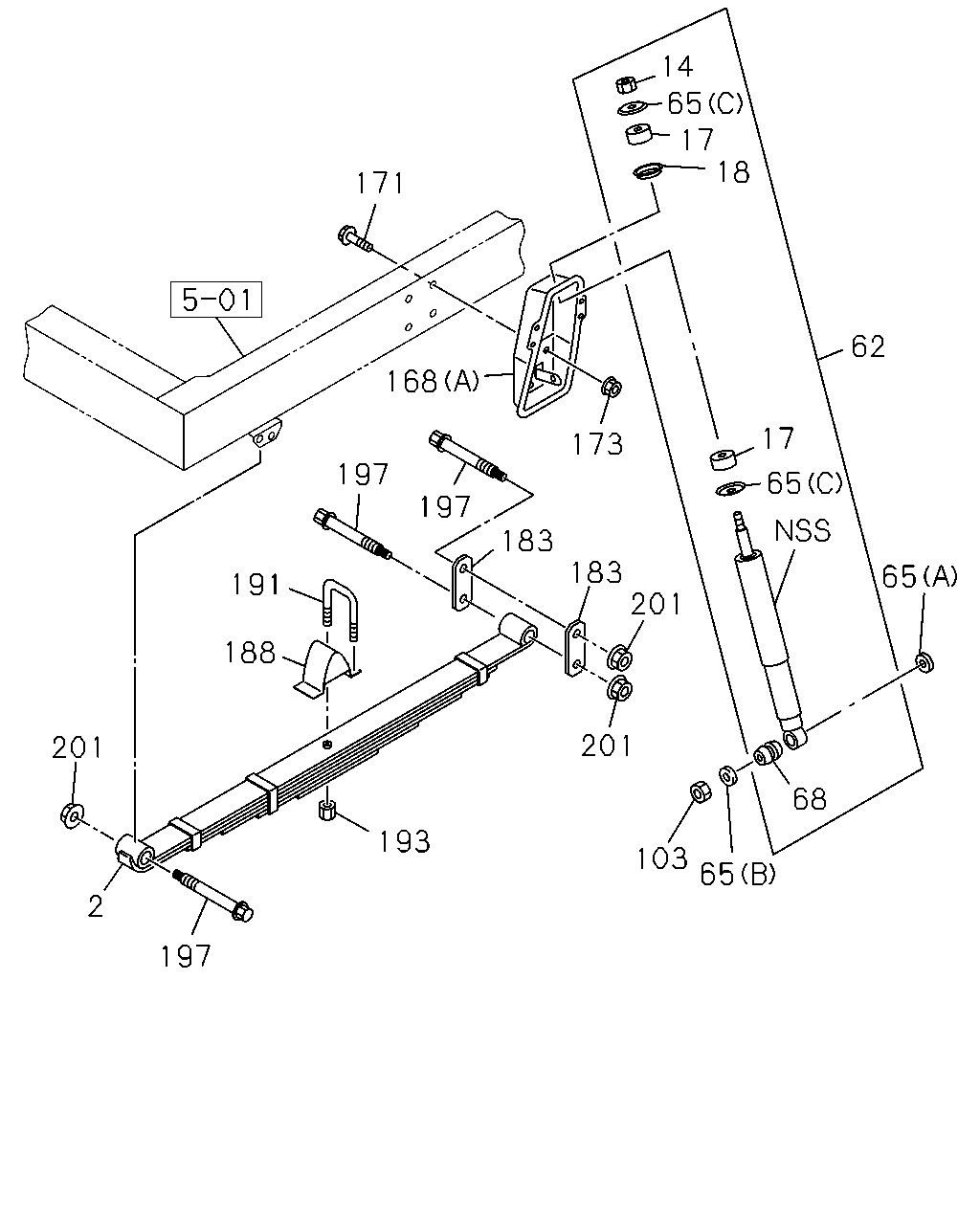

201 2 197 193 201 103 65 68 65 65 17 62 201 183 183 197 168 197 191 188 171 14 65 17 18 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-545-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-546-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-541-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-542-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-543-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-544-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF IDN	8-98190-539-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF IDN	8-98190-540-1	01	1	1208-
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	1208-1209
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	1210-
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	1208-1209
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	1210-
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	1208-1209
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	1210-
62	07.345 ABSORBER ASM; SHOCK,FRT FRONT WIDE TREAD<7GV>	8-98154-636-0	02	1	1208-
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>	8-98080-129-0	02	1	1208-1209
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>	8-98080-129-1	02	1	1210-
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV> BEST VALUE PARTS	5-87610-153-0	02	1	1210-
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	1208-
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	1208-
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	1208-1209
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	1210-
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	1208-1209
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	1210-
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	1208-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-556-0	01	1	1208-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-557-0	01	1	1208-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-406-1	01	1	1208-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-407-1	01	1	1208-
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-001-0	01	1	1208-
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-002-0	01	1	1208-
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	1208-
173	07.395 NUT; S/ABS M12 IDN	8-97360-126-0	08	1	1208-
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	1208-
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	1208-
191	07.417 U-BOLT; FRT SPR L=165	9-51171-075-1	04	1	1208-
193	07.417 NUT; U BOLT M16	8-97360-121-0	08	1	1208-
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122 IDN	8-98011-487-0	06	1	1208-
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	1208-
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16 IDN	0-91110-516-0	06	1	1208-
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	1208-

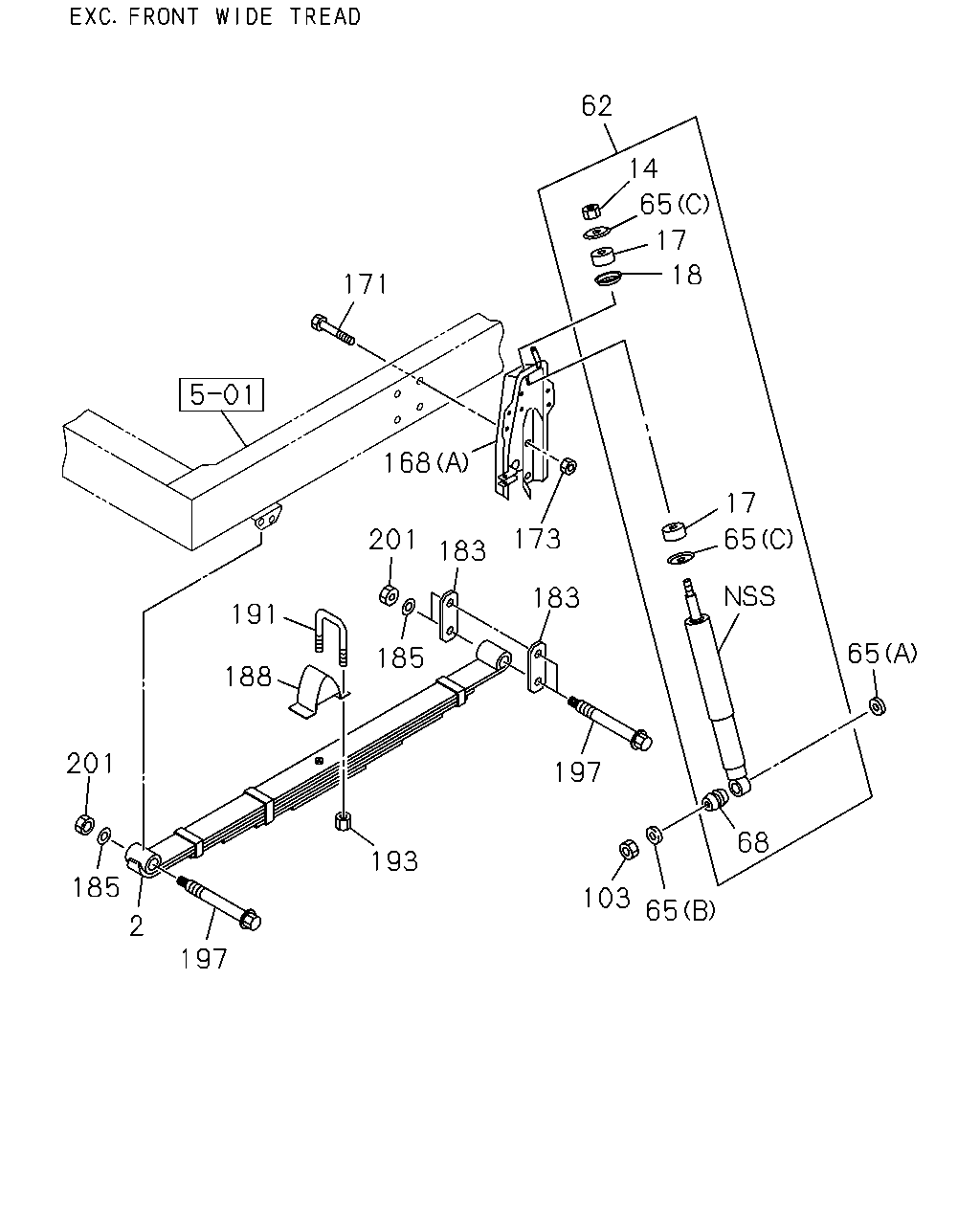

62 14 65 17 18 171 168 201 183 173 183 17 65 65 197 68 65 103 193 185 188 191 201 185 2 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-545-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-546-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-541-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-542-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-543-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-544-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF IDN	8-98190-539-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF IDN	8-98190-540-1	01	1	1208-
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	1208-1209
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	1210-
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	1208-1209
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	1210-
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	1208-1209
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	1210-
62	07.345 ABSORBER ASM; SHOCK,FRT FRONT WIDE TREAD<7GV>	8-98154-636-0	02	1	1208-
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>	8-98080-129-0	02	1	1208-1209
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>	8-98080-129-1	02	1	1210-
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV> BEST VALUE PARTS	5-87610-153-0	02	1	1210-
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	1208-
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	1208-
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	1208-1209
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	1210-
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	1208-1209
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	1210-
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	1208-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-556-0	01	1	1208-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-557-0	01	1	1208-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-406-1	01	1	1208-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-407-1	01	1	1208-
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-001-0	01	1	1208-
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-002-0	01	1	1208-
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	1208-
173	07.395 NUT; S/ABS M12 IDN	8-97360-126-0	08	1	1208-
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	1208-
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> ID=16.5 IDN	8-98011-489-0	06	1	1208-
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	1208-
191	07.417 U-BOLT; FRT SPR L=165	9-51171-075-1	04	1	1208-
193	07.417 NUT; U BOLT M16	8-97360-121-0	08	1	1208-
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122 IDN	8-98011-487-0	06	1	1208-
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	1208-
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16 IDN	0-91110-516-0	06	1	1208-
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	1208-

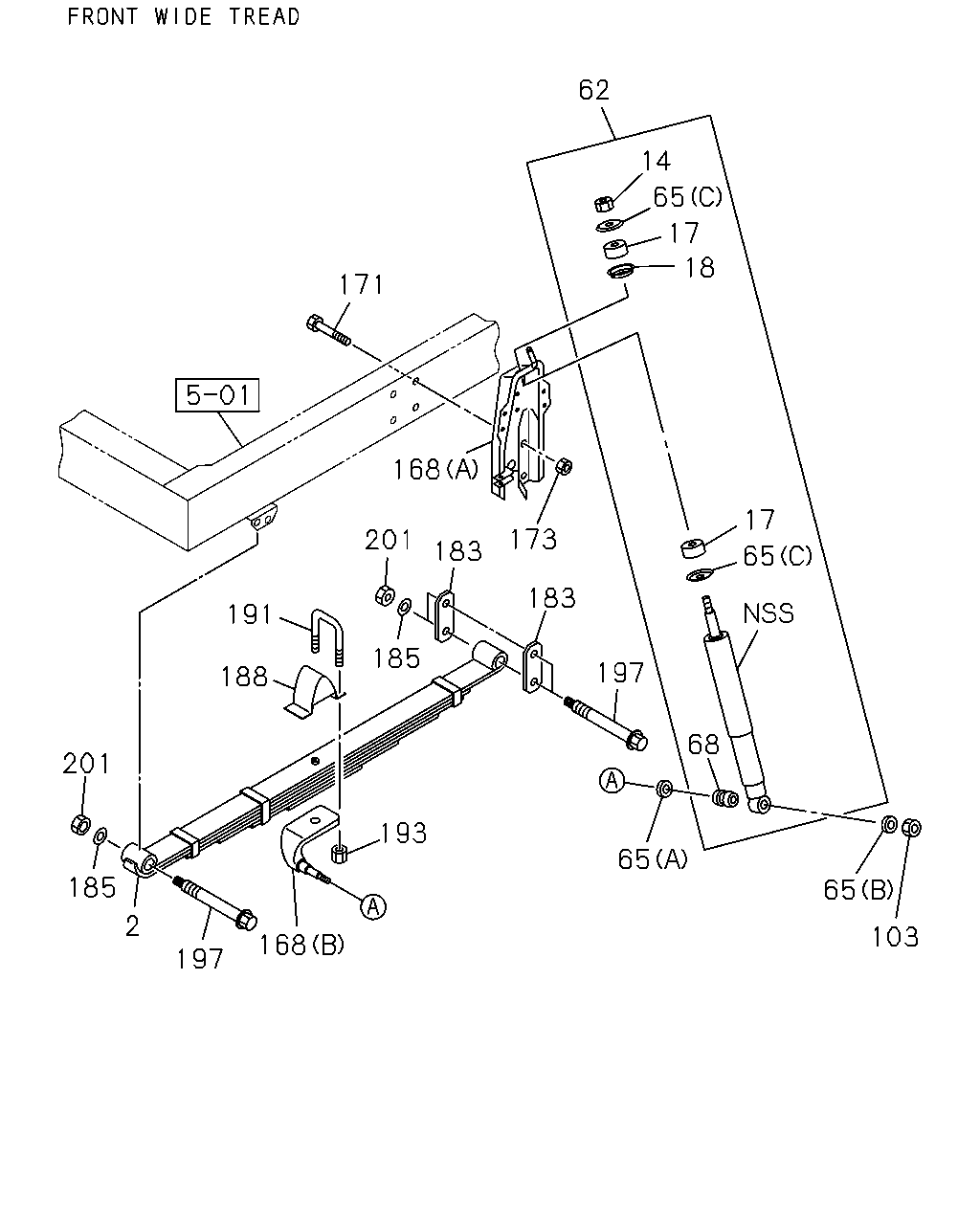

103 65 65 68 65 17 18 17 65 14 62 171 168 173 183 197 201 183 191 185 188 201 185 2 197 168 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-545-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-546-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-541-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98190-542-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-543-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98190-544-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF IDN	8-98190-539-1	01	1	1208-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF IDN	8-98190-540-1	01	1	1208-
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	1208-1209
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	1210-
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	1208-1209
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	1210-
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	1208-1209
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	1210-
62	07.345 ABSORBER ASM; SHOCK,FRT FRONT WIDE TREAD<7GV>	8-98154-636-0	02	1	1208-
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>	8-98080-129-0	02	1	1208-1209
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>	8-98080-129-1	02	1	1210-
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV> BEST VALUE PARTS	5-87610-153-0	02	1	1210-
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	1208-
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	1208-
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	1208-1209
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	1210-
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	1208-1209
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	1210-
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	1208-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-556-0	01	1	1208-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-557-0	01	1	1208-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-406-1	01	1	1208-
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-407-1	01	1	1208-
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-001-0	01	1	1208-
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-002-0	01	1	1208-
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	1208-
173	07.395 NUT; S/ABS M12 IDN	8-97360-126-0	08	1	1208-
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	1208-
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> ID=16.5 IDN	8-98011-489-0	06	1	1208-
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	1208-
191	07.417 U-BOLT; FRT SPR L=165	9-51171-075-1	04	1	1208-
193	07.417 NUT; U BOLT M16	8-97360-121-0	08	1	1208-
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122 IDN	8-98011-487-0	06	1	1208-
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	1208-
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16 IDN	0-91110-516-0	06	1	1208-
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	1208-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
