◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#9522) — 97 parça

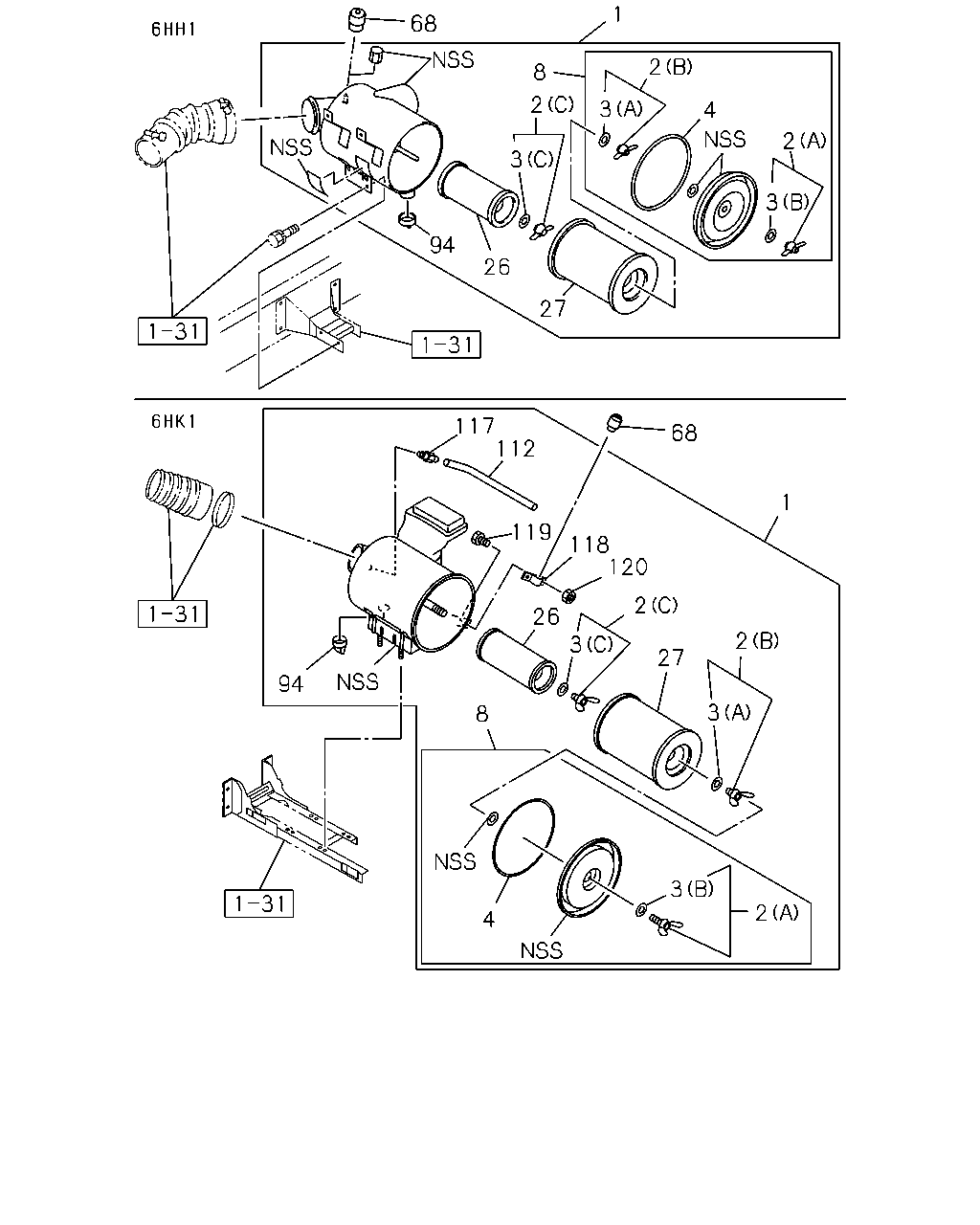

çizim 38440
1 68 2 8 2 3 4 2 3 3 94 26 27 117 112 68 1 119 118 120 26 2 2 3 27 94 3 8 3 2 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CLEANER ASM; AIR 1-14210-830-1 01 1 0005-0210 ●
1 CLEANER ASM; AIR
STD CAB(FT**M*) 		1-14210-807-1 01 1 0211- ●
1 CLEANER ASM; AIR 1-14210-791-1 01 1 0005-0210 ●
1 CLEANER ASM; AIR
DOUBLE CAB(FT**W*) 		1-14210-860-2 01 1 0211- ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0005-0210 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0210 ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0211- ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0210 ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0211- ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0005-0210 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0211- ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0005-0210 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0210 ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0211- ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0210 ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0211- ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-177-0 01 1 0005-0210 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0211- ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0005-0210 ●
4 GASKET; COVER TO BODY
STD CAB(FT**M*) 		1-14219-266-0 01 1 0211- ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0005-0210 ●
4 GASKET; COVER TO BODY
DOUBLE CAB(FT**W*) 		1-14218-128-0 01 1 0211- ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0005-0210 ●
8 COVER ASM; ACL 1-14212-092-0 01 1 0005-0210 ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0211- ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0005-0210 ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 0005-0210 ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0211- ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0005-0210 ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 0005-0210 ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0211- ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005-0210 ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0211- ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 0005-0210 ●
94 VALVE; VACUATOR
STD CAB(FT**M*) 		1-14219-192-0 01 1 0211- ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 0005-0210 ●
94 VALVE; VACUATOR
DOUBLE CAB(FT**W*) 		1-14219-279-0 01 1 0211- ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 0005-0210 ●
112 HOSE; INDICATOR
STD CAB(FT**M*) 		1-14219-259-0 01 1 0211- ●
112 HOSE; INDICATOR
DOUBLE CAB(FT**W*) 		1-14219-260-0 01 1 0211- ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0005-0210 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0211- ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0005-0210 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0211- ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0005-0210 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0211- ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0005-0210 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0211- ●

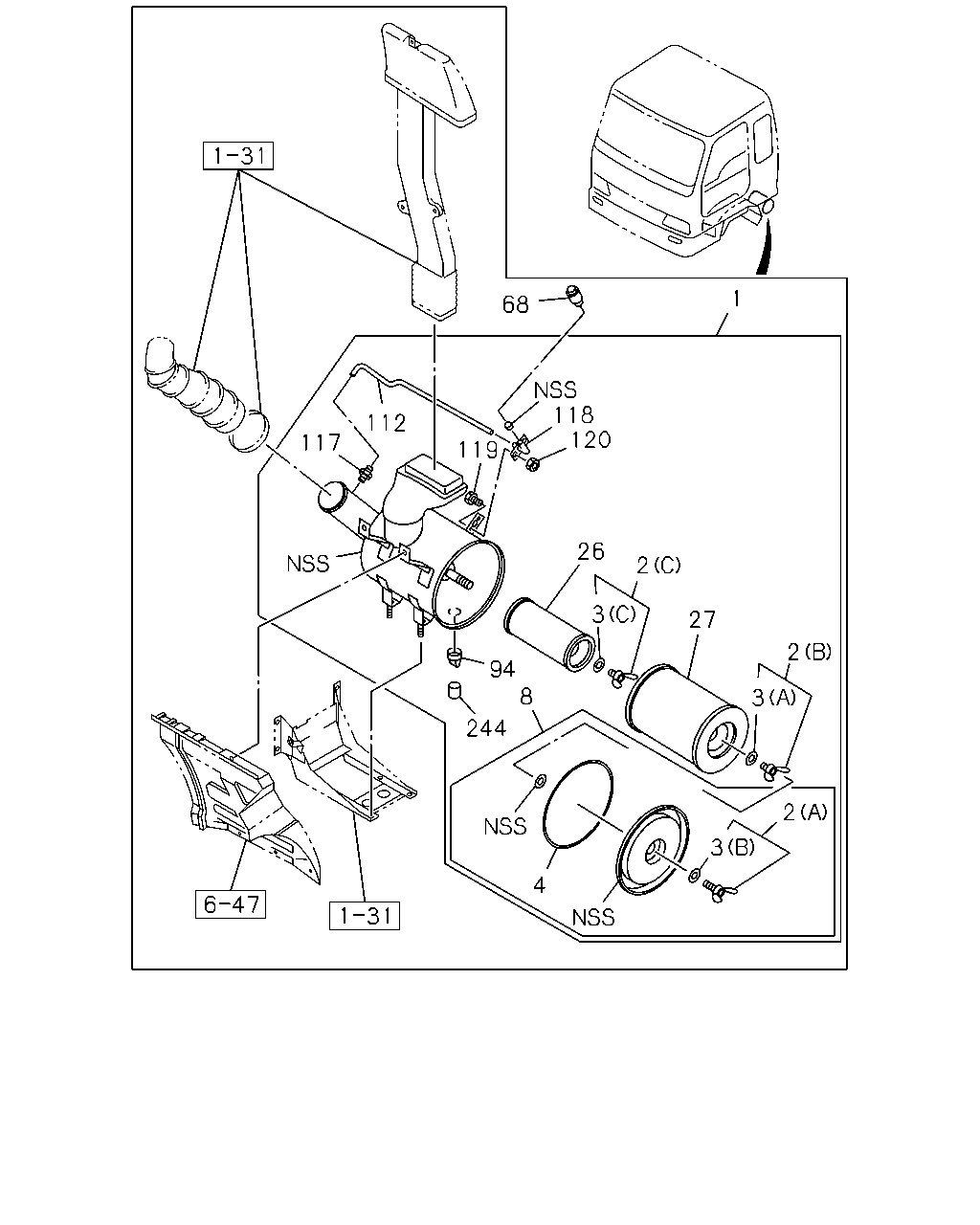

çizim 38463
1 68 118 120 112 117 119 26 2 3 27 2 94 8 3 244 2 3 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CLEANER ASM; AIR 1-14210-830-1 01 1 0005-0210 ●
1 CLEANER ASM; AIR
STD CAB(FT**M*) 		1-14210-807-1 01 1 0211- ●
1 CLEANER ASM; AIR 1-14210-791-1 01 1 0005-0210 ●
1 CLEANER ASM; AIR
DOUBLE CAB(FT**W*) 		1-14210-860-2 01 1 0211- ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0005-0210 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0210 ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0211- ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0210 ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0211- ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0005-0210 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0211- ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0005-0210 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0210 ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0211- ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0210 ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0211- ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-177-0 01 1 0005-0210 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0211- ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0005-0210 ●
4 GASKET; COVER TO BODY
STD CAB(FT**M*) 		1-14219-266-0 01 1 0211- ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0005-0210 ●
4 GASKET; COVER TO BODY
DOUBLE CAB(FT**W*) 		1-14218-128-0 01 1 0211- ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0005-0210 ●
8 COVER ASM; ACL 1-14212-092-0 01 1 0005-0210 ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0211- ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0005-0210 ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 0005-0210 ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0211- ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0005-0210 ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 0005-0210 ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0211- ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005-0210 ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0211- ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 0005-0210 ●
94 VALVE; VACUATOR
STD CAB(FT**M*) 		1-14219-192-0 01 1 0211- ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 0005-0210 ●
94 VALVE; VACUATOR
DOUBLE CAB(FT**W*) 		1-14219-279-0 01 1 0211- ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 0005-0210 ●
112 HOSE; INDICATOR
STD CAB(FT**M*) 		1-14219-259-0 01 1 0211- ●
112 HOSE; INDICATOR
DOUBLE CAB(FT**W*) 		1-14219-260-0 01 1 0211- ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0005-0210 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0211- ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0005-0210 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0211- ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0005-0210 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0211- ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0005-0210 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0211- ●
244 COVER ASM; VALVE
STD CAB(FT**M*) 		1-14219-281-0 01 1 0211- ●
