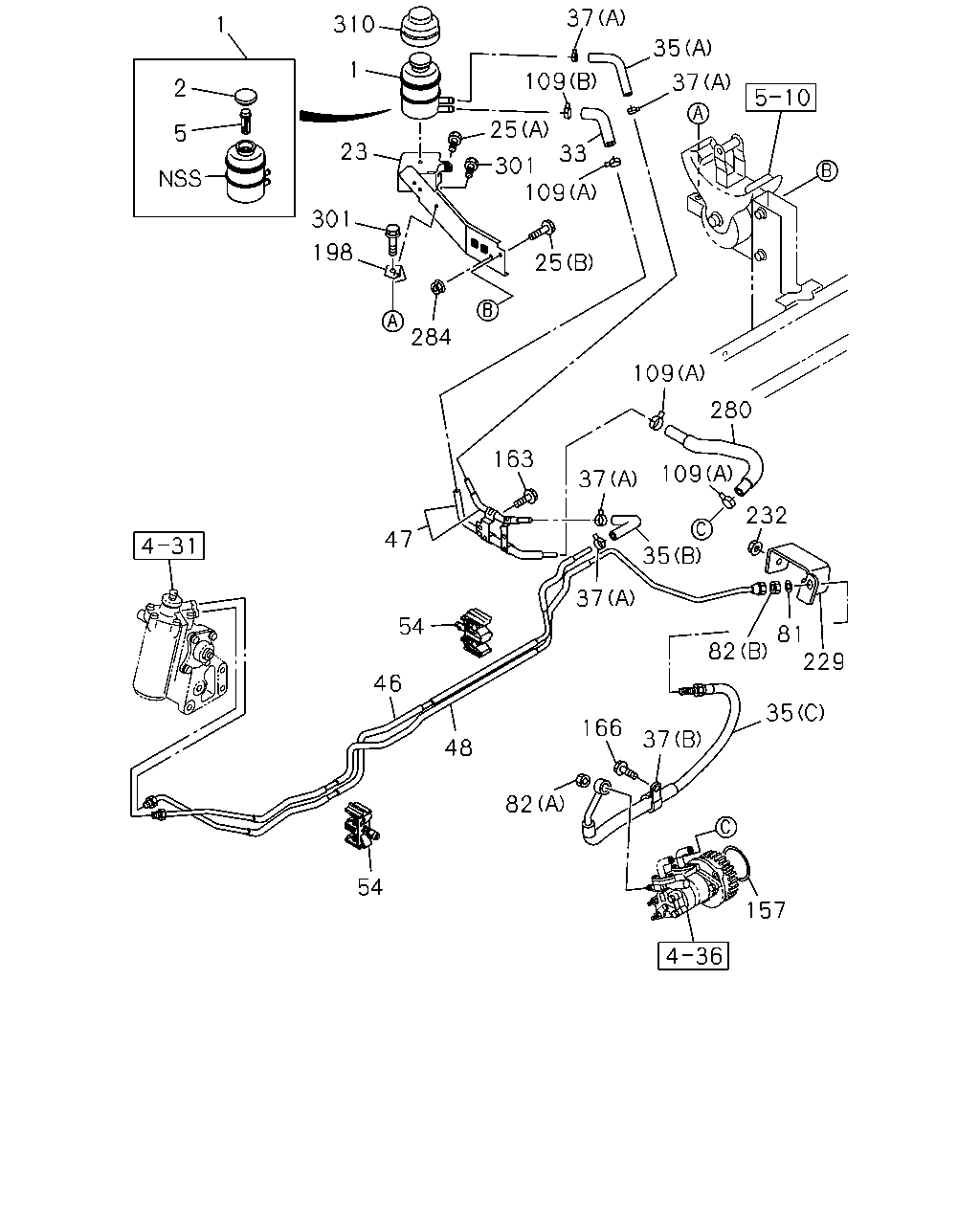

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#95217) — 34 parça

1 2 5 1 310 23 301 284 198 25 109 301 25 109 33 37 35 37 109 109 280 232 81 229 35 82 35 37 37 166 37 82 157 48 46 54 47 54 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1208-
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1208-
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1208-
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1208-
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1208-
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	02	1	1208-
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1208-
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	1208-
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1208-
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1208-
37	01.762 CLIP; HOSE,P/S (B) ID=26 L=26	1-09701-236-0	01	1	1208-
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1208-
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRONT WIDE TREAD<7GV> L=1530	8-98138-265-0	01	1	1208-
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EXC. FRONT WIDE TREAD<7GV>	8-98041-184-3	01	1	1208-
47	06.671 PIPE; RETURN	8-98083-166-1	01	1	1208-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRONT WIDE TREAD<7GV> L=1646	8-98138-267-0	01	1	1208-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRONT WIDE TREAD<7GV>	8-98041-185-4	01	1	1208-
54	06.672 CLIP; OIL PIPE 04.930 ID=10X2 H=37.5 IDN	8-97018-546-0	02	1	1208-
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1208-
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	1208-
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1208-
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1208-
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1208-
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	02	1	1208-
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1208-
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1208-
166	06.672 BOLT; CLIP 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1208-
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1208-
229	06.606 BRACKET; HOSE,POWER STRG	8-98079-341-0	01	1	1208-
232	06.672 NUT; BRKT 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	1208-
280	06.672 HOSE; P/S OIL PUMP,INL	8-98167-142-0	01	1	1208-
284	06.670 NUT; PIPE 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1208-
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1208-
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1208-
