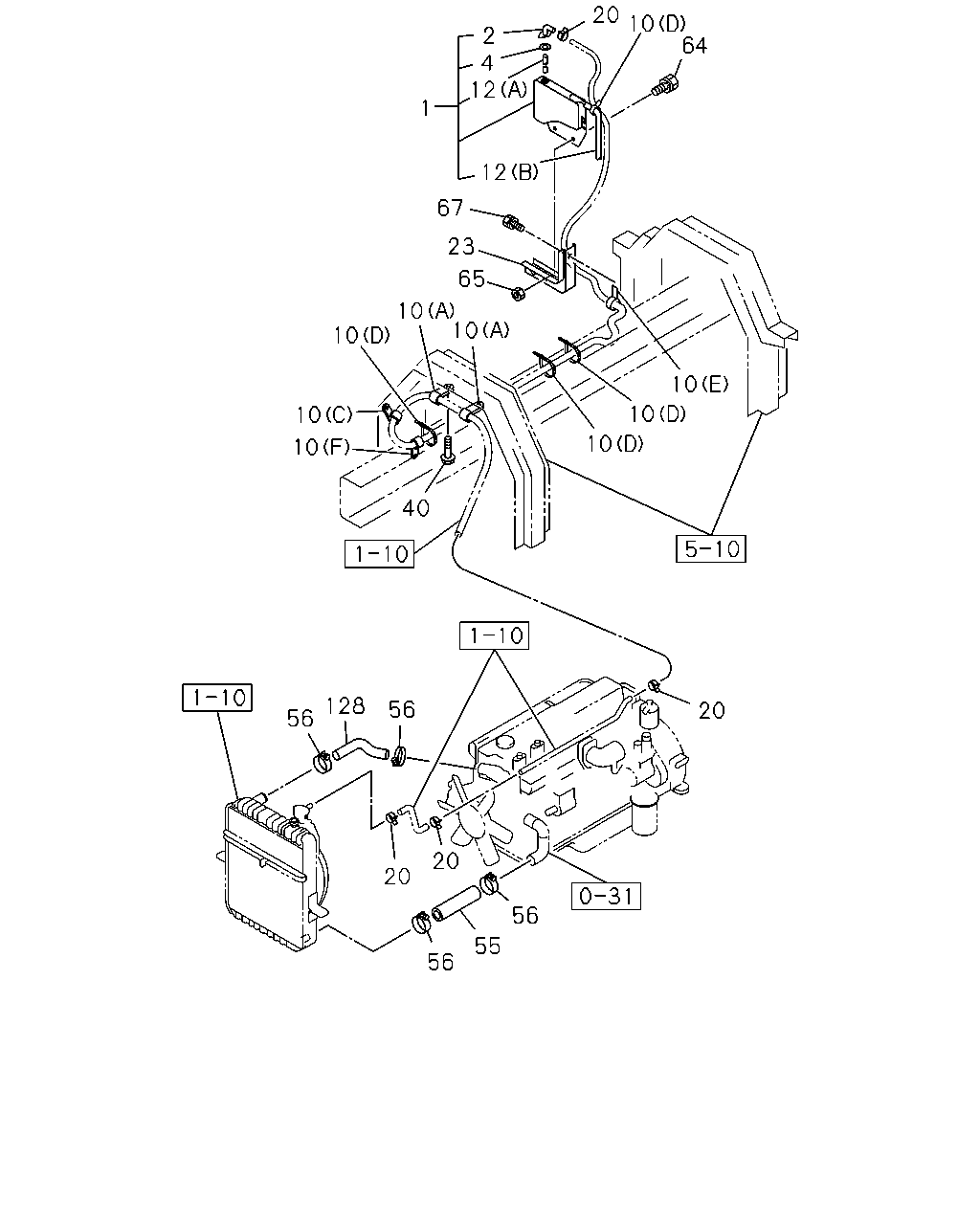

1-11 — RADIATOR HOSE AND SUB TANK (#9521) — 112 parça

20 10 64 2 4 12 1 12 67 23 65 10 10 10 10 10 10 10 10 40 128 56 20 56 20 20 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; SURGE,RAD	1-21480-104-0	01	1	0005-0210	●	●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0211-			●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0005-0210	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0211-			●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0005-0210	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0211-			●
10	CLIP; RUBBER HOSE (G) ID=12 L=70	1-09700-097-1	01	1	0005-0210	●
10	CLIP; RUBBER HOSE STD CAB(FT*M) (G) ID=12 L=70	1-09700-097-1	01	1	0211-			●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	01	1	0005-0008	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	0005-0210	●
10	CLIP; RUBBER HOSE STD CAB(FT*M) (A) ID=14.5 L=40	1-09701-014-0	02	1	0211-			●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	0005-0210	●
10	CLIP; RUBBER HOSE STD CAB(FT*M) (D) L=140	5-09707-031-1	01	1	0211-			●
10	CLIP; RUBBER HOSE (B) ID=13 L=20	9-09525-235-0	01	1	0005-0210	●
10	CLIP; RUBBER HOSE STD CAB(FT*M) (B) ID=13 L=20	9-09525-235-0	01	1	0211-0606			●
10	CLIP; RUBBER HOSE STD CAB(FT*M) (B) ID=13 L=20	0-95235-235-0	01	1	0607-			●
10	CLIP; RUBBER HOSE (H) ID=14 L=44	9-09917-427-0	01	1	0005-0210	●
10	CLIP; RUBBER HOSE STD CAB(FT*M) (H) ID=14 L=44	9-09917-427-0	01	1	0211-			●
10	CLIP; RUBBER HOSE (E) ID=13 L=50	1-09700-027-1	01	1	0005-0210		●
10	CLIP; RUBBER HOSE DOUBLE CAB(FT*W) (E) ID=13 L=50	1-09700-027-1	01	1	0211-			●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0005-0008		●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0009-0210	●	●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0211-			●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	03	1	0005-0210		●
10	CLIP; RUBBER HOSE DOUBLE CAB(FT*W) (D) L=140	5-09707-031-1	03	1	0211-			●
10	CLIP; RUBBER HOSE (F) ID=13 L=40	9-09525-276-0	01	1	0005-0210		●
10	CLIP; RUBBER HOSE DOUBLE CAB(FT*W) (A) ID=14.5 L=40	1-09701-014-0	03	1	0211-			●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0005-0210	●	●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0211-			●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0005-0210	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0211-			●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0005-0210	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0211-			●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0005-0210	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0211-			●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0211-0512			●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-			●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0005-0210	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0005-0210		●
55	HOSE; WATER,RAD OUTLET	1-21437-797-1	01	1	0005-0210	●
55	HOSE; WATER,RAD OUTLET	1-21437-870-1	01	1	0211-			●
55	HOSE; WATER,RAD OUTLET	1-21437-560-2	01	1	0005-0210		●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	0005-0210	●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	0211-			●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0210	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0211-0707			●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0708-			●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0005-0210	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0211-0602			●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	04	1	0603-			●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0005-0210	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0211-0512			●
67	BOLT; BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-			●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	0005-0210	●	●
128	HOSE; WATER,RAD INL	1-21437-757-0	01	1	0211-			●

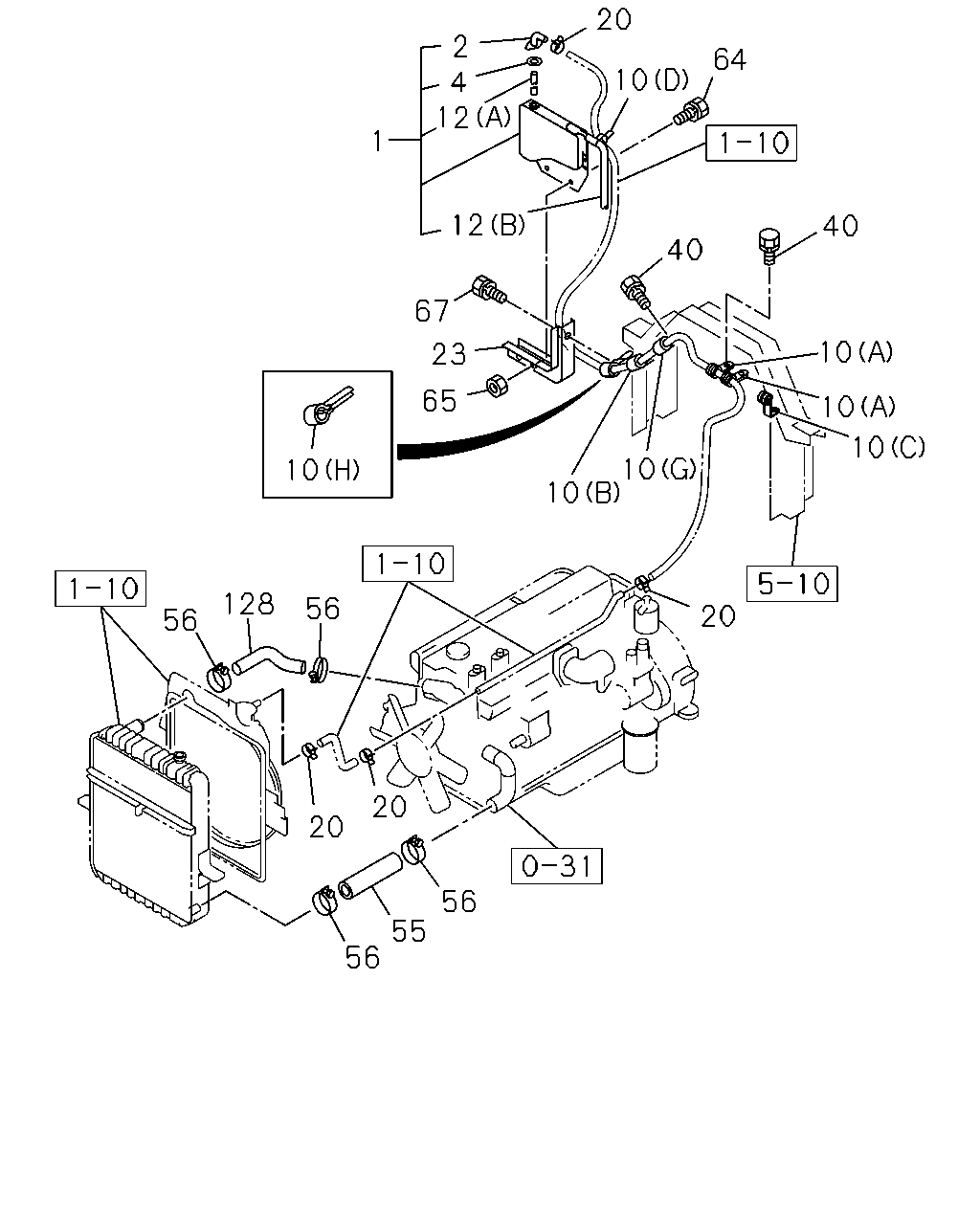

20 2 4 12 64 10 1 12 40 40 67 10 23 65 10 10 10 10 10 128 56 20 56 20 20 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; SURGE,RAD	1-21480-104-0	01	1	0005-0210	●	●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0211-			●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0005-0210	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0211-			●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0005-0210	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0211-			●
10	CLIP; RUBBER HOSE (G) ID=12 L=70	1-09700-097-1	01	1	0005-0210	●
10	CLIP; RUBBER HOSE STD CAB(FT*M) (G) ID=12 L=70	1-09700-097-1	01	1	0211-			●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	01	1	0005-0008	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	0005-0210	●
10	CLIP; RUBBER HOSE STD CAB(FT*M) (A) ID=14.5 L=40	1-09701-014-0	02	1	0211-			●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	0005-0210	●
10	CLIP; RUBBER HOSE STD CAB(FT*M) (D) L=140	5-09707-031-1	01	1	0211-			●
10	CLIP; RUBBER HOSE (B) ID=13 L=20	9-09525-235-0	01	1	0005-0210	●
10	CLIP; RUBBER HOSE STD CAB(FT*M) (B) ID=13 L=20	9-09525-235-0	01	1	0211-0606			●
10	CLIP; RUBBER HOSE STD CAB(FT*M) (B) ID=13 L=20	0-95235-235-0	01	1	0607-			●
10	CLIP; RUBBER HOSE (H) ID=14 L=44	9-09917-427-0	01	1	0005-0210	●
10	CLIP; RUBBER HOSE STD CAB(FT*M) (H) ID=14 L=44	9-09917-427-0	01	1	0211-			●
10	CLIP; RUBBER HOSE (E) ID=13 L=50	1-09700-027-1	01	1	0005-0210		●
10	CLIP; RUBBER HOSE DOUBLE CAB(FT*W) (E) ID=13 L=50	1-09700-027-1	01	1	0211-			●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0005-0008		●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0009-0210	●	●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0211-			●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	03	1	0005-0210		●
10	CLIP; RUBBER HOSE DOUBLE CAB(FT*W) (D) L=140	5-09707-031-1	03	1	0211-			●
10	CLIP; RUBBER HOSE (F) ID=13 L=40	9-09525-276-0	01	1	0005-0210		●
10	CLIP; RUBBER HOSE DOUBLE CAB(FT*W) (A) ID=14.5 L=40	1-09701-014-0	03	1	0211-			●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0005-0210	●	●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0211-			●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0005-0210	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0211-			●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0005-0210	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0211-			●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0005-0210	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0211-			●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0211-0512			●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-			●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0005-0210	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0005-0210		●
55	HOSE; WATER,RAD OUTLET	1-21437-797-1	01	1	0005-0210	●
55	HOSE; WATER,RAD OUTLET	1-21437-870-1	01	1	0211-			●
55	HOSE; WATER,RAD OUTLET	1-21437-560-2	01	1	0005-0210		●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	0005-0210	●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	0211-			●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0210	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0211-0707			●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0708-			●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0005-0210	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0211-0602			●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	04	1	0603-			●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0005-0210	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0211-0512			●
67	BOLT; BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-			●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	0005-0210	●	●
128	HOSE; WATER,RAD INL	1-21437-757-0	01	1	0211-			●
