3-60 — BRAKE PIPING; VACUUM (#95208) — 120 parça

39 116 39 165 184 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16	8-97329-628-0	02	1	1208-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1208-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	1208-
39	04.681 CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1208-

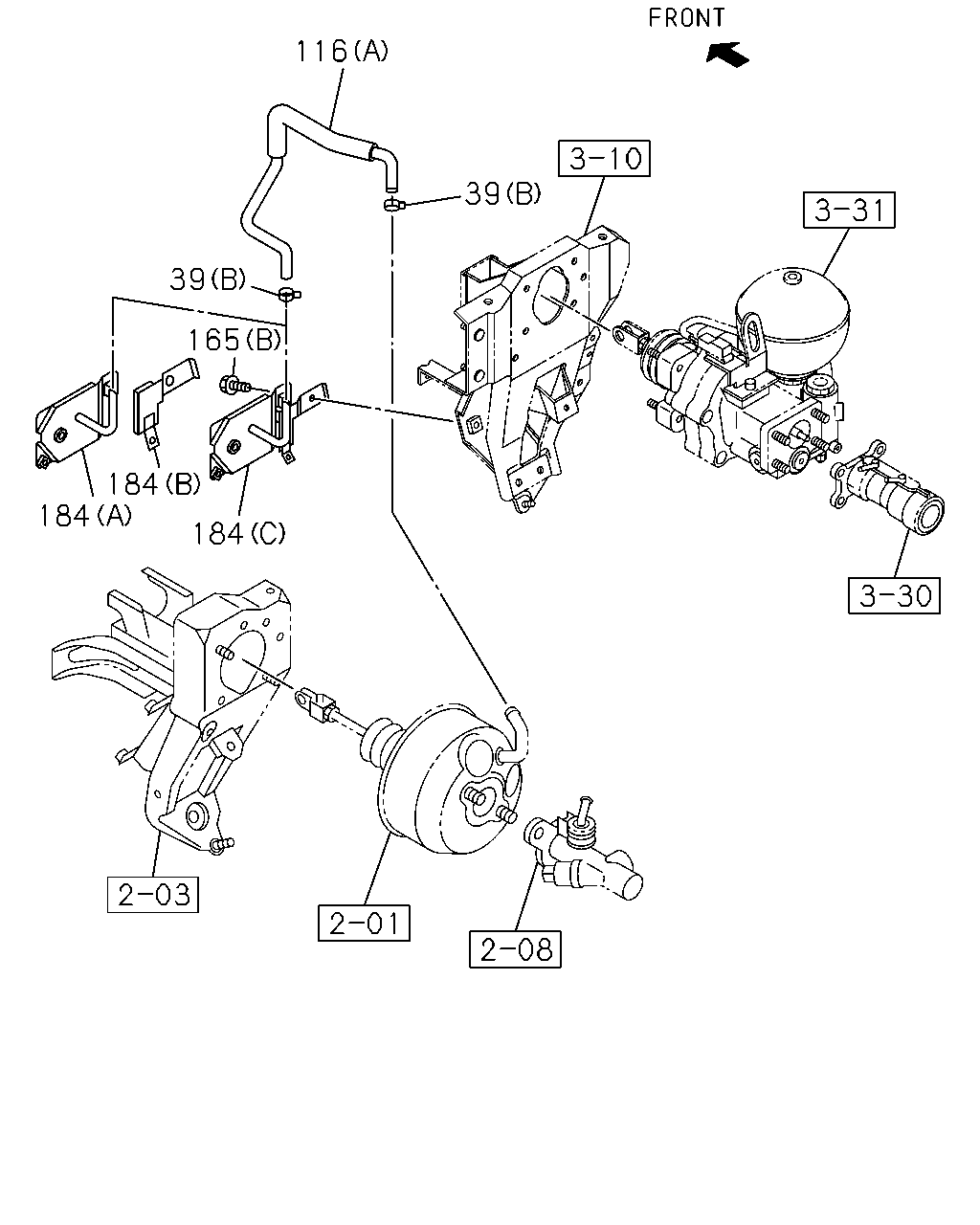

116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98067-702-0	01	1	1208-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-98081-002-2	01	1	1208-
116	04.931 HOSE; VAC,M/VAC (C)	8-98189-220-0	01	1	1208-
116	04.931 HOSE; VAC,M/VAC (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1208-
116	04.931 HOSE; VAC,M/VAC (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1208-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1208-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1208-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (B) IDN	8-98156-526-0	01	1	1208-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (A)	8-98193-145-0	01	1	1208-
184	04.685 BRACKET; UNION FIX (D) IDN	8-98017-628-1	01	1	1208-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98193-144-0	01	1	1208-1311
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98255-539-0	01	1	1312-

202 165 234 108 20 184 39 234 96 116 234 116 12 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1208-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1208-
20	04.686 NUT; BRKT 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	1208-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16	8-97329-628-0	02	1	1208-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1208-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	1208-
39	04.681 CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1208-

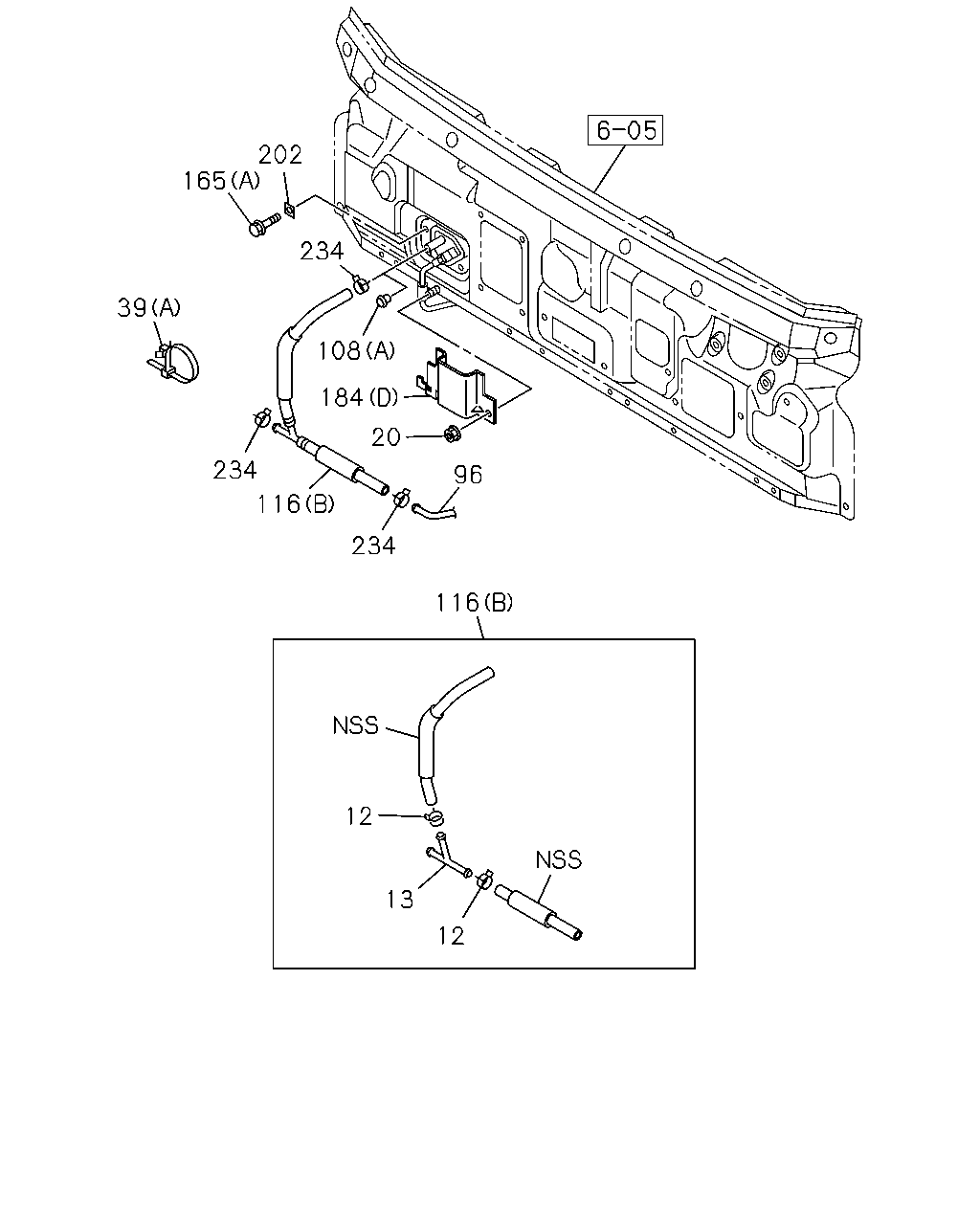

96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98220-579-0	01	1	1208-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17 IDN	8-94128-319-2	01	1	1208-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17 IDN	8-94128-319-2	01	1	1208-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A) IDN	9-09956-353-0	01	1	1208-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98067-702-0	01	1	1208-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-98081-002-2	01	1	1208-
116	04.931 HOSE; VAC,M/VAC (C)	8-98189-220-0	01	1	1208-
116	04.931 HOSE; VAC,M/VAC (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1208-
116	04.931 HOSE; VAC,M/VAC (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1208-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1208-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1208-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (B) IDN	8-98156-526-0	01	1	1208-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (A)	8-98193-145-0	01	1	1208-
184	04.685 BRACKET; UNION FIX (D) IDN	8-98017-628-1	01	1	1208-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98193-144-0	01	1	1208-1311
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98255-539-0	01	1	1312-
202	04.686 SEAL 08.845 IDN	8-97856-616-0	02	1	1208-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16 IDN	8-94238-568-0	03	1	1208-

122 136 136 136 236 158 78 136 44 78 136 136 44 78 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

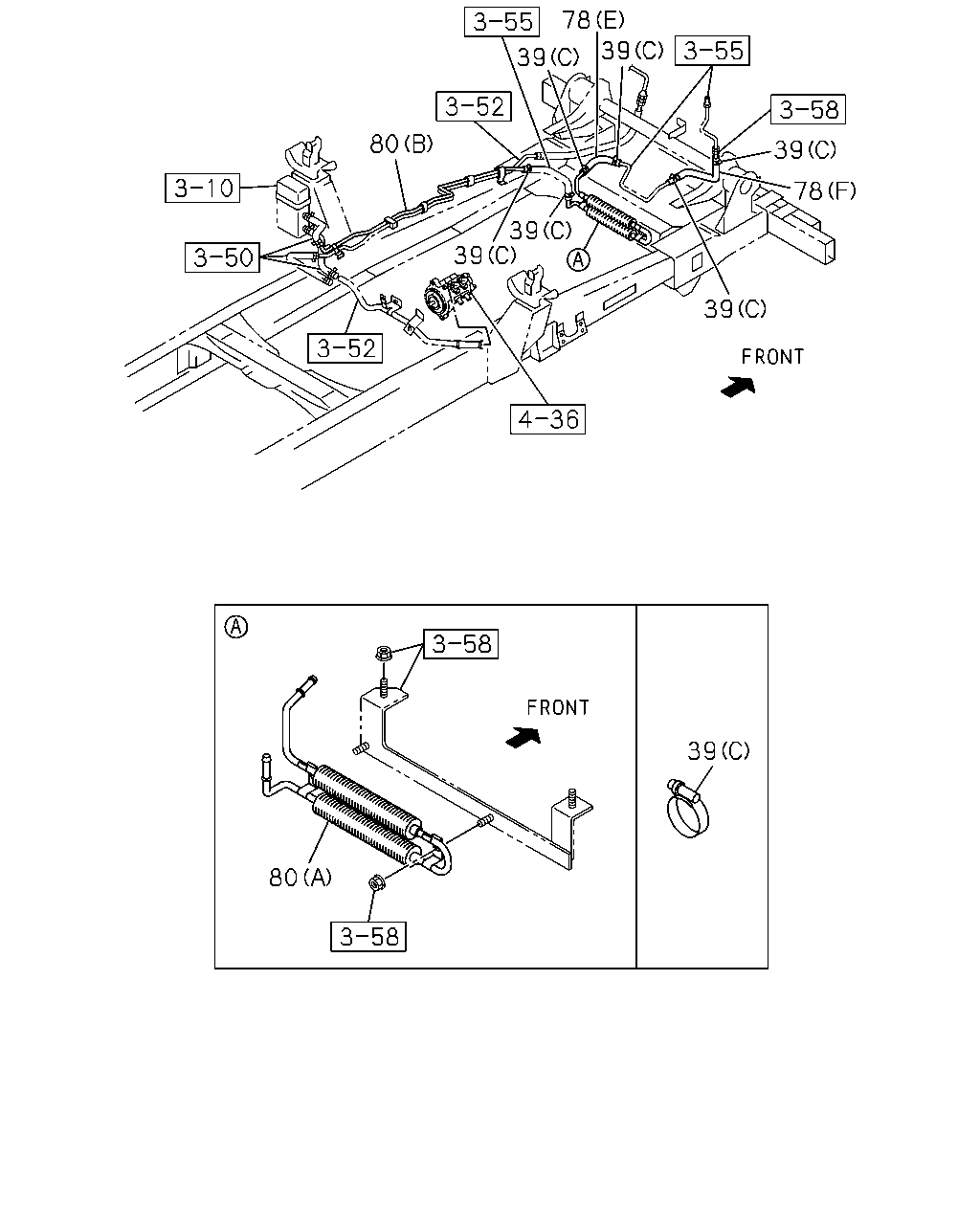

44	04.930 PIPE; VAC,MAG VLV (B)	8-98057-425-1	01	1	1208-
44	04.930 PIPE; VAC,MAG VLV (A)	8-98070-194-0	01	1	1208-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98080-833-1	01	1	1208-
78	04.931 HOSE; VAC,PIPE TO PIPE 04.686 (E)	8-97386-589-0	01	1	1208-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98057-462-0	01	1	1208-
78	04.931 HOSE; VAC,PIPE TO PIPE (F)	8-98136-613-0	01	1	1208-
78	04.931 HOSE; VAC,PIPE TO PIPE (D)	8-98169-859-0	01	1	1208-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98171-287-0	01	1	1208-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-104-0	01	1	1208-
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	02	1	1208-
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1208-
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	1208-
236	04.930 BOLT; PIPE 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1208-

78 39 80 39 39 39 39 39 39 80 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16	8-97329-628-0	02	1	1208-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1208-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	1208-
39	04.681 CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1208-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98080-833-1	01	1	1208-
78	04.931 HOSE; VAC,PIPE TO PIPE 04.686 (E)	8-97386-589-0	01	1	1208-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98057-462-0	01	1	1208-
78	04.931 HOSE; VAC,PIPE TO PIPE (F)	8-98136-613-0	01	1	1208-
78	04.931 HOSE; VAC,PIPE TO PIPE (D)	8-98169-859-0	01	1	1208-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98171-287-0	01	1	1208-
80	04.930 PIPE; VAC,ENG SIDE 04.685 (A)	8-97386-605-0	01	1	1208-
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98097-788-0	01	1	1208-

116 169 75 66 66 66 116 66 66 169 169 235 108 116 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1208-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	04	1	1208-
75	04.930 NUT; CLIP,VAC HOSE 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1208-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17 IDN	8-94128-319-2	01	1	1208-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17 IDN	8-94128-319-2	01	1	1208-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A) IDN	9-09956-353-0	01	1	1208-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98067-702-0	01	1	1208-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-98081-002-2	01	1	1208-
116	04.931 HOSE; VAC,M/VAC (C)	8-98189-220-0	01	1	1208-
116	04.931 HOSE; VAC,M/VAC (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1208-
116	04.931 HOSE; VAC,M/VAC (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1208-

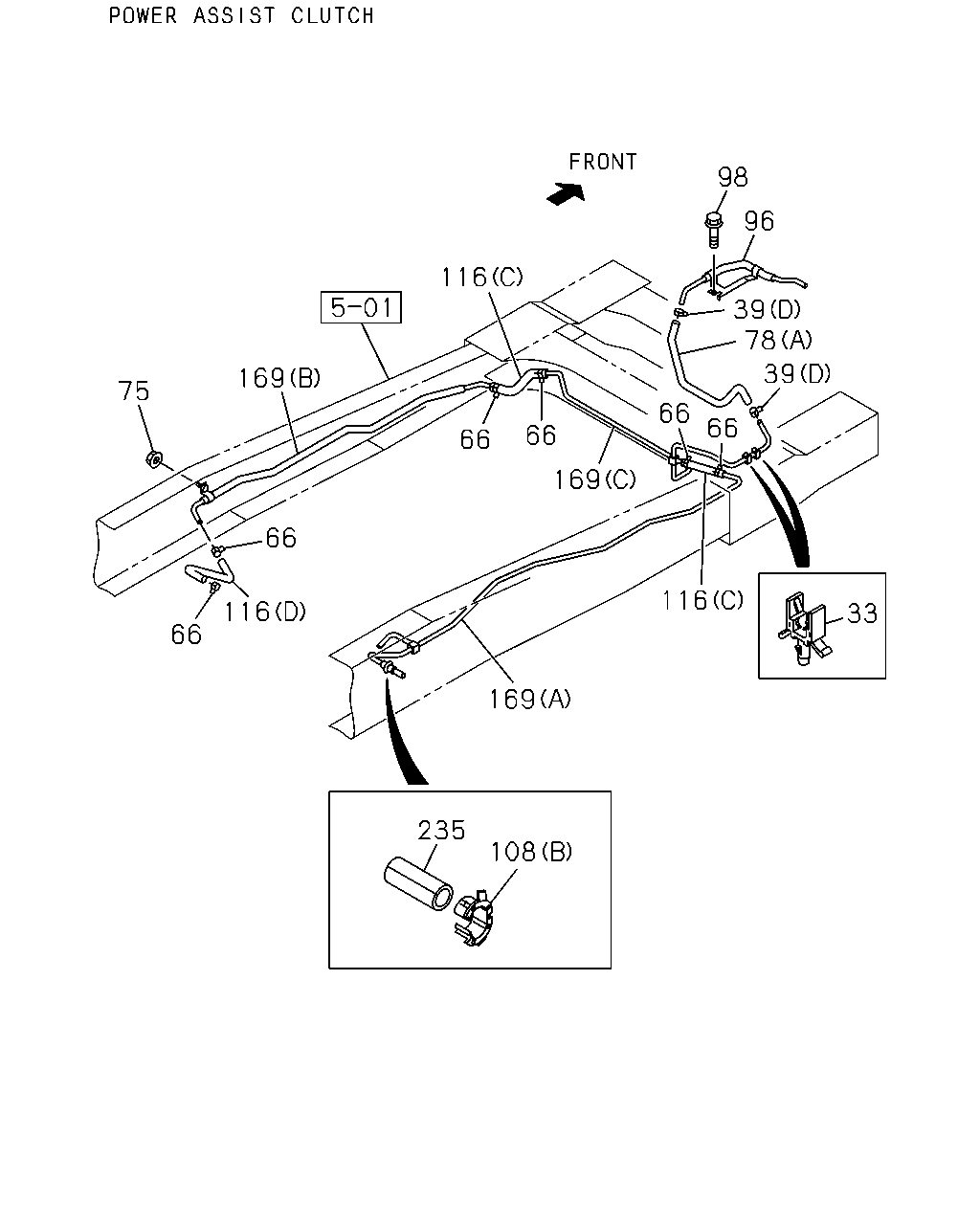

169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (C)	8-98041-053-4	01	1	1208-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98101-041-1	01	1	1208-
169	04.930 PIPE; VAC,BOOSTER SIDE (B)	8-98100-234-2	01	1	1208-

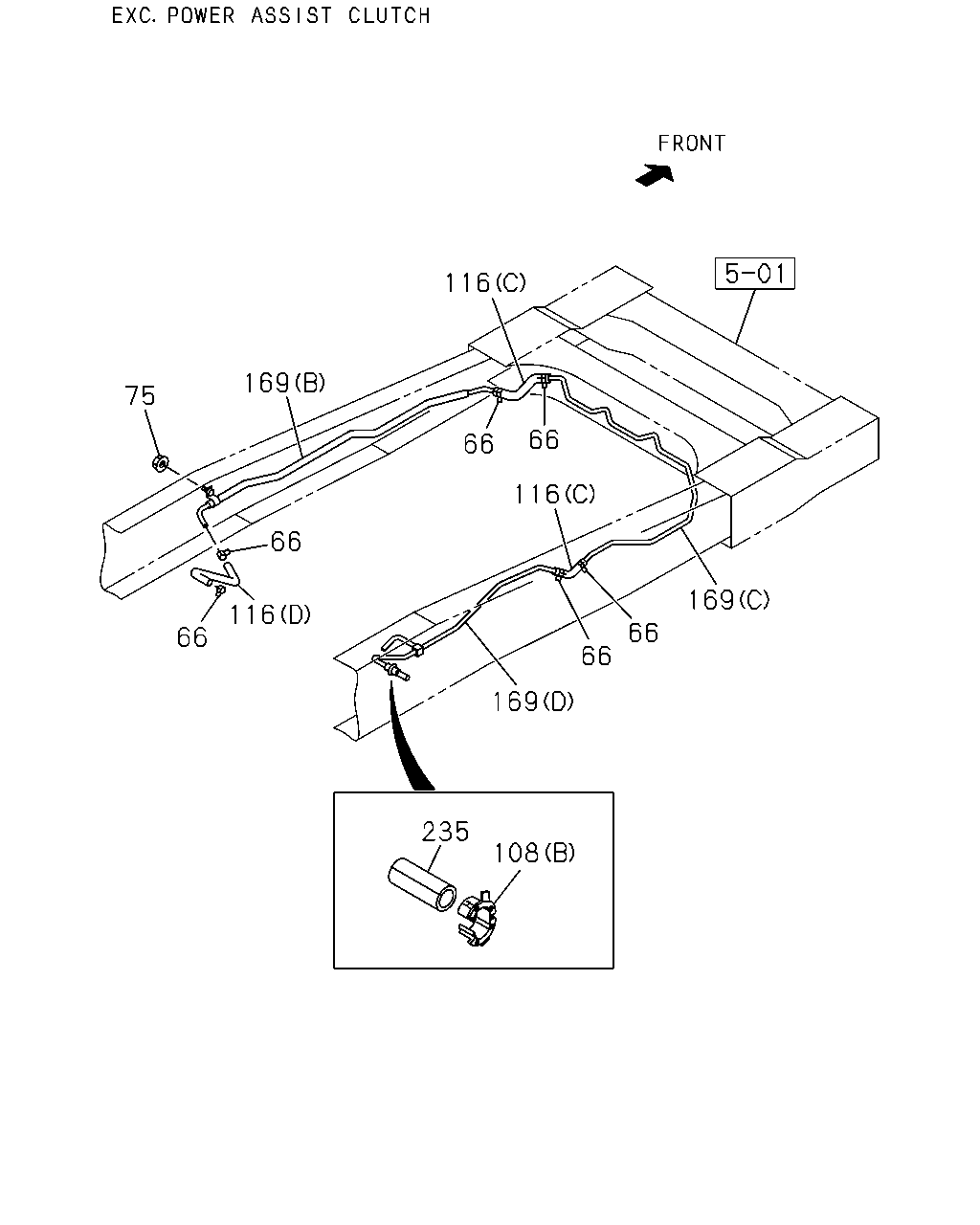

169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98122-740-1	01	1	1208-
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98132-683-1	01	1	1208-
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1208-
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1208-

98 116 96 39 39 78 66 66 66 169 66 116 33 169 116 66 169 75 66 235 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) ID=10 H=40 IDN	8-94462-219-0	02	1	1208-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16	8-97329-628-0	02	1	1208-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1208-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	1208-
39	04.681 CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1208-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1208-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	04	1	1208-
75	04.930 NUT; CLIP,VAC HOSE 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1208-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98080-833-1	01	1	1208-
78	04.931 HOSE; VAC,PIPE TO PIPE 04.686 (E)	8-97386-589-0	01	1	1208-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98057-462-0	01	1	1208-
78	04.931 HOSE; VAC,PIPE TO PIPE (F)	8-98136-613-0	01	1	1208-
78	04.931 HOSE; VAC,PIPE TO PIPE (D)	8-98169-859-0	01	1	1208-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98171-287-0	01	1	1208-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98220-579-0	01	1	1208-
98	04.931 BOLT; VAC PIPE FIX POWER ASSIST CLUTCH(S2T) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1208-
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1208-
98	04.931 BOLT; VAC PIPE FIX 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1208-
98	04.931 BOLT; VAC PIPE FIX 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1208-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17 IDN	8-94128-319-2	01	1	1208-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17 IDN	8-94128-319-2	01	1	1208-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A) IDN	9-09956-353-0	01	1	1208-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98067-702-0	01	1	1208-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-98081-002-2	01	1	1208-
116	04.931 HOSE; VAC,M/VAC (C)	8-98189-220-0	01	1	1208-
116	04.931 HOSE; VAC,M/VAC (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1208-
116	04.931 HOSE; VAC,M/VAC (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1208-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (C)	8-98041-053-4	01	1	1208-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98101-041-1	01	1	1208-
169	04.930 PIPE; VAC,BOOSTER SIDE (B)	8-98100-234-2	01	1	1208-
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98122-740-1	01	1	1208-
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98132-683-1	01	1	1208-
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1208-
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1208-
