51294 - NQR INDONESIA
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#95205) — 14 parça
◀

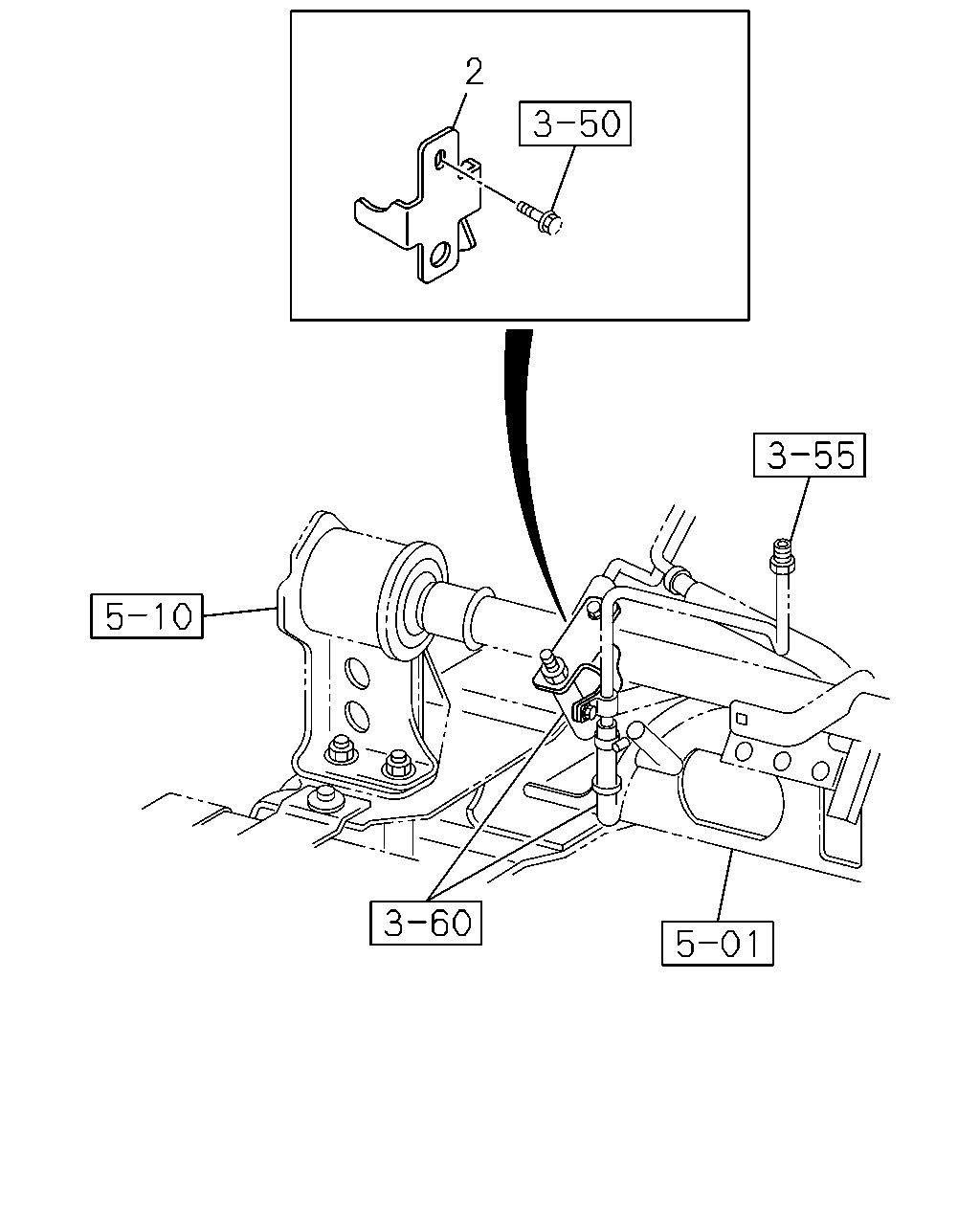

[352A] HYDRO BRAKE BOOSTER(N0.1) (1 parça)

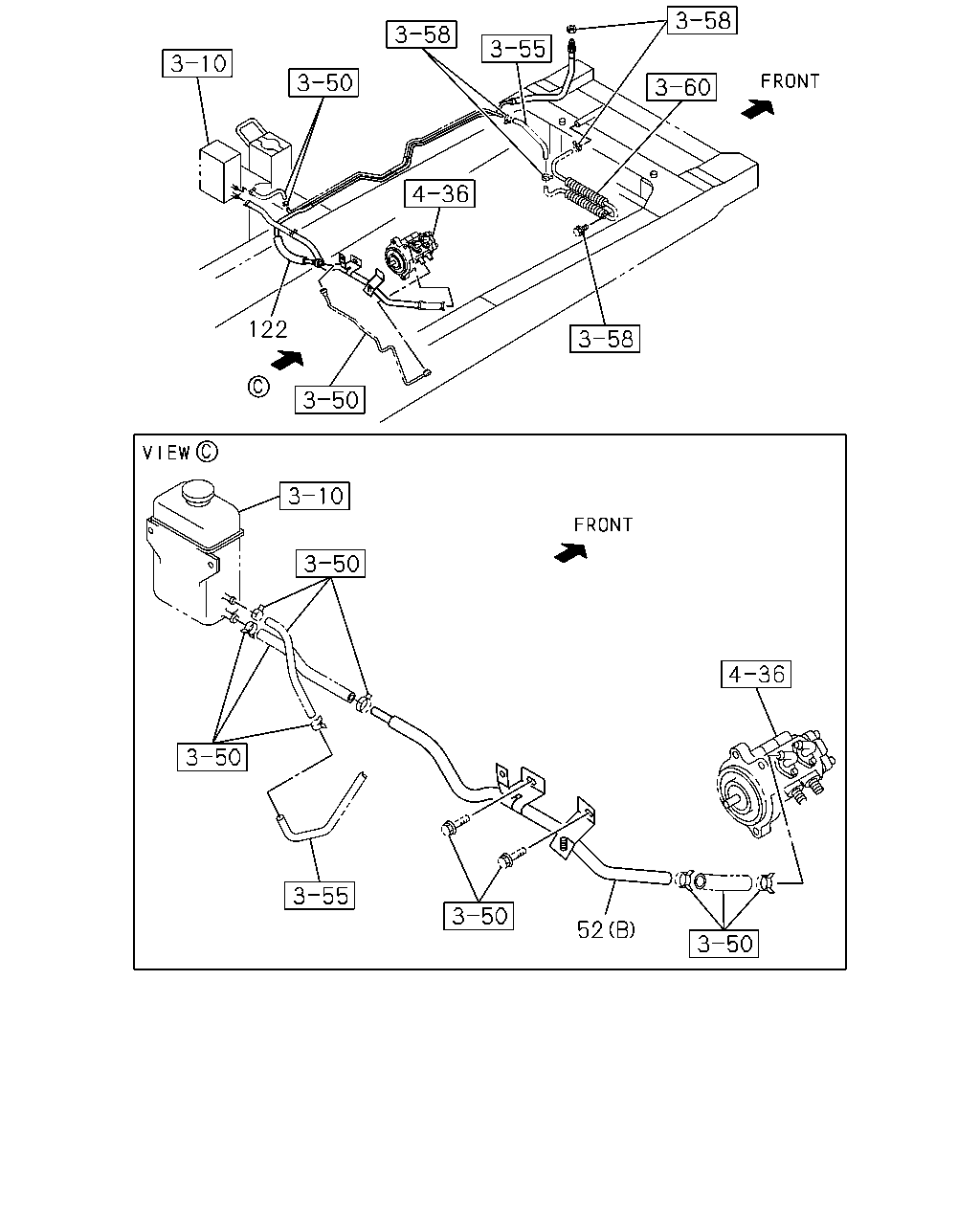

[352A] HYDRO BRAKE BOOSTER(N0.2) (3 parça)

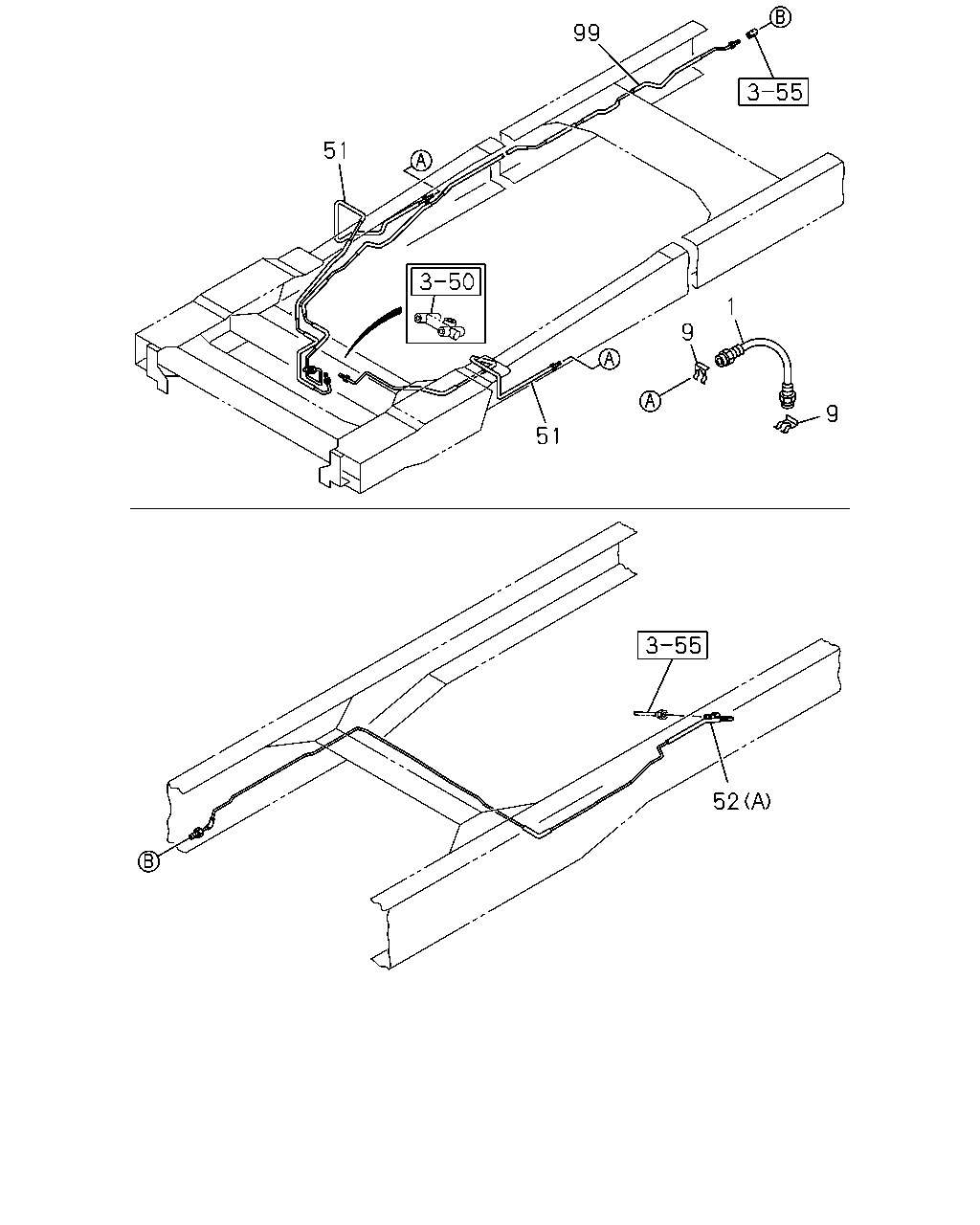

[352A] PIPING (10 parça)
▶
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
04.681 BRACKET; FLEX HOSE,FRT BRK
IDN
8-98136-577-0
01
1
1208-
122
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
04.685 PIPE; BRK
(B)
8-97370-410-0
01
1
1208-
52
04.685 PIPE; BRK
(A) 2WAY TO REAR
8-98057-264-0
01
1
1208-
122
04.685 PIPE ASM; BRK,2 WAY
8-98214-082-0
01
1
1208-
51
99
51
9
1
9
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.680 HOSE; FLEX,FRT BRK
FRONT WIDE TREAD<7GV>
8-97115-907-0
02
1
1208-
1
04.680 HOSE; FLEX,FRT BRK
EXC. FRONT WIDE TREAD<7GV>
8-97039-543-1
02
1
1208-
9
04.686 CLIP; FLEX HOSE,FRT BRK
8-97360-054-0
02
1
1208-
51
04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> 5/6WAY TO FRONT
8-98136-043-0
01
1
1208-
51
04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> 5/6WAY TO FRONT
8-98136-044-0
01
1
1208-
51
04.685 PIPE; BRK
EXC. FRONT WIDE TREAD<7GV> 5/6WAY TO FRONT
8-98065-765-1
01
1
1208-
51
04.685 PIPE; BRK
EXC. FRONT WIDE TREAD<7GV> 5/6WAY TO FRONT
8-98065-766-1
01
1
1208-
52
04.685 PIPE; BRK
(B)
8-97370-410-0
01
1
1208-
52
04.685 PIPE; BRK
(A) 2WAY TO REAR
8-98057-264-0
01
1
1208-
99
04.686 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR
8-98057-259-0
01
1
1208-
