◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#95200) — 55 parça

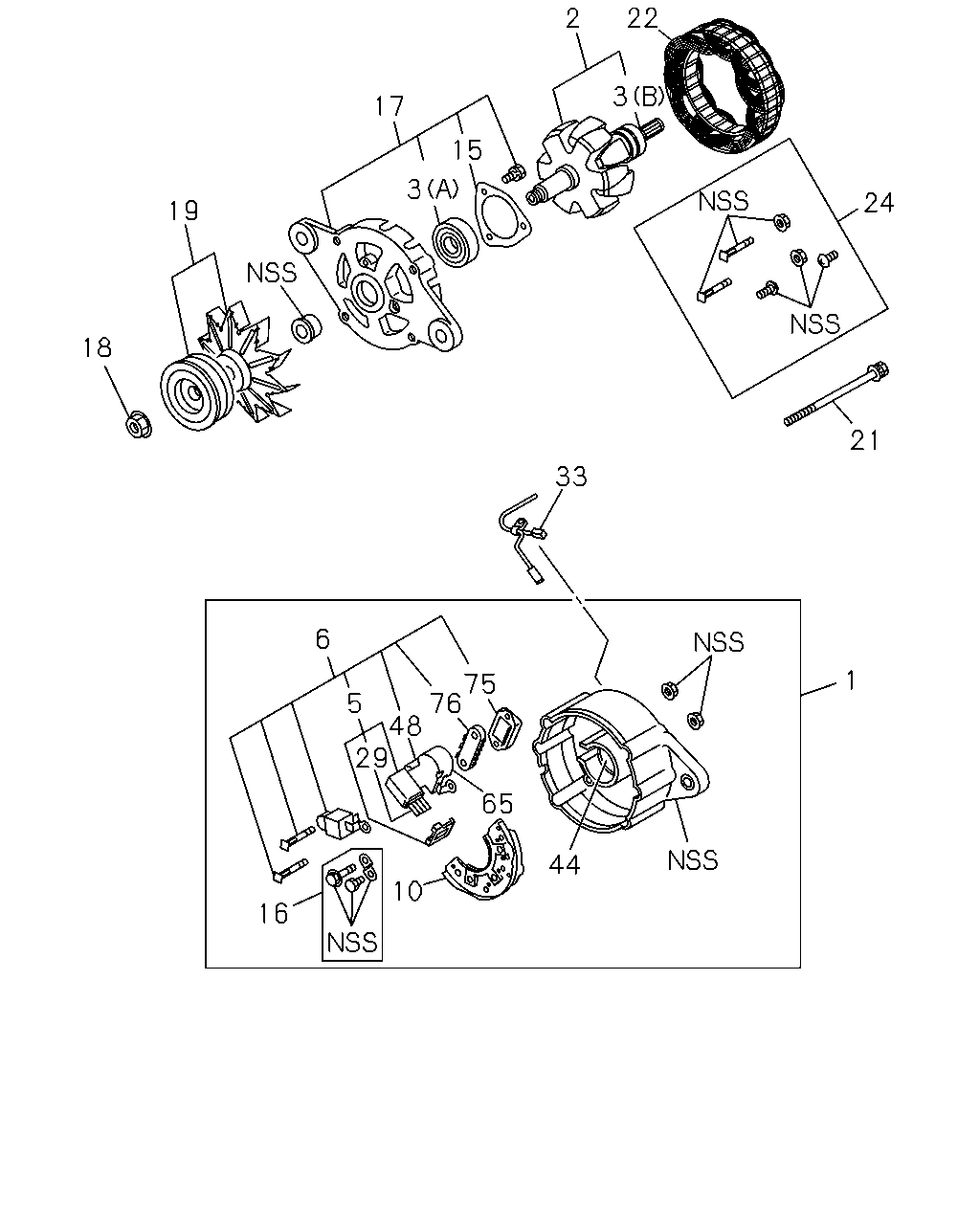

çizim 289055
18 19 17 3 15 2 22 3 24 21 1 33 75 76 6 5 29 48 65 44 10 16
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
IDN ASM PART: A = 8-97187-657-2 		8-97188-852-0 01 1 -
1 COVER ASM; RR,GEN
IDN ASM PART: B = 8-97957-071-0 		8-97206-668-0 01 1 -
2 ROTOR; GEN
IDN ASM PART: A = 8-97187-657-2 		8-97083-006-0 01 1 -
2 ROTOR; GEN
ASM PART: B = 8-97957-071-0 		8-97083-010-0 01 1 -
3 BEARING; ROTOR,GEN
(B), IDN ASM PART: B = 8-97957-071-0 		8-94121-178-0 01 1 -
3 BEARING; ROTOR,GEN
(B), IDN ASM PART: A = 8-97187-657-2 		8-94121-178-0 01 1 -1007
3 BEARING; ROTOR,GEN
(A), IDN ASM PART: A = 8-97187-657-2 		8-97062-654-0 01 1 -1007
3 BEARING; ROTOR,GEN
(A), IDN ASM PART: B = 8-97957-071-0 		8-97062-654-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-97187-657-2 		8-97248-128-0 01 1 1008-
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-97187-657-2 		8-98159-457-0 01 1 1008-
5 HOLDER; BRUSH,GEN
IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-97026-053-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-97026-052-0 01 1 -
10 RECTIFIER; GEN
ASM PART: B = 8-97957-071-0 		8-94453-149-0 01 1 -
10 RECTIFIER; GEN
IDN ASM PART: A = 8-97187-657-2 		8-97188-870-0 01 1 -
15 RETAINER; ROTOR,GEN
IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-94223-974-0 01 1 -
16 TERMINAL ASM; RECTIFIER,GEN
IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-97111-390-0 01 1 -
17 COVER ASM; FRT,GEN
IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-97071-214-0 01 1 -
18 NUT; PULLEY,GEN
IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-97203-880-0 01 1 -
19 PULLEY; GEN
IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-97029-004-0 01 1 -
21 BOLT; THROUGH,GEN
IDN ASM PART: A = 8-97187-657-2 		8-94156-602-0 04 1 -
21 BOLT; THROUGH,GEN
ASM PART: B = 8-97957-071-0 		8-97083-014-0 04 1 -
22 STATOR; GEN
ASM PART: B = 8-97957-071-0 		8-94408-494-0 01 1 -
22 STATOR; GEN
IDN ASM PART: A = 8-97187-657-2 		8-97203-864-0 01 1 -
24 SCREW; RECTIFIER,GEN
IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-94156-603-0 01 1 -
29 BRUSH; GEN
IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-94156-593-0 02 1 -
33 WIRE; LEAD,GEN
IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-97071-213-0 01 1 -
44 SEAL; RR COVER,GEN
IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-94156-589-0 01 1 -
48 DIODE; GEN
IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-94237-727-0 01 1 -
65 CONDENSER; GEN
IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-94156-594-0 01 1 -
75 REGULATOR; VOLTAGE,GEN
IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-94250-964-0 01 1 -
76 BLOCK; REG,GEN
IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-94156-591-0 01 1 -

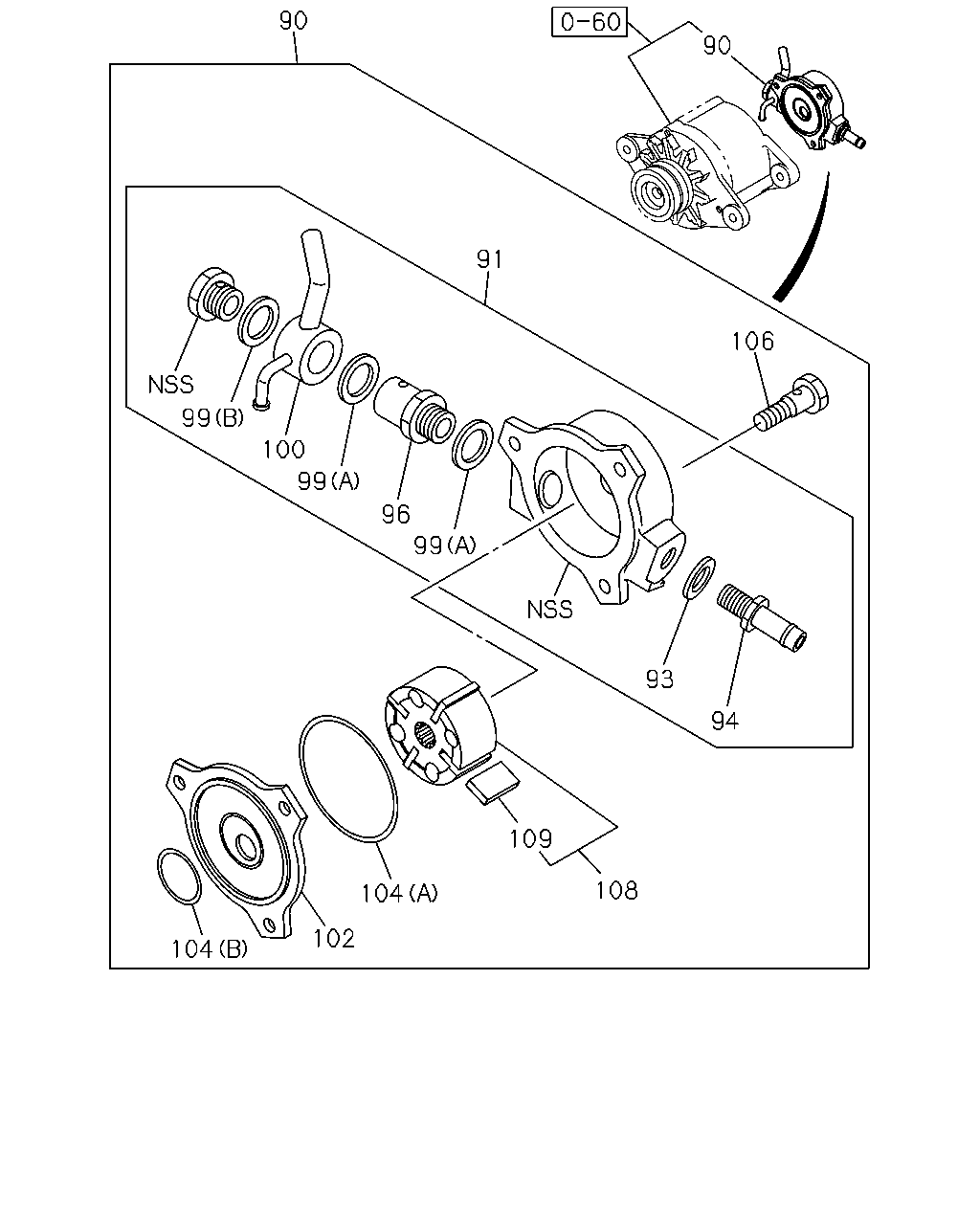

çizim 289086
90 91 99 100 99 96 99 93 94 108 109 104 102 104 106 90
BalonParca AdiParca NoAdetTipApplied Date
90 PUMP ASM; VAC,GEN
IDN ASM PART: B = 8-97957-071-0 		8-97171-006-0 01 1 -
90 PUMP ASM; VAC,GEN
IDN ASM PART: A = 8-97187-657-2 		8-97171-006-0 01 1 -0208
90 PUMP ASM; VAC,GEN
ASM PART: A = 8-97187-657-2 		8-97351-341-0 01 1 0209-
91 BODY; VAC PUMP
IDN ASM PART: A = 8-97187-657-2 		8-94424-381-0 01 1 -0208
91 BODY; VAC PUMP
IDN ASM PART: B = 8-97957-071-0 		8-94424-381-0 01 1 -
91 BODY; VAC PUMP
ASM PART: A = 8-97187-657-2 		8-97236-694-0 01 1 0209-
93 GASKET; CONN,VAC PUMP
ID=16 OD=22, IDN ASM PART: A = 8-97187-657-2 		5-19679-004-2 01 1 -0208
93 GASKET; CONN,VAC PUMP
ID=16 OD=22, IDN ASM PART: B = 8-97957-071-0 		5-19679-004-2 01 1 -
94 CONNECTOR; VAC PUMP
IDN ASM PART: A = 8-97187-657-2 		5-19619-034-0 01 1 -0208
94 CONNECTOR; VAC PUMP
IDN ASM PART: B = 8-97957-071-0 		5-19619-034-0 01 1 -
96 VALVE ASM; VAC PUMP
IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-94223-991-0 01 1 -
99 GASKET; VAC PUMP
(A), ID=18 OD=24 ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-94223-992-0 02 1 -
99 GASKET; VAC PUMP
(B), ID=12 OD=24 ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-94223-993-0 01 1 -
100 CONNECTOR; VAC PUMP
IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-97209-180-0 01 1 -
102 COVER; FRT,VAC PUMP
IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-97137-334-0 01 1 -
104 GASKET; FRT COVER,VAC PUMP
(B), IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-94156-608-0 01 1 -
104 GASKET; FRT COVER,VAC PUMP
(A), IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-94223-994-0 01 1 -
106 BOLT; OIL CONN,VAC PUMP
IDN ASM PART: A = 8-97187-657-2, B = 8-97957-071-0 		8-94223-989-0 01 1 -
108 ROTOR; VAC PUMP
IDN ASM PART: A = 8-97187-657-2 		8-97137-333-0 01 1 -0208
108 ROTOR; VAC PUMP
IDN ASM PART: B = 8-97957-071-0 		8-97137-333-0 01 1 -
108 ROTOR; VAC PUMP
IDN ASM PART: A = 8-97187-657-2 		8-97236-693-0 01 1 0209-
109 VANE; VAC PUMP
IDN ASM PART: A = 8-97187-657-2 		8-94223-985-0 03 1 0209-
109 VANE; VAC PUMP
IDN ASM PART: B = 8-97957-071-0 		8-94223-985-0 04 1 -
109 VANE; VAC PUMP
IDN ASM PART: A = 8-97187-657-2 		8-94223-985-0 04 1 -0208
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
