◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#9520) — 114 parça

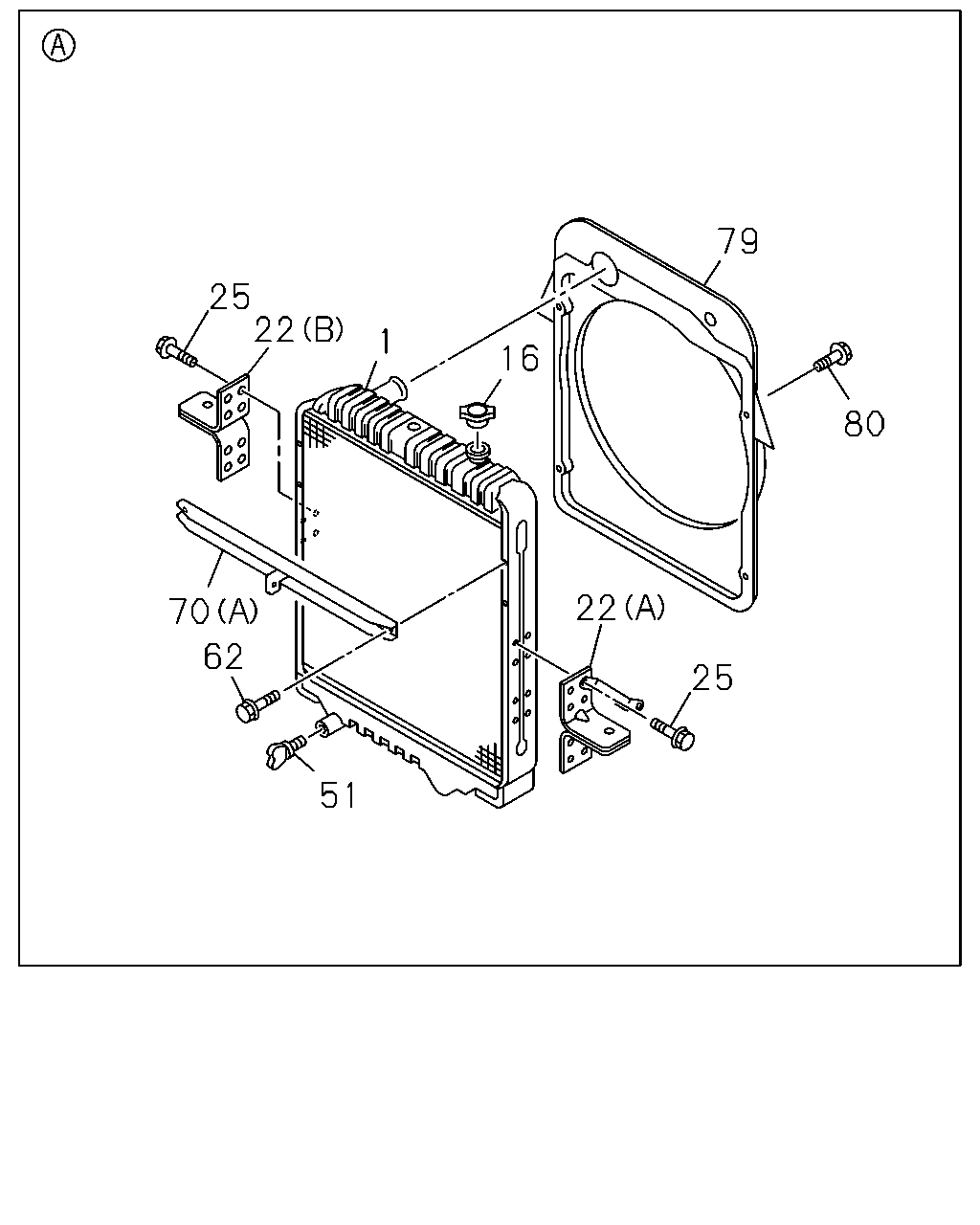

çizim 38388
79 25 22 1 16 80 22 70 62 25 51
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM 1-21410-675-1 01 1 0005-0210 ● ●
1 RADIATOR ASM 1-21410-883-0 01 1 0211- ●
16 CAP; RAD 1-21450-053-1 01 1 0005-0210 ● ●
16 CAP; RAD 1-21450-097-2 01 1 0211- ●
22 BRACKET; RAD MTG
(B) 		1-21464-361-0 01 1 0005-0210 ●
22 BRACKET; RAD MTG
(B) 		1-21464-668-0 01 1 0211-0302 ●
22 BRACKET; RAD MTG
(B) 		1-21464-750-0 01 1 0303- ●
22 BRACKET; RAD MTG
(A) 		1-21464-548-0 01 1 0005-0210 ●
22 BRACKET; RAD MTG
(A) 		1-21464-737-0 01 1 0211- ●
22 BRACKET; RAD MTG
(B) 		1-21464-673-0 01 1 0005-0210 ●
22 BRACKET; RAD MTG
(A) 		1-21464-674-0 01 1 0005-0210 ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0005-0210 ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0211- ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0211- ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0005-0210 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0211- ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 0005-0210 ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0005-0210 ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0005-0210 ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 0005-0210 ● ●
79 GUIDE; FAN,RAD 1-21551-468-1 01 1 0211- ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0005-0210 ● ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 08 1 0211- ●

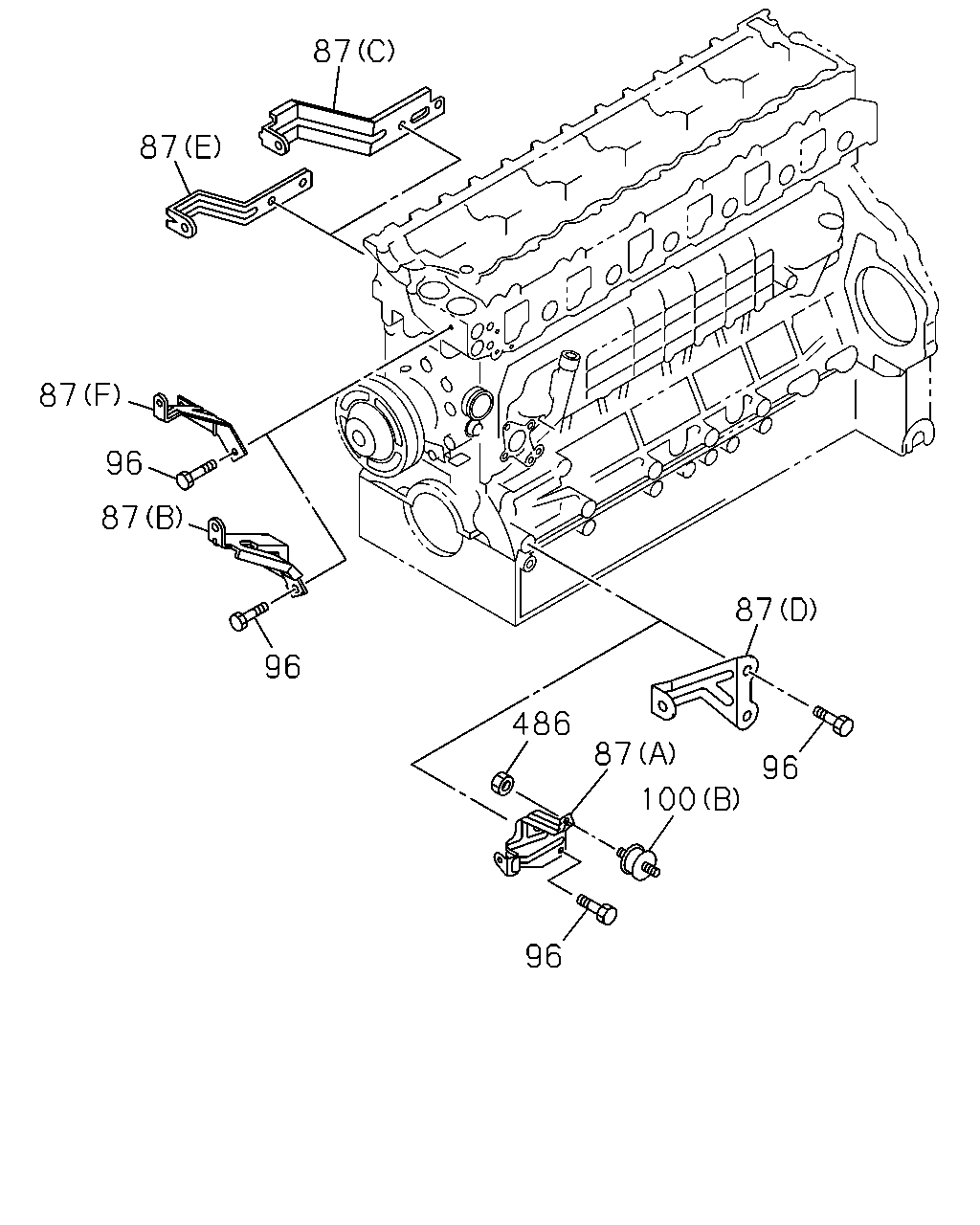

çizim 38462
87 87 87 96 87 87 96 486 87 96 100 96
BalonParca AdiParca NoAdetTipApplied Date A B C
87 STAY; FAN GUIDE
(B) 		8-94393-776-0 01 1 0005-0210 ●
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 0211- ●
87 STAY; FAN GUIDE
(C) 		8-94393-777-1 01 1 0005-0012 ●
87 STAY; FAN GUIDE
(C) 		8-97601-850-0 01 1 0101-0210 ●
87 STAY; FAN GUIDE
(C) 		8-97601-850-0 01 1 0211- ●
87 STAY; FAN GUIDE
(A) 		8-94393-778-2 01 1 0005-0210 ●
87 STAY; FAN GUIDE
(A) 		8-94393-778-2 01 1 0211- ●
87 STAY; FAN GUIDE
(E) 		8-94394-775-0 01 1 0005-0210 ●
87 STAY; FAN GUIDE
(F) 		8-94396-496-1 01 1 0005-0210 ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 0005-0210 ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0005-0210 ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0211-0512 ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0005-0210 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0211-0910 ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0005-0210 ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0211- ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0603- ●

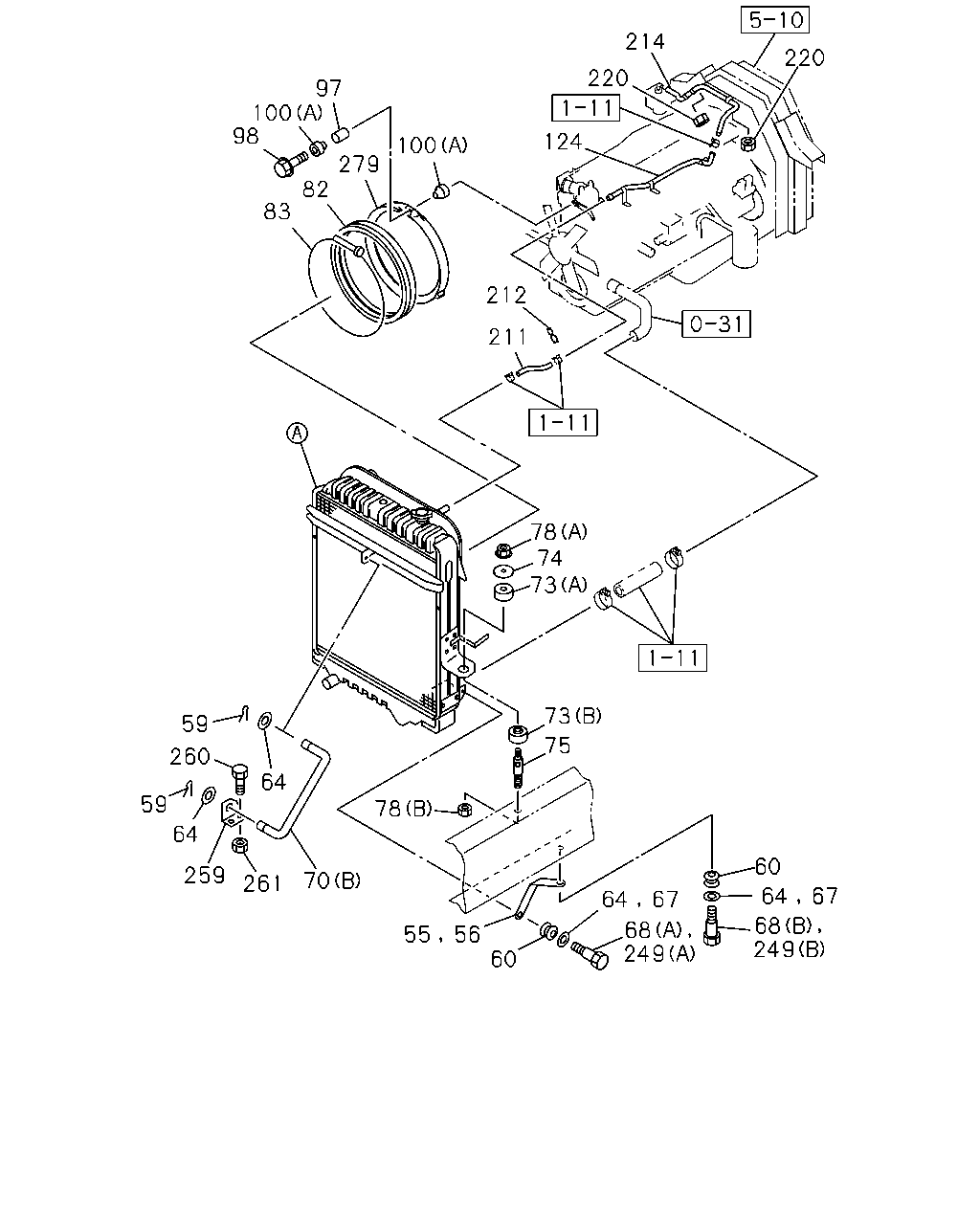

çizim 99860
214 220 220 97 100 98 124 100 279 82 83 212 211 78 74 73 73 59 75 260 64 59 78 64 60 259 70 261 64 67 64 67 68 249 68 249 55 56 60
BalonParca AdiParca NoAdetTipApplied Date A B C
55 STAY; RAD TO UPR MBR 1-21464-453-0 01 1 0005-0210 ●
55 STAY; RAD TO UPR MBR 1-21464-452-0 01 1 0005-0210 ●
56 STAY; RAD 1-21464-711-0 01 1 0211- ●
56 STAY; RAD 1-21464-710-0 01 1 0211- ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 0005-0210 ●
60 GROMMET 1-09332-117-0 04 1 0005-0210 ●
60 GROMMET 1-09332-117-0 04 1 0211- ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 0005-0210 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 0211-0605 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 0005-0210 ●
68 BOLT; STAY TO BRKT
(A) M8X30 		1-09009-020-1 02 1 0211- ●
68 BOLT; STAY TO BRKT
(B) M8X22 		1-09009-123-0 02 1 0211- ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0005-0210 ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0005-0210 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0005-0210 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0211- ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0005-0210 ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0211- ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0005-0210 ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0211- ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0005-0210 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0211- ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0005-0210 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0211-0602 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0005-0210 ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0211- ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 0005-0210 ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 0211- ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 0005-0210 ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0005-0210 ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0211- ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0005-0210 ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0211- ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0005-0210 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0211-0512 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0005-0210 ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0211-0910 ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0005-0210 ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0211- ●
124 PIPE; WATER,TANK TO RAD 8-94395-451-1 01 1 0005-0210 ●
124 PIPE; WATER,TANK TO RAD 8-97602-556-1 01 1 0211- ●
124 PIPE; WATER,TANK TO RAD 8-94394-461-4 01 1 0005-0210 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ● ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ● ●
211 HOSE; RAD TO PIPE
L=450 SERVICED BY L=3000 		0-03557-300-0 01 1 0211- ●
212 CLIP; HOSE
ID=13 & 21 		8-94417-626-0 01 1 0211- ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
214 HOSE; PIPE TO RESERVE TANK
STD CAB(FT**M*) L=1500 SERVICED BY L=3000 		0-03557-300-0 01 1 0211- ●
214 HOSE; PIPE TO RESERVE TANK
L=1800 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
214 HOSE; PIPE TO RESERVE TANK
L=1800 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
214 HOSE; PIPE TO RESERVE TANK
DOUBLE CAB(FT**W*) L=2100 SERVICED BY L=3000 		0-03557-300-0 01 1 0211- ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0211-0602 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603- ●
249 BOLT; STAY,RAD MBR
(A) M8X30 		1-09009-020-1 02 1 0005-0210 ●
249 BOLT; STAY,RAD MBR
(B) M8X22 		1-09009-123-0 02 1 0005-0210 ●
259 BRACKET; RAD STAY 1-21523-028-0 01 1 0005-0210 ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
279 BELL MOUTH 8-97601-300-0 01 1 0005-0210 ●
279 BELL MOUTH 8-94394-808-2 01 1 0005-0210 ●
279 BELL MOUTH 8-94393-779-1 01 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
