◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10627 - FTR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#952) — 59 parça

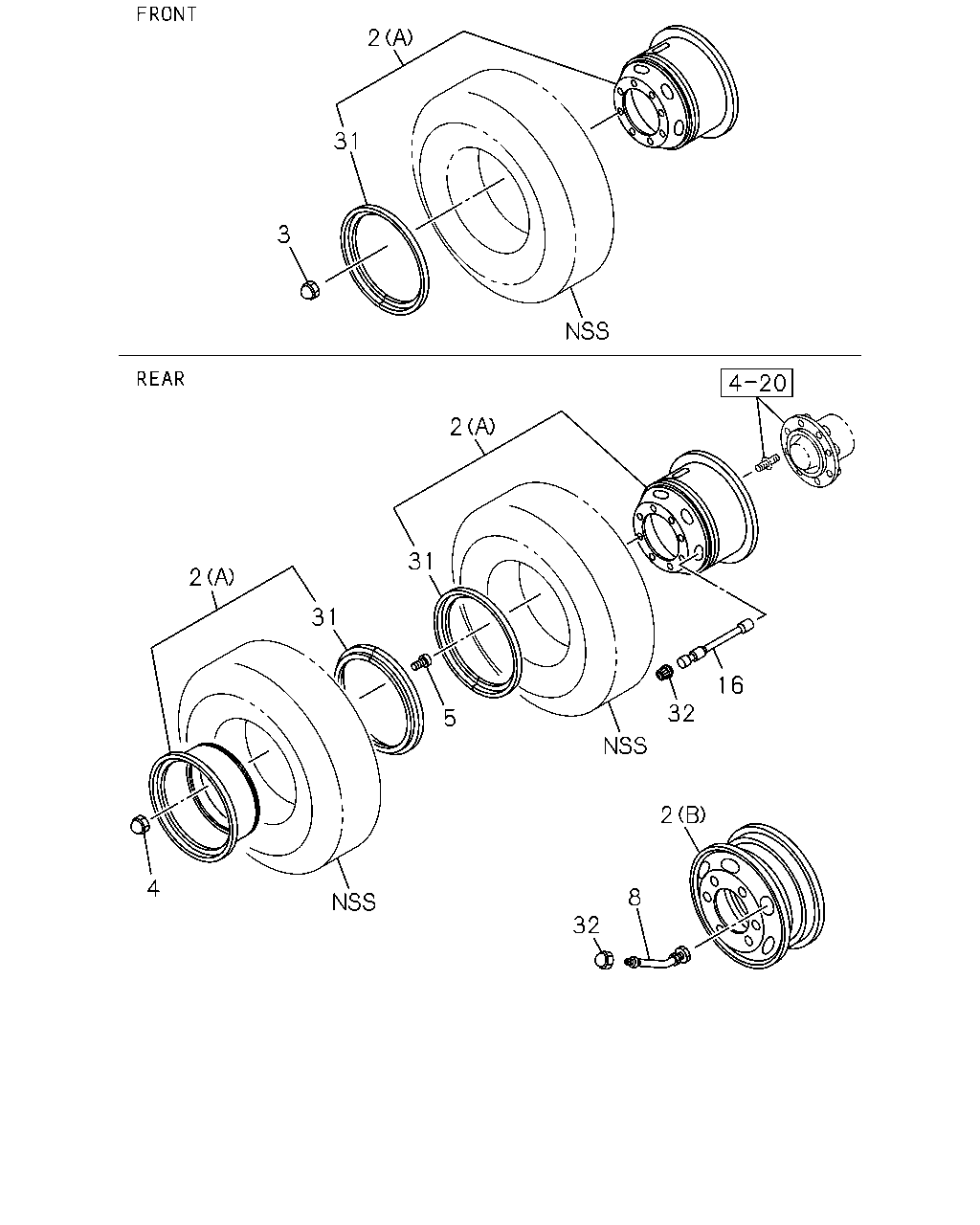

çizim 95747
2 31 3 2 31 2 31 16 32 5 2 4 8 32
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
DISC WHEEL SPARE<N79> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 8STUD 6.50TX20 152-11(Q50) (A) 		1-42350-012-3 01 1 9202-9206 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 8STUD 6.50TX20 152-11(Q50) (A) 		1-42350-268-2 01 1 9207-9211 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> SPARE TIRE & DISC WHEEL RR<R46> 8STUD 6.50TX20 152-11(Q50) (A) 		1-42350-268-2 01 1 9212- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 8STUD 7.00TX20(Q54) (A) 		1-42350-131-3 01 1 9202-9211 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> SPARE TIRE & DISC WHEEL RR<R46> 8STUD 7.00TX20(Q54) (A) 		1-42350-131-3 01 1 9212-9402 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> SPARE TIRE & DISC WHEEL RR<R46> 8STUD 7.00TX20(Q54) (A) 		1-42350-478-0 01 1 9403- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 10STUD 7.00TX20(Q58) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-42350-167-1 01 1 9202-9211 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 7.00TX20(Q58) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-42350-167-1 01 1 9212-9301 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 7.00TX20(Q58) (A) 		1-42350-447-0 01 1 9302- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 7.50X22.5 162-12(QM2) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-327-0 01 1 9202-9204 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 7.50X22.5 162-12(QM2) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-411-3 01 1 9205-9211 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 7.50X22.5 162-12(QM2) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-411-3 01 1 9212- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) CAB SUSPENSION SEMI FLOATING<SDK> (B) 		1-42350-338-2 01 1 9202-9312 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) CAB SUSPENSION SEMI FLOATING<SDK> (B) 		1-42350-464-0 01 1 9401-9406 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (B) 		1-42350-278-2 01 1 9407- ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (A) 		1-42350-167-1 06 1 9202-9205 ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-42350-167-1 06 1 9206-9301 ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (A) 		1-42350-447-0 06 1 9302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-327-0 06 1 9202-9204 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-411-3 06 1 9205- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-338-2 06 1 9202-9312 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-464-0 06 1 9401-9406 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) 		1-42350-278-2 06 1 9407- ● ●
2 WHEEL; DISC
8STUD 6.50TX20 152-11(Q50) (A) 		1-42350-012-3 06 1 9202-9206 ● ●
2 WHEEL; DISC
8STUD 6.50TX20 152-11(Q50) (A) 		1-42350-268-2 06 1 9207- ● ●
2 WHEEL; DISC
8STUD 7.00TX20(Q54) (A) 		1-42350-131-3 06 1 9202-9402 ● ●
2 WHEEL; DISC
8STUD 7.00TX20(Q54) (A) 		1-42350-478-0 06 1 9403- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 7.00TX20 152-12(SDP) (A) 		1-42350-195-1 01 1 9202-9211 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 7.00TX20 152-12(SDP) (A) 		1-42350-195-1 01 1 9212- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 10STUD 7.00TX20(Q58) HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-42350-442-0 01 1 9206-9301 ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-42350-442-0 06 1 9206-9301 ●
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 152-12(SDP) (A) 		1-42350-195-1 06 1 9202- ●
3 NUT; WHEEL,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) M22 		1-42333-029-0 20 1 9202-9203 ● ●
3 NUT; WHEEL,FRT AXLE
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) M22 RH THREAD 		1-42333-042-0 20 1 9204- ● ●
3 NUT; WHEEL,FRT AXLE
EXC. WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) M24 LH THREAD 		1-42334-022-0 08 1 9202- ● ●
3 NUT; WHEEL,FRT AXLE
EXC. WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) M24 		1-42333-022-0 08 1 9202- ● ●
4 NUT; WHEEL,RR AXLE
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) M22 		1-42333-029-0 20 1 9202-9203 ● ●
4 NUT; WHEEL,RR AXLE
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) M22 RH THREAD 		1-42333-042-0 20 1 9204- ● ●
4 NUT; WHEEL,RR AXLE
EXC. WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) M30 LH THREAD 		1-42334-023-0 08 1 9202- ● ●
4 NUT; WHEEL,RR AXLE
EXC. WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) M30 		1-42333-023-0 08 1 9202- ● ●
5 NUT; WHEEL,INNER,RR AXLE
EXC. WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 08 1 9202- ● ●
5 NUT; WHEEL,INNER,RR AXLE
EXC. WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 08 1 9202- ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) 		1-42370-020-3 01 1 9202- ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42370-020-3 06 1 9202- ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) L=170 		1-42370-024-0 02 1 9202- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> 8STUD 6.50TX20 152-11(Q50),8STUD 7.00TX20(Q54), WHEEL 8STUD 7.00TX20 152-12(SDP) 		1-42355-003-1 01 1 9202-9206 ● ●
31 RING; SIDE,DISC WHEEL
8STUD 6.50TX20 152-11(Q50),8STUD 7.00TX20(Q54), WHEEL 8STUD 7.00TX20 152-12(SDP) 		1-42355-003-1 01 1 9202-9206 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> 8STUD 7.00TX20(Q54),WHEEL 8STUD 7.00TX20 152-12(SDP) 		1-42355-003-1 01 1 9207- ● ●
31 RING; SIDE,DISC WHEEL
8STUD 7.00TX20(Q54),WHEEL 8STUD 7.00TX20 152-12(SDP) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42355-003-1 01 1 9207- ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) 		1-42355-012-1 06 1 9202-9206 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> SPARE TIRE & DISC WHEEL RR<R46> 8STUD 6.50TX20 152-11(Q50),WHEEL 10STUD 7.00TX20(Q58) 		1-42355-012-1 01 1 9207- ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPARE<N79> 		1-42355-012-1 01 1 9202-9206 ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42355-012-1 01 1 9202-9206 ● ●
31 RING; SIDE,DISC WHEEL
8STUD 6.50TX20 152-11(Q50),WHEEL 10STUD 7.00TX20(Q58) 		1-42355-012-1 06 1 9207- ● ●
31 RING; SIDE,DISC WHEEL
8STUD 6.50TX20 152-11(Q50),8STUD 7.00TX20(Q54), WHEEL 8STUD 7.00TX20 152-12(SDP) 		1-42355-003-1 06 1 9202-9206 ● ●
31 RING; SIDE,DISC WHEEL
8STUD 7.00TX20(Q54),WHEEL 8STUD 7.00TX20 152-12(SDP) 		1-42355-003-1 06 1 9207- ● ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 9304- ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 07 1 9304- ● ●
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELRR<R46> 		1-42374-001-0 06 1 9304- ● ●
