0-52 — OIL AND VACUUM PIPING; ENGINE (#95196) — 78 parça

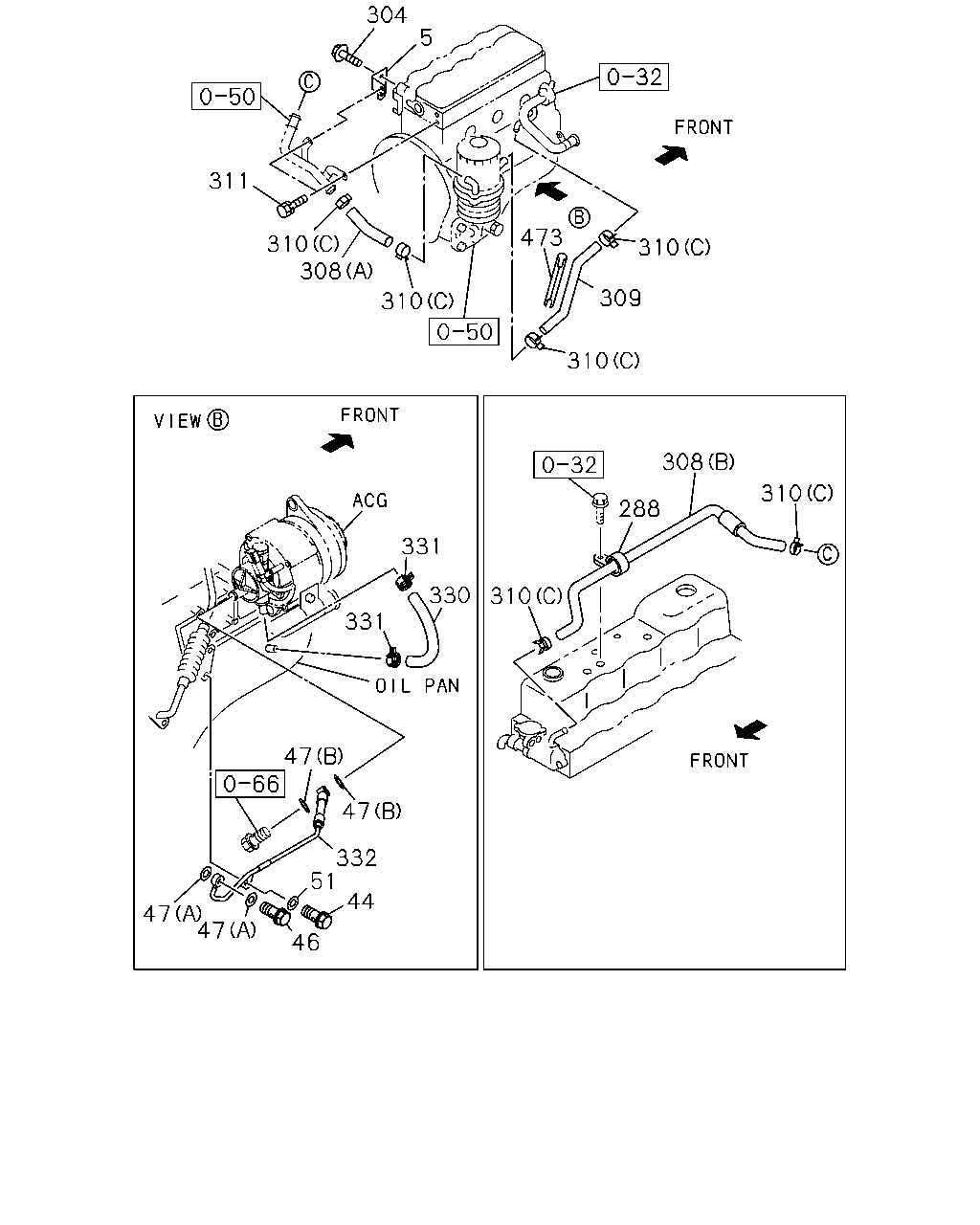

çizim 289265
311 310 308 304 5 310 473 310 309 310 308 310 288 310 331 330 331 47 47 332 51 44 46 47 47
BalonParca AdiParca NoAdetTipApplied Date
5 BRACKET; PIPE
EXC. TURBOCHARGER<K51> 		8-94453-529-2 01 1 0008-
44 BOLT; CLIP,OIL PIPE
M8X16 W/LK WASHER 		0-50040-816-0 01 1 0008-0512
44 BOLT; CLIP,OIL PIPE
M8X16 W/LK WASHER 		0-50540-816-0 01 1 0601-
46 BOLT; JOINT,OIL FEED PIPE,VAC PUMP
M8X20 EYE BOLT 		5-09675-018-1 01 1 0008-
47 GASKET; OIL PIPE
(A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0008-
47 GASKET; OIL PIPE
(B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0008-
51 WASHER; PL,OIL PIPE,VAC PUMP
ID=8.4 OD=18 		9-09164-608-0 01 1 0008-0605
51 WASHER; PL,OIL PIPE,VAC PUMP
ID=8.4 OD=18 		0-91614-608-0 01 1 0606-
288 CLIP; HOSE,OIL COOLER
EXC. TURBOCHARGER<K51> ID=22 L=32 		1-09700-126-1 01 1 0008-
304 BOLT; BRKT,OIL PIPE
EXC. TURBOCHARGER<K51> M8X20 FLANGE 		0-28080-820-0 02 1 0008-0512
304 BOLT; BRKT,OIL PIPE
EXC. TURBOCHARGER<K51> M8X20 FLANGE 		0-28050-820-0 02 1 0601-
308 HOSE; OIL COOLER FEED
TURBOCHARGER<K51> (C) THA 		8-97043-720-2 01 1 0008-
308 HOSE; OIL COOLER FEED
TURBOCHARGER<K51> (D) IDN 		8-97250-384-1 01 1 0008-
308 HOSE; OIL COOLER FEED
EXC. TURBOCHARGER<K51> (A) L=220 IDN 		8-97119-575-1 01 1 0008-
308 HOSE; OIL COOLER FEED
EXC. TURBOCHARGER<K51> (B) IDN 		8-97956-872-1 01 1 0008-
309 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> 		8-97168-220-0 01 1 0008-
309 HOSE; OIL COOLER RETURN
EXC. TURBOCHARGER<K51> IDN 		8-97956-873-1 01 1 0008-
310 CLIP; WATER HOSE FIX
TURBOCHARGER<K51> (A) ID=20.8 		8-94125-862-1 04 1 0008-
310 CLIP; WATER HOSE FIX
TURBOCHARGER<K51> (B) ID=24 		8-97010-605-0 02 1 0008-
310 CLIP; WATER HOSE FIX
EXC. TURBOCHARGER<K51> (C) ID=20.8 		8-94125-862-1 06 1 0008-
311 BOLT; PIPE FIX
M8X14 W/LK WASHER 		0-50040-814-0 02 1 0008-0201
311 BOLT; PIPE FIX
M8X12 FLANGE 		0-28080-812-0 02 1 0202-0512
311 BOLT; PIPE FIX
M8X12 FLANGE 		0-28050-812-0 02 1 0601-
330 HOSE; VAC PUMP,RETURN
IDN 		8-97136-222-0 01 1 0008-
331 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 0008-
332 PIPE; OIL,C/BL TO VAC PUMP 8-97136-215-0 01 1 0008-
473 INSULATOR; HOSE
EXC. TURBOCHARGER<K51> 		8-97102-426-0 01 1 0008-

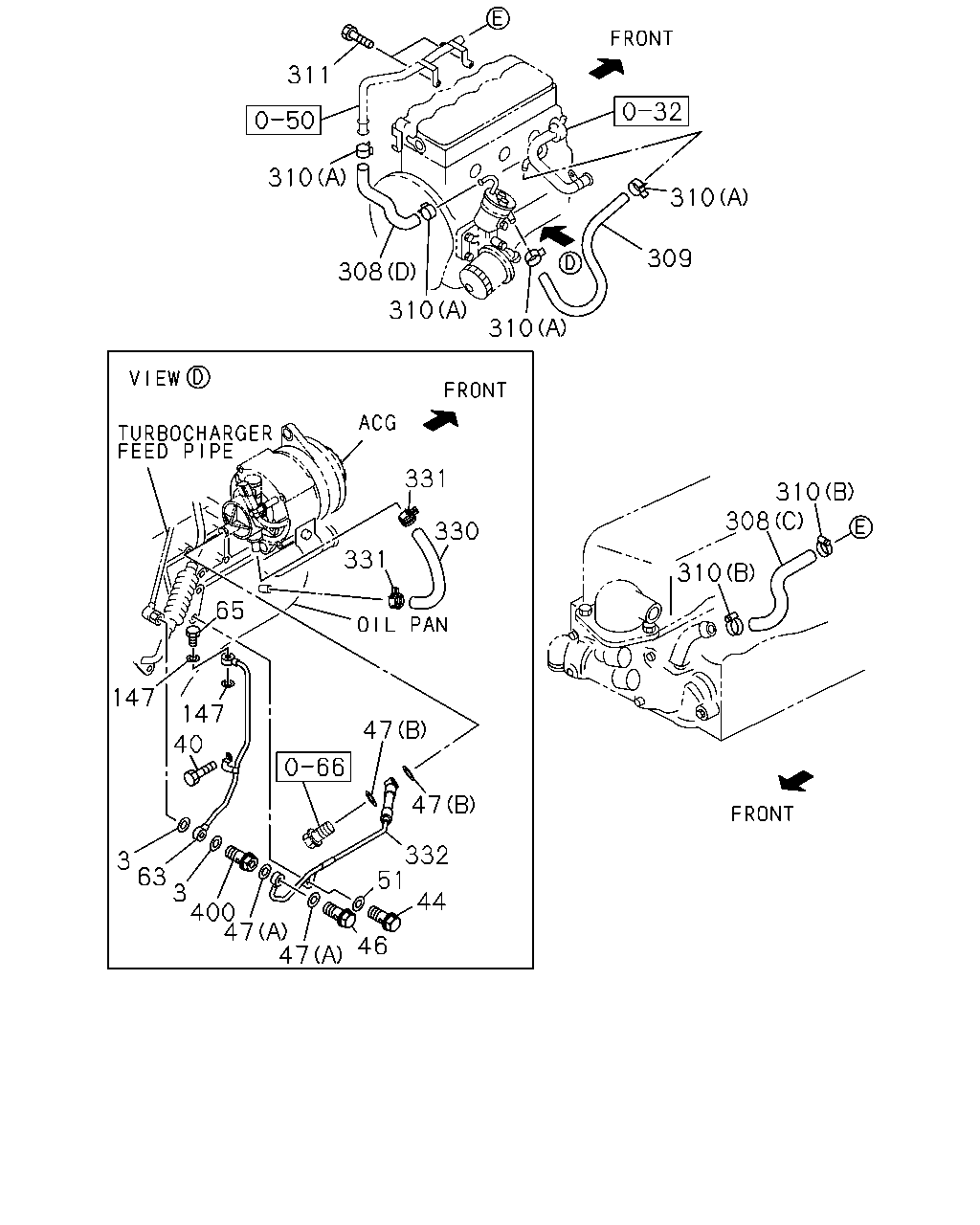

çizim 289301
311 310 308 310 310 309 310 310 308 310 44 46 47 47 400 3 63 3 40 147 147 65 331 47 47 332 51 330 331
BalonParca AdiParca NoAdetTipApplied Date
3 GASKET; EYE BOLT,OIL PIPE
TURBOCHARGER<K51> ID=14.2 OD=20.0 		9-09571-414-0 02 1 0008-
40 BOLT; OIL PIPE
TURBOCHARGER<K51> M8X12 FLANGE 		0-28080-812-0 01 1 0008-0512
40 BOLT; OIL PIPE
TURBOCHARGER<K51> M8X12 FLANGE 		0-28050-812-0 01 1 0601-
44 BOLT; CLIP,OIL PIPE
M8X16 W/LK WASHER 		0-50040-816-0 01 1 0008-0512
44 BOLT; CLIP,OIL PIPE
M8X16 W/LK WASHER 		0-50540-816-0 01 1 0601-
46 BOLT; JOINT,OIL FEED PIPE,VAC PUMP
M8X20 EYE BOLT 		5-09675-018-1 01 1 0008-
47 GASKET; OIL PIPE
(A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0008-
47 GASKET; OIL PIPE
(B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0008-
51 WASHER; PL,OIL PIPE,VAC PUMP
ID=8.4 OD=18 		9-09164-608-0 01 1 0008-0605
51 WASHER; PL,OIL PIPE,VAC PUMP
ID=8.4 OD=18 		0-91614-608-0 01 1 0606-
63 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER<K51> 		8-97161-201-0 01 1 0008-
65 BOLT; JOINT,OIL PIPE
TURBOCHARGER<K51> M10X27 		8-94443-535-0 01 1 0008-
147 GASKET; OIL PIPE TO TURBOCHARGER
TURBOCHARGER<K51> ID=10.2 OD=16.0 		9-09571-410-0 02 1 0008-
308 HOSE; OIL COOLER FEED
TURBOCHARGER<K51> (C) THA 		8-97043-720-2 01 1 0008-
308 HOSE; OIL COOLER FEED
TURBOCHARGER<K51> (D) IDN 		8-97250-384-1 01 1 0008-
308 HOSE; OIL COOLER FEED
EXC. TURBOCHARGER<K51> (A) L=220 IDN 		8-97119-575-1 01 1 0008-
308 HOSE; OIL COOLER FEED
EXC. TURBOCHARGER<K51> (B) IDN 		8-97956-872-1 01 1 0008-
309 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> 		8-97168-220-0 01 1 0008-
309 HOSE; OIL COOLER RETURN
EXC. TURBOCHARGER<K51> IDN 		8-97956-873-1 01 1 0008-
310 CLIP; WATER HOSE FIX
TURBOCHARGER<K51> (A) ID=20.8 		8-94125-862-1 04 1 0008-
310 CLIP; WATER HOSE FIX
TURBOCHARGER<K51> (B) ID=24 		8-97010-605-0 02 1 0008-
310 CLIP; WATER HOSE FIX
EXC. TURBOCHARGER<K51> (C) ID=20.8 		8-94125-862-1 06 1 0008-
311 BOLT; PIPE FIX
M8X14 W/LK WASHER 		0-50040-814-0 02 1 0008-0201
311 BOLT; PIPE FIX
M8X12 FLANGE 		0-28080-812-0 02 1 0202-0512
311 BOLT; PIPE FIX
M8X12 FLANGE 		0-28050-812-0 02 1 0601-
330 HOSE; VAC PUMP,RETURN
IDN 		8-97136-222-0 01 1 0008-
331 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 0008-
332 PIPE; OIL,C/BL TO VAC PUMP 8-97136-215-0 01 1 0008-
400 NIPPLE; VAC PUMP,OIL
TURBOCHARGER<K51> M14X25 		8-94315-336-1 01 1 0008-

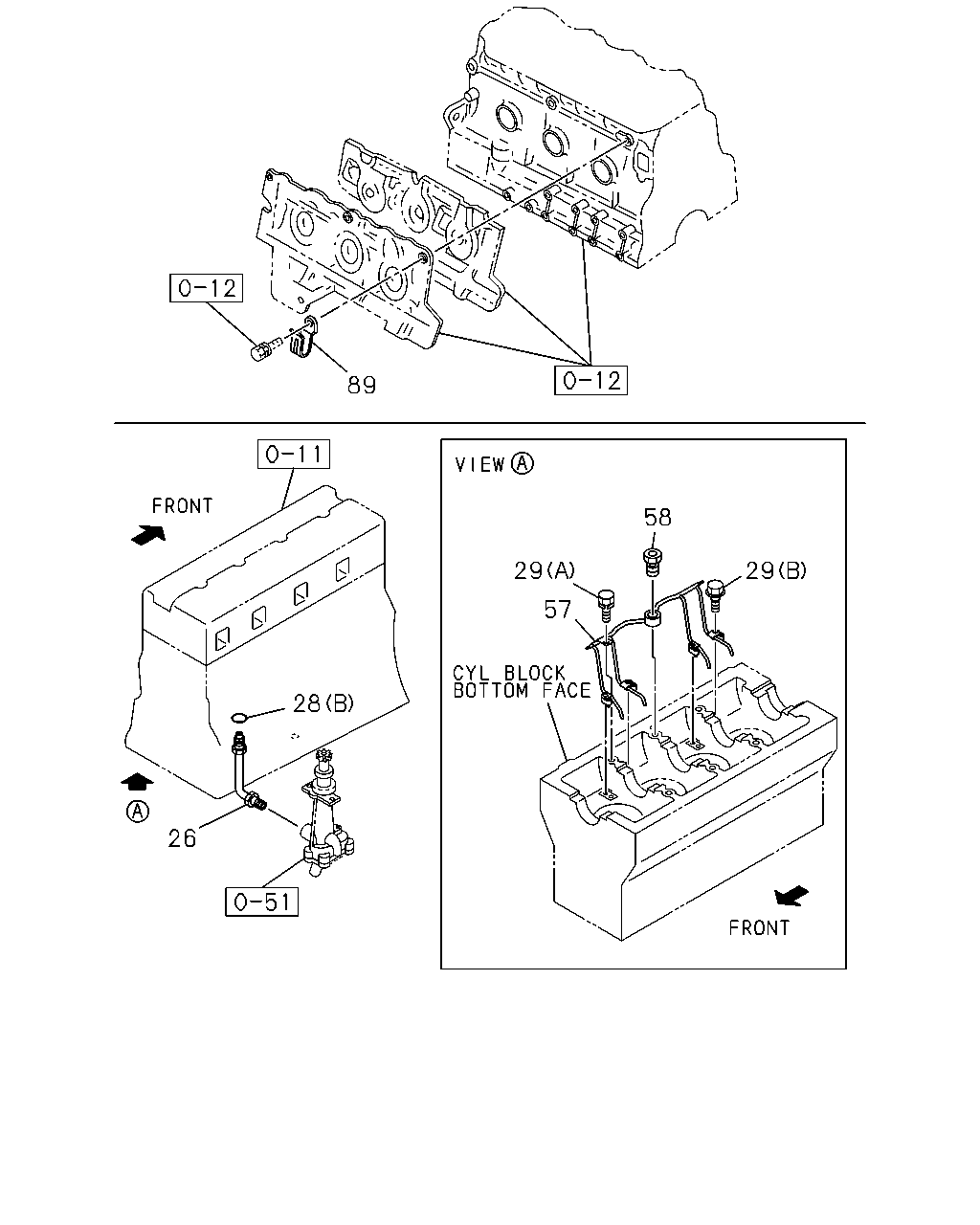

çizim 289830
89 29 57 58 29 28 26
BalonParca AdiParca NoAdetTipApplied Date
26 PIPE; OIL,PUMP TO C/BL 8-94434-828-2 01 1 0008-
28 GASKET; OIL PIPE
(B) ID=11 		5-09623-002-0 01 1 0008-
28 GASKET; OIL PIPE
TURBOCHARGER<K51> (A) 		8-97045-326-1 01 1 0008-
29 BOLT; OIL PIPE,OIL JET
(A) M8X12 W/LK WASHER 		0-50040-812-0 02 1 0008-0202
29 BOLT; OIL PIPE,OIL JET
(A) M8X10 FLANGE 		0-28080-810-0 01 1 0203-0512
29 BOLT; OIL PIPE,OIL JET
(A) M8X10 FLANGE 		0-28050-810-0 01 1 0601-
29 BOLT; OIL PIPE,OIL JET
(B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 0008-0512
29 BOLT; OIL PIPE,OIL JET
(B) M6X25 W/LK&PL WASHER 		0-50640-625-0 04 1 0601-
57 PIPE; OIL,OIL JET 8-94469-992-2 01 1 0008-
58 VALVE; RELIEF,OIL JET,PISTON COOLING 8-97145-612-0 01 1 0008-0104
58 VALVE; RELIEF,OIL JET,PISTON COOLING 8-97311-976-1 01 1 0105-
89 CLIP; VAC HOSE
COOLER WO/HEATER(YL1) 		8-94406-478-0 01 1 0008-0011
89 CLIP; VAC HOSE
COOLER WO/HEATER(YL1) ID=12 B=14 ID=8.5 IDN 		5-09700-350-0 01 1 0012-0801
89 CLIP; VAC HOSE
COOLER WO/HEATER(YL1) ID=12 IDN 		8-97367-984-1 01 1 0802-
çizim 289834
70 27 539 28 79 27
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; OIL PIPE FIX
TURBOCHARGER<K51> M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 0008-0512
27 BOLT; OIL PIPE FIX
TURBOCHARGER<K51> M6X20 W/LK&PL WASHER 		0-50640-620-0 02 1 0601-
28 GASKET; OIL PIPE
(B) ID=11 		5-09623-002-0 01 1 0008-
28 GASKET; OIL PIPE
TURBOCHARGER<K51> (A) 		8-97045-326-1 01 1 0008-
70 GASKET; OIL PIPE,TURBOCHARGER
TURBOCHARGER<K51> 		8-94362-672-1 01 1 0008-
79 NUT; OIL DRAIN PIPE
TURBOCHARGER<K51> M8 FLANGE 		5-09440-005-0 02 1 0008-0805
79 NUT; OIL DRAIN PIPE
TURBOCHARGER<K51> M8 FLANGE 		8-97581-233-0 02 1 0806-
539 PIPE; OIL,TURBOCHARGER DRAIN
TURBOCHARGER<K51> 		8-97162-108-1 01 1 0008-
