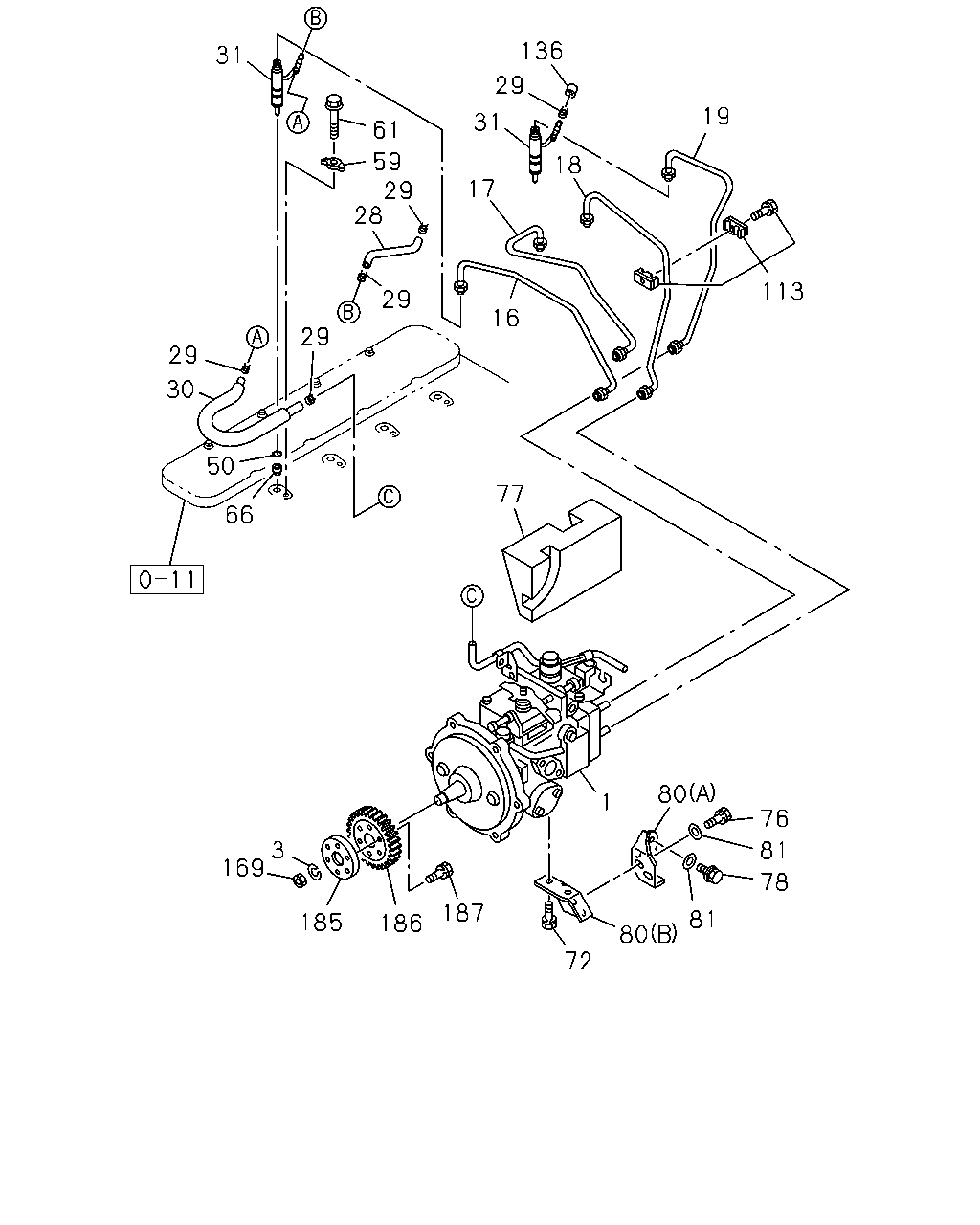

0-40 — FUEL INJECTION SYSTEM (#95191) — 111 parça

78 81 80 72 187 186 185 169 3 1 80 76 81 77 66 50 30 29 29 29 16 113 19 136 29 31 17 18 28 29 59 61 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T AISIN(RMD)	8-97259-883-2	01	1	0008-0403
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T AISIN(RMD)	8-97379-586-0	01	1	0404-
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51>,TACHOMETER<U16>	8-97191-856-2	01	1	0008-0008
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51>,TACHOMETER<U16>	8-97959-008-0	01	1	0009-0104
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51>,TACHOMETER<U16>	8-97300-207-0	01	1	0105-0403
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51>,TACHOMETER<U16>	8-97379-584-1	01	1	0404-
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. M/T MSG 5 SPEED(M75) TURBOCHARGER<K51>	8-97191-860-2	01	1	0008-
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16> COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51>	8-97191-858-2	01	1	0008-0008
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16> COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51>	8-97959-009-0	01	1	0009-0104
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16> COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51>	8-97300-208-0	01	1	0105-0403
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16> COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51>	8-97379-585-1	01	1	0404-
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1)	8-97191-854-2	01	1	0008-0008
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1)	8-97959-006-0	01	1	0009-0104
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1)	8-97300-205-0	01	1	0105-0403
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1)	8-97379-582-1	01	1	0404-
3	WASHER; LK,INJ PUMP	8-94226-554-0	01	1	0008-
16	PIPE; INJ NO.1 TURBOCHARGER<K51>	8-94454-633-6	01	1	0008-
16	PIPE; INJ NO.1 EXC. TURBOCHARGER<K51>	8-97134-722-1	01	1	0008-
17	PIPE; INJ NO.2 TURBOCHARGER<K51>	8-94454-634-6	01	1	0008-
17	PIPE; INJ NO.2 EXC. TURBOCHARGER<K51>	8-97134-723-1	01	1	0008-
18	PIPE; INJ NO.3 TURBOCHARGER<K51>	8-94454-635-6	01	1	0008-
18	PIPE; INJ NO.3 EXC. TURBOCHARGER<K51>	8-97134-724-1	01	1	0008-
19	PIPE; INJ NO.4 TURBOCHARGER<K51>	8-94454-636-5	01	1	0008-
19	PIPE; INJ NO.4 EXC. TURBOCHARGER<K51>	8-97134-725-1	01	1	0008-
28	HOSE; FUEL,NOZZLE TO NOZZLE	8-94152-353-0	03	1	0008-0308
28	HOSE; FUEL,NOZZLE TO NOZZLE	8-97912-623-0	03	1	0309-
29	CLIP; HOSE ID=11	8-97173-219-0	02	1	0302-
29	CLIP; HOSE ID=12 IDN	8-94238-610-0	09	1	0008-0301
29	CLIP; HOSE ID=12 IDN	8-94238-610-0	07	1	0302-0311
29	CLIP; HOSE ID=13 IDN	8-94238-571-0	07	1	0312-
30	HOSE; RUBBER,FUEL LEAK L=320 W/INSULATOR	8-94427-501-2	01	1	0008-0301
30	HOSE; RUBBER,FUEL LEAK L=320	8-97364-773-0	01	1	0302-
31	NOZZLE ASM; INJ TURBOCHARGER<K51>	8-97205-972-0	04	1	0008-
31	NOZZLE ASM; INJ EXC. TURBOCHARGER<K51>	8-97188-521-1	04	1	0008-
50	GASKET; NOZZLE HOLDER THA	8-97912-615-0	04	1	0008-
59	CLAMP; NOZZLE HOLDER	8-94433-427-0	04	1	0008-
61	BOLT; CLAMP NOZZLE HOLDER	8-94433-717-1	04	1	0008-
66	GASKET; INJ NOZZLE ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0008-
72	BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50051-020-0	02	1	0008-0512
72	BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50551-020-0	02	1	0601-
76	BOLT; BRKT TO BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	0008-0512
76	BOLT; BRKT TO BRKT M8X25 W/LK WASHER	0-50540-825-0	02	1	0601-
77	RUBBER; SPACE,INJ PUMP	8-97226-808-0	01	1	0008-
78	BOLT; BRKT TO C/BL M8X20 FLANGE	0-28680-820-0	02	1	0008-0512
78	BOLT; BRKT TO C/BL M8X20 FLANGE IDN	0-28650-820-0	02	1	0601-
80	BRACKET; PUMP (A)	8-94133-761-1	01	1	0008-0407
80	BRACKET; PUMP (A)	8-97368-670-0	01	1	0408-
80	BRACKET; PUMP (B)	8-94133-762-2	01	1	0008-0402
80	BRACKET; PUMP (B)	8-97368-671-0	01	1	0403-
81	WASHER; PL,BRKT TO PUMP ID=8.4 OD=22	9-09164-708-0	02	1	0008-0605
81	WASHER; PL,BRKT TO PUMP ID=8.4 OD=22	0-91614-708-0	02	1	0606-
113	CLIP; INJ PIPE	5-15419-013-1	02	1	0008-
136	CAP; NOZZLE,FUEL END	8-94473-967-0	01	1	0008-
169	NUT; BRKT M14	8-94226-565-0	01	1	0008-
185	BLOCK; CENTER	8-94227-337-1	01	1	0008-0712
185	BLOCK; CENTER IDN	8-97562-526-0	01	1	0801-
186	GEAR; INJ PUMP IDN	8-97138-807-0	01	1	0008-0104
186	GEAR; INJ PUMP IDN	8-97959-102-0	01	1	0105-
187	BOLT; GEAR M6X18 W/LK WASHER	0-50040-618-0	06	1	0008-0909
187	BOLT; GEAR M6X18 W/LK WASHER	0-50540-618-0	06	1	0910-

140 44 43 47 46 33 35 32 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	NOZZLE ASM; INJ TURBOCHARGER<K51>	8-97205-972-0	04	1	0008-
31	NOZZLE ASM; INJ EXC. TURBOCHARGER<K51>	8-97188-521-1	04	1	0008-
32	HOLDER ASM; NOZZLE	8-94442-225-0	04	1	0008-
33	NOZZLE; INJ TURBOCHARGER<K51>	8-97205-973-0	04	1	0008-
33	NOZZLE; INJ EXC. TURBOCHARGER<K51>	8-97188-610-0	04	1	0008-
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	0008-
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94312-723-0	04	1	0008-
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	0008-
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	0008-
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	8-94174-183-0	04	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.500	8-94174-142-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.525	8-94174-143-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.550	8-94174-144-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.575	8-94174-145-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.600	8-94174-146-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.625	8-94174-147-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.650	8-94174-148-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.675	8-94174-149-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.700	8-94174-150-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.725	8-94174-151-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.750	8-94174-152-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.775	8-94174-153-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.800	8-94174-154-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.825	8-94174-155-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.850	8-94174-156-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.875	8-94174-157-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.900	8-94174-158-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.925	8-94174-159-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.950	8-94174-160-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.975	8-94174-161-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.000	8-94174-162-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.025	8-94174-163-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.050	8-94174-164-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.075	8-94174-165-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.100	8-94174-166-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.125	8-94174-167-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.150	8-94174-168-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.175	8-94174-169-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.200	8-94174-170-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.225	8-94174-171-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.250	8-94174-172-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.275	8-94174-173-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.300	8-94174-174-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.325	8-94174-175-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.350	8-94174-176-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.375	8-94174-177-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.400	8-94174-178-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.425	8-94174-179-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.450	8-94174-180-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.475	8-94174-181-0	AR	1	0008-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.500	8-94174-182-0	AR	1	0008-
