0-32 - WATER PIPING; ENGINE
▶

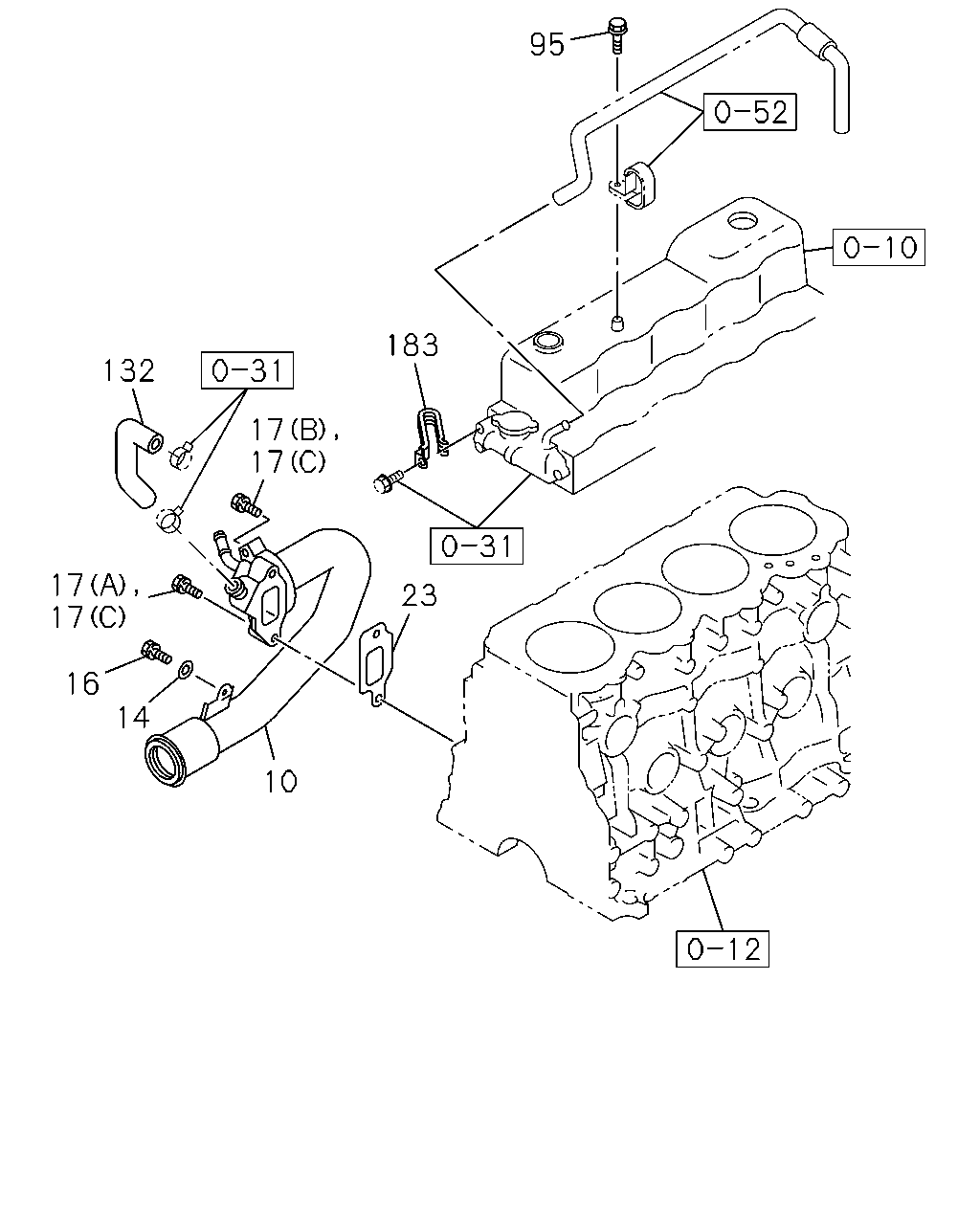

0-32 — WATER PIPING; ENGINE
(#95188) — 18 parça
95
183
17
17
132
17
17
16
14
10
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
PIPE; SUCTION
TURBOCHARGER<K51>
8-97260-733-0
01
1
0008-0012
10
PIPE; SUCTION
TURBOCHARGER<K51>
8-97264-248-1
01
1
0101-
10
PIPE; SUCTION
EXC. TURBOCHARGER<K51>
8-97188-176-0
01
1
0008-0012
10
PIPE; SUCTION
EXC. TURBOCHARGER<K51>
8-97264-246-1
01
1
0101-
14
WASHER; PL,INL PIPE TO BRKT
ID=8 OD=18 T=3
8-94174-537-0
01
1
0008-
16
BOLT; INL PIPE
M8X20 W/LK WASHER
0-50040-820-0
01
1
0008-0909
16
BOLT; INL PIPE
M8X20 W/LK WASHER
0-50540-820-0
01
1
0910-
17
BOLT; SUCTION PIPE
(A) M8X22 W/LK WASHER
0-50040-822-0
01
1
0008-0012
17
BOLT; SUCTION PIPE
(C) M8X50 W/LK WASHER
0-50040-850-0
02
1
0101-0512
17
BOLT; SUCTION PIPE
(C) M8X50 W/LK WASHER
0-50540-850-0
02
1
0601-
17
BOLT; SUCTION PIPE
(B) M8X45 W/LK WASHER
0-50040-845-0
01
1
0008-0012
23
GASKET; SUCTION PIPE TO BLOCK
THA
8-97912-602-0
01
1
0008-0205
23
GASKET; SUCTION PIPE TO BLOCK
THA
8-97943-089-0
01
1
0206-
95
BOLT; CLIP
EXC. TURBOCHARGER<K51> M8X12 FLANGE
0-28080-812-0
01
1
0008-0512
95
BOLT; CLIP
EXC. TURBOCHARGER<K51> M8X12 FLANGE
0-28050-812-0
01
1
0601-
132
HOSE; WATER PIPE
8-94382-246-0
01
1
0008-
183
CLIP; VACUUM HOSE
COOLER WO/HEATER(YL1) ID=12
5-09700-331-0
01
1
0008-0801
183
CLIP; VACUUM HOSE
COOLER WO/HEATER(YL1) ID=12
8-97367-983-1
01
1
0802-
