0-25 — INLET MANIFOLD (#95183) — 58 parça

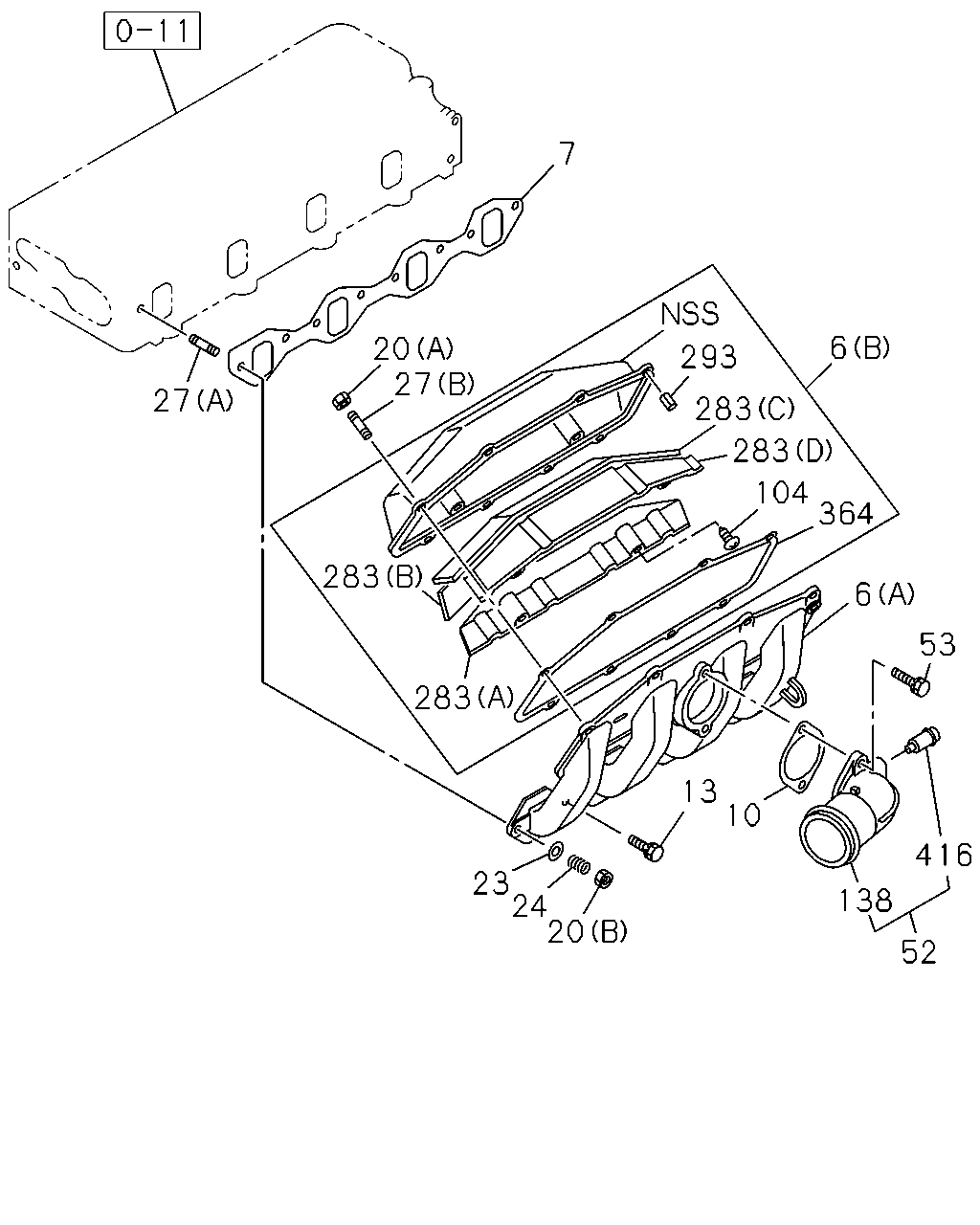

çizim 289223
138 416 52 20 24 23 10 13 53 6 364 104 283 283 6 293 27 20 27 283 283 7
BalonParca AdiParca NoAdetTipApplied Date
6 MANIFOLD; INL,UPR
EXC. TURBOCHARGER<K51> (B) IDN 		8-97143-583-0 01 1 0008-
6 MANIFOLD; INL,UPR
EXC. TURBOCHARGER<K51> (A) IDN 		8-97956-840-0 01 1 0008-
7 GASKET; INL MANIF TO HD
TURBOCHARGER<K51> 		8-97228-044-0 01 1 0008-0101
7 GASKET; INL MANIF TO HD
TURBOCHARGER<K51> 		8-97301-838-1 01 1 0102-
7 GASKET; INL MANIF TO HD
EXC. TURBOCHARGER<K51> 		8-94442-213-0 01 1 0008-
10 GASKET; INL PIPE TO MANIF
EXC. TURBOCHARGER<K51> 		8-97035-883-1 01 1 0008-
13 BOLT; INL MANIF
EXC. TURBOCHARGER<K51> M6X35 W/LK&PL WASHER 		0-50140-635-0 06 1 0008-0512
13 BOLT; INL MANIF
EXC. TURBOCHARGER<K51> M6X35 W/LK&PL WASHER 		0-50640-635-0 06 1 0601-
20 NUT; INL MANIF
EXC. TURBOCHARGER<K51> (A) M6 FLANGE IDN 		5-09440-004-0 02 1 0008-
20 NUT; INL MANIF
EXC. TURBOCHARGER<K51> (B) M8 FLANGE 		5-14129-011-0 08 1 0008-
23 WASHER; PL,INL MANIF
EXC. TURBOCHARGER<K51> ID=12.5 		9-09164-512-0 08 1 0008-
24 SPRING; INL MANIF
EXC. TURBOCHARGER<K51> 		5-09580-105-1 08 1 0008-
27 STUD; INL MANIF
TURBOCHARGER<K51> (C) M8X25 L=37 		9-04110-825-0 02 1 0008-0604
27 STUD; INL MANIF
TURBOCHARGER<K51> (C) M8X25 L=37 		0-41010-825-0 02 1 0605-
27 STUD; INL MANIF
EXC. TURBOCHARGER<K51> (A) M8X62 		5-14129-005-2 08 1 0008-
27 STUD; INL MANIF
EXC. TURBOCHARGER<K51> (B) M6X30 L=38 		9-04110-630-0 02 1 0008-0604
27 STUD; INL MANIF
EXC. TURBOCHARGER<K51> (B) M6X30 L=38 		0-41010-630-0 02 1 0605-
52 PIPE; INL
TURBOCHARGER<K51> THA 		8-97916-935-1 01 1 0008-0206
52 PIPE; INL
TURBOCHARGER<K51> THA 		8-97942-925-0 01 1 0207-
52 PIPE; INL
EXC. TURBOCHARGER<K51> 		8-97115-866-0 01 1 0008-
53 BOLT; INL PIPE
EXC. TURBOCHARGER<K51> M10X28 W/LK WASHER 		0-50041-028-0 02 1 0008-0909
53 BOLT; INL PIPE
EXC. TURBOCHARGER<K51> M10X28 W/LK WASHER 		0-50541-028-0 02 1 0910-
104 SCREW
EXC. TURBOCHARGER<K51> 		8-97173-324-0 06 1 0008-
138 PIPE; INL
EXC. TURBOCHARGER<K51> 		8-97115-992-0 01 1 0008-
283 RUBBER
EXC. TURBOCHARGER<K51> (D) IDN 		8-97142-716-0 01 1 0008-
283 RUBBER
EXC. TURBOCHARGER<K51> (C) IDN 		8-97142-717-0 01 1 0008-
283 RUBBER
EXC. TURBOCHARGER<K51> (B) IDN 		8-97142-718-0 01 1 0008-
283 RUBBER
EXC. TURBOCHARGER<K51> (A) IDN 		8-97142-719-0 01 1 0008-
293 SPACER; INL MANIF
EXC. TURBOCHARGER<K51> 		8-97078-151-0 08 1 0008-
364 GASKET
EXC. TURBOCHARGER<K51> 		8-97078-152-0 01 1 0008-
416 NIPPLE; BREATHER HOSE
EXC. TURBOCHARGER<K51> OD=15 L=41 		8-94442-052-0 01 1 0008-

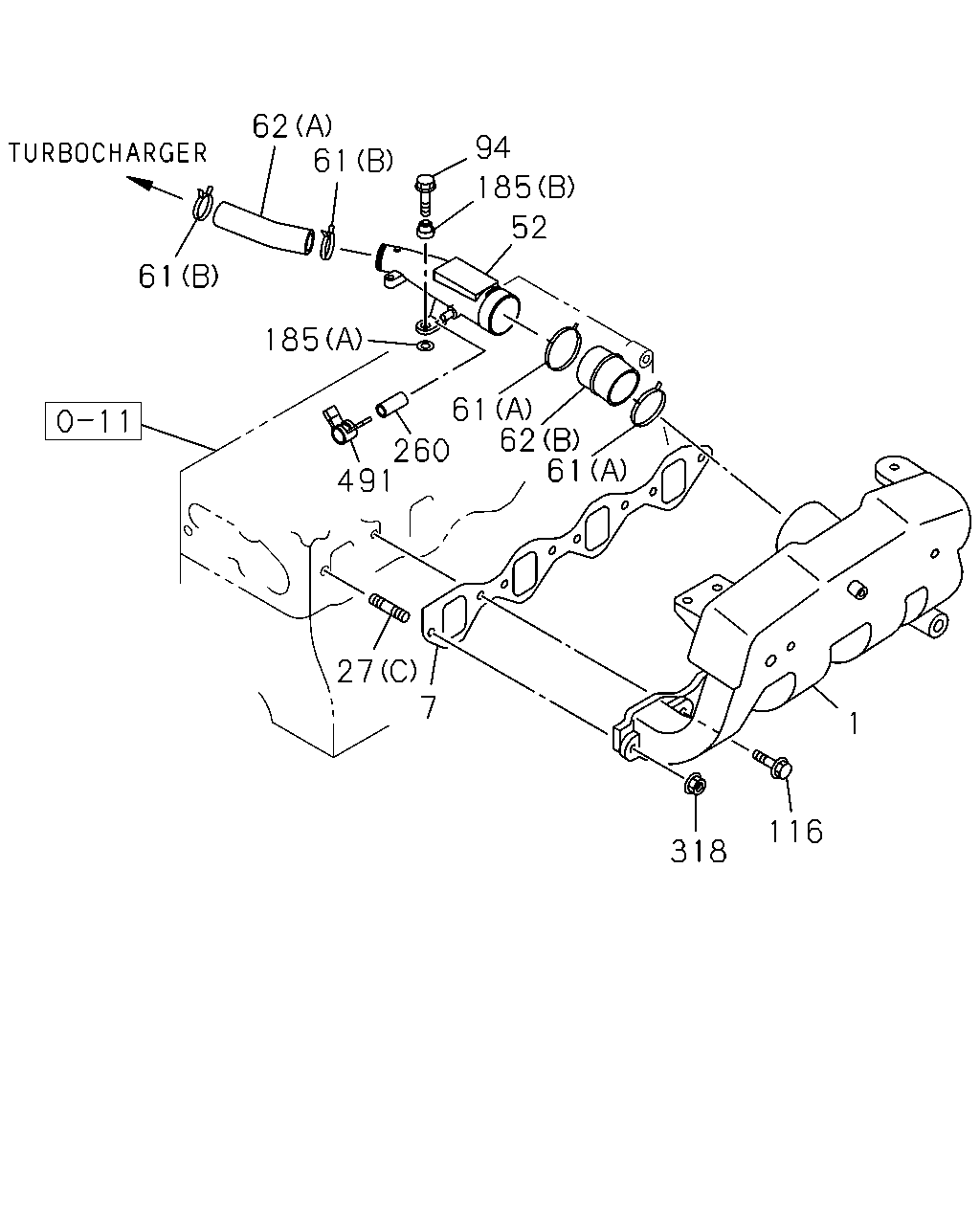

çizim 289263
1 116 318 7 27 61 62 61 260 491 185 52 185 94 61 62 61
BalonParca AdiParca NoAdetTipApplied Date
1 MANIFOLD; INL
TURBOCHARGER<K51> IDN 		8-97957-233-1 01 1 0008-
7 GASKET; INL MANIF TO HD
TURBOCHARGER<K51> 		8-97228-044-0 01 1 0008-0101
7 GASKET; INL MANIF TO HD
TURBOCHARGER<K51> 		8-97301-838-1 01 1 0102-
7 GASKET; INL MANIF TO HD
EXC. TURBOCHARGER<K51> 		8-94442-213-0 01 1 0008-
27 STUD; INL MANIF
TURBOCHARGER<K51> (C) M8X25 L=37 		9-04110-825-0 02 1 0008-0604
27 STUD; INL MANIF
TURBOCHARGER<K51> (C) M8X25 L=37 		0-41010-825-0 02 1 0605-
27 STUD; INL MANIF
EXC. TURBOCHARGER<K51> (A) M8X62 		5-14129-005-2 08 1 0008-
27 STUD; INL MANIF
EXC. TURBOCHARGER<K51> (B) M6X30 L=38 		9-04110-630-0 02 1 0008-0604
27 STUD; INL MANIF
EXC. TURBOCHARGER<K51> (B) M6X30 L=38 		0-41010-630-0 02 1 0605-
52 PIPE; INL
TURBOCHARGER<K51> THA 		8-97916-935-1 01 1 0008-0206
52 PIPE; INL
TURBOCHARGER<K51> THA 		8-97942-925-0 01 1 0207-
52 PIPE; INL
EXC. TURBOCHARGER<K51> 		8-97115-866-0 01 1 0008-
61 CLIP; CONNECTOR HOSE
TURBOCHARGER<K51> (A) ID=65-82 		8-97131-942-0 02 1 0008-
61 CLIP; CONNECTOR HOSE
TURBOCHARGER<K51> (B) ID=45.5-56.5 		8-97131-943-0 02 1 0008-
62 HOSE; CONNECTOR
TURBOCHARGER<K51> (A) 		8-97096-628-3 01 1 0008-
62 HOSE; CONNECTOR
TURBOCHARGER<K51> (B) 		8-97137-018-1 01 1 0008-0404
62 HOSE; CONNECTOR
TURBOCHARGER<K51> (B) 		8-94386-164-2 01 1 0405-
94 BOLT
TURBOCHARGER<K51> M8X30 W/LK WASHER 		0-50040-830-0 02 1 0008-0512
94 BOLT
TURBOCHARGER<K51> M8X30 W/LK WASHER 		0-50540-830-0 02 1 0601-
116 BOLT; MANIF TO INL PIPE
TURBOCHARGER<K51> M8X25 FLANGE 		0-28080-825-0 06 1 0008-0512
116 BOLT; MANIF TO INL PIPE
TURBOCHARGER<K51> M8X25 FLANGE 		0-28050-825-0 06 1 0601-
185 RUBBER; MTG,INL MANIF,UPR
TURBOCHARGER<K51> (A) 		8-94434-927-0 02 1 0008-
185 RUBBER; MTG,INL MANIF,UPR
TURBOCHARGER<K51> (B) ID=12 OD=24 T=4.5 THA 		8-97912-693-1 02 1 0008-
260 CAP; RUBBER
TURBOCHARGER<K51> ID=4 		8-94217-809-0 01 1 0008-0206
318 NUT; INL MANIF
TURBOCHARGER<K51> M8 FLANGE IDN 		0-91150-208-0 02 1 0008-0602
318 NUT; INL MANIF
TURBOCHARGER<K51> M8 FLANGE IDN 		0-91180-208-0 02 1 0603-
491 CLIP; CONNECTOR
TURBOCHARGER<K51> 		8-97031-674-0 01 1 0008-0206
