◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87 - COUPLING; INJECTION PUMP ▶
0-87 — COUPLING; INJECTION PUMP (#9518) — 48 parça

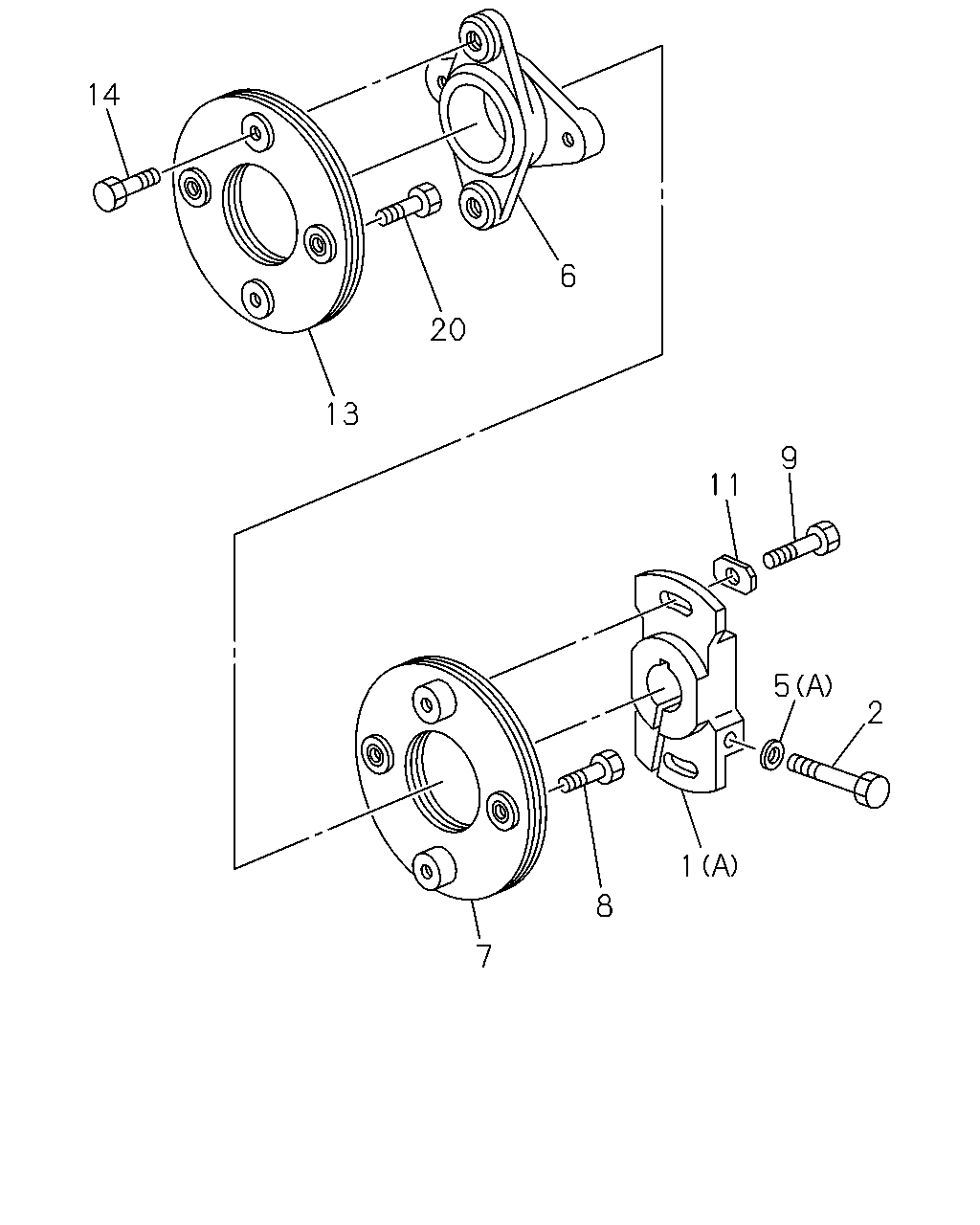

çizim 38385
14 6 20 13 11 5 2 1 8 7 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 0005-0210 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 0005-0210 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 0005-0210 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0005-0210 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 0005-0210 ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 0005-0210 ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 0005-0210 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 0005-0210 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 0005-0210 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 0005-0210 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 0005-0210 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0005-0210 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 0005-0210 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 0005-0210 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 0005-0210 ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-188-0 02 1 0005-0210 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0005-0210 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 0005-0210 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0005-0210 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 0005-0210 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0005-0210 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 0005-0210 ●

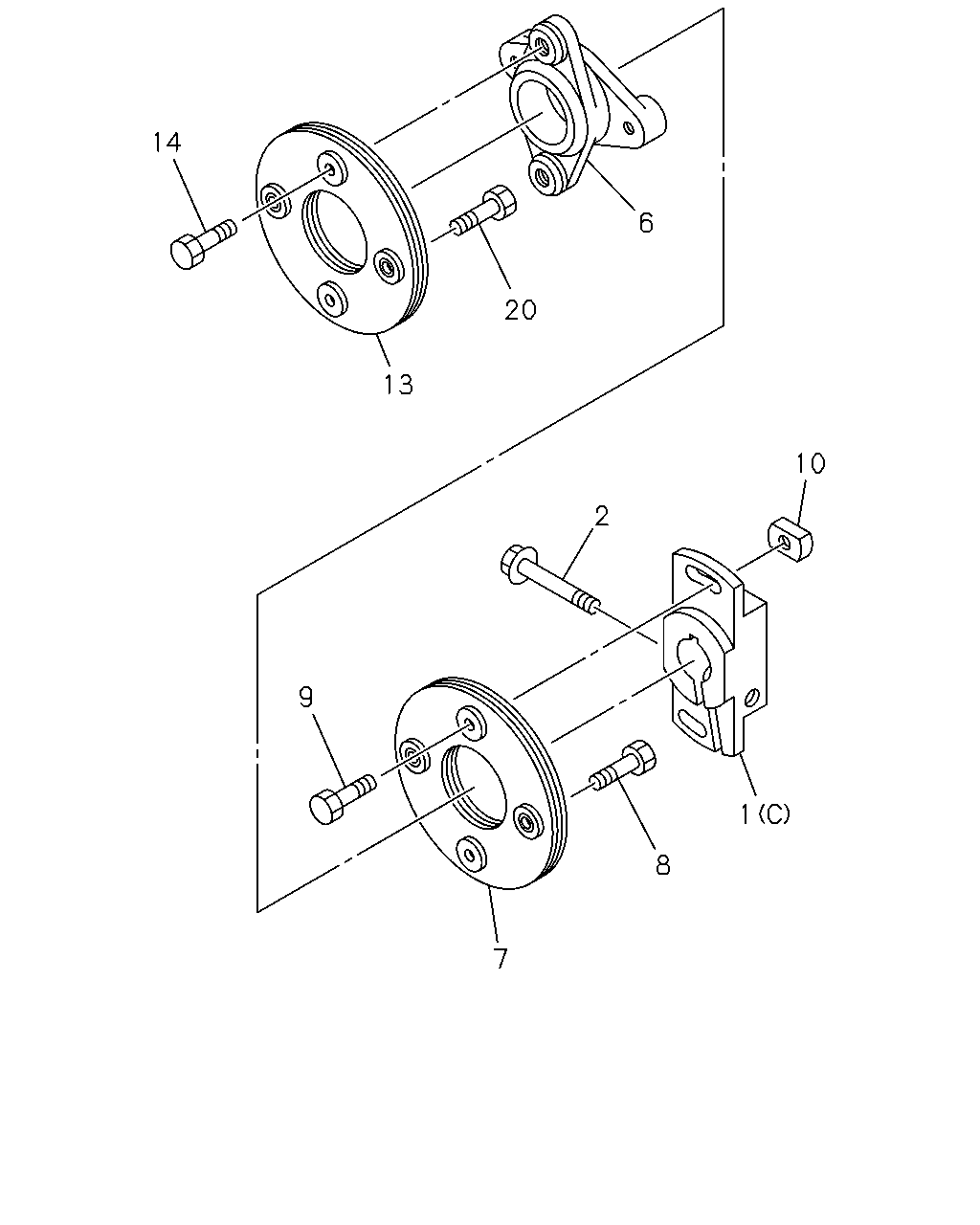

çizim 38435
14 6 20 13 10 2 9 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 0005-0210 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 0005-0210 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 0005-0210 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0005-0210 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 0005-0210 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 0005-0210 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 0005-0210 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 0005-0210 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 0005-0210 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0005-0210 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 0005-0210 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 0005-0210 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 0005-0210 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 0005-0210 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0005-0210 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 0005-0210 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0005-0210 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 0005-0210 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0005-0210 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 0005-0210 ●

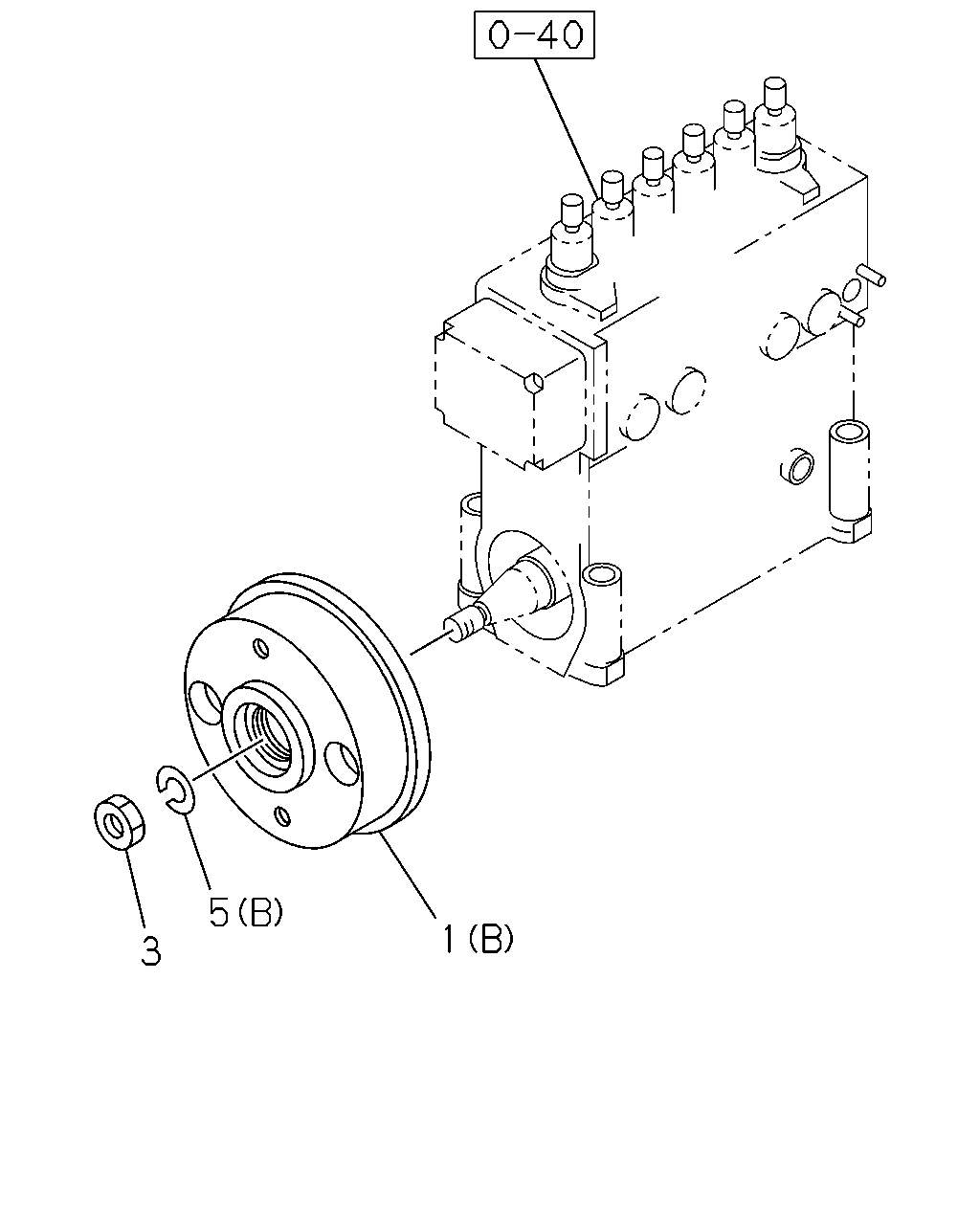

çizim 99812
5 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 0005-0210 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 0005-0210 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15782-014-0 01 1 0005-0210 ●
3 NUT; COUPLING FIX,INJ PUMP 1-15619-132-0 01 1 0005-0210 ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 0005-0210 ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 0005-0210 ●
