◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#95177) — 68 parça

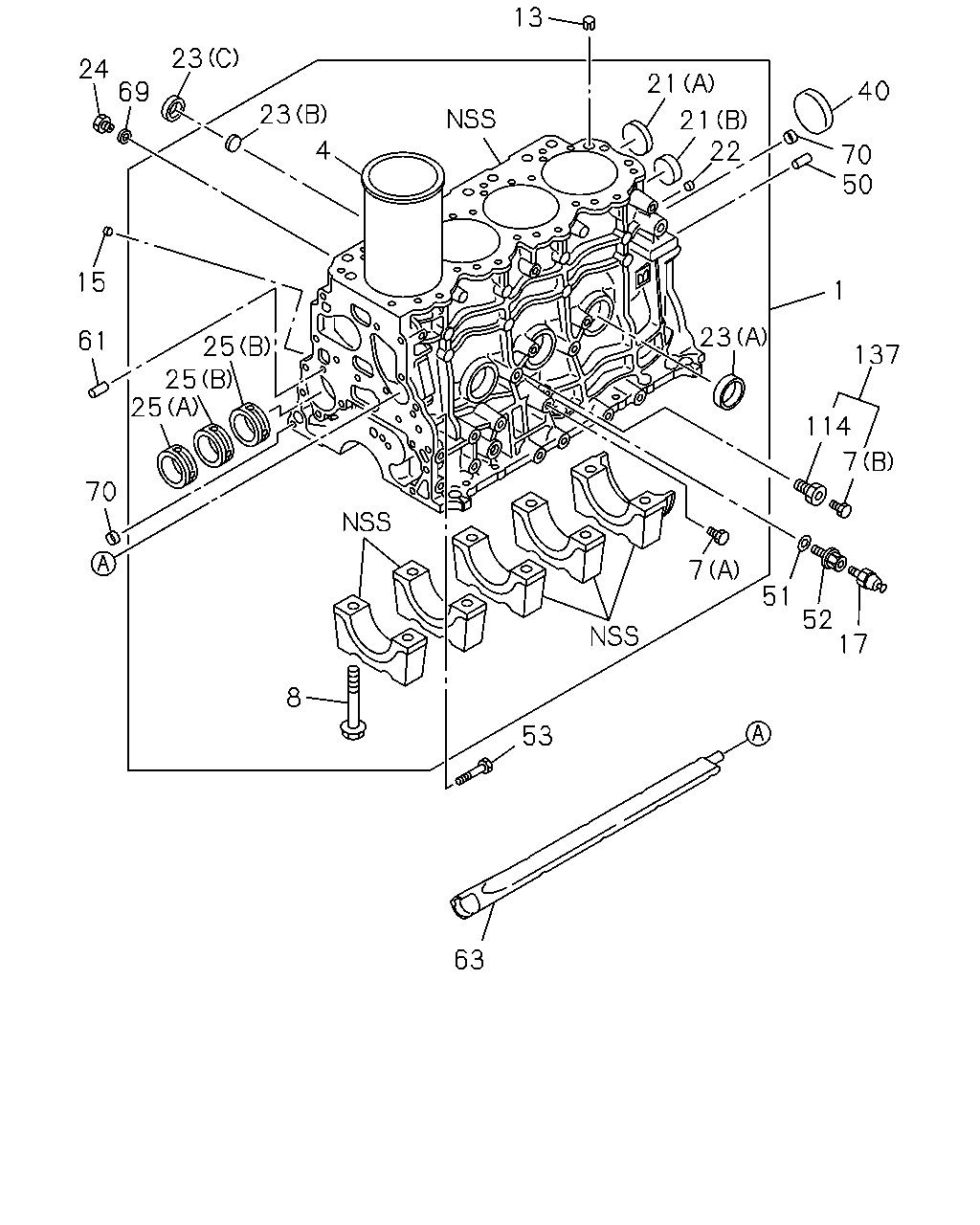

çizim 289333
63 53 8 17 52 51 7 7 114 137 1 23 50 70 40 22 21 21 13 4 23 23 69 24 15 25 61 25 25 70
BalonParca AdiParca NoAdetTipApplied Date
1 BLOCK ASM; CYL
IDN 		8-97956-635-6 01 1 0008-
4 LINER; C/BL
OD GRADE=1,ID GRADE=AX 		8-97176-691-0 04 1 0008-
4 LINER; C/BL
OD GRADE=1,ID GRADE=CX 		8-97176-692-0 04 1 0008-
4 LINER; C/BL
OD GRADE=2,ID GRADE=AX 		8-97176-693-0 04 1 0008-
4 LINER; C/BL
OD GRADE=2,ID GRADE=CX 		8-97176-694-0 04 1 0008-
4 LINER; C/BL
OD GRADE=3,ID GRADE=AX 		8-97176-695-0 04 1 0008-
4 LINER; C/BL
OD GRADE=3,ID GRADE=CX 		8-97176-696-0 04 1 0008-
4 LINER; C/BL
OD GRADE=4,ID GRADE=AX 		8-97176-697-0 04 1 0008-
4 LINER; C/BL
OD GRADE=4,ID GRADE=CX 		8-97176-698-0 04 1 0008-
7 PLUG; WATER DRAIN
(A) PT1/4 IDN 		9-09664-001-0 01 1 0008-
7 PLUG; WATER DRAIN
(B) M10X30 		9-09809-097-0 01 1 0008-0210
8 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0008-
13 DOWEL; C/BL TO HD 8-94453-344-0 02 1 0008-
15 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 03 1 0008-
17 SWITCH; OIL PRESSURE 9-82720-209-3 01 1 0008-
21 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 0008-
21 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 0008-
22 CUP; SEALING,DUCT HOLE
OD=12.3 		5-09600-013-0 01 1 0008-
23 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		1-09600-005-1 03 1 0008-0305
23 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		8-97036-550-1 03 1 0306-
23 CUP; SEALING,C/BL FRT & RR
(B) OD=18 		5-11219-008-0 03 1 0008-
23 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 03 1 0008-
24 NIPPLE; OIL FEED,VAC PUMP
EXC. TURBOCHARGER<K51> 		8-94419-728-0 01 1 0008-
25 METAL; CM/SHF
(B) 		8-94427-201-2 02 1 0008-0411
25 METAL; CM/SHF
(B) 		8-97378-147-0 02 1 0412-
25 METAL; CM/SHF
(A) 		8-94427-206-2 01 1 0008-0411
25 METAL; CM/SHF
(A) 		8-97378-148-0 01 1 0412-
40 CUP; SEALING,C/BL RR
OD=56 		8-94250-514-1 01 1 0008-
50 PIN; STRAIGHT,RR PLATE
OD=10 L=32 		9-08161-032-0 01 1 0008-
51 GASKET; OIL PRESS WARNING SW,C/BL
THA 		8-97912-498-0 01 1 0008-
52 NIPPLE; OIL PRESS WARNING SW,C/BL 8-94167-750-2 01 1 0008-
53 BOLT; REAMER
M10X52 		9-09806-020-0 01 1 0008-0110
53 BOLT; REAMER
M/T MSG 5 SPEED(M75) M10X52 		9-09806-020-0 01 1 0111-
53 BOLT; REAMER
A/T AISIN(RMD) M10X60 		8-94200-831-2 01 1 0111-
61 PIN; STRAIGHT
OD=10 L=20 		9-08151-020-0 02 1 0008-0201
61 PIN; STRAIGHT
OD=10 L=20 		8-97135-423-0 02 1 0202-
63 DUCT; WATER,C/BL 8-94419-436-2 01 1 0008-
69 GASKET; PLUG,OIL GALLERY,C/BL
EXC. TURBOCHARGER<K51> ID=14.2 OD=20.0 		9-09571-414-0 01 1 0008-
70 CUP; SEALING,FRT & RR
OD=16 		5-11129-006-0 02 1 0008-
114 NIPPLE; WATER DRAIN 8-94133-968-1 01 1 0008-0210
137 COCK; DRAIN,WATER 8-94422-600-0 01 1 0008-0210

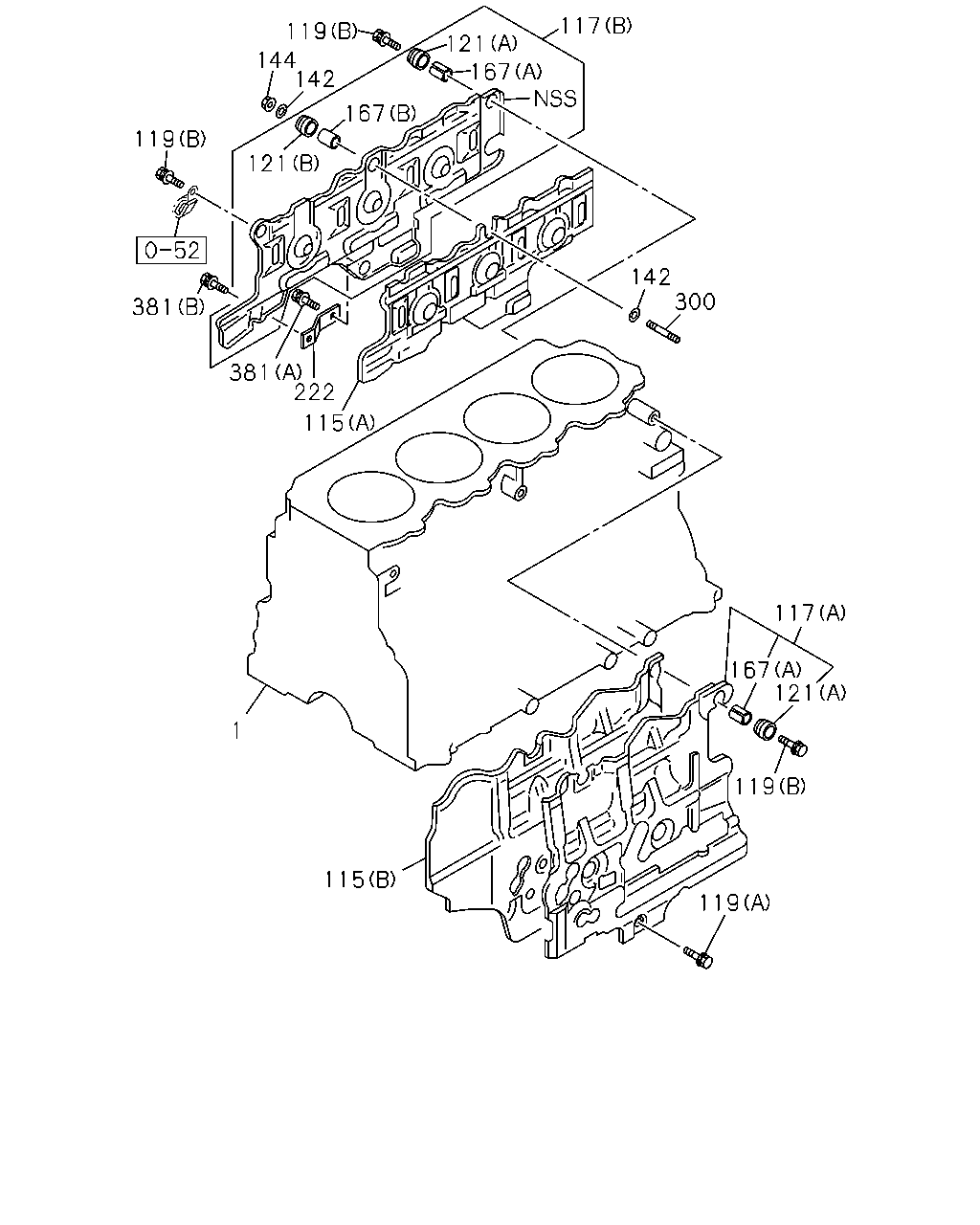

çizim 289404
1 115 119 119 121 167 117 300 142 115 222 381 381 119 121 167 142 144 119 121 167 117
BalonParca AdiParca NoAdetTipApplied Date
1 BLOCK ASM; CYL
IDN 		8-97956-635-6 01 1 0008-
115 RUBBER; SPACE
(A) 		8-97141-687-0 01 1 0008-0203
115 RUBBER; SPACE
(A) 		8-97264-913-2 01 1 0204-
115 RUBBER; SPACE
(B) 		8-97204-194-0 01 1 0008-
117 COVER ASM; C/BL
(A) 		8-97188-107-3 01 1 0008-
117 COVER ASM; C/BL
(B) 		8-97188-108-1 01 1 0008-
119 BOLT; COVER FIX
(B) M8X22 W/LK&PL WASHER IDN 		8-94329-953-1 04 1 0008-
119 BOLT; COVER FIX
(A) M10X28 		8-94329-952-1 01 1 0008-0405
119 BOLT; COVER FIX
(A) M10X28 		8-94329-952-1 02 1 0406-
121 RUBBER; MTG,COVER
(A) OD=22 IDN 		8-94140-428-1 05 1 0008-
121 RUBBER; MTG,COVER
(B) OD=16 		8-97188-507-0 01 1 0008-
142 WASHER; PL
TURBOCHARGER<K51> ID=8.4 OD=26 		9-09164-808-0 01 1 0008-0605
142 WASHER; PL
TURBOCHARGER<K51> ID=8.4 OD=26 		0-91614-808-0 01 1 0606-
142 WASHER; PL
EXC. TURBOCHARGER<K51> ID=8.4 OD=26 		9-09164-808-0 02 1 0008-0605
142 WASHER; PL
EXC. TURBOCHARGER<K51> ID=8.4 OD=26 		0-91614-808-0 02 1 0606-
144 NUT; COVER FIX
M8 FLANGE IDN 		0-91150-208-0 01 1 0008-0602
144 NUT; COVER FIX
M8 FLANGE IDN 		0-91180-208-0 01 1 0603-
167 TUBE; DIST,SIDE COVER
(A) OD=13 T=9.5 IDN 		8-94140-427-1 05 1 0008-
167 TUBE; DIST,SIDE COVER
(B) OD=18 T=4.5 		8-97188-506-0 01 1 0008-
222 BRACKET; COVER,C/BL 8-97209-129-0 01 1 0008-
300 STUD; COVER
M8X30 L=41 		9-04110-830-0 01 1 0008-0604
300 STUD; COVER
M8X30 L=41 		0-41010-830-0 01 1 0605-
381 BOLT; BRKT
(A) M8X12 W/LK WASHER 		0-50040-812-0 01 1 0008-0202
381 BOLT; BRKT
(A) M8X10 FLANGE 		0-28080-810-0 01 1 0203-0512
381 BOLT; BRKT
(A) M8X10 FLANGE 		0-28050-810-0 01 1 0601-
381 BOLT; BRKT
(B) M10X20 W/LK WASHER IDN 		0-50041-020-0 01 1 0008-0512
381 BOLT; BRKT
(B) M10X20 W/LK WASHER IDN 		0-50541-020-0 01 1 0601-
