Isuzu WW
▶
AUV
▶
TBR
▶
50823 - TBR(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶

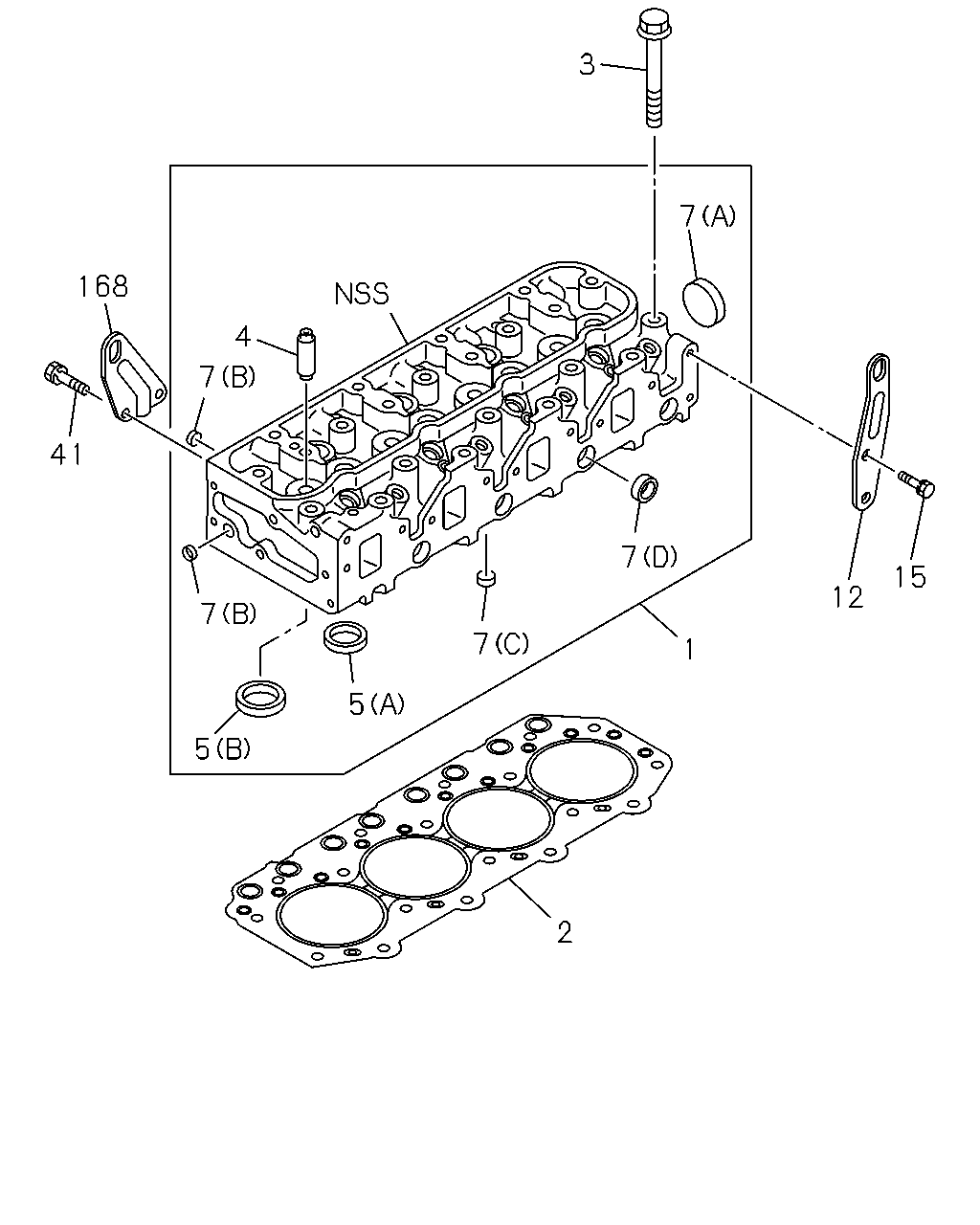

0-11 — CYLINDER HEAD
(#95176) — 25 parça
1
2
12
15
7
7
5
5
7
41
7
4
168
7
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
TURBOCHARGER<K51> IDN
8-97958-911-1
01
1
0008-0207
1
HEAD ASM; CYL
IDN
8-97958-911-2
01
1
0208-
1
HEAD ASM; CYL
EXC. TURBOCHARGER<K51> IDN
8-97958-910-1
01
1
0008-0207
2
GASKET; CYL HD
T=1.70 3-NOTCH
8-94332-328-0
01
1
0008-0212
2
GASKET; CYL HD
T=1.70 3-NOTCH
8-97350-320-0
01
1
0301-
3
BOLT; CYL HD TO BLOCK
M11X122
8-97133-416-1
18
1
0008-
4
GUIDE; VLV
L=50
5-11721-016-0
08
1
0008-
5
SEAT; VLV INSERT
TURBOCHARGER<K51> (A) INLET
8-97254-814-0
04
1
0008-0207
5
SEAT; VLV INSERT
(A) INLET
8-97231-228-0
04
1
0208-
5
SEAT; VLV INSERT
TURBOCHARGER<K51> (B) EXHAUST
8-97254-815-0
04
1
0008-0207
5
SEAT; VLV INSERT
(B) EXHAUST
8-97231-229-0
04
1
0208-
5
SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (A) INLET
8-94130-558-0
04
1
0008-0207
5
SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (B) EXHAUST
8-94130-559-0
04
1
0008-0207
7
CUP; SEALING,CYL HEAD
(A) OD=45
1-09600-005-2
01
1
0008-
7
CUP; SEALING,CYL HEAD
(B) OD=12.3
5-09600-013-0
05
1
0008-
7
CUP; SEALING,CYL HEAD
(C) OD=16
5-11129-006-0
03
1
0008-
7
CUP; SEALING,CYL HEAD
(D) OD=22
8-97209-609-0
07
1
0008-
12
HANGER; ENG,RR
IDN
8-97956-848-0
01
1
0008-
15
BOLT; HANGER,FRT
TURBOCHARGER<K51> M8X16 FLANGE
0-28080-816-0
02
1
0008-0512
15
BOLT; HANGER,FRT
TURBOCHARGER<K51> M8X16 FLANGE
0-28050-816-0
02
1
0601-
41
BOLT; ENG HANGER
M8X25 W/LK WASHER
0-50040-825-0
01
1
0008-0512
41
BOLT; ENG HANGER
M8X25 W/LK WASHER
0-50540-825-0
01
1
0601-
41
BOLT; ENG HANGER
M10X25 W/LK WASHER
0-50041-025-0
01
1
0008-0512
41
BOLT; ENG HANGER
M10X25 W/LK WASHER
0-50541-025-0
01
1
0601-
168
HANGER; ENG,FRT
8-94379-714-1
01
1
0008-
