50663 - TBR(INDONESIA)
▶
9 - Tools
▶
9-31 - REAR BODY; FLOOR AND FENDER
▶

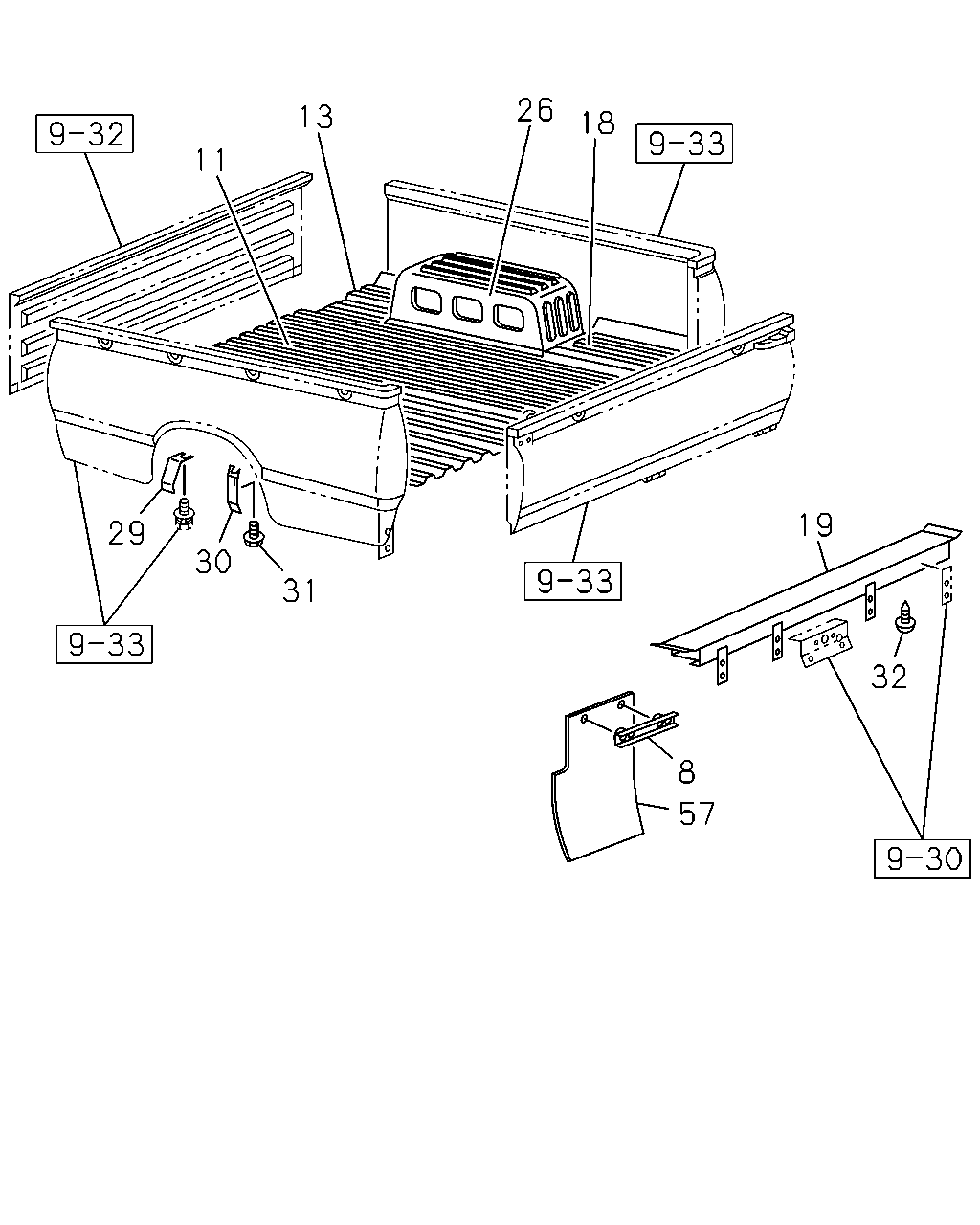

9-31 — REAR BODY; FLOOR AND FENDER
(#95172) — 18 parça
Tümü
A - TBB5SC
B - TBB5SF
32
19
57
8
18
26
13
11
31
30
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
HOLDER; FLAP RUBBER
MUD FLAP<VH4> DELETION IDN
8-94366-921-0
02
1
9009-
●
●
11
PANEL; FLOOR BOARD,RR BODY
DELETION IDN
8-94367-148-0
01
1
9009-
●
11
PANEL; FLOOR BOARD,RR BODY
DELETION IDN
8-94367-149-0
01
1
9009-
●
13
PANEL; FLOOR BOARD,FRT SIDE,RR BODY
DELETION IDN
8-94388-900-0
01
1
9009-
●
13
PANEL; FLOOR BOARD,FRT SIDE,RR BODY
DELETION IDN
8-94388-899-0
01
1
9009-
●
13
PANEL; FLOOR BOARD,FRT SIDE,RR BODY
DELETION IDN
8-94388-902-0
01
1
9009-
●
13
PANEL; FLOOR BOARD,FRT SIDE,RR BODY
DELETION IDN
8-94388-901-0
01
1
9009-
●
18
PANEL; FLOOR BOARD,RR SIDE
DELETION IDN
8-94388-897-0
01
1
9009-
●
●
18
PANEL; FLOOR BOARD,RR SIDE
DELETION IDN
8-94388-896-0
01
1
9009-
●
●
19
BOLSTER; RR END,RR BODY
DELETION IDN
8-94367-165-1
01
1
9009-
●
●
26
PANEL; WHEEL HOUSE,RR BODY
DELETION IDN
8-94367-217-1
02
1
9009-
●
●
29
STAY; SIDE PANEL TO FLOOR,RR BODY FRT
DELETION IDN
8-94367-225-0
02
1
9009-
●
●
30
STAY; SIDE PANEL TO FLOOR,RR BODY RR
DELETION IDN
8-94389-329-0
01
1
9009-
●
●
30
STAY; SIDE PANEL TO FLOOR,RR BODY RR
DELETION IDN
8-94389-328-0
01
1
9009-
●
●
31
BOLT; SIDE PANEL STAY,RR BODY
M6X16 W/PL WASHER IDN
8-94204-636-0
04
1
9009-
●
●
32
SCREW; FLOOR BOLSTER,RR BODY
8-94442-971-0
12
1
9009-9303
●
●
32
SCREW; FLOOR BOLSTER,RR BODY
M6X16 IDN
8-97020-619-0
12
1
9304-
●
●
57
RUBBER; FLAP RR
MUD FLAP<VH4> DELETION IDN
8-94366-920-1
02
1
9009-
●
●
