50663 - TBR(INDONESIA)
▶
9 - Tools
▶

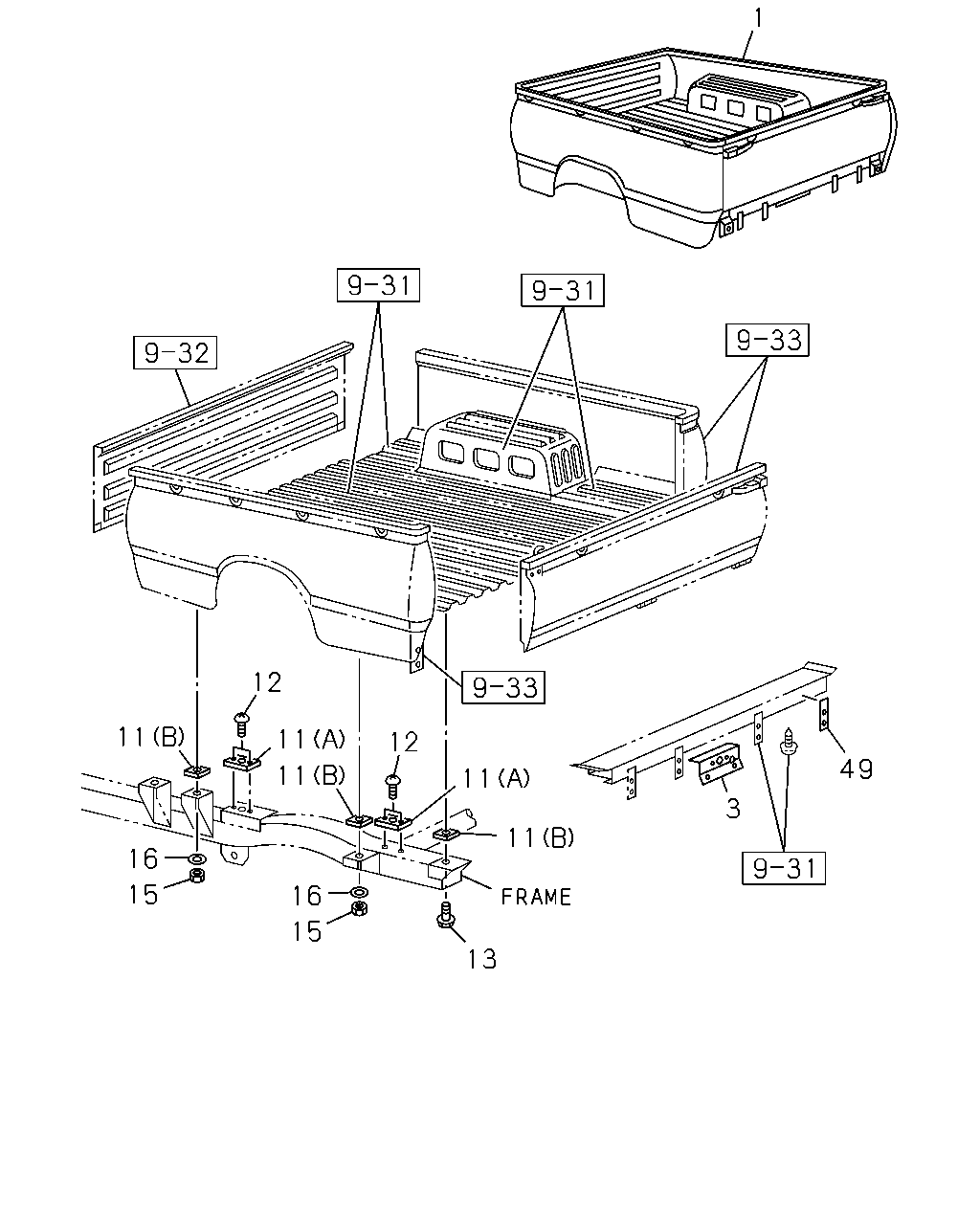

9-30 - REAR BODY ASM AND MOUNTING
▶
9-30 — REAR BODY ASM AND MOUNTING
(#95171) — 11 parça
Tümü
A - TBB5SC
B - TBB5SF
1
49
3
11
11
13
12
12
11
11
11
16
15
16
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BODY ASM; REAR
DELETION IDN
8-94367-142-0
01
1
9009-
●
1
BODY ASM; REAR
DELETION IDN
8-94367-143-0
01
1
9009-
●
3
BRACKET; LICENSE PLATE LAMP
DELETION IDN
8-94367-177-2
01
1
9009-
●
●
11
GASKET; RR BODY MTG
(B) DELETION IDN
8-94331-737-0
06
1
9009-
●
●
11
GASKET; RR BODY MTG
(A) DELETION IDN
8-94331-738-1
08
1
9009-
●
●
12
SCREW; RR BODY MTG GASKET
M6X16
9-07077-616-0
12
1
9009-
●
●
13
BOLT; RR BODY MTG
M12X35 W/PL WASHER
8-94483-977-0
02
1
9009-
●
●
15
NUT; RR BODY MTG
5-09449-002-0
06
1
9009-9109
●
●
15
NUT; RR BODY MTG
M12 FLANGE
8-97028-764-0
06
1
9110-
●
●
16
WASHER; FRAME END,RR BODY
ID=12.5 OD=26
9-09164-612-0
06
1
9009-
●
●
49
BRACKET; RR COMB LAMP
DELETION IDN
8-94367-173-0
04
1
9009-
●
●
