0-85 — AUTO TIMER; INJECTION PUMP (#9517) — 35 parça

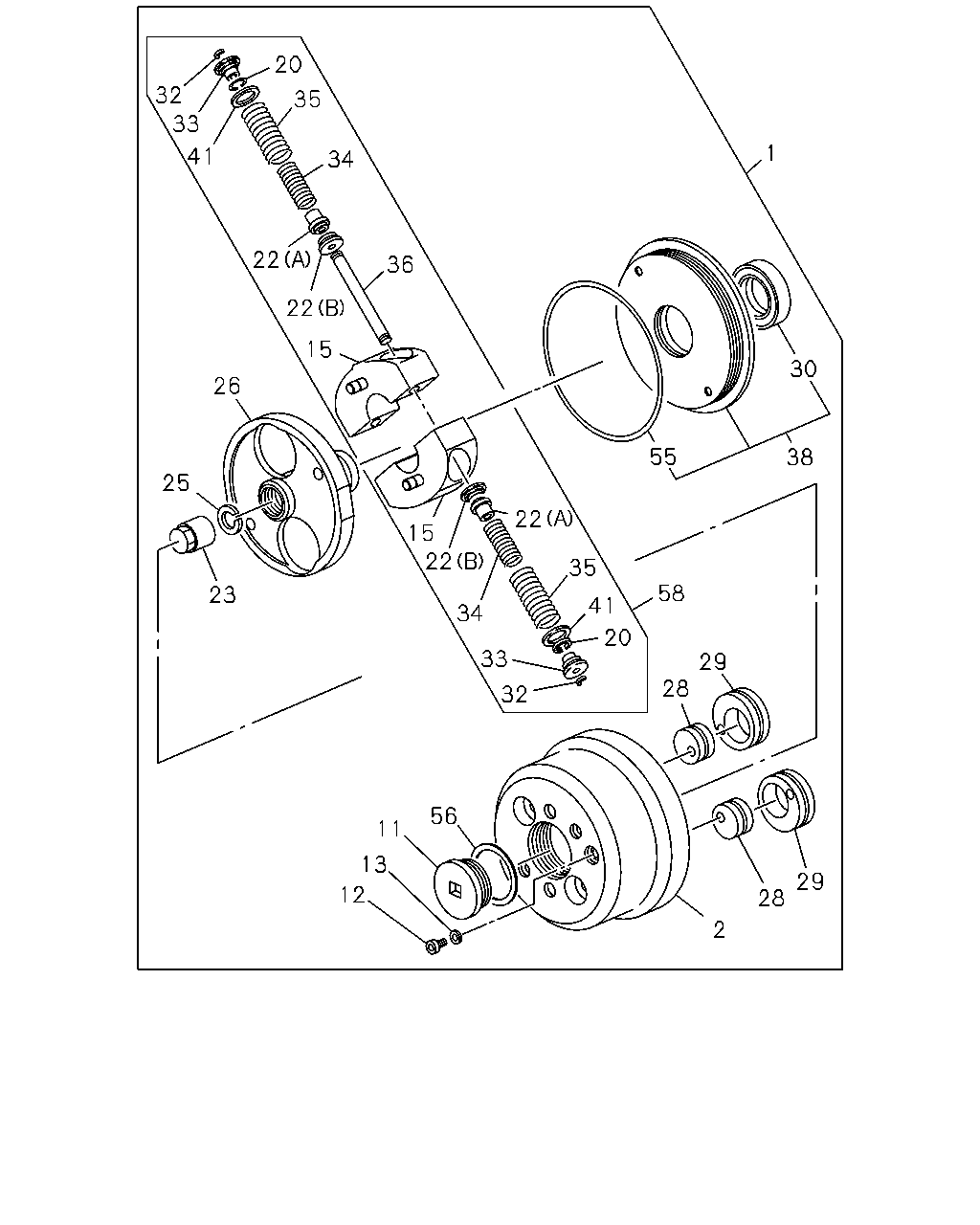

çizim 99857
20 32 35 33 1 41 34 22 36 22 15 30 26 55 38 25 22 15 22 35 58 23 41 34 20 33 29 28 32 56 11 13 29 12 28 2
BalonParca AdiParca NoAdetTipApplied Date
1 TIMER ASM; INJ PUMP
ASM PART: A = 8-94391-333-0 		1-15740-471-0 01 1 -
2 HOUSING; TIMER,INJ PUMP
ASM PART: A = 8-94391-333-0 		1-15741-045-0 01 1 -
11 CAP; TIMER HSG,INJ PUMP
ASM PART: A = 8-94391-333-0 		1-15749-594-0 01 1 -
12 PLUG; TIMER HSG,INJ PUMP
ASM PART: A = 8-94391-333-0 		1-15749-031-0 01 1 -
13 GASKET; HSG PLUG,INJ PUMP
ASM PART: A = 8-94391-333-0 		1-15749-030-0 01 1 -
15 FLYWEIGHT; TIMER,INJ PUMP
ASM PART: A = 8-94391-333-0 		1-15743-139-0 02 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.10 ASM PART: A = 8-94391-333-0 		1-15749-394-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.30 ASM PART: A = 8-94391-333-0 		1-15749-395-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.50 ASM PART: A = 8-94391-333-0 		1-15749-396-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=1.00 ASM PART: A = 8-94391-333-0 		1-15749-397-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.40 ASM PART: A = 8-94391-333-0 		1-15749-495-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.70 ASM PART: A = 8-94391-333-0 		1-15749-496-0 AR 1 -
22 SEAT; INNER SPRING,TIMER,INJ PUMP
(B) ASM PART: A = 8-94391-333-0 		1-15749-353-0 04 1 -
22 SEAT; INNER SPRING,TIMER,INJ PUMP
(A) ASM PART: A = 8-94391-333-0 		1-15749-587-0 04 1 -
23 NUT; TIMER FLANGE,INJ PUMP
ASM PART: A = 8-94391-333-0 		1-15749-318-0 01 1 -
25 WASHER; LK,TIMER FLANGE,INJ PUMP
ASM PART: A = 8-94391-333-0 		1-15749-593-0 01 1 -
26 FLANGE; TIMER,INJ PUMP
ASM PART: A = 8-94391-333-0 		1-15742-146-0 01 1 -
28 CAM; INNER,ECCENTRIC,TIMER,INJ PUMP
ASM PART: A = 8-94391-333-0 		1-15749-152-0 02 1 -
29 CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP
ASM PART: A = 8-94391-333-0 		1-15749-151-0 02 1 -
30 SEAL; OIL,TIMER COVER,INJ PUMP
ASM PART: A = 8-94391-333-0 		1-15749-592-0 01 1 -
32 RING; SNAP,SPRING SEAT,TIMER,INJ PUMP
ASM PART: A = 8-94391-333-0 		1-15749-358-0 04 1 -
33 SEAT; OUTER SPRING,TIMER,INJ PUMP
ASM PART: A = 8-94391-333-0 		1-15749-354-0 04 1 -
34 SPRING; TIMER,INNER,INJ PUMP
ASM PART: A = 8-94391-333-0 		1-15749-844-0 04 1 -
35 SPRING; TIMER,OUTER,INJ PUMP
ASM PART: A = 8-94391-333-0 		1-15749-843-0 04 1 -
36 PIN; PILOT,TIMER SPRING,INJ PUMP
ASM PART: A = 8-94391-333-0 		1-15749-849-0 02 1 -
38 COVER; TIMER,INJ PUMP
ASM PART: A = 8-94391-333-0 		1-15749-591-0 01 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.10 ASM PART: A = 8-94391-333-0 		1-15749-390-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.30 ASM PART: A = 8-94391-333-0 		1-15749-391-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.50 ASM PART: A = 8-94391-333-0 		1-15749-392-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=1.00 ASM PART: A = 8-94391-333-0 		1-15749-393-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.40 ASM PART: A = 8-94391-333-0 		1-15749-493-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.70 ASM PART: A = 8-94391-333-0 		1-15749-494-0 AR 1 -
55 GASKET; TIMER HSG,INJ PUMP
ASM PART: A = 8-94391-333-0 		9-81345-138-0 01 1 -
56 GASKET; CAP
ASM PART: A = 8-94391-333-0 		1-15749-453-0 01 1 -
58 FLYWEIGHT ASM; TIMER,INJ PUMP
ASM PART: A = 8-94391-333-0 		1-15743-136-0 01 1 -
