8-90 — RADIO AND TV (#95169) — 25 parça

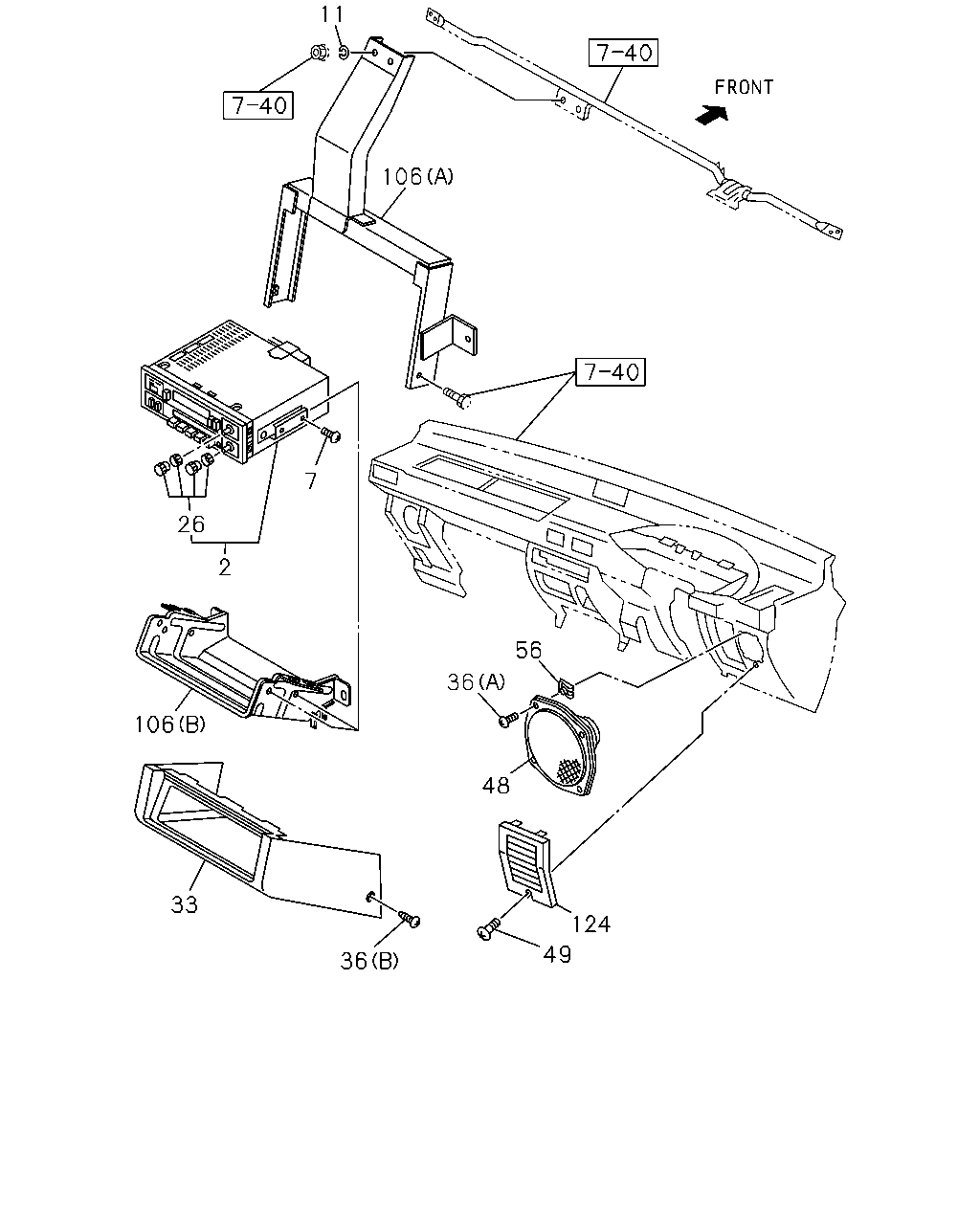

çizim 288942
11 106 7 26 2 56 36 48 106 33 36 124 49
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 RADIO & CASSETTE DECK ASM
AM/FM RADIO CASSETTE STEREO(UM2) DELETION IDN 		8-94426-154-0 01 1 9009- ● ● ● ●
7 SCREW; RADIO
AM/FM RADIO CASSETTE STEREO(UM2) DELETION M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9009-0604 ● ● ● ●
7 SCREW; RADIO
AM/FM RADIO CASSETTE STEREO(UM2) M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0605- ● ● ● ●
11 WASHER; LK,BRKT TO FACIA
DELETION ID=6.4 OD=18 		9-09160-706-0 02 1 9009-0605 ● ● ● ●
11 WASHER; LK,BRKT TO FACIA
ID=6.4 OD=18 		0-91610-706-0 02 1 0606- ● ● ● ●
26 ATTACH KIT; RADIO
AM/FM RADIO CASSETTE STEREO(UM2) DELETION IDN 		8-94167-958-0 01 1 9009- ● ● ● ●
33 COVER; RADIO
GRAY 		8-94477-151-2 01 1 9009-9408 ● ● ● ●
33 COVER; RADIO
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94477-151-2 01 1 9409- ● ● ● ●
33 COVER; RADIO
INTERIOR COLOR BLACK(101) BLACK 		8-94333-794-2 01 1 9409-9601 ● ●
33 COVER; RADIO
INTERIOR COLOR BLACK(101) BLACK 		8-94333-794-2 01 1 9602- ● ● ● ●
36 SCREW; COVER
(B) DELETION M5X16 TAPPING 		9-09829-323-1 02 1 9009- ● ● ● ●
36 SCREW; COVER
AM/FM RADIO CASSETTE STEREO(UM2) (A) DELETION M4X12 TAPPING OVAL-HEAD IDN 		9-09829-312-1 08 1 9009- ● ● ● ●
48 SPEAKER; AUDIO
AM/FM RADIO CASSETTE STEREO(UM2) DELETION IDN 		8-94434-601-1 02 1 9009- ● ● ● ●
49 SCREW; SPEAKER
M5X16 TAPPING 		9-09829-323-1 01 1 9009- ● ● ● ●
56 NUT; SPEAKER,RADIO OR STEREO
AM/FM RADIO CASSETTE STEREO(UM2) DELETION IDN 		8-94449-956-0 08 1 9009- ● ● ● ●
106 BRACKET; STEREO DECK
(A) IDN 		8-94379-601-1 01 1 9009- ● ● ● ●
106 BRACKET; STEREO DECK
(B) 		8-94435-484-3 01 1 9009- ● ● ● ●
124 GRILLE; SPEAKER
GRAY 		8-94474-769-1 01 1 9009-9408 ● ● ● ●
124 GRILLE; SPEAKER
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94474-769-1 01 1 9409- ● ● ● ●
124 GRILLE; SPEAKER
INTERIOR COLOR BLACK(101) BLACK 		8-94340-986-1 01 1 9409-9601 ● ●
124 GRILLE; SPEAKER
INTERIOR COLOR BLACK(101) BLACK 		8-94340-986-1 01 1 9602- ● ● ● ●

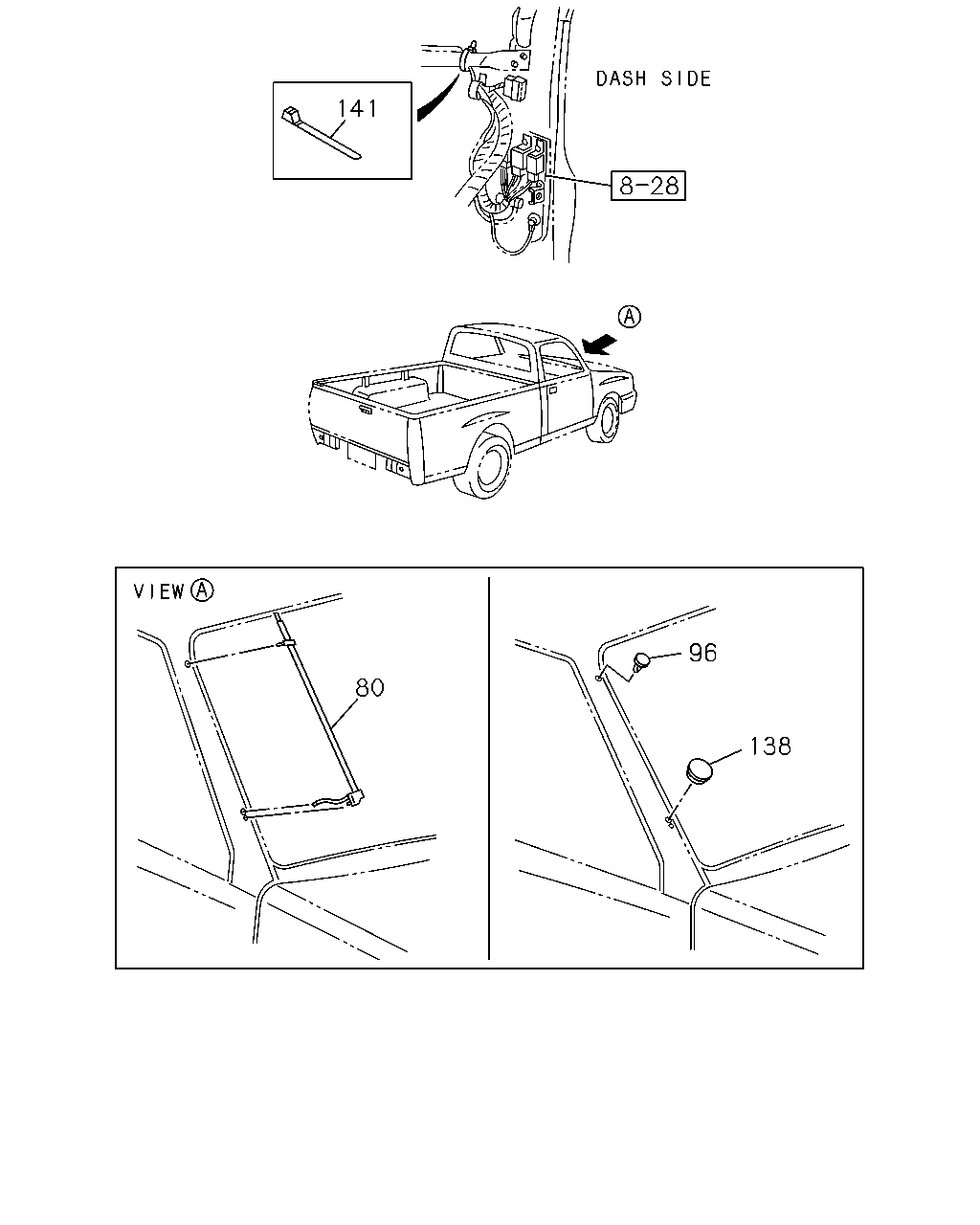

çizim 289402
141 80 96 138
BalonParca AdiParca NoAdetTipApplied Date A B C D
80 ANTENNA
AM/FM RADIO CASSETTE STEREO(UM2) DELETION IDN 		8-97027-515-0 01 1 9009- ● ● ● ●
96 PLUG; ANTENNA HOLE
EXC. AM/FM RADIO CASSETTE STEREO(UM2) DELETION IDN 		8-94208-453-1 02 1 9009- ● ● ● ●
138 PLUG; RUBBER,DASH SIDE PANEL
EXC. AM/FM RADIO CASSETTE STEREO(UM2) DELETION IDN 		8-94203-634-1 01 1 9009- ● ● ● ●
141 CLIP; ANTENNA CABLE
AM/FM RADIO CASSETTE STEREO(UM2) DELETION L=140 IDN 		5-09707-031-1 02 1 9009- ● ● ● ●
