◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50663 - TBR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#95163) — 15 parça

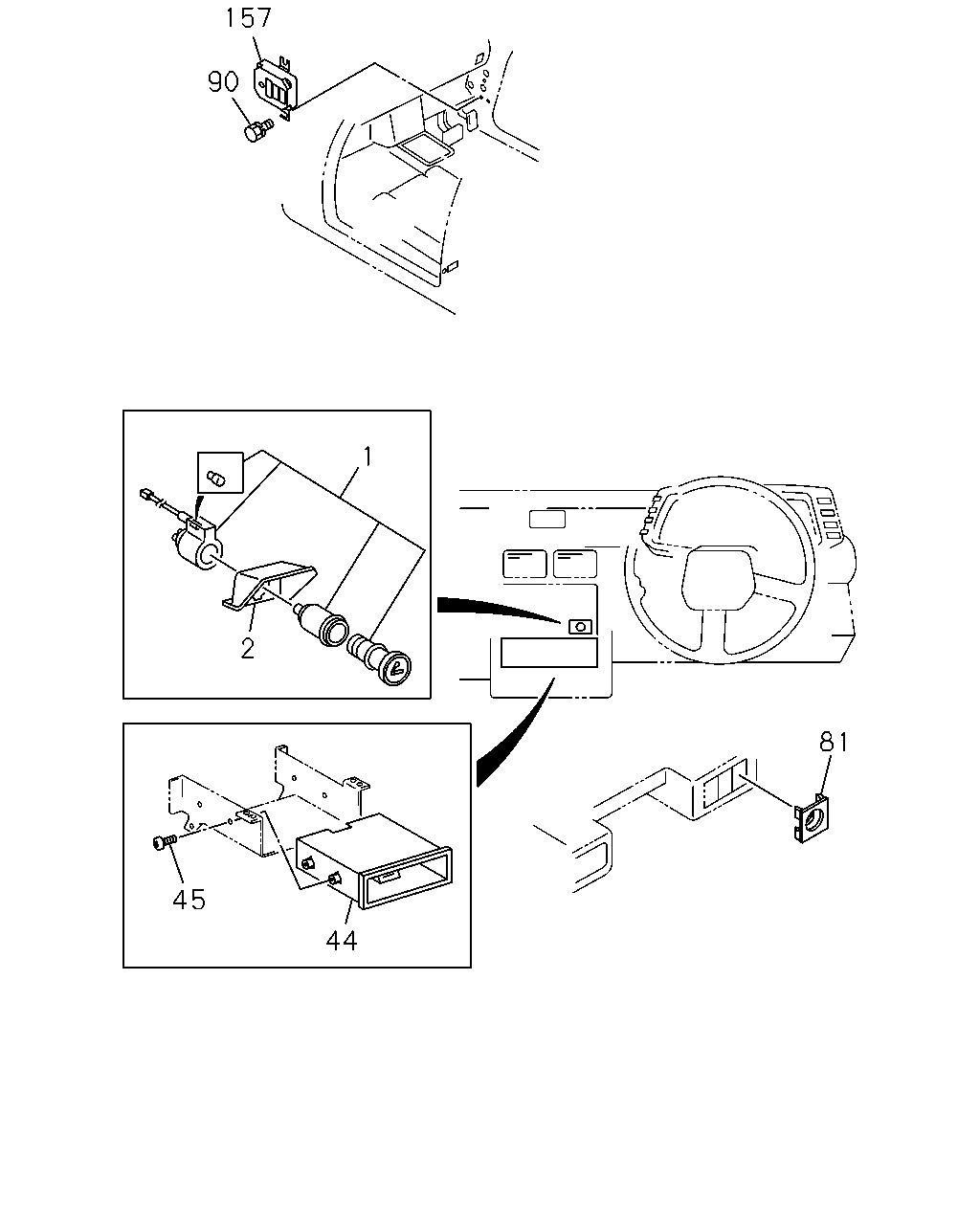

çizim 289824
157 90 1 2 45 44 81
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LIGHTER; CIGAR 8-94442-589-2 01 1 9009-0206 ● ● ● ●
1 LIGHTER; CIGAR 8-97314-003-0 01 1 0207- ● ● ● ●
2 BEZEL; CIGAR LIGHTER
GRAY 		8-94482-846-0 01 1 9009-9408 ● ● ● ●
2 BEZEL; CIGAR LIGHTER
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94482-846-0 01 1 9409-0206 ● ● ● ●
2 BEZEL; CIGAR LIGHTER
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94482-848-0 01 1 0207- ● ● ● ●
2 BEZEL; CIGAR LIGHTER
INTERIOR COLOR BLACK(101) BLACK 		8-94333-793-0 01 1 9409-9601 ● ●
2 BEZEL; CIGAR LIGHTER
INTERIOR COLOR BLACK(101) BLACK 		8-94333-793-0 01 1 9602-0206 ● ● ● ●
2 BEZEL; CIGAR LIGHTER
INTERIOR COLOR BLACK(101) BLACK 		8-97000-043-0 01 1 0207- ● ● ● ●
44 BOX; RADIO COVER
EXC. AM/FM RADIO CASSETTE STEREO(UM2) 44X184 		8-94435-504-2 01 1 9009- ● ● ● ●
45 SCREW; BOX TO INST PANEL
M5X12 TAPPING 		9-09829-321-1 04 1 9009- ● ● ● ●
81 BEZEL; IDLE CONT
DELETION IDN 		8-94450-511-4 01 1 9009- ● ● ● ●
90 BOLT; QOS CONTROLLER
M6X16 FLANGE 		0-28210-616-0 02 1 9009-9204 ● ● ● ●
90 BOLT; QOS CONTROLLER
M6X16 FLANGE 		0-28280-616-0 02 1 9205-9601 ● ● ● ●
157 CONTROLLER; QOS 8-94318-532-1 01 1 9009-9210 ● ● ● ●
157 CONTROLLER; QOS 8-97068-788-0 01 1 9211-9601 ● ● ● ●
