8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#95162) — 23 parça

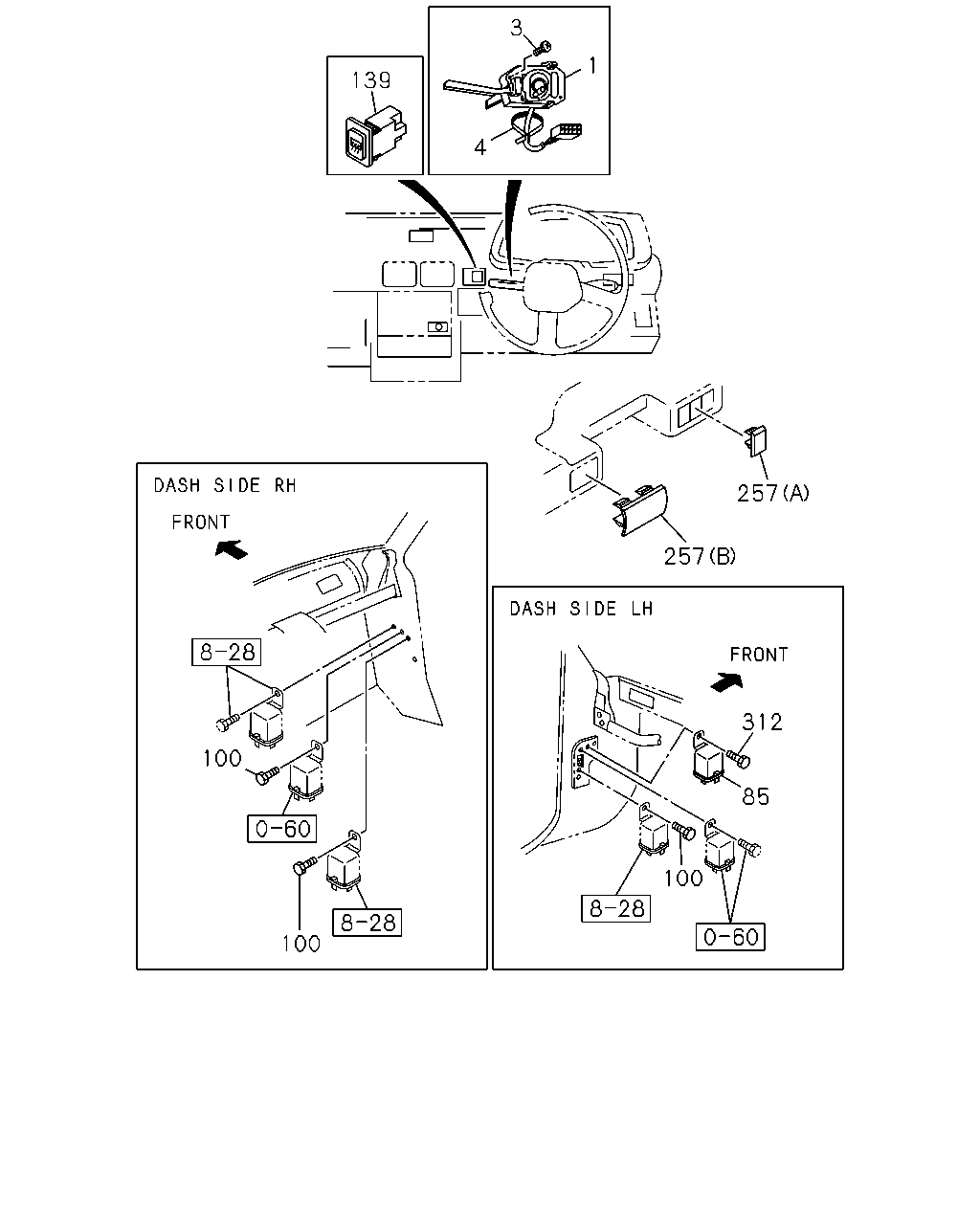

çizim 289220
139 4 3 1 257 257 312 85 100 100 100
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97013-575-1 01 1 9009- ● ● ● ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97013-576-1 01 1 9009- ● ● ● ●
3 SCREW; COMB SW
M5X14 W/LK WASHER 		9-03910-514-0 02 1 9009-0604 ● ● ● ●
3 SCREW; COMB SW
M5X14 W/LK WASHER 		0-36220-514-0 02 1 0605- ● ● ● ●
4 CLIP; COMB SW
DELETION L=250 IDN 		5-09707-030-1 02 1 9009- ● ● ● ●
85 RELAY; HEADLAMP
12V 		8-94112-912-0 01 1 9009- ● ● ● ●
100 SCREW; RELAY,FOG LAMP,RR
M6X16 		0-28410-616-0 03 1 9009-9204 ● ● ● ●
100 SCREW; RELAY,FOG LAMP,RR
M6X16 FLANGE 		0-28480-616-0 03 1 9205-0512 ● ● ● ●
100 SCREW; RELAY,FOG LAMP,RR
M6X16 FLANGE 		0-28450-616-0 03 1 0601- ● ● ● ●
139 SWITCH; RR DEFOGGER
INDONESIAN EQUIPMENT<S4S> 		8-94450-651-1 01 1 9307- ● ●
257 COVER; HOLE,SW
(A) BLACK 		8-94417-418-2 02 1 9009-9306 ● ● ● ●
257 COVER; HOLE,SW
(A) BLACK 		8-94417-418-2 02 1 9307- ● ●
257 COVER; HOLE,SW
EXC. INDONESIAN EQUIPMENT<S4S> (A) BLACK 		8-94417-418-2 02 1 9307- ● ●
257 COVER; HOLE,SW
(B) GRAY 		8-94477-561-0 01 1 9009-9408 ● ● ● ●
257 COVER; HOLE,SW
(B) GRAY 		8-94477-561-0 01 1 9409-9601 ● ●
257 COVER; HOLE,SW
INTERIOR COLOR MUSHROOM(150) (B) GRAY 		8-94477-561-0 01 1 9409-9601 ● ●
257 COVER; HOLE,SW
INTERIOR COLOR MUSHROOM(150) (B) GRAY 		8-94477-561-0 01 1 9602- ● ● ● ●
257 COVER; HOLE,SW
INDONESIAN EQUIPMENT<S4S> (A) BLACK 		8-94417-418-2 01 1 9307- ● ●
257 COVER; HOLE,SW
INTERIOR COLOR BLACK(101) (B) BLACK 		8-94333-787-0 01 1 9409-9601 ● ●
257 COVER; HOLE,SW
INTERIOR COLOR BLACK(101) (B) BLACK 		8-94333-787-0 01 1 9602- ● ● ● ●
312 BOLT; RELAY
M6X16 		0-28410-616-0 01 1 9009-9204 ● ● ● ●
312 BOLT; RELAY
M6X16 FLANGE 		0-28480-616-0 01 1 9205-0512 ● ● ● ●
312 BOLT; RELAY
M6X16 FLANGE 		0-28450-616-0 01 1 0601- ● ● ● ●
