Sayfa 8-21 - Isuzu EPC

8-21 — METER ASM (#95161) — 401 parça

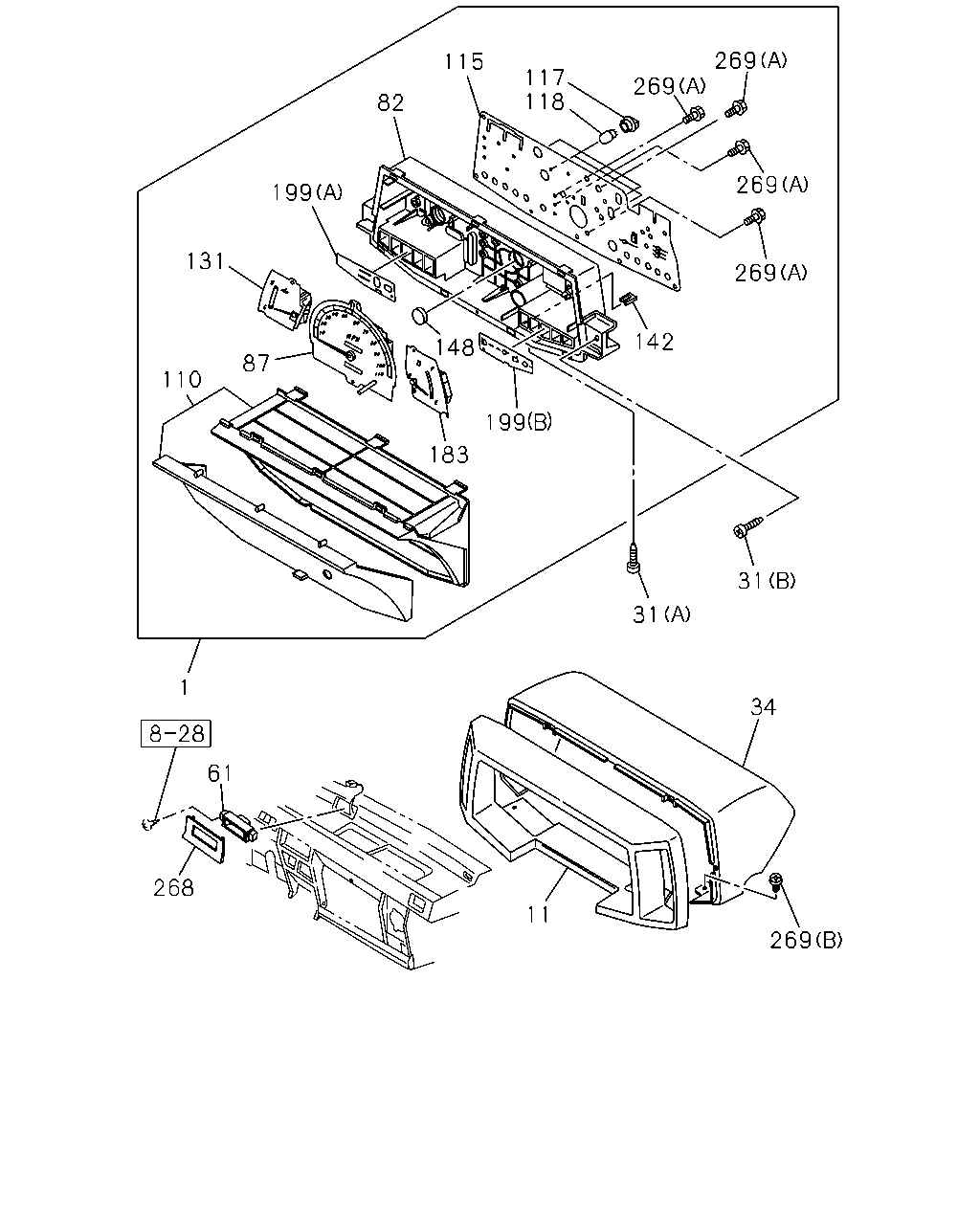

1 61 268 11 269 34 31 31 183 199 142 269 269 269 269 118 117 115 82 199 131 87 110 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	METER COMPL; CLUSTER	8-94434-196-1	01	1	9009-9408	●	●	●	●
1	METER COMPL; CLUSTER	8-97115-050-0	01	1	9409-9601	●	●
1	METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97115-050-0	01	1	9409-9601			●	●
1	METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97135-117-0	01	1	9602-	●	●	●	●
1	METER COMPL; CLUSTER TACHOMETER<U16>	8-97115-079-0	01	1	9409-9601			●	●
1	METER COMPL; CLUSTER TACHOMETER<U16>	8-97135-118-0	01	1	9602-			●	●
11	CLUSTER ASM; METER GRAY	8-97000-875-2	01	1	9009-9408	●	●	●	●
11	CLUSTER ASM; METER INTERIOR COLOR MUSHROOM(150) GRAY	8-97000-875-2	01	1	9409-	●	●	●	●
11	CLUSTER ASM; METER INTERIOR COLOR BLACK(101) BLACK	8-97151-128-2	01	1	9409-9601			●	●
11	CLUSTER ASM; METER INTERIOR COLOR BLACK(101) BLACK	8-97151-128-2	01	1	9602-	●	●	●	●
31	SCREW; METER,INST PANEL (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9009-9404	●	●	●	●
31	SCREW; METER,INST PANEL (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9405-0604	●	●	●	●
31	SCREW; METER,INST PANEL (A) M5X14 TAPPING W/PL WASHER IDN	0-74160-514-0	01	1	0605-	●	●	●	●
31	SCREW; METER,INST PANEL (B) M5X16 TAPPING	9-09829-323-1	02	1	9009-	●	●	●	●
34	HOOD; CLUSTER METER GRAY	8-94477-136-4	01	1	9009-9408	●	●	●	●
34	HOOD; CLUSTER METER INTERIOR COLOR MUSHROOM(150) GRAY	8-94477-136-4	01	1	9409-9601	●	●	●	●
34	HOOD; CLUSTER METER INTERIOR COLOR MUSHROOM(150) GRAY	8-94477-136-5	01	1	9602-	●	●	●	●
34	HOOD; CLUSTER METER INTERIOR COLOR BLACK(101) BLACK	8-94333-788-4	01	1	9409-9601			●	●
34	HOOD; CLUSTER METER INTERIOR COLOR BLACK(101) BLACK	8-94333-788-5	01	1	9602-	●	●	●	●
61	CLOCK; DIGITAL DIGITAL CLOCK<UE8> IDN	8-94434-489-1	01	1	9009-	●	●	●	●
82	CASE ASM; CLUSTER METER	8-94325-073-0	01	1	9009-9408	●	●	●	●
82	CASE ASM; CLUSTER METER	8-94325-073-0	01	1	9409-9601	●	●
82	CASE ASM; CLUSTER METER EXC. TACHOMETER<U16>	8-94325-073-0	01	1	9409-9601			●	●
82	CASE ASM; CLUSTER METER	8-97147-172-0	01	1	9602-	●	●	●	●
82	CASE ASM; CLUSTER METER TACHOMETER<U16>	8-94325-074-0	01	1	9409-9601			●	●
87	SPEEDOMETER	8-94323-602-0	01	1	9009-9408	●	●	●	●
87	SPEEDOMETER	8-94323-602-0	01	1	9409-9601	●	●
87	SPEEDOMETER EXC. TACHOMETER<U16>	8-94323-602-0	01	1	9409-9601			●	●
87	SPEEDOMETER	8-97147-175-0	01	1	9602-	●	●	●	●
87	SPEEDOMETER TACHOMETER<U16>	8-97118-008-0	01	1	9409-9601			●	●
110	GLASS; CLUSTER METER	8-94325-075-0	01	1	9009-9408	●	●	●	●
110	GLASS; CLUSTER METER	8-94325-075-0	01	1	9409-9601	●	●
110	GLASS; CLUSTER METER EXC. TACHOMETER<U16>	8-94325-075-0	01	1	9409-9601			●	●
110	GLASS; CLUSTER METER	8-97147-170-0	01	1	9602-	●	●	●	●
110	GLASS; CLUSTER METER TACHOMETER<U16>	8-94325-076-0	01	1	9409-9601			●	●
115	CIRCUIT; PRINTED,CLUSTER METER	8-94323-593-0	01	1	9009-9408	●	●	●	●
115	CIRCUIT; PRINTED,CLUSTER METER	8-94323-593-0	01	1	9409-9601	●	●
115	CIRCUIT; PRINTED,CLUSTER METER EXC. TACHOMETER<U16>	8-94323-593-0	01	1	9409-9601			●	●
115	CIRCUIT; PRINTED,CLUSTER METER EXC. TACHOMETER<U16>	8-97147-174-0	01	1	9602-	●	●	●	●
115	CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16>	8-94323-646-0	01	1	9409-9601			●	●
115	CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16>	8-97147-173-0	01	1	9602-			●	●
117	SOCKET; BULB,GAUGE & CLOCK 12V 3.4W	5-82188-001-0	04	1	9009-9408	●	●	●	●
117	SOCKET; BULB,GAUGE & CLOCK 12V 3.4W	5-82188-001-0	04	1	9409-9601	●	●
117	SOCKET; BULB,GAUGE & CLOCK EXC. TACHOMETER<U16> 12V 3.4W	5-82188-001-0	04	1	9409-9601			●	●
117	SOCKET; BULB,GAUGE & CLOCK 12V 1.4W BLACK	8-94114-138-0	07	1	9009-9408	●	●	●	●
117	SOCKET; BULB,GAUGE & CLOCK 12V 1.4W BLACK	8-94114-138-0	07	1	9409-9601	●	●
117	SOCKET; BULB,GAUGE & CLOCK EXC. TACHOMETER<U16> 12V 1.4W BLACK	8-94114-138-0	07	1	9409-9601			●	●
117	SOCKET; BULB,GAUGE & CLOCK TACHOMETER<U16> 12V 3.4W	5-82188-001-0	05	1	9409-9601			●	●
117	SOCKET; BULB,GAUGE & CLOCK TACHOMETER<U16> 12V 1.4W BLACK	8-94114-138-0	13	1	9409-9601			●	●
118	BULB; CLUSTER METER W/FILTER 14V 3.4W W/CAP	5-82194-024-0	02	1	9009-9601	●	●	●	●
118	BULB; CLUSTER METER EXC. TACHOMETER<U16> 14V 3.4W	8-97147-187-0	02	1	9602-	●	●	●	●
118	BULB; CLUSTER METER 12V 1.4W	8-94152-313-0	07	1	9009-9601	●	●	●	●
118	BULB; CLUSTER METER 14V 3.4W	8-97147-188-0	03	1	9602-	●	●	●	●
118	BULB; CLUSTER METER 12V 3.4W	9-82691-397-0	02	1	9009-9601	●	●	●	●
118	BULB; CLUSTER METER 14V 1.4W	8-97147-189-0	04	1	9602-	●	●	●	●
118	BULB; CLUSTER METER TACHOMETER<U16> W/FILTER 14V 3.4W W/CAP	5-82194-024-0	03	1	9409-9601			●	●
118	BULB; CLUSTER METER TACHOMETER<U16> 14V 3.4W	8-97147-187-0	03	1	9602-			●	●
118	BULB; CLUSTER METER TACHOMETER<U16> 12V 1.4W W/CAP	8-94114-137-0	06	1	9409-9601			●	●
118	BULB; CLUSTER METER TACHOMETER<U16> 14V 3W	8-97147-190-0	01	1	9602-			●	●
131	GAUGE; TEMP,CLUSTER METER	8-94325-266-0	01	1	9009-9408	●	●	●	●
131	GAUGE; TEMP,CLUSTER METER	8-97025-370-0	01	1	9409-9601	●	●
131	GAUGE; TEMP,CLUSTER METER EXC. TACHOMETER<U16>	8-97025-370-0	01	1	9409-9601			●	●
131	GAUGE; TEMP,CLUSTER METER EXC. TACHOMETER<U16>	8-97147-180-0	01	1	9602-	●	●	●	●
131	GAUGE; TEMP,CLUSTER METER TACHOMETER<U16>	8-97118-031-0	01	1	9409-9601			●	●
142	NUT; HOOD FIX,CLUSTER METER	8-94325-265-0	02	1	9009-9408	●	●	●	●
142	NUT; HOOD FIX,CLUSTER METER	8-94325-265-0	01	1	9409-9601	●	●	●	●
142	NUT; HOOD FIX,CLUSTER METER	8-97147-193-0	01	1	9602-	●	●	●	●
148	LENS; PILOT,TURN SIGNAL,CLUSTER METER	8-94325-264-0	02	1	9009-9408	●	●	●	●
148	LENS; PILOT,TURN SIGNAL,CLUSTER METER	8-94325-264-0	02	1	9409-9601	●	●
148	LENS; PILOT,TURN SIGNAL,CLUSTER METER EXC. TACHOMETER<U16>	8-94325-264-0	02	1	9409-9601			●	●
148	LENS; PILOT,TURN SIGNAL,CLUSTER METER	8-97147-185-0	02	1	9602-	●	●	●	●
183	GAUGE; FUEL	8-94325-267-0	01	1	9009-9408	●	●	●	●
183	GAUGE; FUEL	8-94325-267-0	01	1	9409-9601	●	●
183	GAUGE; FUEL EXC. TACHOMETER<U16>	8-94325-267-0	01	1	9409-9601			●	●
183	GAUGE; FUEL EXC. TACHOMETER<U16>	8-97147-179-0	01	1	9602-	●	●	●	●
183	GAUGE; FUEL TACHOMETER<U16>	8-97118-026-0	01	1	9409-9601			●	●
199	LENS; WARNING LAMP (A)	8-94323-581-0	01	1	9009-9408	●	●	●	●
199	LENS; WARNING LAMP (A)	8-94323-581-0	01	1	9409-9601	●	●
199	LENS; WARNING LAMP EXC. TACHOMETER<U16> (A)	8-94323-581-0	01	1	9409-9601			●	●
199	LENS; WARNING LAMP (A)	8-97147-182-0	01	1	9602-	●	●	●	●
199	LENS; WARNING LAMP (B)	8-94323-586-0	01	1	9009-9408	●	●	●	●
199	LENS; WARNING LAMP (B)	8-94323-586-0	01	1	9409-9601	●	●
199	LENS; WARNING LAMP EXC. TACHOMETER<U16> (B)	8-94323-586-0	01	1	9409-9601			●	●
199	LENS; WARNING LAMP (B)	8-97147-184-0	01	1	9602-	●	●	●	●
199	LENS; WARNING LAMP TACHOMETER<U16> (C)	8-97016-042-0	01	1	9409-9601			●	●
268	BEZEL; CLOCK DIGITAL CLOCK<UE8> DELETION BLACK IDN	8-94434-488-0	01	1	9009-	●	●	●	●
268	BEZEL; CLOCK EXC. DIGITAL CLOCK<UE8> GRAY	8-94477-139-1	01	1	9009-9408	●	●	●	●
268	BEZEL; CLOCK EXC. DIGITAL CLOCK<UE8> GRAY	8-94477-139-1	01	1	9409-9601	●	●
268	BEZEL; CLOCK INTERIOR COLOR MUSHROOM(150) EXC. DIGITAL CLOCK<UE8> GRAY	8-94477-139-1	01	1	9409-9601			●	●
268	BEZEL; CLOCK INTERIOR COLOR MUSHROOM(150) EXC. DIGITAL CLOCK<UE8> GRAY	8-94477-139-1	01	1	9602-	●	●	●	●
268	BEZEL; CLOCK INTERIOR COLOR BLACK(101) EXC. DIGITAL CLOCK<UE8> BLACK IDN	8-94333-789-1	01	1	9409-9601			●	●
268	BEZEL; CLOCK INTERIOR COLOR BLACK(101) EXC. DIGITAL CLOCK<UE8> BLACK IDN	8-94333-789-1	01	1	9602-	●	●	●	●
269	SCREW; METER CLUSTER (A) M3X9	8-94246-741-0	01	1	9009-9408	●	●	●	●
269	SCREW; METER CLUSTER TACHOMETER<U16> (A) M3X9	8-94326-739-0	11	1	9409-9601			●	●
269	SCREW; METER CLUSTER TACHOMETER<U16> (A) M3	8-97147-192-0	09	1	9602-			●	●
269	SCREW; METER CLUSTER (A) M4 SPEEDOMETER	8-94326-738-0	02	1	9009-9601	●	●	●	●
269	SCREW; METER CLUSTER (A) M4	8-97147-191-0	02	1	9602-	●	●	●	●
269	SCREW; METER CLUSTER (A) M3X31	8-94326-740-0	06	1	9009-9408	●	●	●	●
269	SCREW; METER CLUSTER (A) M3X31	8-94326-740-0	06	1	9409-9601	●	●
269	SCREW; METER CLUSTER EXC. TACHOMETER<U16> (A) M3X31	8-94326-740-0	06	1	9409-9601			●	●
269	SCREW; METER CLUSTER EXC. TACHOMETER<U16> (A) M3	8-97147-192-0	06	1	9602-	●	●	●	●
269	SCREW; METER CLUSTER (B) M5X16 TAPPING	9-09829-323-1	04	1	9009-	●	●	●	●
269	SCREW; METER CLUSTER TACHOMETER<U16> (A) M2.3X9	8-94326-742-0	02	1	9409-9601			●	●
269	SCREW; METER CLUSTER TACHOMETER<U16> (A) M3X20	8-94326-743-0	03	1	9409-9601			●	●

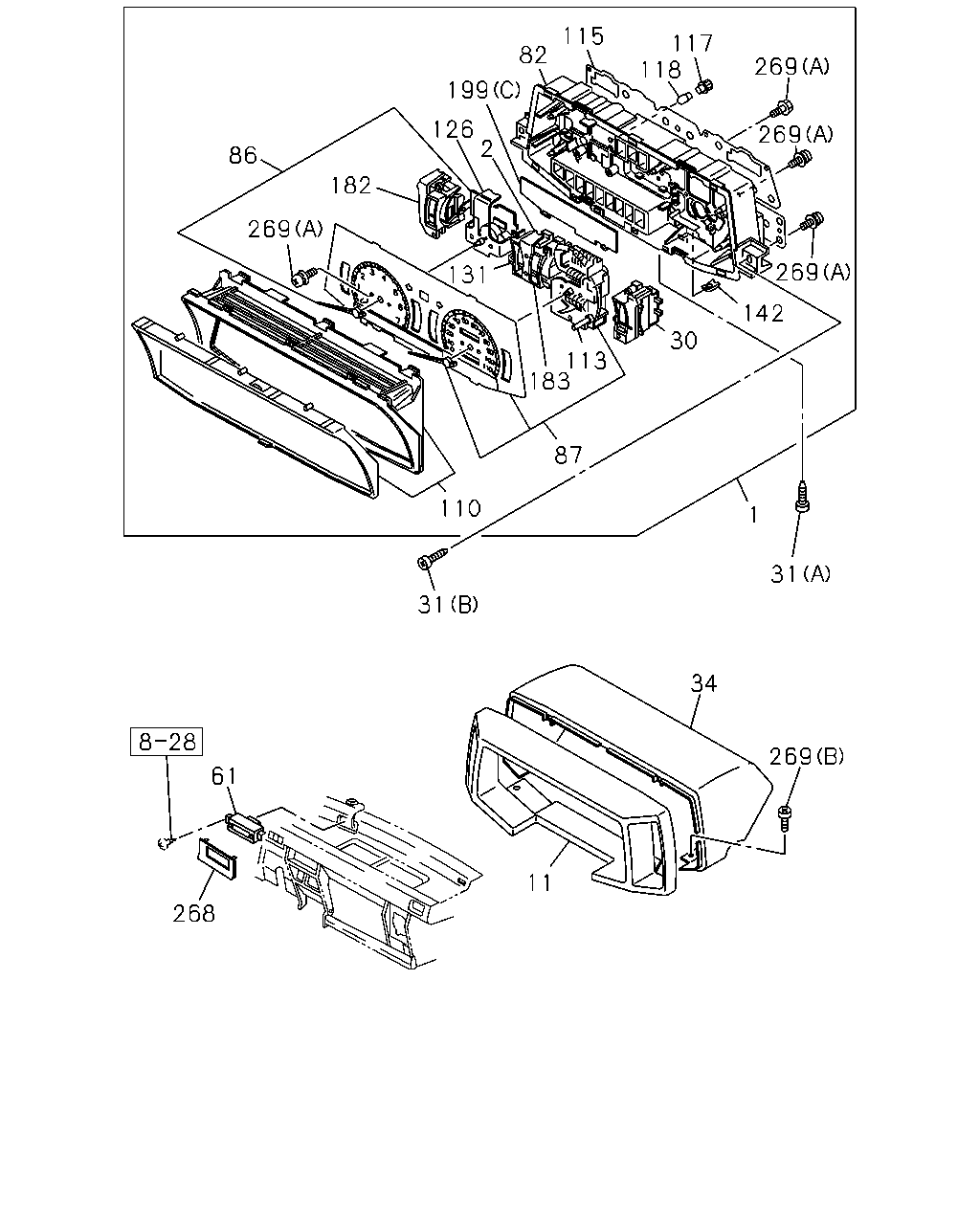

86 269 182 2 126 199 82 115 118 117 269 269 269 142 131 183 113 30 87 110 31 1 31 34 269 11 61 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	METER COMPL; CLUSTER	8-94434-196-1	01	1	9009-9408	●	●	●	●
1	METER COMPL; CLUSTER	8-97115-050-0	01	1	9409-9601	●	●
1	METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97115-050-0	01	1	9409-9601			●	●
1	METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97135-117-0	01	1	9602-	●	●	●	●
1	METER COMPL; CLUSTER TACHOMETER<U16>	8-97115-079-0	01	1	9409-9601			●	●
1	METER COMPL; CLUSTER TACHOMETER<U16>	8-97135-118-0	01	1	9602-			●	●
2	PANEL; CLUSTER TACHOMETER<U16>	8-94325-270-0	01	1	9409-9601			●	●
2	PANEL; CLUSTER	8-97147-171-0	01	1	9602-	●	●	●	●
11	CLUSTER ASM; METER GRAY	8-97000-875-2	01	1	9009-9408	●	●	●	●
11	CLUSTER ASM; METER INTERIOR COLOR MUSHROOM(150) GRAY	8-97000-875-2	01	1	9409-	●	●	●	●
11	CLUSTER ASM; METER INTERIOR COLOR BLACK(101) BLACK	8-97151-128-2	01	1	9409-9601			●	●
11	CLUSTER ASM; METER INTERIOR COLOR BLACK(101) BLACK	8-97151-128-2	01	1	9602-	●	●	●	●
30	GAUGE; OIL PRESSURE TACHOMETER<U16>	8-97118-029-0	01	1	9409-9601			●	●
31	SCREW; METER,INST PANEL (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9009-9404	●	●	●	●
31	SCREW; METER,INST PANEL (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9405-0604	●	●	●	●
31	SCREW; METER,INST PANEL (A) M5X14 TAPPING W/PL WASHER IDN	0-74160-514-0	01	1	0605-	●	●	●	●
31	SCREW; METER,INST PANEL (B) M5X16 TAPPING	9-09829-323-1	02	1	9009-	●	●	●	●
34	HOOD; CLUSTER METER GRAY	8-94477-136-4	01	1	9009-9408	●	●	●	●
34	HOOD; CLUSTER METER INTERIOR COLOR MUSHROOM(150) GRAY	8-94477-136-4	01	1	9409-9601	●	●	●	●
34	HOOD; CLUSTER METER INTERIOR COLOR MUSHROOM(150) GRAY	8-94477-136-5	01	1	9602-	●	●	●	●
34	HOOD; CLUSTER METER INTERIOR COLOR BLACK(101) BLACK	8-94333-788-4	01	1	9409-9601			●	●
34	HOOD; CLUSTER METER INTERIOR COLOR BLACK(101) BLACK	8-94333-788-5	01	1	9602-	●	●	●	●
61	CLOCK; DIGITAL DIGITAL CLOCK<UE8> IDN	8-94434-489-1	01	1	9009-	●	●	●	●
82	CASE ASM; CLUSTER METER	8-94325-073-0	01	1	9009-9408	●	●	●	●
82	CASE ASM; CLUSTER METER	8-94325-073-0	01	1	9409-9601	●	●
82	CASE ASM; CLUSTER METER EXC. TACHOMETER<U16>	8-94325-073-0	01	1	9409-9601			●	●
82	CASE ASM; CLUSTER METER	8-97147-172-0	01	1	9602-	●	●	●	●
82	CASE ASM; CLUSTER METER TACHOMETER<U16>	8-94325-074-0	01	1	9409-9601			●	●
86	TACHOMETER; CLUSTER METER TACHOMETER<U16>	8-94323-631-0	01	1	9409-9601			●	●
86	TACHOMETER; CLUSTER METER TACHOMETER<U16>	8-97147-177-0	01	1	9602-			●	●
87	SPEEDOMETER	8-94323-602-0	01	1	9009-9408	●	●	●	●
87	SPEEDOMETER	8-94323-602-0	01	1	9409-9601	●	●
87	SPEEDOMETER EXC. TACHOMETER<U16>	8-94323-602-0	01	1	9409-9601			●	●
87	SPEEDOMETER	8-97147-175-0	01	1	9602-	●	●	●	●
87	SPEEDOMETER TACHOMETER<U16>	8-97118-008-0	01	1	9409-9601			●	●
110	GLASS; CLUSTER METER	8-94325-075-0	01	1	9009-9408	●	●	●	●
110	GLASS; CLUSTER METER	8-94325-075-0	01	1	9409-9601	●	●
110	GLASS; CLUSTER METER EXC. TACHOMETER<U16>	8-94325-075-0	01	1	9409-9601			●	●
110	GLASS; CLUSTER METER	8-97147-170-0	01	1	9602-	●	●	●	●
110	GLASS; CLUSTER METER TACHOMETER<U16>	8-94325-076-0	01	1	9409-9601			●	●
113	KNOB; DIAL,CLUSTER METER TACHOMETER<U16>	8-94325-269-0	01	1	9409-9601			●	●
115	CIRCUIT; PRINTED,CLUSTER METER	8-94323-593-0	01	1	9009-9408	●	●	●	●
115	CIRCUIT; PRINTED,CLUSTER METER	8-94323-593-0	01	1	9409-9601	●	●
115	CIRCUIT; PRINTED,CLUSTER METER EXC. TACHOMETER<U16>	8-94323-593-0	01	1	9409-9601			●	●
115	CIRCUIT; PRINTED,CLUSTER METER EXC. TACHOMETER<U16>	8-97147-174-0	01	1	9602-	●	●	●	●
115	CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16>	8-94323-646-0	01	1	9409-9601			●	●
115	CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16>	8-97147-173-0	01	1	9602-			●	●
117	SOCKET; BULB,GAUGE & CLOCK 12V 3.4W	5-82188-001-0	04	1	9009-9408	●	●	●	●
117	SOCKET; BULB,GAUGE & CLOCK 12V 3.4W	5-82188-001-0	04	1	9409-9601	●	●
117	SOCKET; BULB,GAUGE & CLOCK EXC. TACHOMETER<U16> 12V 3.4W	5-82188-001-0	04	1	9409-9601			●	●
117	SOCKET; BULB,GAUGE & CLOCK 12V 1.4W BLACK	8-94114-138-0	07	1	9009-9408	●	●	●	●
117	SOCKET; BULB,GAUGE & CLOCK 12V 1.4W BLACK	8-94114-138-0	07	1	9409-9601	●	●
117	SOCKET; BULB,GAUGE & CLOCK EXC. TACHOMETER<U16> 12V 1.4W BLACK	8-94114-138-0	07	1	9409-9601			●	●
117	SOCKET; BULB,GAUGE & CLOCK TACHOMETER<U16> 12V 3.4W	5-82188-001-0	05	1	9409-9601			●	●
117	SOCKET; BULB,GAUGE & CLOCK TACHOMETER<U16> 12V 1.4W BLACK	8-94114-138-0	13	1	9409-9601			●	●
118	BULB; CLUSTER METER W/FILTER 14V 3.4W W/CAP	5-82194-024-0	02	1	9009-9601	●	●	●	●
118	BULB; CLUSTER METER EXC. TACHOMETER<U16> 14V 3.4W	8-97147-187-0	02	1	9602-	●	●	●	●
118	BULB; CLUSTER METER 12V 1.4W	8-94152-313-0	07	1	9009-9601	●	●	●	●
118	BULB; CLUSTER METER 14V 3.4W	8-97147-188-0	03	1	9602-	●	●	●	●
118	BULB; CLUSTER METER 12V 3.4W	9-82691-397-0	02	1	9009-9601	●	●	●	●
118	BULB; CLUSTER METER 14V 1.4W	8-97147-189-0	04	1	9602-	●	●	●	●
118	BULB; CLUSTER METER TACHOMETER<U16> W/FILTER 14V 3.4W W/CAP	5-82194-024-0	03	1	9409-9601			●	●
118	BULB; CLUSTER METER TACHOMETER<U16> 14V 3.4W	8-97147-187-0	03	1	9602-			●	●
118	BULB; CLUSTER METER TACHOMETER<U16> 12V 1.4W W/CAP	8-94114-137-0	06	1	9409-9601			●	●
118	BULB; CLUSTER METER TACHOMETER<U16> 14V 3W	8-97147-190-0	01	1	9602-			●	●
126	PRISM; TACHOMETER TACHOMETER<U16>	8-94325-268-0	01	1	9409-9601			●	●
131	GAUGE; TEMP,CLUSTER METER	8-94325-266-0	01	1	9009-9408	●	●	●	●
131	GAUGE; TEMP,CLUSTER METER	8-97025-370-0	01	1	9409-9601	●	●
131	GAUGE; TEMP,CLUSTER METER EXC. TACHOMETER<U16>	8-97025-370-0	01	1	9409-9601			●	●
131	GAUGE; TEMP,CLUSTER METER EXC. TACHOMETER<U16>	8-97147-180-0	01	1	9602-	●	●	●	●
131	GAUGE; TEMP,CLUSTER METER TACHOMETER<U16>	8-97118-031-0	01	1	9409-9601			●	●
142	NUT; HOOD FIX,CLUSTER METER	8-94325-265-0	02	1	9009-9408	●	●	●	●
142	NUT; HOOD FIX,CLUSTER METER	8-94325-265-0	01	1	9409-9601	●	●	●	●
142	NUT; HOOD FIX,CLUSTER METER	8-97147-193-0	01	1	9602-	●	●	●	●
182	GAUGE; VOLTAGE TACHOMETER<U16>	8-97118-032-0	01	1	9409-9601			●	●
183	GAUGE; FUEL	8-94325-267-0	01	1	9009-9408	●	●	●	●
183	GAUGE; FUEL	8-94325-267-0	01	1	9409-9601	●	●
183	GAUGE; FUEL EXC. TACHOMETER<U16>	8-94325-267-0	01	1	9409-9601			●	●
183	GAUGE; FUEL EXC. TACHOMETER<U16>	8-97147-179-0	01	1	9602-	●	●	●	●
183	GAUGE; FUEL TACHOMETER<U16>	8-97118-026-0	01	1	9409-9601			●	●
199	LENS; WARNING LAMP (A)	8-94323-581-0	01	1	9009-9408	●	●	●	●
199	LENS; WARNING LAMP (A)	8-94323-581-0	01	1	9409-9601	●	●
199	LENS; WARNING LAMP EXC. TACHOMETER<U16> (A)	8-94323-581-0	01	1	9409-9601			●	●
199	LENS; WARNING LAMP (A)	8-97147-182-0	01	1	9602-	●	●	●	●
199	LENS; WARNING LAMP (B)	8-94323-586-0	01	1	9009-9408	●	●	●	●
199	LENS; WARNING LAMP (B)	8-94323-586-0	01	1	9409-9601	●	●
199	LENS; WARNING LAMP EXC. TACHOMETER<U16> (B)	8-94323-586-0	01	1	9409-9601			●	●
199	LENS; WARNING LAMP (B)	8-97147-184-0	01	1	9602-	●	●	●	●
199	LENS; WARNING LAMP TACHOMETER<U16> (C)	8-97016-042-0	01	1	9409-9601			●	●
268	BEZEL; CLOCK DIGITAL CLOCK<UE8> DELETION BLACK IDN	8-94434-488-0	01	1	9009-	●	●	●	●
268	BEZEL; CLOCK EXC. DIGITAL CLOCK<UE8> GRAY	8-94477-139-1	01	1	9009-9408	●	●	●	●
268	BEZEL; CLOCK EXC. DIGITAL CLOCK<UE8> GRAY	8-94477-139-1	01	1	9409-9601	●	●
268	BEZEL; CLOCK INTERIOR COLOR MUSHROOM(150) EXC. DIGITAL CLOCK<UE8> GRAY	8-94477-139-1	01	1	9409-9601			●	●
268	BEZEL; CLOCK INTERIOR COLOR MUSHROOM(150) EXC. DIGITAL CLOCK<UE8> GRAY	8-94477-139-1	01	1	9602-	●	●	●	●
268	BEZEL; CLOCK INTERIOR COLOR BLACK(101) EXC. DIGITAL CLOCK<UE8> BLACK IDN	8-94333-789-1	01	1	9409-9601			●	●
268	BEZEL; CLOCK INTERIOR COLOR BLACK(101) EXC. DIGITAL CLOCK<UE8> BLACK IDN	8-94333-789-1	01	1	9602-	●	●	●	●
269	SCREW; METER CLUSTER (A) M3X9	8-94246-741-0	01	1	9009-9408	●	●	●	●
269	SCREW; METER CLUSTER TACHOMETER<U16> (A) M3X9	8-94326-739-0	11	1	9409-9601			●	●
269	SCREW; METER CLUSTER TACHOMETER<U16> (A) M3	8-97147-192-0	09	1	9602-			●	●
269	SCREW; METER CLUSTER (A) M4 SPEEDOMETER	8-94326-738-0	02	1	9009-9601	●	●	●	●
269	SCREW; METER CLUSTER (A) M4	8-97147-191-0	02	1	9602-	●	●	●	●
269	SCREW; METER CLUSTER (A) M3X31	8-94326-740-0	06	1	9009-9408	●	●	●	●
269	SCREW; METER CLUSTER (A) M3X31	8-94326-740-0	06	1	9409-9601	●	●
269	SCREW; METER CLUSTER EXC. TACHOMETER<U16> (A) M3X31	8-94326-740-0	06	1	9409-9601			●	●
269	SCREW; METER CLUSTER EXC. TACHOMETER<U16> (A) M3	8-97147-192-0	06	1	9602-	●	●	●	●
269	SCREW; METER CLUSTER (B) M5X16 TAPPING	9-09829-323-1	04	1	9009-	●	●	●	●
269	SCREW; METER CLUSTER TACHOMETER<U16> (A) M2.3X9	8-94326-742-0	02	1	9409-9601			●	●
269	SCREW; METER CLUSTER TACHOMETER<U16> (A) M3X20	8-94326-743-0	03	1	9409-9601			●	●

86 199 82 115 269 269 118 269 142 31 31 34 269 11 268 61 1 110 87 105 2 199 148

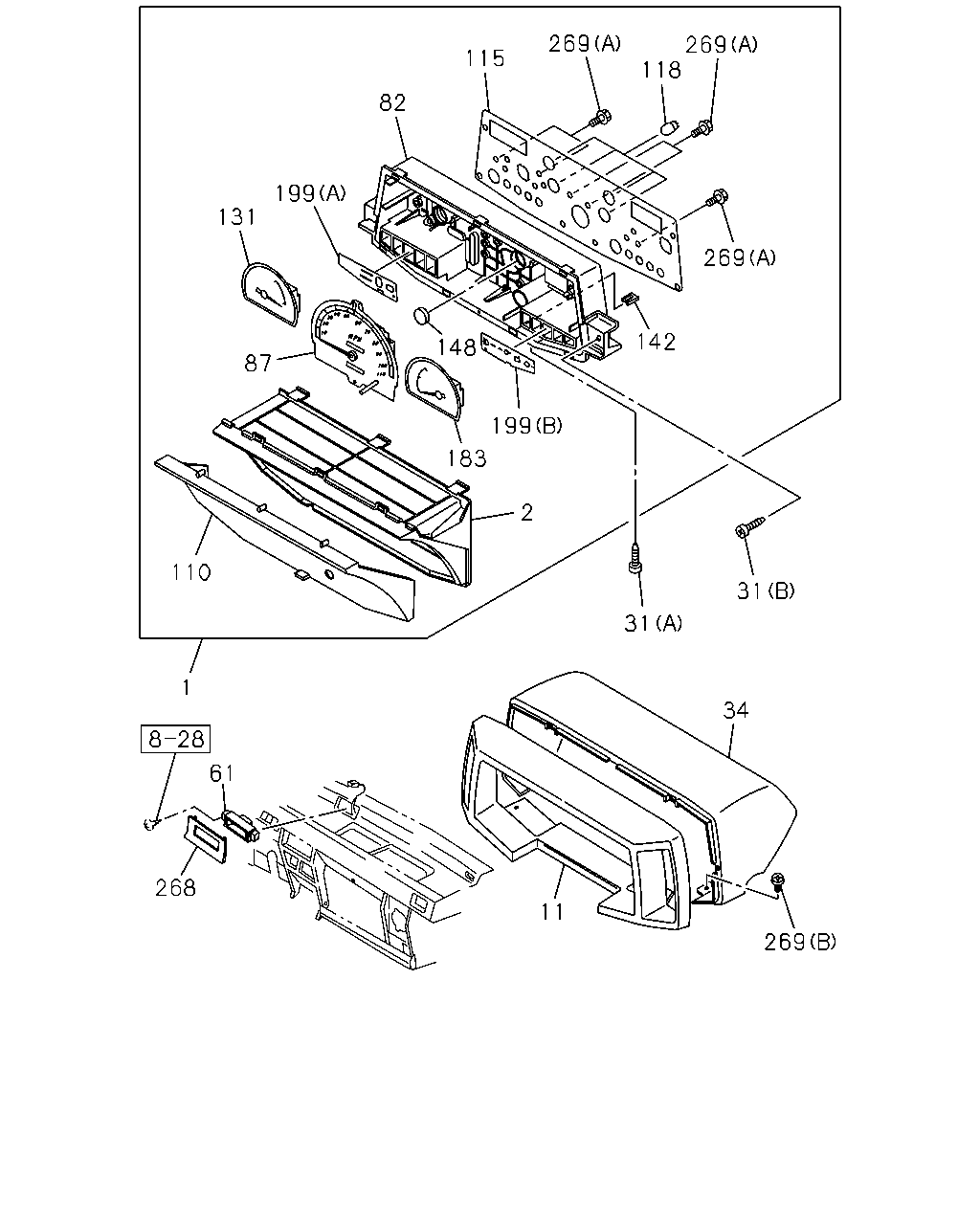

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	METER COMPL; CLUSTER	8-94434-196-1	01	1	9009-9408	●	●	●	●
1	METER COMPL; CLUSTER	8-97115-050-0	01	1	9409-9601	●	●
1	METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97115-050-0	01	1	9409-9601			●	●
1	METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97135-117-0	01	1	9602-	●	●	●	●
1	METER COMPL; CLUSTER TACHOMETER<U16>	8-97115-079-0	01	1	9409-9601			●	●
1	METER COMPL; CLUSTER TACHOMETER<U16>	8-97135-118-0	01	1	9602-			●	●
2	PANEL; CLUSTER TACHOMETER<U16>	8-94325-270-0	01	1	9409-9601			●	●
2	PANEL; CLUSTER	8-97147-171-0	01	1	9602-	●	●	●	●
11	CLUSTER ASM; METER GRAY	8-97000-875-2	01	1	9009-9408	●	●	●	●
11	CLUSTER ASM; METER INTERIOR COLOR MUSHROOM(150) GRAY	8-97000-875-2	01	1	9409-	●	●	●	●
11	CLUSTER ASM; METER INTERIOR COLOR BLACK(101) BLACK	8-97151-128-2	01	1	9409-9601			●	●
11	CLUSTER ASM; METER INTERIOR COLOR BLACK(101) BLACK	8-97151-128-2	01	1	9602-	●	●	●	●
31	SCREW; METER,INST PANEL (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9009-9404	●	●	●	●
31	SCREW; METER,INST PANEL (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9405-0604	●	●	●	●
31	SCREW; METER,INST PANEL (A) M5X14 TAPPING W/PL WASHER IDN	0-74160-514-0	01	1	0605-	●	●	●	●
31	SCREW; METER,INST PANEL (B) M5X16 TAPPING	9-09829-323-1	02	1	9009-	●	●	●	●
34	HOOD; CLUSTER METER GRAY	8-94477-136-4	01	1	9009-9408	●	●	●	●
34	HOOD; CLUSTER METER INTERIOR COLOR MUSHROOM(150) GRAY	8-94477-136-4	01	1	9409-9601	●	●	●	●
34	HOOD; CLUSTER METER INTERIOR COLOR MUSHROOM(150) GRAY	8-94477-136-5	01	1	9602-	●	●	●	●
34	HOOD; CLUSTER METER INTERIOR COLOR BLACK(101) BLACK	8-94333-788-4	01	1	9409-9601			●	●
34	HOOD; CLUSTER METER INTERIOR COLOR BLACK(101) BLACK	8-94333-788-5	01	1	9602-	●	●	●	●
61	CLOCK; DIGITAL DIGITAL CLOCK<UE8> IDN	8-94434-489-1	01	1	9009-	●	●	●	●
82	CASE ASM; CLUSTER METER	8-94325-073-0	01	1	9009-9408	●	●	●	●
82	CASE ASM; CLUSTER METER	8-94325-073-0	01	1	9409-9601	●	●
82	CASE ASM; CLUSTER METER EXC. TACHOMETER<U16>	8-94325-073-0	01	1	9409-9601			●	●
82	CASE ASM; CLUSTER METER	8-97147-172-0	01	1	9602-	●	●	●	●
82	CASE ASM; CLUSTER METER TACHOMETER<U16>	8-94325-074-0	01	1	9409-9601			●	●
86	TACHOMETER; CLUSTER METER TACHOMETER<U16>	8-94323-631-0	01	1	9409-9601			●	●
86	TACHOMETER; CLUSTER METER TACHOMETER<U16>	8-97147-177-0	01	1	9602-			●	●
87	SPEEDOMETER	8-94323-602-0	01	1	9009-9408	●	●	●	●
87	SPEEDOMETER	8-94323-602-0	01	1	9409-9601	●	●
87	SPEEDOMETER EXC. TACHOMETER<U16>	8-94323-602-0	01	1	9409-9601			●	●
87	SPEEDOMETER	8-97147-175-0	01	1	9602-	●	●	●	●
87	SPEEDOMETER TACHOMETER<U16>	8-97118-008-0	01	1	9409-9601			●	●
105	GAUGE; THERMO & FUEL,CLUSTER METER TACHOMETER<U16>	8-97147-178-0	01	1	9602-			●	●
110	GLASS; CLUSTER METER	8-94325-075-0	01	1	9009-9408	●	●	●	●
110	GLASS; CLUSTER METER	8-94325-075-0	01	1	9409-9601	●	●
110	GLASS; CLUSTER METER EXC. TACHOMETER<U16>	8-94325-075-0	01	1	9409-9601			●	●
110	GLASS; CLUSTER METER	8-97147-170-0	01	1	9602-	●	●	●	●
110	GLASS; CLUSTER METER TACHOMETER<U16>	8-94325-076-0	01	1	9409-9601			●	●
115	CIRCUIT; PRINTED,CLUSTER METER	8-94323-593-0	01	1	9009-9408	●	●	●	●
115	CIRCUIT; PRINTED,CLUSTER METER	8-94323-593-0	01	1	9409-9601	●	●
115	CIRCUIT; PRINTED,CLUSTER METER EXC. TACHOMETER<U16>	8-94323-593-0	01	1	9409-9601			●	●
115	CIRCUIT; PRINTED,CLUSTER METER EXC. TACHOMETER<U16>	8-97147-174-0	01	1	9602-	●	●	●	●
115	CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16>	8-94323-646-0	01	1	9409-9601			●	●
115	CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16>	8-97147-173-0	01	1	9602-			●	●
118	BULB; CLUSTER METER W/FILTER 14V 3.4W W/CAP	5-82194-024-0	02	1	9009-9601	●	●	●	●
118	BULB; CLUSTER METER EXC. TACHOMETER<U16> 14V 3.4W	8-97147-187-0	02	1	9602-	●	●	●	●
118	BULB; CLUSTER METER 12V 1.4W	8-94152-313-0	07	1	9009-9601	●	●	●	●
118	BULB; CLUSTER METER 14V 3.4W	8-97147-188-0	03	1	9602-	●	●	●	●
118	BULB; CLUSTER METER 12V 3.4W	9-82691-397-0	02	1	9009-9601	●	●	●	●
118	BULB; CLUSTER METER 14V 1.4W	8-97147-189-0	04	1	9602-	●	●	●	●
118	BULB; CLUSTER METER TACHOMETER<U16> W/FILTER 14V 3.4W W/CAP	5-82194-024-0	03	1	9409-9601			●	●
118	BULB; CLUSTER METER TACHOMETER<U16> 14V 3.4W	8-97147-187-0	03	1	9602-			●	●
118	BULB; CLUSTER METER TACHOMETER<U16> 12V 1.4W W/CAP	8-94114-137-0	06	1	9409-9601			●	●
118	BULB; CLUSTER METER TACHOMETER<U16> 14V 3W	8-97147-190-0	01	1	9602-			●	●
142	NUT; HOOD FIX,CLUSTER METER	8-94325-265-0	02	1	9009-9408	●	●	●	●
142	NUT; HOOD FIX,CLUSTER METER	8-94325-265-0	01	1	9409-9601	●	●	●	●
142	NUT; HOOD FIX,CLUSTER METER	8-97147-193-0	01	1	9602-	●	●	●	●
148	LENS; PILOT,TURN SIGNAL,CLUSTER METER	8-94325-264-0	02	1	9009-9408	●	●	●	●
148	LENS; PILOT,TURN SIGNAL,CLUSTER METER	8-94325-264-0	02	1	9409-9601	●	●
148	LENS; PILOT,TURN SIGNAL,CLUSTER METER EXC. TACHOMETER<U16>	8-94325-264-0	02	1	9409-9601			●	●
148	LENS; PILOT,TURN SIGNAL,CLUSTER METER	8-97147-185-0	02	1	9602-	●	●	●	●
199	LENS; WARNING LAMP (A)	8-94323-581-0	01	1	9009-9408	●	●	●	●
199	LENS; WARNING LAMP (A)	8-94323-581-0	01	1	9409-9601	●	●
199	LENS; WARNING LAMP EXC. TACHOMETER<U16> (A)	8-94323-581-0	01	1	9409-9601			●	●
199	LENS; WARNING LAMP (A)	8-97147-182-0	01	1	9602-	●	●	●	●
199	LENS; WARNING LAMP (B)	8-94323-586-0	01	1	9009-9408	●	●	●	●
199	LENS; WARNING LAMP (B)	8-94323-586-0	01	1	9409-9601	●	●
199	LENS; WARNING LAMP EXC. TACHOMETER<U16> (B)	8-94323-586-0	01	1	9409-9601			●	●
199	LENS; WARNING LAMP (B)	8-97147-184-0	01	1	9602-	●	●	●	●
199	LENS; WARNING LAMP TACHOMETER<U16> (C)	8-97016-042-0	01	1	9409-9601			●	●
268	BEZEL; CLOCK DIGITAL CLOCK<UE8> DELETION BLACK IDN	8-94434-488-0	01	1	9009-	●	●	●	●
268	BEZEL; CLOCK EXC. DIGITAL CLOCK<UE8> GRAY	8-94477-139-1	01	1	9009-9408	●	●	●	●
268	BEZEL; CLOCK EXC. DIGITAL CLOCK<UE8> GRAY	8-94477-139-1	01	1	9409-9601	●	●
268	BEZEL; CLOCK INTERIOR COLOR MUSHROOM(150) EXC. DIGITAL CLOCK<UE8> GRAY	8-94477-139-1	01	1	9409-9601			●	●
268	BEZEL; CLOCK INTERIOR COLOR MUSHROOM(150) EXC. DIGITAL CLOCK<UE8> GRAY	8-94477-139-1	01	1	9602-	●	●	●	●
268	BEZEL; CLOCK INTERIOR COLOR BLACK(101) EXC. DIGITAL CLOCK<UE8> BLACK IDN	8-94333-789-1	01	1	9409-9601			●	●
268	BEZEL; CLOCK INTERIOR COLOR BLACK(101) EXC. DIGITAL CLOCK<UE8> BLACK IDN	8-94333-789-1	01	1	9602-	●	●	●	●
269	SCREW; METER CLUSTER (A) M3X9	8-94246-741-0	01	1	9009-9408	●	●	●	●
269	SCREW; METER CLUSTER TACHOMETER<U16> (A) M3X9	8-94326-739-0	11	1	9409-9601			●	●
269	SCREW; METER CLUSTER TACHOMETER<U16> (A) M3	8-97147-192-0	09	1	9602-			●	●
269	SCREW; METER CLUSTER (A) M4 SPEEDOMETER	8-94326-738-0	02	1	9009-9601	●	●	●	●
269	SCREW; METER CLUSTER (A) M4	8-97147-191-0	02	1	9602-	●	●	●	●
269	SCREW; METER CLUSTER (A) M3X31	8-94326-740-0	06	1	9009-9408	●	●	●	●
269	SCREW; METER CLUSTER (A) M3X31	8-94326-740-0	06	1	9409-9601	●	●
269	SCREW; METER CLUSTER EXC. TACHOMETER<U16> (A) M3X31	8-94326-740-0	06	1	9409-9601			●	●
269	SCREW; METER CLUSTER EXC. TACHOMETER<U16> (A) M3	8-97147-192-0	06	1	9602-	●	●	●	●
269	SCREW; METER CLUSTER (B) M5X16 TAPPING	9-09829-323-1	04	1	9009-	●	●	●	●
269	SCREW; METER CLUSTER TACHOMETER<U16> (A) M2.3X9	8-94326-742-0	02	1	9409-9601			●	●
269	SCREW; METER CLUSTER TACHOMETER<U16> (A) M3X20	8-94326-743-0	03	1	9409-9601			●	●

1 61 268 11 269 34 31 31 2 183 199 142 269 269 118 269 115 82 199 131 87 110 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	METER COMPL; CLUSTER	8-94434-196-1	01	1	9009-9408	●	●	●	●
1	METER COMPL; CLUSTER	8-97115-050-0	01	1	9409-9601	●	●
1	METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97115-050-0	01	1	9409-9601			●	●
1	METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97135-117-0	01	1	9602-	●	●	●	●
1	METER COMPL; CLUSTER TACHOMETER<U16>	8-97115-079-0	01	1	9409-9601			●	●
1	METER COMPL; CLUSTER TACHOMETER<U16>	8-97135-118-0	01	1	9602-			●	●
2	PANEL; CLUSTER TACHOMETER<U16>	8-94325-270-0	01	1	9409-9601			●	●
2	PANEL; CLUSTER	8-97147-171-0	01	1	9602-	●	●	●	●
11	CLUSTER ASM; METER GRAY	8-97000-875-2	01	1	9009-9408	●	●	●	●
11	CLUSTER ASM; METER INTERIOR COLOR MUSHROOM(150) GRAY	8-97000-875-2	01	1	9409-	●	●	●	●
11	CLUSTER ASM; METER INTERIOR COLOR BLACK(101) BLACK	8-97151-128-2	01	1	9409-9601			●	●
11	CLUSTER ASM; METER INTERIOR COLOR BLACK(101) BLACK	8-97151-128-2	01	1	9602-	●	●	●	●
31	SCREW; METER,INST PANEL (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9009-9404	●	●	●	●
31	SCREW; METER,INST PANEL (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9405-0604	●	●	●	●
31	SCREW; METER,INST PANEL (A) M5X14 TAPPING W/PL WASHER IDN	0-74160-514-0	01	1	0605-	●	●	●	●
31	SCREW; METER,INST PANEL (B) M5X16 TAPPING	9-09829-323-1	02	1	9009-	●	●	●	●
34	HOOD; CLUSTER METER GRAY	8-94477-136-4	01	1	9009-9408	●	●	●	●
34	HOOD; CLUSTER METER INTERIOR COLOR MUSHROOM(150) GRAY	8-94477-136-4	01	1	9409-9601	●	●	●	●
34	HOOD; CLUSTER METER INTERIOR COLOR MUSHROOM(150) GRAY	8-94477-136-5	01	1	9602-	●	●	●	●
34	HOOD; CLUSTER METER INTERIOR COLOR BLACK(101) BLACK	8-94333-788-4	01	1	9409-9601			●	●
34	HOOD; CLUSTER METER INTERIOR COLOR BLACK(101) BLACK	8-94333-788-5	01	1	9602-	●	●	●	●
61	CLOCK; DIGITAL DIGITAL CLOCK<UE8> IDN	8-94434-489-1	01	1	9009-	●	●	●	●
82	CASE ASM; CLUSTER METER	8-94325-073-0	01	1	9009-9408	●	●	●	●
82	CASE ASM; CLUSTER METER	8-94325-073-0	01	1	9409-9601	●	●
82	CASE ASM; CLUSTER METER EXC. TACHOMETER<U16>	8-94325-073-0	01	1	9409-9601			●	●
82	CASE ASM; CLUSTER METER	8-97147-172-0	01	1	9602-	●	●	●	●
82	CASE ASM; CLUSTER METER TACHOMETER<U16>	8-94325-074-0	01	1	9409-9601			●	●
87	SPEEDOMETER	8-94323-602-0	01	1	9009-9408	●	●	●	●
87	SPEEDOMETER	8-94323-602-0	01	1	9409-9601	●	●
87	SPEEDOMETER EXC. TACHOMETER<U16>	8-94323-602-0	01	1	9409-9601			●	●
87	SPEEDOMETER	8-97147-175-0	01	1	9602-	●	●	●	●
87	SPEEDOMETER TACHOMETER<U16>	8-97118-008-0	01	1	9409-9601			●	●
110	GLASS; CLUSTER METER	8-94325-075-0	01	1	9009-9408	●	●	●	●
110	GLASS; CLUSTER METER	8-94325-075-0	01	1	9409-9601	●	●
110	GLASS; CLUSTER METER EXC. TACHOMETER<U16>	8-94325-075-0	01	1	9409-9601			●	●
110	GLASS; CLUSTER METER	8-97147-170-0	01	1	9602-	●	●	●	●
110	GLASS; CLUSTER METER TACHOMETER<U16>	8-94325-076-0	01	1	9409-9601			●	●
115	CIRCUIT; PRINTED,CLUSTER METER	8-94323-593-0	01	1	9009-9408	●	●	●	●
115	CIRCUIT; PRINTED,CLUSTER METER	8-94323-593-0	01	1	9409-9601	●	●
115	CIRCUIT; PRINTED,CLUSTER METER EXC. TACHOMETER<U16>	8-94323-593-0	01	1	9409-9601			●	●
115	CIRCUIT; PRINTED,CLUSTER METER EXC. TACHOMETER<U16>	8-97147-174-0	01	1	9602-	●	●	●	●
115	CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16>	8-94323-646-0	01	1	9409-9601			●	●
115	CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16>	8-97147-173-0	01	1	9602-			●	●
118	BULB; CLUSTER METER W/FILTER 14V 3.4W W/CAP	5-82194-024-0	02	1	9009-9601	●	●	●	●
118	BULB; CLUSTER METER EXC. TACHOMETER<U16> 14V 3.4W	8-97147-187-0	02	1	9602-	●	●	●	●
118	BULB; CLUSTER METER 12V 1.4W	8-94152-313-0	07	1	9009-9601	●	●	●	●
118	BULB; CLUSTER METER 14V 3.4W	8-97147-188-0	03	1	9602-	●	●	●	●
118	BULB; CLUSTER METER 12V 3.4W	9-82691-397-0	02	1	9009-9601	●	●	●	●
118	BULB; CLUSTER METER 14V 1.4W	8-97147-189-0	04	1	9602-	●	●	●	●
118	BULB; CLUSTER METER TACHOMETER<U16> W/FILTER 14V 3.4W W/CAP	5-82194-024-0	03	1	9409-9601			●	●
118	BULB; CLUSTER METER TACHOMETER<U16> 14V 3.4W	8-97147-187-0	03	1	9602-			●	●
118	BULB; CLUSTER METER TACHOMETER<U16> 12V 1.4W W/CAP	8-94114-137-0	06	1	9409-9601			●	●
118	BULB; CLUSTER METER TACHOMETER<U16> 14V 3W	8-97147-190-0	01	1	9602-			●	●
131	GAUGE; TEMP,CLUSTER METER	8-94325-266-0	01	1	9009-9408	●	●	●	●
131	GAUGE; TEMP,CLUSTER METER	8-97025-370-0	01	1	9409-9601	●	●
131	GAUGE; TEMP,CLUSTER METER EXC. TACHOMETER<U16>	8-97025-370-0	01	1	9409-9601			●	●
131	GAUGE; TEMP,CLUSTER METER EXC. TACHOMETER<U16>	8-97147-180-0	01	1	9602-	●	●	●	●
131	GAUGE; TEMP,CLUSTER METER TACHOMETER<U16>	8-97118-031-0	01	1	9409-9601			●	●
142	NUT; HOOD FIX,CLUSTER METER	8-94325-265-0	02	1	9009-9408	●	●	●	●
142	NUT; HOOD FIX,CLUSTER METER	8-94325-265-0	01	1	9409-9601	●	●	●	●
142	NUT; HOOD FIX,CLUSTER METER	8-97147-193-0	01	1	9602-	●	●	●	●
148	LENS; PILOT,TURN SIGNAL,CLUSTER METER	8-94325-264-0	02	1	9009-9408	●	●	●	●
148	LENS; PILOT,TURN SIGNAL,CLUSTER METER	8-94325-264-0	02	1	9409-9601	●	●
148	LENS; PILOT,TURN SIGNAL,CLUSTER METER EXC. TACHOMETER<U16>	8-94325-264-0	02	1	9409-9601			●	●
148	LENS; PILOT,TURN SIGNAL,CLUSTER METER	8-97147-185-0	02	1	9602-	●	●	●	●
183	GAUGE; FUEL	8-94325-267-0	01	1	9009-9408	●	●	●	●
183	GAUGE; FUEL	8-94325-267-0	01	1	9409-9601	●	●
183	GAUGE; FUEL EXC. TACHOMETER<U16>	8-94325-267-0	01	1	9409-9601			●	●
183	GAUGE; FUEL EXC. TACHOMETER<U16>	8-97147-179-0	01	1	9602-	●	●	●	●
183	GAUGE; FUEL TACHOMETER<U16>	8-97118-026-0	01	1	9409-9601			●	●
199	LENS; WARNING LAMP (A)	8-94323-581-0	01	1	9009-9408	●	●	●	●
199	LENS; WARNING LAMP (A)	8-94323-581-0	01	1	9409-9601	●	●
199	LENS; WARNING LAMP EXC. TACHOMETER<U16> (A)	8-94323-581-0	01	1	9409-9601			●	●
199	LENS; WARNING LAMP (A)	8-97147-182-0	01	1	9602-	●	●	●	●
199	LENS; WARNING LAMP (B)	8-94323-586-0	01	1	9009-9408	●	●	●	●
199	LENS; WARNING LAMP (B)	8-94323-586-0	01	1	9409-9601	●	●
199	LENS; WARNING LAMP EXC. TACHOMETER<U16> (B)	8-94323-586-0	01	1	9409-9601			●	●
199	LENS; WARNING LAMP (B)	8-97147-184-0	01	1	9602-	●	●	●	●
199	LENS; WARNING LAMP TACHOMETER<U16> (C)	8-97016-042-0	01	1	9409-9601			●	●
268	BEZEL; CLOCK DIGITAL CLOCK<UE8> DELETION BLACK IDN	8-94434-488-0	01	1	9009-	●	●	●	●
268	BEZEL; CLOCK EXC. DIGITAL CLOCK<UE8> GRAY	8-94477-139-1	01	1	9009-9408	●	●	●	●
268	BEZEL; CLOCK EXC. DIGITAL CLOCK<UE8> GRAY	8-94477-139-1	01	1	9409-9601	●	●
268	BEZEL; CLOCK INTERIOR COLOR MUSHROOM(150) EXC. DIGITAL CLOCK<UE8> GRAY	8-94477-139-1	01	1	9409-9601			●	●
268	BEZEL; CLOCK INTERIOR COLOR MUSHROOM(150) EXC. DIGITAL CLOCK<UE8> GRAY	8-94477-139-1	01	1	9602-	●	●	●	●
268	BEZEL; CLOCK INTERIOR COLOR BLACK(101) EXC. DIGITAL CLOCK<UE8> BLACK IDN	8-94333-789-1	01	1	9409-9601			●	●
268	BEZEL; CLOCK INTERIOR COLOR BLACK(101) EXC. DIGITAL CLOCK<UE8> BLACK IDN	8-94333-789-1	01	1	9602-	●	●	●	●
269	SCREW; METER CLUSTER (A) M3X9	8-94246-741-0	01	1	9009-9408	●	●	●	●
269	SCREW; METER CLUSTER TACHOMETER<U16> (A) M3X9	8-94326-739-0	11	1	9409-9601			●	●
269	SCREW; METER CLUSTER TACHOMETER<U16> (A) M3	8-97147-192-0	09	1	9602-			●	●
269	SCREW; METER CLUSTER (A) M4 SPEEDOMETER	8-94326-738-0	02	1	9009-9601	●	●	●	●
269	SCREW; METER CLUSTER (A) M4	8-97147-191-0	02	1	9602-	●	●	●	●
269	SCREW; METER CLUSTER (A) M3X31	8-94326-740-0	06	1	9009-9408	●	●	●	●
269	SCREW; METER CLUSTER (A) M3X31	8-94326-740-0	06	1	9409-9601	●	●
269	SCREW; METER CLUSTER EXC. TACHOMETER<U16> (A) M3X31	8-94326-740-0	06	1	9409-9601			●	●
269	SCREW; METER CLUSTER EXC. TACHOMETER<U16> (A) M3	8-97147-192-0	06	1	9602-	●	●	●	●
269	SCREW; METER CLUSTER (B) M5X16 TAPPING	9-09829-323-1	04	1	9009-	●	●	●	●
269	SCREW; METER CLUSTER TACHOMETER<U16> (A) M2.3X9	8-94326-742-0	02	1	9409-9601			●	●
269	SCREW; METER CLUSTER TACHOMETER<U16> (A) M3X20	8-94326-743-0	03	1	9409-9601			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
