1 |

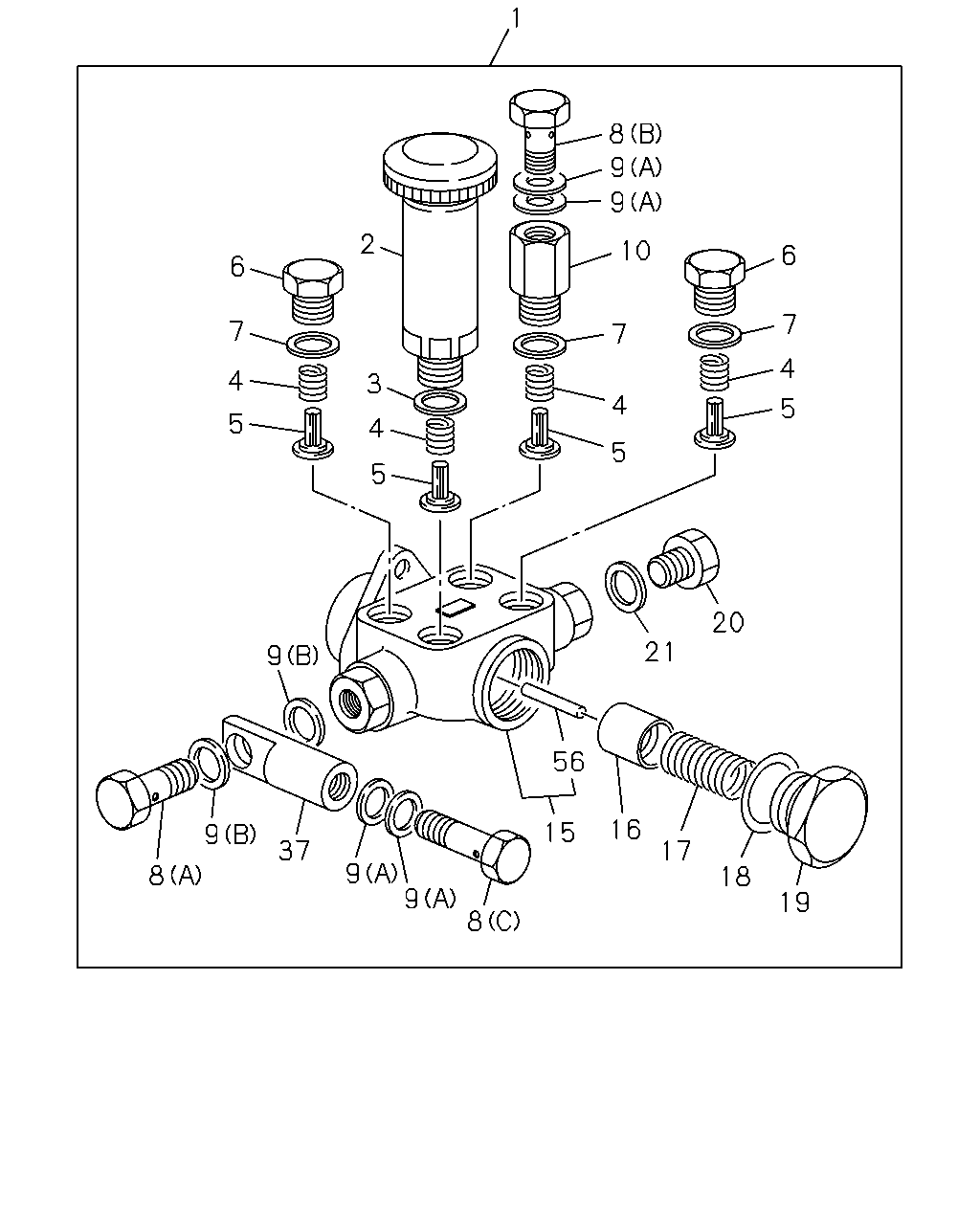

PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-94390-618-3
|
1-15750-140-0 |
01 |
1 |
- |
| |
1 |

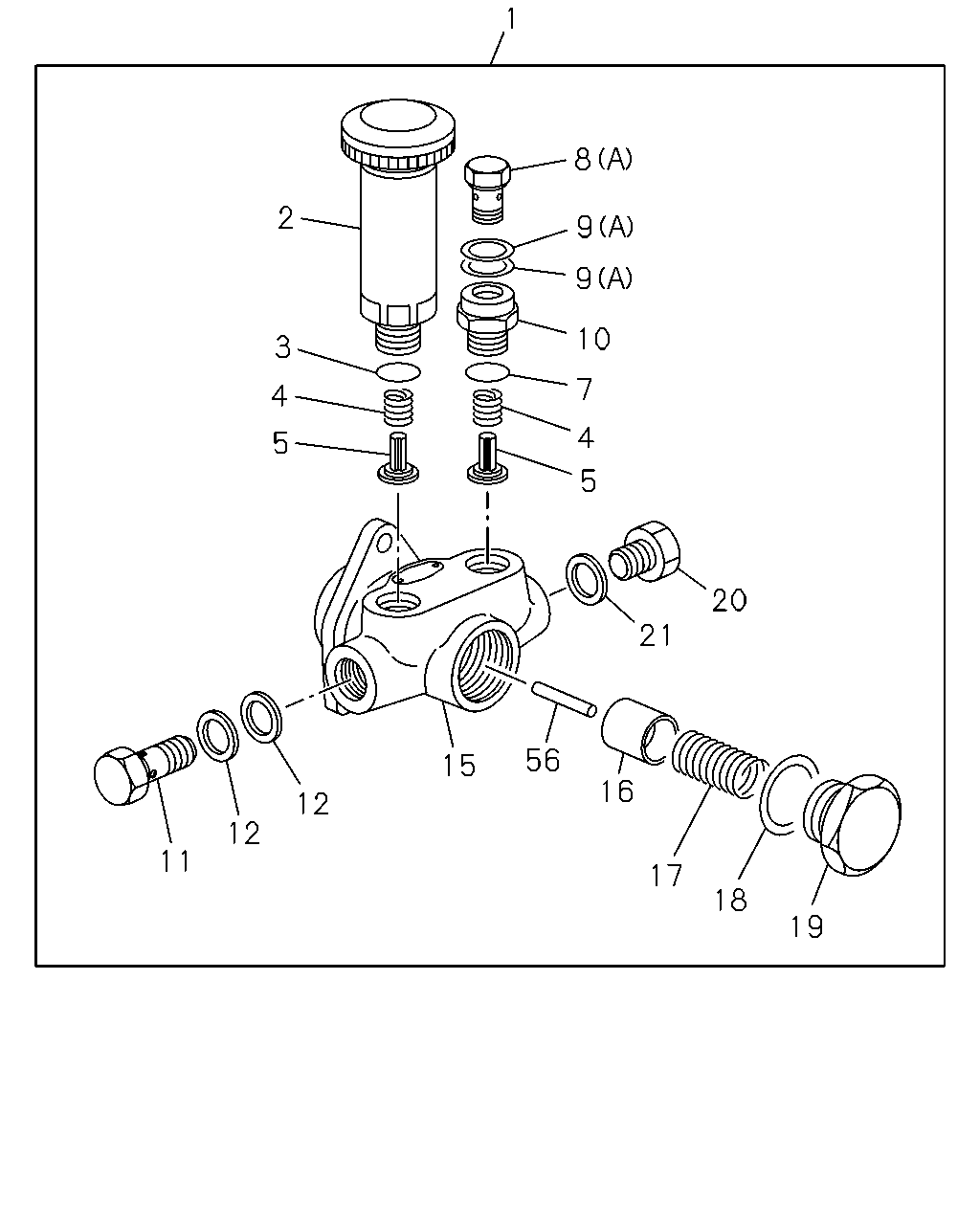

PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: B = 8-94391-333-0
|
1-15750-148-0 |
01 |
1 |
- |
| |
2 |
PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 8-94390-618-3, B = 8-94391-333-0
|
1-15761-006-0 |
01 |
1 |
- |
| |
3 |
GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 8-94390-618-3, B = 8-94391-333-0
|
1-19623-016-0 |
01 |
1 |
- |
| |
4 |
SPRING; VLV,FUEL FEED PUMP
ASM PART: B = 8-94391-333-0
|
9-81351-702-0 |
02 |
1 |
- |
| |
4 |
SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 8-94390-618-3
|
9-81351-702-0 |
04 |
1 |
- |
| |
5 |
VALVE; FUEL FEED PUMP
ASM PART: A = 8-94390-618-3
|
1-15755-002-0 |
04 |
1 |
- |
| |
5 |
VALVE; FUEL FEED PUMP
ASM PART: B = 8-94391-333-0
|
1-15755-002-0 |
02 |
1 |
- |
| |
7 |
GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-94390-618-3
|
1-19623-016-0 |
03 |
1 |
- |
| |
7 |
GASKET; PLUG,FUEL FEED PUMP
ASM PART: B = 8-94391-333-0
|
1-19623-016-0 |
01 |
1 |
- |
| |
8 |
BOLT; EYE,FUEL OUTLET,FEED PUMP
(A) ASM PART: A = 8-94390-618-3, B = 8-94391-333-0
|
1-15759-011-0 |
01 |
1 |
- |
| |
8 |
BOLT; EYE,FUEL OUTLET,FEED PUMP
(B) ASM PART: A = 8-94390-618-3
|
1-15759-051-0 |
01 |
1 |
- |
| |
8 |
BOLT; EYE,FUEL OUTLET,FEED PUMP
(C), M14X30
ASM PART: A = 8-94390-618-3
|
8-97203-957-0 |
01 |
1 |
- |
| |
9 |
GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(A) ASM PART: A = 8-94390-618-3
|
1-09630-085-0 |
04 |
1 |
- |
| |
9 |
GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(A) ASM PART: B = 8-94391-333-0
|
1-09630-085-0 |
02 |
1 |
- |
| |
9 |
GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
(B) ASM PART: A = 8-94390-618-3
|
9-81215-182-1 |
02 |
1 |
- |
| |
10 |
ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: B = 8-94391-333-0
|
1-15759-003-0 |
01 |
1 |
- |
| |
10 |
ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 8-94390-618-3
|
1-15759-067-0 |
01 |
1 |
- |
| |
11 |
BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: B = 8-94391-333-0
|
1-15759-029-0 |
01 |
1 |
- |
| |
12 |
GASKET; EYE BOLT,INL,FUEL FEED PUMP
ID=14.2 OD=19.2
ASM PART: B = 8-94391-333-0
|
1-09630-085-0 |
02 |
1 |
- |
| |
15 |
HOUSING; FUEL FEED PUMP
ASM PART: A = 8-94390-618-3
|
1-15751-036-0 |
01 |
1 |
- |
| |
15 |
HOUSING; FUEL FEED PUMP
ASM PART: B = 8-94391-333-0
|
8-97115-989-0 |
01 |
1 |
- |
| |
16 |
PISTON; FUEL FEED PUMP
ASM PART: A = 8-94390-618-3, B = 8-94391-333-0
|
1-15752-001-0 |
01 |
1 |
- |
| |
17 |
SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 8-94390-618-3
|
1-15753-005-0 |
01 |
1 |
- |
| |
17 |
SPRING; PISTON,FUEL FEED PUMP
ASM PART: B = 8-94391-333-0
|
9-81351-302-0 |
01 |
1 |
- |
| |
18 |
GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 8-94390-618-3, B = 8-94391-333-0
|
1-15759-042-0 |
01 |
1 |
- |
| |
19 |
PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 8-94390-618-3, B = 8-94391-333-0
|
8-94171-185-0 |
01 |
1 |
- |
| |
20 |
PLUG; HSG,FUEL FEED PUMP
ASM PART: A = 8-94390-618-3, B = 8-94391-333-0
|
1-15759-004-0 |
01 |
1 |
- |
| |
21 |
GASKET; PLUG,FUEL FEED PUMP
ASM PART: B = 8-94391-333-0
|
1-15759-007-0 |
01 |
1 |
- |
| |
21 |
GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-94390-618-3
|
9-81215-182-1 |
01 |
1 |
- |
| |
56 |
PUSH ROD
ASM PART: A = 8-94390-618-3
|
1-15759-074-0 |
01 |
1 |
- |
| |
56 |
PUSH ROD
ASM PART: B = 8-94391-333-0
|
8-97115-990-0 |
01 |
1 |
- |
