Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#95159) — 21 parça

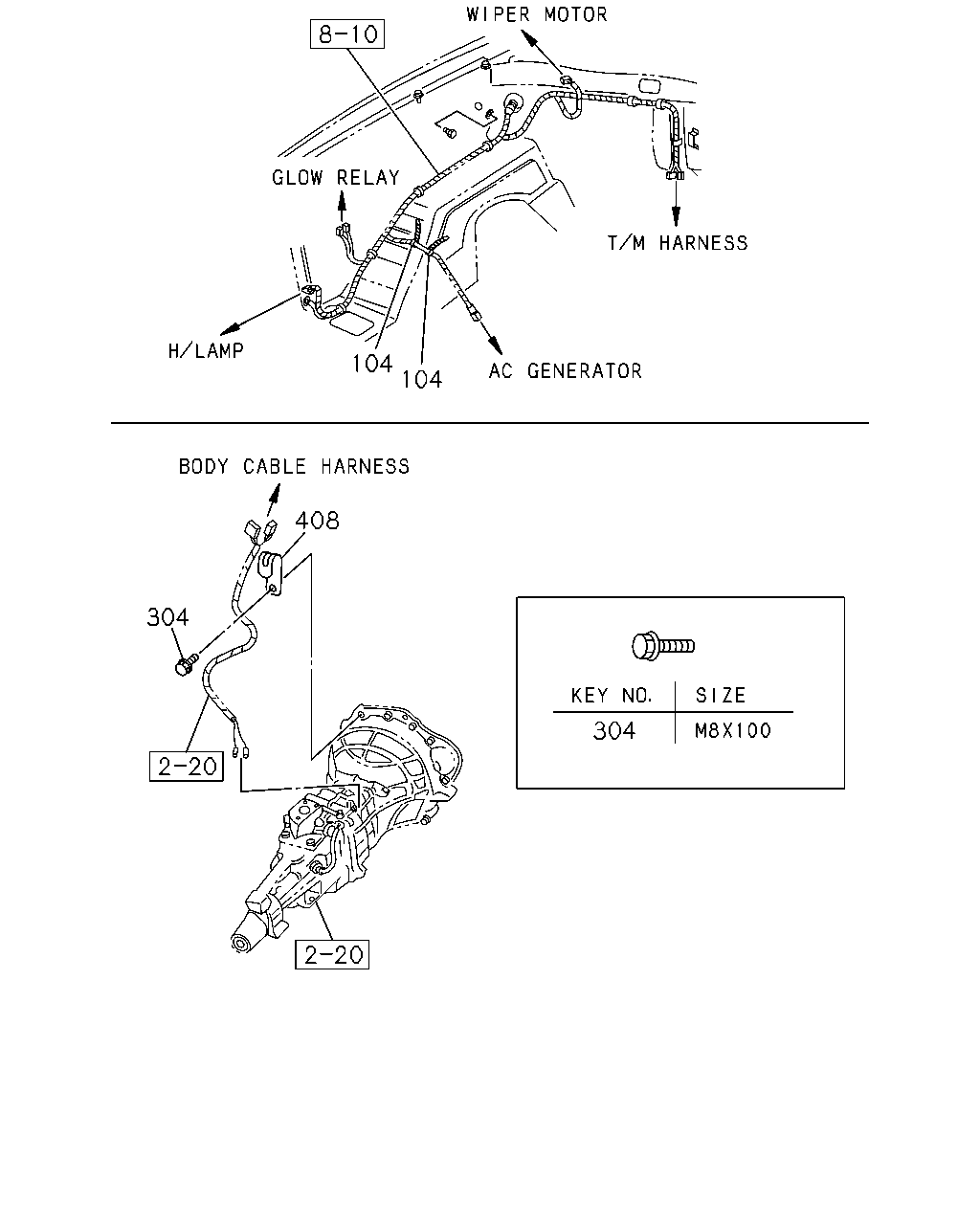

304 304 408 104 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
104	CLIP; HEADLAMP HARNESS L=142	8-94232-619-0	02	1	9009-9601	●	●	●	●
304	BOLT; ENG HARNESS CLIP M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	9009-9601	●	●	●	●
408	CLIP; TRANS HARNESS DELETION	8-94327-574-0	01	1	9009-9601	●	●	●	●

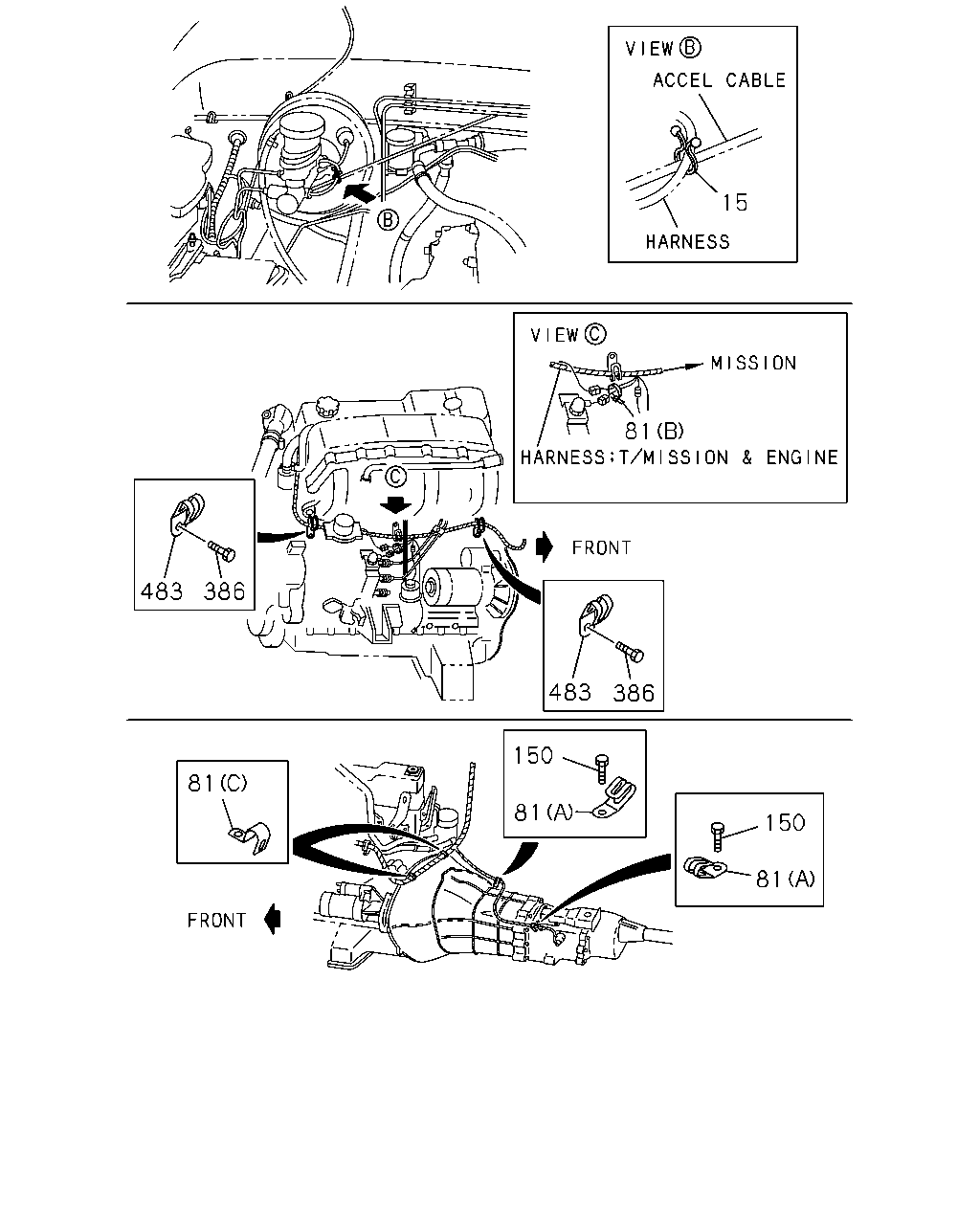

81 150 81 150 81 483 386 483 386 81 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	CLIP; PURSE LOCK ID=8.3	1-09709-082-0	01	1	9602-	●	●	●	●
81	CLIP; HARNESS (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	02	1	9602-0801	●	●	●	●
81	CLIP; HARNESS (A) ID=12 IDN	8-97367-984-1	02	1	0802-	●	●	●	●
81	CLIP; HARNESS (B) DELETION L=140 IDN	5-09707-031-1	01	1	9602-	●	●	●	●
81	CLIP; HARNESS (C) ID=22	8-97022-767-0	02	1	9602-	●	●	●	●
150	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	03	1	9602-0512	●	●	●	●
150	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	03	1	0601-	●	●	●	●
386	BOLT; GRAND HARNESS M6X14 W/LK&PL WASHER	8-97086-822-0	04	1	9602-	●	●	●	●
483	CLIP; ENG HARNESS DELETION ID=12 B=14 ID=8.5 IDN	5-09700-350-0	04	1	9602-0801	●	●	●	●
483	CLIP; ENG HARNESS DELETION ID=12 IDN	8-97367-984-1	04	1	0802-	●	●	●	●

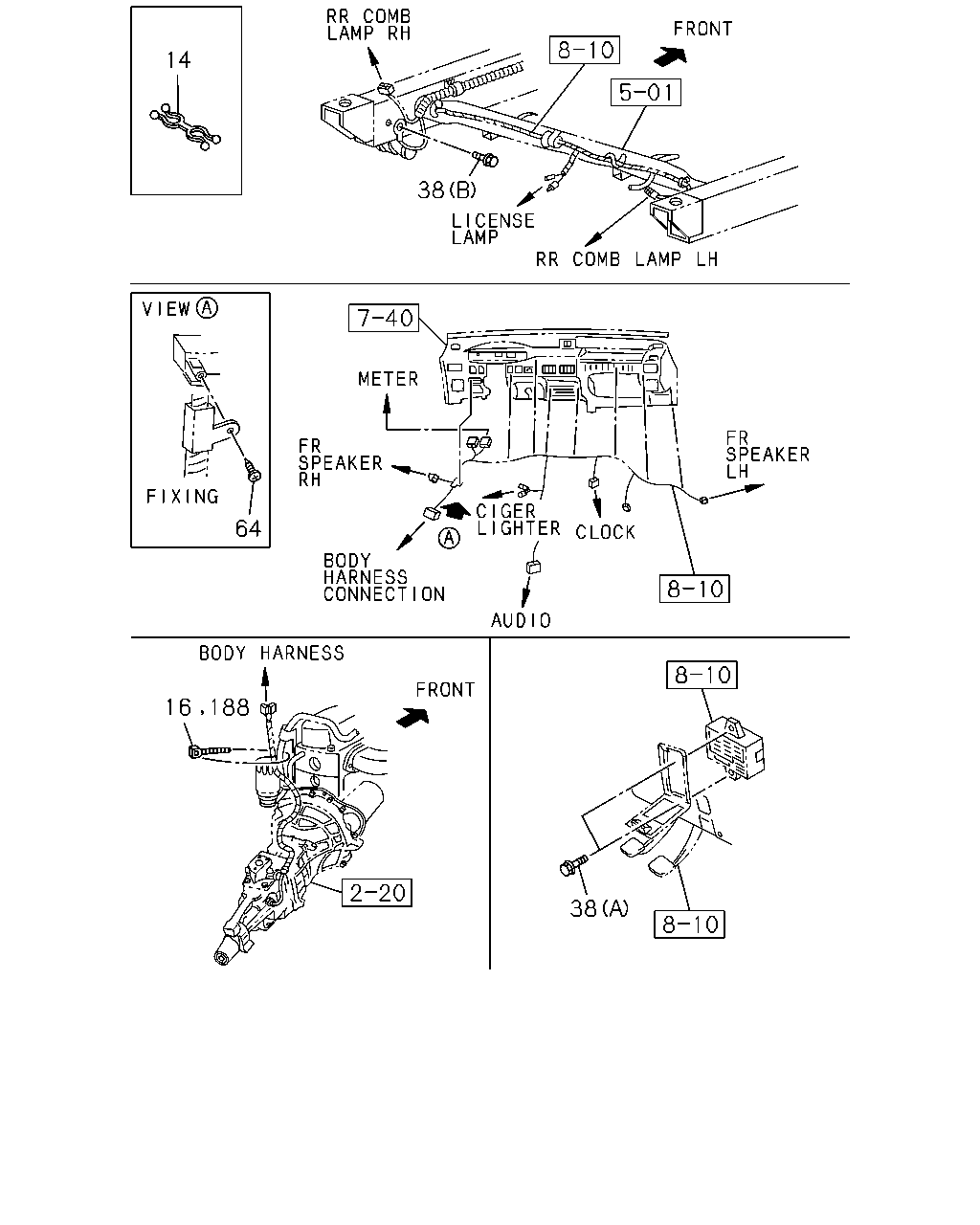

38 16 188 64 14 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	CLIP; BAND,HARNESS	5-09709-021-0	01	1	9009-9601	●	●	●	●
16	CLIP; HARNESS DELETION L=140	5-09707-031-0	02	1	9009-9601	●	●	●	●
16	CLIP; HARNESS DELETION L=140	5-09707-031-0	01	1	9602-9603	●	●	●	●
16	CLIP; HARNESS DELETION L=140 IDN	5-09707-031-1	02	1	9604-	●	●	●	●
38	BOLT; CLIP,HARNESS (B) M6X16	5-09009-032-0	01	1	9009-	●	●	●	●
38	BOLT; CLIP,HARNESS (A) M5X16	8-94242-120-0	02	1	9009-	●	●	●	●
64	SCREW; CLIP M5X16 TAPPING	9-09829-323-1	01	1	9009-	●	●	●	●
188	CLIP; CHAS HARN TO BODY DELETION L=140	5-09707-031-0	01	1	9009-9601	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
