8-10 — WIRING HARNESS AND FUSE (#95158) — 27 parça

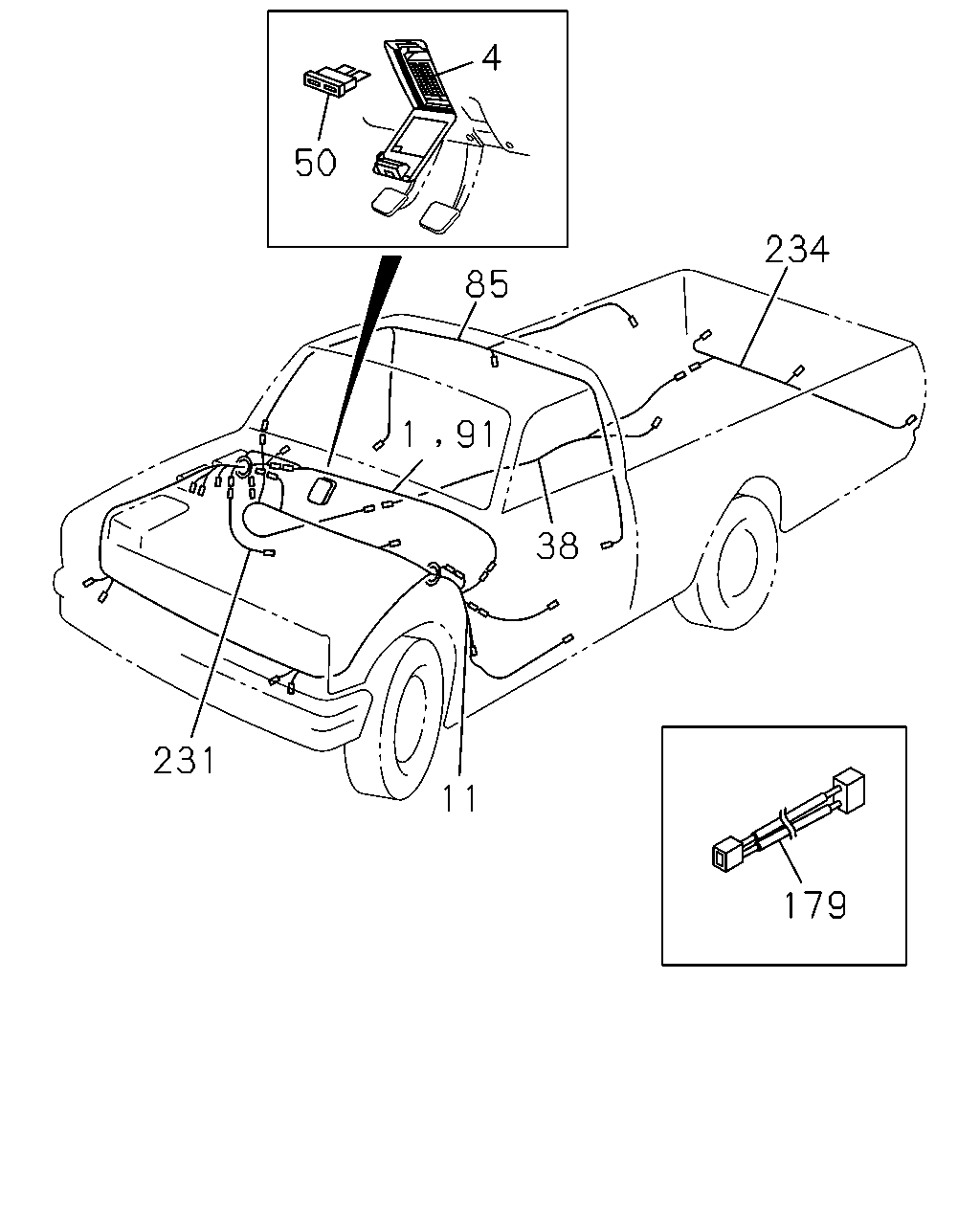

çizim 288938
179 11 231 38 1 91 85 234 50 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HARNESS; CAB
DELETION IDN 		8-94367-458-0 01 1 9009-9408 ● ● ● ●
1 HARNESS; CAB
DELETION IDN 		8-97109-852-0 01 1 9409-9601 ● ● ● ●
4 BOX ASM; FUSE,HARNESS
DELETION IDN 		8-94323-889-0 01 1 9009- ● ● ● ●
11 HARNESS; BODY
DELETION 		8-94385-367-1 01 1 9009-9408 ● ● ● ●
11 HARNESS; BODY
DELETION IDN 		8-97109-850-0 01 1 9409-9601 ● ● ● ●
11 HARNESS; BODY
IDN 		8-97145-202-1 01 1 9602- ● ● ● ●
38 HARNESS; CHAS
DELETION IDN 		8-94367-460-0 01 1 9009-9601 ●
38 HARNESS; CHAS
DELETION IDN 		8-97139-503-1 01 1 9602- ●
38 HARNESS; CHAS
DELETION 		8-94367-805-0 01 1 9009-9601 ●
38 HARNESS; CHAS
DELETION IDN 		8-97139-504-1 01 1 9602- ●
38 HARNESS; CHAS
DELETION IDN 		8-94385-369-0 01 1 9009-9205 ●
38 HARNESS; CHAS
DELETION IDN 		8-94385-368-0 01 1 9206-9601 ●
38 HARNESS; CHAS
DELETION IDN 		8-97139-501-1 01 1 9602- ●
38 HARNESS; CHAS
DELETION IDN 		8-94385-368-0 01 1 9009-9205 ●
38 HARNESS; CHAS
DELETION IDN 		8-94385-369-0 01 1 9206-9601 ●
38 HARNESS; CHAS
DELETION IDN 		8-97139-502-1 01 1 9602- ●
50 FUSE; BODY HARNESS
DELETION 10A RED IDN 		5-82516-002-0 09 1 9009- ● ● ● ●
50 FUSE; BODY HARNESS
DELETION 15A BLUE 		5-82516-003-0 04 1 9009- ● ● ● ●
50 FUSE; BODY HARNESS
DELETION 20A YELLOW IDN 		5-82516-004-0 02 1 9009- ● ● ● ●
85 HARNESS; ROOM LAMP
DELETION IDN 		8-94367-462-0 01 1 9009- ● ●
85 HARNESS; ROOM LAMP
DELETION IDN 		8-94385-370-0 01 1 9009- ● ●
91 HARNESS; INST
DELETION IDN 		8-97139-500-0 01 1 9602- ● ● ● ●
179 FUSIBLE LINK
DELETION IDN 		8-94171-204-0 02 1 9009-9601 ● ● ● ●
231 HARNESS; TRANS
DELETION IDN 		8-94367-457-0 01 1 9009-9408 ● ● ● ●
231 HARNESS; TRANS
DELETION IDN 		8-97109-851-0 01 1 9409-9601 ● ● ● ●
231 HARNESS; TRANS
DELETION IDN 		8-97139-499-0 01 1 9602- ● ● ● ●
234 HARNESS; LICENSE LAMP
DELETION IDN 		8-94385-373-0 01 1 9009- ● ●
