8-03 — LAMP; REAR AND REAR SIDE (#95156) — 79 parça

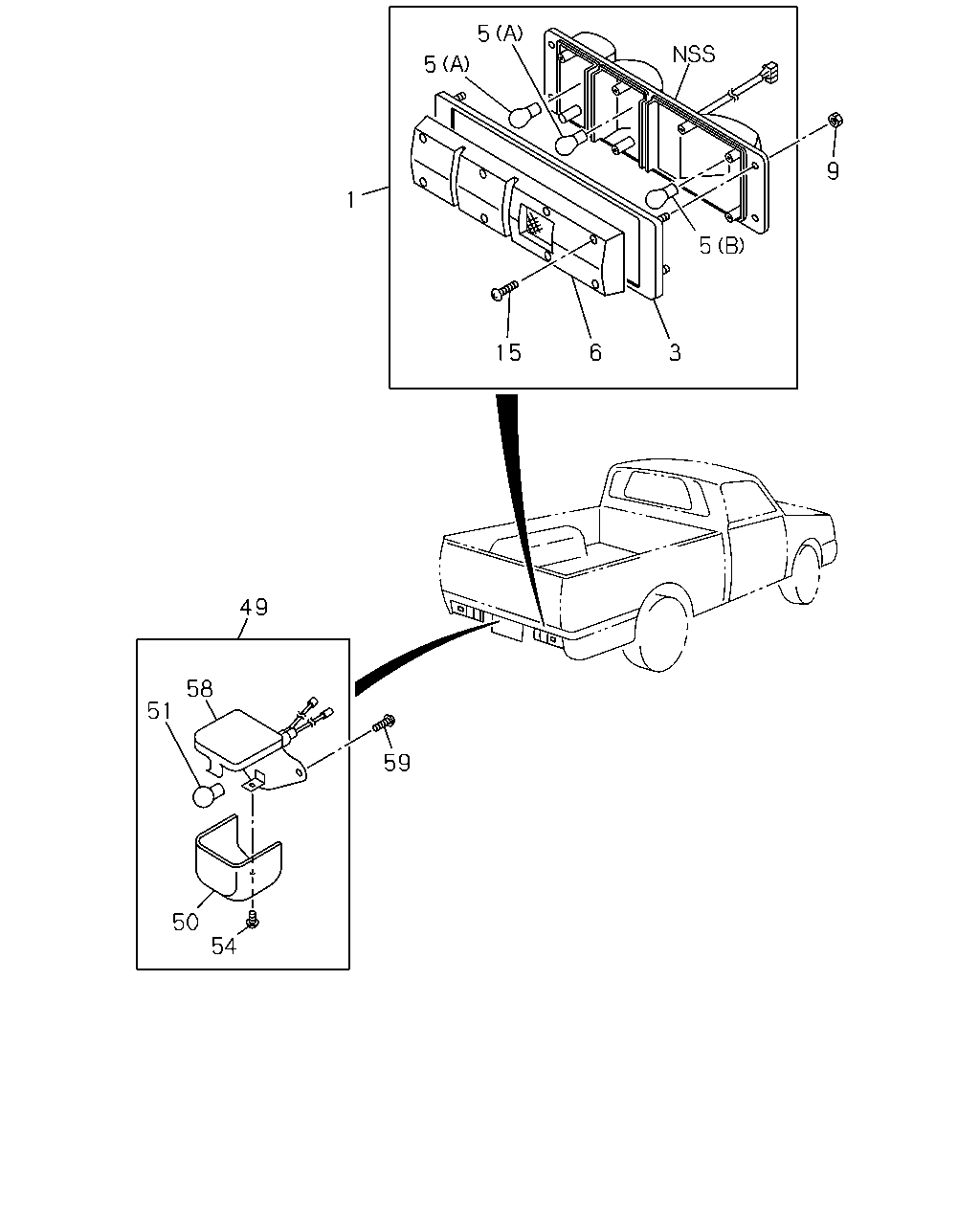

49 59 58 51 50 54 1 15 6 3 9 5 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LAMP ASM; RR COMB DELETION IDN	5-82230-037-1	01	1	9009-	●	●
1	LAMP ASM; RR COMB DELETION IDN	5-82230-036-1	01	1	9009-	●	●
1	LAMP ASM; RR COMB	8-94280-771-0	01	1	9009-9010			●	●
1	LAMP ASM; RR COMB DELETION IDN	8-94352-005-0	01	1	9011-			●	●
1	LAMP ASM; RR COMB	8-94280-770-0	01	1	9009-9010			●	●
1	LAMP ASM; RR COMB DELETION IDN	8-94352-004-0	01	1	9011-			●	●
3	GASKET; RR COMB LAMP DELETION IDN	5-82236-002-0	01	1	9009-	●	●
3	GASKET; RR COMB LAMP DELETION IDN	5-82236-001-0	01	1	9009-	●	●
3	GASKET; RR COMB LAMP DELETION	8-94292-929-0	01	1	9009-9010			●	●
3	GASKET; RR COMB LAMP DELETION IDN	8-94350-988-0	01	1	9011-			●	●
3	GASKET; RR COMB LAMP DELETION	8-94292-928-0	01	1	9009-9010			●	●
3	GASKET; RR COMB LAMP DELETION IDN	8-94350-987-0	01	1	9011-			●	●
5	BULB; RR COMB LAMP (A) DELETION 12V 23W IDN	9-82692-131-0	04	1	9009-	●	●	●	●
5	BULB; RR COMB LAMP (B) DELETION 12V 23/8W IDN	9-82692-132-0	02	1	9009-	●	●	●	●
6	LENS; RR COMB LAMP DELETION IDN	5-82235-002-0	01	1	9009-	●	●
6	LENS; RR COMB LAMP DELETION IDN	5-82235-001-0	01	1	9009-	●	●
6	LENS; RR COMB LAMP DELETION IDN	8-94274-120-0	01	1	9009-			●	●
6	LENS; RR COMB LAMP DELETION IDN	8-94274-119-0	01	1	9009-			●	●
9	NUT; LAMP,RR COMB M5 FLANGE IDN	5-09440-003-0	08	1	9009-	●	●
15	SCREW; RR COMB LAMP M4X25 DELETION IDN	5-82239-005-0	16	1	9009-	●	●
15	SCREW; RR COMB LAMP DELETION M5X30 TAPPING	0-71190-530-0	08	1	9009-			●	●
15	SCREW; RR COMB LAMP DELETION M4X10 TAPPING	9-07076-410-0	02	1	9009-			●	●
49	LAMP; LICENSE PLATE DELETION 12V 10W IDN	5-82120-020-0	01	1	9009-	●	●
49	LAMP; LICENSE PLATE DELETION IDN	8-94366-586-0	01	1	9009-			●	●
50	LENS; LICENSE PLATE LAMP DELETION	5-82125-004-0	01	1	9009-	●	●
50	LENS; LICENSE PLATE LAMP DELETION IDN	8-94135-878-2	01	1	9009-			●	●
51	BULB; LICENSE PLATE LAMP DELETION 12V 10W IDN	8-94126-494-0	01	1	9009-	●	●
51	BULB; LICENSE PLATE LAMP DELETION 12V 5W IDN	8-94124-595-0	01	1	9009-			●	●
54	SCREW; LICENSE PLATE LAMP DELETION M4X8 IDN	8-94419-312-0	01	1	9009-	●	●
54	SCREW; LICENSE PLATE LAMP DELETION M4X20 TAPPING STAINLESS IDN	0-71190-420-0	02	1	9009-			●	●
58	COVER; LICENSE PLATE LAMP DELETION	5-82124-004-1	01	1	9009-9101	●	●
58	COVER; LICENSE PLATE LAMP DELETION	8-97045-767-1	01	1	9102-	●	●
58	COVER; LICENSE PLATE LAMP DELETION BLACK IDN	8-94499-927-0	01	1	9009-9610			●	●
58	COVER; LICENSE PLATE LAMP IDN	8-97955-219-0	01	1	9611-			●	●
59	SCREW; TAP,LICENSE LAMP BODY M5X12 TAPPING	9-07066-512-0	02	1	9009-0603	●	●
59	SCREW; TAP,LICENSE LAMP BODY M5X12 TAPPING	0-71040-512-0	02	1	0604-	●	●

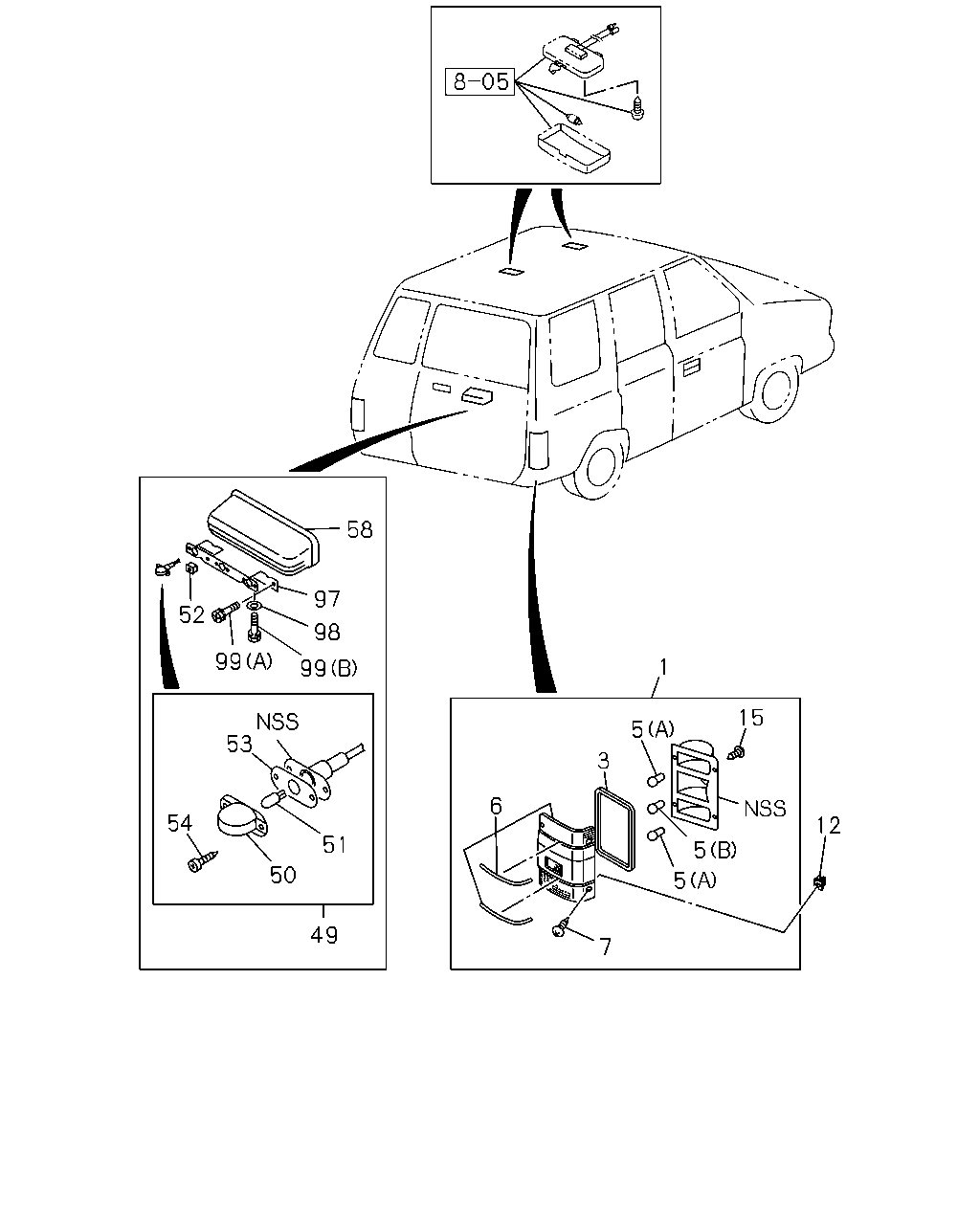

1 15 12 5 5 7 6 3 5 49 51 50 53 54 99 97 98 58 99 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LAMP ASM; RR COMB DELETION IDN	5-82230-037-1	01	1	9009-	●	●
1	LAMP ASM; RR COMB DELETION IDN	5-82230-036-1	01	1	9009-	●	●
1	LAMP ASM; RR COMB	8-94280-771-0	01	1	9009-9010			●	●
1	LAMP ASM; RR COMB DELETION IDN	8-94352-005-0	01	1	9011-			●	●
1	LAMP ASM; RR COMB	8-94280-770-0	01	1	9009-9010			●	●
1	LAMP ASM; RR COMB DELETION IDN	8-94352-004-0	01	1	9011-			●	●
3	GASKET; RR COMB LAMP DELETION IDN	5-82236-002-0	01	1	9009-	●	●
3	GASKET; RR COMB LAMP DELETION IDN	5-82236-001-0	01	1	9009-	●	●
3	GASKET; RR COMB LAMP DELETION	8-94292-929-0	01	1	9009-9010			●	●
3	GASKET; RR COMB LAMP DELETION IDN	8-94350-988-0	01	1	9011-			●	●
3	GASKET; RR COMB LAMP DELETION	8-94292-928-0	01	1	9009-9010			●	●
3	GASKET; RR COMB LAMP DELETION IDN	8-94350-987-0	01	1	9011-			●	●
5	BULB; RR COMB LAMP (A) DELETION 12V 23W IDN	9-82692-131-0	04	1	9009-	●	●	●	●
5	BULB; RR COMB LAMP (B) DELETION 12V 23/8W IDN	9-82692-132-0	02	1	9009-	●	●	●	●
6	LENS; RR COMB LAMP DELETION IDN	5-82235-002-0	01	1	9009-	●	●
6	LENS; RR COMB LAMP DELETION IDN	5-82235-001-0	01	1	9009-	●	●
6	LENS; RR COMB LAMP DELETION IDN	8-94274-120-0	01	1	9009-			●	●
6	LENS; RR COMB LAMP DELETION IDN	8-94274-119-0	01	1	9009-			●	●
7	SCREW; RR COMB LAMP DELETION M5X30 TAPPING	0-71190-530-0	08	1	9009-			●	●
12	GROMMET; RR COMB LAMP DELETION D=8.6X7.7 L=7.5 IDN	8-94279-078-0	08	1	9009-			●	●
15	SCREW; RR COMB LAMP M4X25 DELETION IDN	5-82239-005-0	16	1	9009-	●	●
15	SCREW; RR COMB LAMP DELETION M5X30 TAPPING	0-71190-530-0	08	1	9009-			●	●
15	SCREW; RR COMB LAMP DELETION M4X10 TAPPING	9-07076-410-0	02	1	9009-			●	●
49	LAMP; LICENSE PLATE DELETION 12V 10W IDN	5-82120-020-0	01	1	9009-	●	●
49	LAMP; LICENSE PLATE DELETION IDN	8-94366-586-0	01	1	9009-			●	●
50	LENS; LICENSE PLATE LAMP DELETION	5-82125-004-0	01	1	9009-	●	●
50	LENS; LICENSE PLATE LAMP DELETION IDN	8-94135-878-2	01	1	9009-			●	●
51	BULB; LICENSE PLATE LAMP DELETION 12V 10W IDN	8-94126-494-0	01	1	9009-	●	●
51	BULB; LICENSE PLATE LAMP DELETION 12V 5W IDN	8-94124-595-0	01	1	9009-			●	●
52	GROMMET; SCREW,LICENSE PLATE LAMP DELETION M4 IDN	5-09470-002-0	02	1	9009-			●	●
53	GASKET; LICENSE LAMP DELETION IDN	8-94379-544-0	01	1	9009-			●	●
54	SCREW; LICENSE PLATE LAMP DELETION M4X8 IDN	8-94419-312-0	01	1	9009-	●	●
54	SCREW; LICENSE PLATE LAMP DELETION M4X20 TAPPING STAINLESS IDN	0-71190-420-0	02	1	9009-			●	●
58	COVER; LICENSE PLATE LAMP DELETION	5-82124-004-1	01	1	9009-9101	●	●
58	COVER; LICENSE PLATE LAMP DELETION	8-97045-767-1	01	1	9102-	●	●
58	COVER; LICENSE PLATE LAMP DELETION BLACK IDN	8-94499-927-0	01	1	9009-9610			●	●
58	COVER; LICENSE PLATE LAMP IDN	8-97955-219-0	01	1	9611-			●	●
97	BRACKET; LICENSE PLATE LAMP DELETION IDN	8-94298-174-0	01	1	9009-			●	●
98	WASHER DELETION ID=4.3 OD=10	9-09160-604-0	02	1	9009-			●	●
99	SCREW (A) DELETION M6X12	9-03900-612-0	04	1	9009-0604			●	●
99	SCREW (A) DELETION M6X12 W/PL WASHER	0-36210-612-0	04	1	0605-			●	●
99	SCREW (B) DELETION M4X10 TAPPING	9-07076-410-0	02	1	9009-0603			●	●
99	SCREW (B) DELETION M4X10 TAPPING	0-71240-410-0	02	1	0604-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
