8-01 — LAMP; FRONT AND FRONT SIDE (#95155) — 46 parça

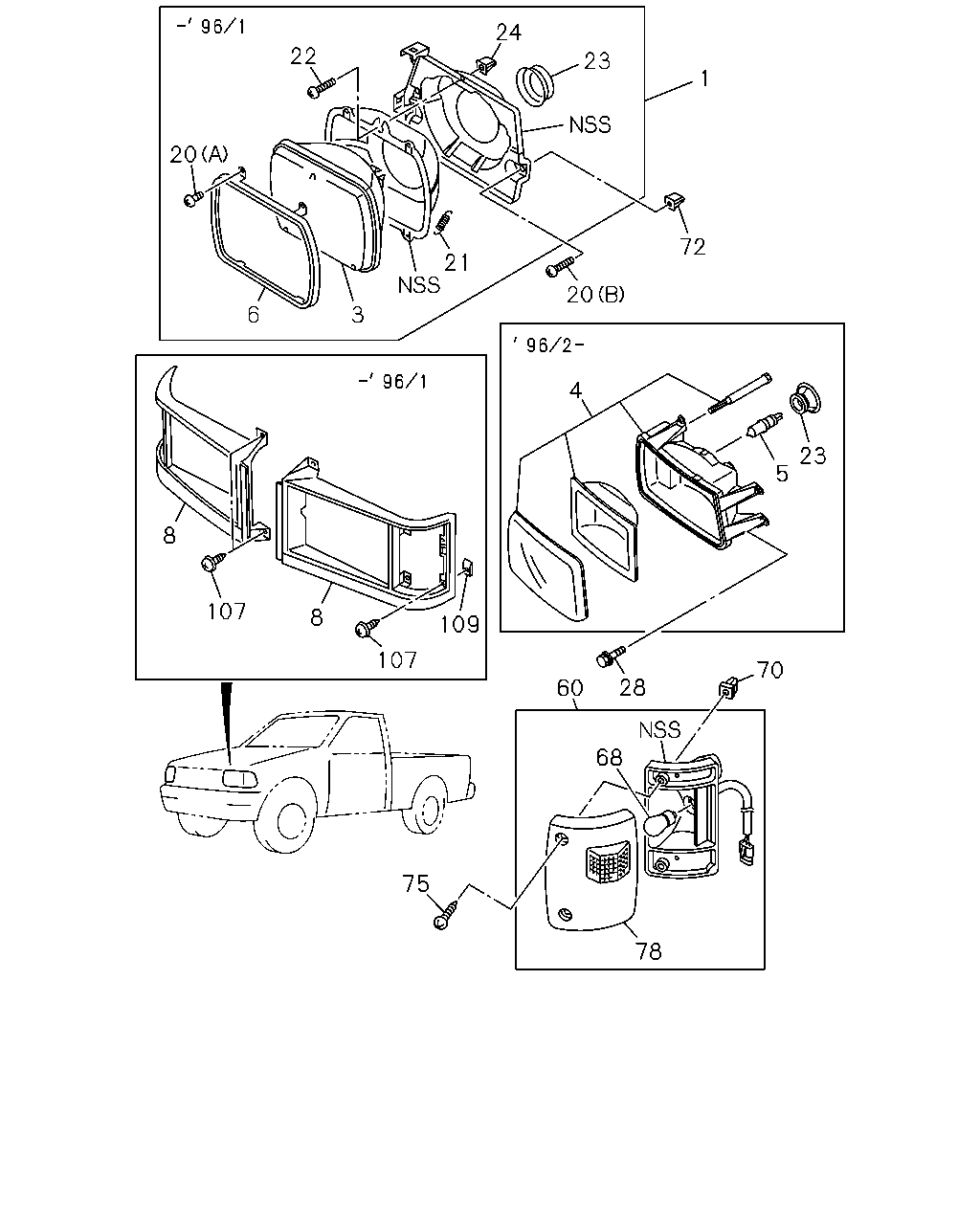

çizim 289218
1 72 20 23 24 22 20 6 3 21 8 107 8 107 109 60 28 70 68 78 75 5 23 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> 		8-94368-852-0 02 1 9009-9601 ● ●
1 LAMP ASM; HEAD
IDN 		8-97135-116-1 01 1 9602-0510 ● ●
1 LAMP ASM; HEAD
IDN 		8-97562-658-0 01 1 0511- ● ●
1 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5> 		8-94368-850-0 02 1 9009-9601 ● ●
1 LAMP ASM; HEAD
IDN 		8-97135-115-1 01 1 9602-0510 ● ●
1 LAMP ASM; HEAD
IDN 		8-97562-657-0 01 1 0511- ● ●
3 SEALED BEAM; HEADLAMP
HALOGEN HEAD LAMP<TT5> 		8-94165-479-0 02 1 9009-9601 ● ●
3 SEALED BEAM; HEADLAMP
EXC. HALOGEN HEAD LAMP<TT5> 		8-94165-478-0 02 1 9009-9601 ● ●
4 HEADLAMP UNIT
IDN 		8-97146-652-0 01 1 9602-0510 ● ●
4 HEADLAMP UNIT
IDN 		8-97562-735-0 01 1 0511- ● ●
4 HEADLAMP UNIT
IDN 		8-97146-651-0 01 1 9602-0510 ● ●
4 HEADLAMP UNIT
IDN 		8-97562-734-0 01 1 0511- ● ●
5 BULB; HEADLAMP
12V 60/55W 		8-94217-817-0 02 1 9602- ● ●
6 RIM; HEADLAMP 8-94228-905-0 02 1 9009-9601 ● ●
8 RIM; HEADLAMP
DELETION IDN 		8-94366-984-1 01 1 9009-9601 ●
8 RIM; HEADLAMP
DELETION IDN 		8-94366-982-1 01 1 9009-9601 ●
8 RIM; HEADLAMP
BODY COLOR PEWTER MET(825) DELETION SILVER IDN 		8-97000-848-1 01 1 9009-9601 ●
8 RIM; HEADLAMP
BODY COLOR PEWTER MET(825) DELETION SILVER IDN 		8-97000-843-1 01 1 9009-9601 ●
8 RIM; HEADLAMP
BODY COLOR PURE WHITE(811) DELETION WHITE IDN 		8-97000-845-1 01 1 9009-9601 ●
8 RIM; HEADLAMP
BODY COLOR PURE WHITE(811) DELETION WHITE IDN 		8-97000-840-1 01 1 9009-9601 ●
8 RIM; HEADLAMP
BODY COLOR RED MAHOGANY 1 COAT(852) DELETION DARK RED IDN 		8-97000-847-1 01 1 9009-9601 ●
8 RIM; HEADLAMP
BODY COLOR RED MAHOGANY 1 COAT(852) DELETION DARK RED IDN 		8-97000-842-1 01 1 9009-9601 ●
8 RIM; HEADLAMP
BODY COLOR SEASIDE BEIGE MET(827) DELETION LIGHT BEIGE IDN 		8-97000-849-1 01 1 9009-9601 ●
8 RIM; HEADLAMP
BODY COLOR SEASIDE BEIGE MET(827) DELETION LIGHT BEIGE IDN 		8-97000-844-1 01 1 9009-9601 ●
8 RIM; HEADLAMP
BODY COLOR TROOPER BLUE 1 COAT(842) DELETION DARK BLUE IDN 		8-97000-846-1 01 1 9009-9601 ●
8 RIM; HEADLAMP
BODY COLOR TROOPER BLUE 1 COAT(842) DELETION DARK BLUE IDN 		8-97000-841-1 01 1 9009-9601 ●
20 SCREW; HEADLAMP
(A) 		8-94324-114-0 08 1 9009-9601 ● ●
20 SCREW; HEADLAMP
(B) M5X14 W/LK&PL WASHER 		9-03920-514-0 06 1 9009-9601 ● ●
21 SPRING; ADJ HEADLAMP 8-94153-168-0 02 1 9009-9601 ● ●
22 SCREW; ADJ,HEADLAMP 5-09109-012-0 04 1 9009-9601 ● ●
23 COVER; BULB,HEADLAMP 5-82119-004-1 02 1 9009-9601 ● ●
23 COVER; BULB,HEADLAMP
IDN 		8-97146-657-0 02 1 9602-0510 ● ●
23 COVER; BULB,HEADLAMP
IDN 		8-97562-738-0 02 1 0511- ● ●
24 MOUNTING; ADJ SCREW HD LAMP 5-09470-004-0 04 1 9009-9601 ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 9602- ● ●
60 LAMP ASM; FRT COMB
DELETION IDN 		8-94368-579-0 01 1 9009- ● ●
60 LAMP ASM; FRT COMB
DELETION IDN 		8-94368-578-0 01 1 9009- ● ●
68 BULB; FRT COMB LAMP
DELETION 12V 21/5W IDN 		8-94125-959-0 02 1 9009- ● ●
70 GROMMET; SCREW,FRT COMB LAMP
D=7.5X7.5 L=7 		8-94430-147-0 04 1 9009- ● ●
72 GROMMET; SCREW,HEADLAMP 8-94141-978-1 04 1 9009-9601 ● ●
75 SCREW; FRT COMB LAMP
M4X30 TAPPING 		0-71090-430-0 04 1 9009- ● ●
78 LENS ASM; FRT COMB
DELETION IDN 		8-97031-003-0 01 1 9009- ● ●
78 LENS ASM; FRT COMB
DELETION IDN 		8-97031-002-0 01 1 9009- ● ●
107 SCREW; RIM,HEADLAMP
M4X16 W/PL WASHER 		8-94407-488-0 08 1 9009-9109 ● ●
107 SCREW; RIM,HEADLAMP
M5X16 IDN 		8-94380-268-0 08 1 9110-9601 ● ●
109 NUT; EXPANSION 8-94158-038-0 04 1 9009-9601 ● ●
