7-55 — REAR SEAT (#95153) — 47 parça

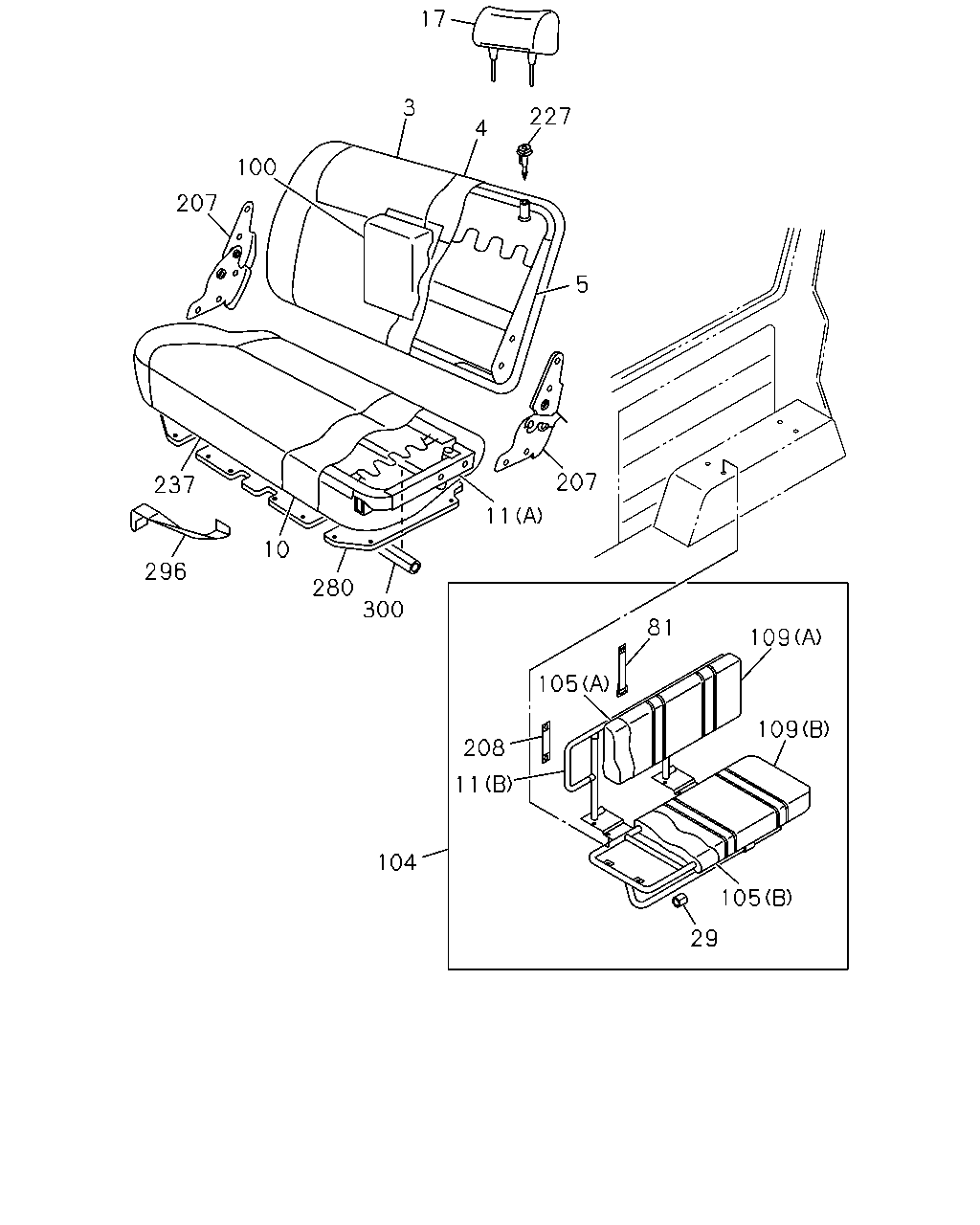

çizim 289115
17 227 4 3 100 207 5 207 11 300 280 10 237 296 109 81 109 105 208 11 104 105 29
BalonParca AdiParca NoAdetTipApplied Date A B
3 COVER; TRIM,RR SEAT BACK
WAGON(TB**V*) DELETION IDN 		8-97002-665-2 01 1 9009- ●
3 COVER; TRIM,RR SEAT BACK
WAGON(TB**V*) DELETION IDN 		8-97002-666-2 01 1 9009- ●
4 PAD; RR,SEAT BACK
WAGON(TB**V*) DELETION IDN 		8-94386-636-2 01 1 9009- ● ●
5 FRAME ASM; RR SEAT BACK
WAGON(TB**V*) DELETION IDN 		8-94386-632-2 01 1 9009- ● ●
10 PAD; CUSHION,RR SEAT
WAGON(TB**V*) DELETION IDN 		8-94386-640-1 01 1 9009- ● ●
11 FRAME ASM; CUSHION,RR SEAT
WAGON(TB**V*) (A) DELETION IDN 		8-94386-639-2 01 1 9009- ● ●
11 FRAME ASM; CUSHION,RR SEAT
WAGON SHORT(TB**VC) (B) DELETION IDN 		8-94386-655-1 01 1 9009- ● ●
11 FRAME ASM; CUSHION,RR SEAT
WAGON SHORT(TB**VC) (B) DELETION IDN 		8-94386-648-1 01 1 9009- ● ●
11 FRAME ASM; CUSHION,RR SEAT
WAGON LONG(TB**VF) (B) DELETION IDN 		8-94386-691-1 01 1 9009- ● ●
11 FRAME ASM; CUSHION,RR SEAT
WAGON LONG(TB**VF) (B) DELETION IDN 		8-94386-684-1 01 1 9009- ● ●
17 REST; HD,RR SEAT
WAGON(TB**V*) DELETION IDN 		8-97002-654-0 02 1 9009- ●
29 RUBBER; RR SEAT
WAGON(TB**V*) DELETION IDN 		8-97031-899-0 04 1 9009- ● ●
81 BAND; RR SEAT BACK
WAGON(TB**V*) DELETION IDN 		8-97031-746-0 02 1 9009- ● ●
100 REST; ARM,RR SEAT
WAGON(TB**V*) GRAY IDN 		8-97002-661-1 01 1 9009- ●
100 REST; ARM,RR SEAT
WAGON(TB**V*) IDN 		8-97002-662-1 01 1 9009- ●
104 SEAT ASM; JUMP
WAGON SHORT(TB**VC) IDN 		8-97002-677-1 01 1 9009- ●
104 SEAT ASM; JUMP
WAGON SHORT(TB**VC) IDN 		8-97002-673-1 01 1 9009- ●
104 SEAT ASM; JUMP
WAGON LONG(TB**VF) IDN 		8-97002-679-1 01 1 9009- ●
104 SEAT ASM; JUMP
WAGON LONG(TB**VF) IDN 		8-97002-675-1 01 1 9009- ●
104 SEAT ASM; JUMP
WAGON SHORT(TB**VC) IDN 		8-97002-678-1 01 1 9009- ●
104 SEAT ASM; JUMP
WAGON SHORT(TB**VC) IDN 		8-97002-674-1 01 1 9009- ●
104 SEAT ASM; JUMP
WAGON LONG(TB**VF) IDN 		8-97002-680-1 01 1 9009- ●
104 SEAT ASM; JUMP
WAGON LONG(TB**VF) IDN 		8-97002-676-1 01 1 9009- ●
105 PAD ASM; JUMP SEAT
WAGON SHORT(TB**VC) (A) DELETION IDN 		8-94386-644-0 02 1 9009- ● ●
105 PAD ASM; JUMP SEAT
WAGON SHORT(TB**VC) (B) DELETION IDN 		8-94386-650-0 02 1 9009- ● ●
105 PAD ASM; JUMP SEAT
WAGON LONG(TB**VF) (A) DELETION IDN 		8-94386-680-0 02 1 9009- ● ●
105 PAD ASM; JUMP SEAT
WAGON LONG(TB**VF) (B) DELETION IDN 		8-94386-686-0 02 1 9009- ● ●
109 COVER ASM; TRIM,JUMP SEAT
WAGON SHORT(TB**VC) (A) DELETION IDN 		8-97002-689-1 02 1 9009- ●
109 COVER ASM; TRIM,JUMP SEAT
WAGON SHORT(TB**VC) (B) DELETION IDN 		8-97002-701-1 02 1 9009- ●
109 COVER ASM; TRIM,JUMP SEAT
WAGON LONG(TB**VF) (A) DELETION IDN 		8-97002-691-1 02 1 9009- ●
109 COVER ASM; TRIM,JUMP SEAT
WAGON LONG(TB**VF) (B) DELETION IDN 		8-97002-703-1 02 1 9009- ●
109 COVER ASM; TRIM,JUMP SEAT
WAGON SHORT(TB**VC) (A) DELETION IDN 		8-97002-690-1 02 1 9009- ●
109 COVER ASM; TRIM,JUMP SEAT
WAGON SHORT(TB**VC) (B) DELETION IDN 		8-97002-702-1 02 1 9009- ●
109 COVER ASM; TRIM,JUMP SEAT
WAGON LONG(TB**VF) (A) DELETION IDN 		8-97002-692-1 02 1 9009- ●
109 COVER ASM; TRIM,JUMP SEAT
WAGON LONG(TB**VF) (B) DELETION IDN 		8-97002-704-1 02 1 9009- ●
207 LOCK ASM; RR SEAT
WAGON(TB**V*) DELETION IDN 		8-97038-140-1 01 1 9009- ● ●
207 LOCK ASM; RR SEAT
WAGON(TB**V*) DELETION IDN 		8-97038-139-1 01 1 9009-9302 ● ●
207 LOCK ASM; RR SEAT
WAGON(TB**V*) DELETION IDN 		8-97089-649-0 01 1 9303- ● ●
208 BOARD; RR SEAT BACK
WAGON SHORT(TB**VC) JUMP SEAT DELETION IDN 		8-94386-645-1 02 1 9009- ● ●
208 BOARD; RR SEAT BACK
WAGON LONG(TB**VF) JUMP SEAT DELETION IDN 		8-94386-681-1 02 1 9009- ● ●
227 HOLDER; GUIDE,RR HD REST
WAGON(TB**V*) DELETION IDN 		8-97030-594-0 02 1 9009- ●
227 HOLDER; GUIDE,RR HD REST
WAGON(TB**V*) DELETION IDN 		8-97030-593-0 02 1 9009- ●
237 COVER; TRIM,RR CUSHION
WAGON(TB**V*) DELETION GRAY IDN 		8-97002-671-1 01 1 9009- ●
237 COVER; TRIM,RR CUSHION
WAGON(TB**V*) DELETION IDN 		8-97002-672-1 01 1 9009- ●
280 BOARD; RR SEAT CUSHION
WAGON(TB**V*) IDN 		8-97038-481-0 01 1 9009- ● ●
296 BAND; RR SEAT CUSHION
WAGON(TB**V*) IDN 		8-97038-138-0 01 1 9009- ● ●
300 RUBBER; RR SEAT CUSHION
WAGON(TB**V*) IDN 		8-97078-664-0 02 1 9009- ● ●
