7-50 — FRONT SEAT (#95152) — 51 parça

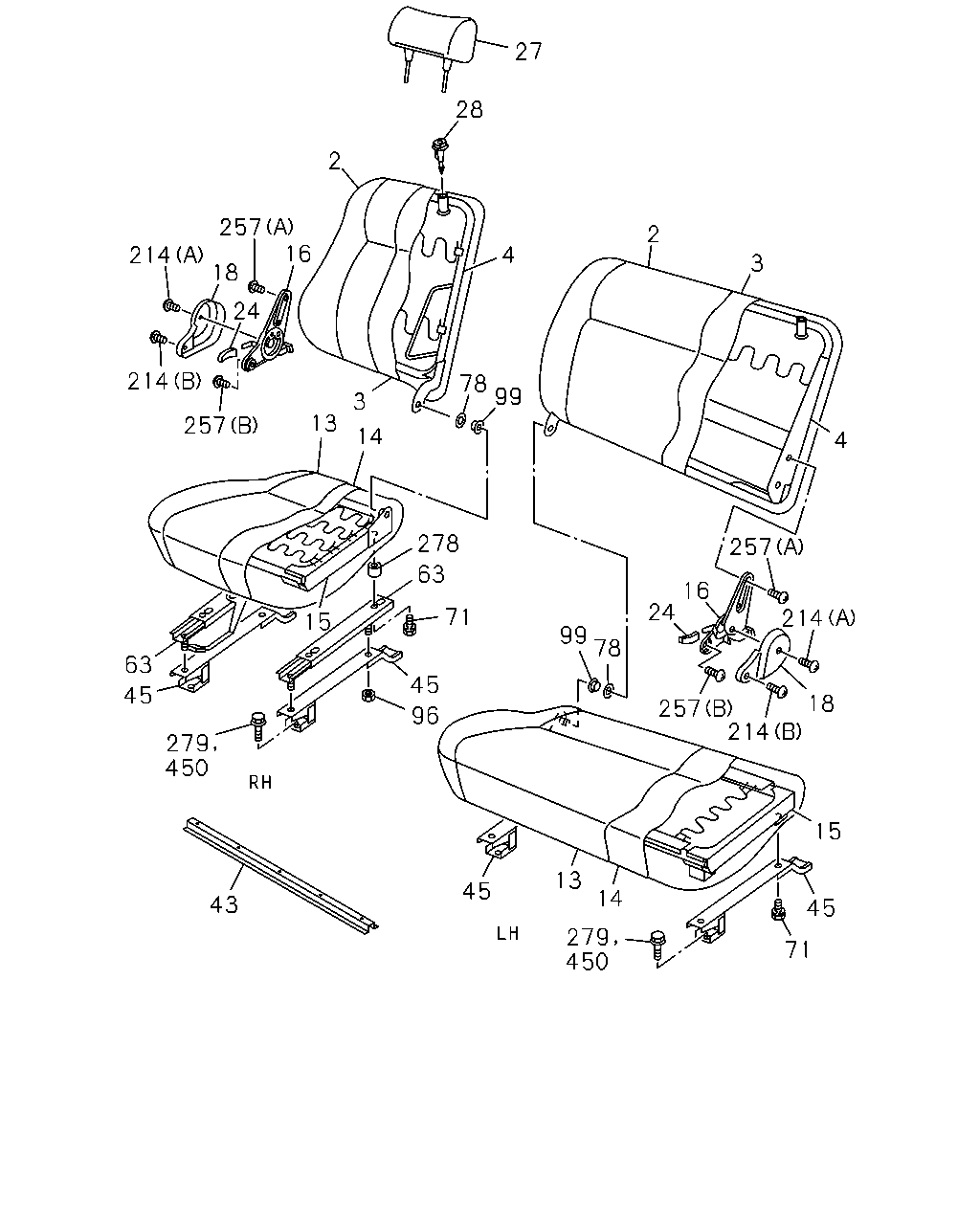

çizim 289820
27 28 2 4 2 3 4 257 16 24 214 18 214 257 78 99 99 78 14 3 13 16 257 18 214 24 257 214 278 71 63 45 96 15 63 45 279 450 43 15 45 71 14 13 45 279 450
BalonParca AdiParca NoAdetTipApplied Date A B
2 COVER; TRIM,FRT SEAT,BACK
DELETION GRAY IDN 		8-97000-888-1 01 1 9009- ●
2 COVER; TRIM,FRT SEAT,BACK
DELETION GRAY IDN 		8-97000-882-1 01 1 9009- ●
2 COVER; TRIM,FRT SEAT,BACK
PICK UP(TB**S*) DELETION IDN 		8-97000-899-1 01 1 9009- ●
2 COVER; TRIM,FRT SEAT,BACK
PICK UP(TB**S*) DELETION IDN 		8-97000-894-1 01 1 9009- ●
2 COVER; TRIM,FRT SEAT,BACK
WAGON(TB**V*) DELETION IDN 		8-97002-653-0 01 1 9009- ●
2 COVER; TRIM,FRT SEAT,BACK
WAGON(TB**V*) DELETION IDN 		8-97002-652-0 01 1 9009- ●
3 PAD; FRT SEAT BACK
DELETION IDN 		8-94369-424-1 01 1 9009- ● ●
3 PAD; FRT SEAT BACK
DELETION IDN 		8-94369-418-1 01 1 9009- ● ●
4 FRAME ASM; FRT SEAT
DELETION IDN 		8-94369-423-1 01 1 9009- ● ●
4 FRAME ASM; FRT SEAT
DELETION IDN 		8-94369-417-1 01 1 9009- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELETION IDN 		8-97000-890-1 01 1 9009- ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELETION IDN 		8-97000-884-1 01 1 9009- ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELETION IDN 		8-97000-901-1 01 1 9009- ●
13 COVER; TRIM,FRT SEAT,CUSHION
DELETION IDN 		8-97000-896-1 01 1 9009- ●
14 PAD; FRT SEAT CUSHION
DELETION IDN 		8-94369-427-1 01 1 9009- ● ●
14 PAD; FRT SEAT CUSHION
DELETION IDN 		8-94369-421-1 01 1 9009- ● ●
15 FRAME; CUSHION,FRT SEAT
DELETION IDN 		8-94369-426-1 01 1 9009- ● ●
15 FRAME; CUSHION,FRT SEAT
DELETION IDN 		8-94369-420-1 01 1 9009- ● ●
16 ADJUSTER ASM; RECLINING
DELETION IDN 		8-94473-669-2 01 1 9009- ● ●
16 ADJUSTER ASM; RECLINING
DELETION IDN 		8-94473-497-2 01 1 9009- ● ●
18 COVER; RECLINING
DELETION GRAY IDN 		8-97000-891-1 01 1 9009- ● ●
18 COVER; RECLINING
DELETION GRAY IDN 		8-97000-885-1 01 1 9009- ● ●
24 KNOB; RECLINING,FRT,SEAT
DELETION GRAY IDN 		8-94477-521-0 01 1 9009- ● ●
24 KNOB; RECLINING,FRT,SEAT
DELETION GRAY IDN 		8-94477-508-0 01 1 9009- ● ●
27 REST; HD,FRT SEAT
WAGON(TB**V*) DELETION IDN 		8-97002-654-0 02 1 9009- ●
28 HOLDER; GUIDE,HD REST
WAGON(TB**V*) DELETION IDN 		8-97030-594-0 02 1 9009- ●
28 HOLDER; GUIDE,HD REST
WAGON(TB**V*) DELETION IDN 		8-97030-593-0 02 1 9009- ●
43 BAR ASM; FRT SEAT MTG
IDN 		8-94377-663-1 01 1 9009- ● ●
45 BRACKET; SEAT MTG,FRT
DELETION IDN 		8-97011-688-0 04 1 9009- ● ●
63 ADJUSTER; SEAT SLIDE
W/LEVER DELETION IDN 		8-97011-752-1 01 1 9009- ● ●
63 ADJUSTER; SEAT SLIDE
W/O LEVER DELETION IDN 		8-97011-753-1 01 1 9009- ● ●
71 BOLT; ADJ TO SEAT
DELETION M8X25 W/LK&PL WASHER IDN 		0-50140-825-0 04 1 9009-0512 ● ●
71 BOLT; ADJ TO SEAT
M8X25 W/LK&PL WASHER IDN 		0-50640-825-0 04 1 0601- ● ●
71 BOLT; ADJ TO SEAT
DELETION M8X35 W/LK&PL WASHER IDN 		0-50140-835-0 04 1 9009-0512 ● ●
71 BOLT; ADJ TO SEAT
M8X35 W/LK&PL WASHER IDN 		0-50640-835-0 04 1 0601- ● ●
78 RING; SNAP
DELETION ID=10 IDN 		9-09185-410-0 02 1 9009-0604 ● ●
78 RING; SNAP
ID=10 IDN 		0-91805-510-0 02 1 0605- ● ●
96 NUT; LK,HINGE
DELETION M8 FLANGE IDN 		0-91150-208-0 04 1 9009-0602 ● ●
96 NUT; LK,HINGE
M8 FLANGE IDN 		0-91180-208-0 04 1 0603- ● ●
99 BUSHING; SEAT BACK
DELETION IDN 		8-94371-716-0 02 1 9009- ● ●
214 SCREW; SIDE COVER
(A) DELETION M5X16 TAPPING W/PL WASHER IDN 		0-74310-516-0 02 1 9009-0604 ● ●
214 SCREW; SIDE COVER
(A) DELETION M5X16 TAPPING W/PL WASHER IDN 		0-74360-516-0 02 1 0605- ● ●
214 SCREW; SIDE COVER
(B) DELETION IDN 		8-94478-733-0 02 1 9009- ● ●
257 BOLT; RECLINING DEVICE
(A) DELETION M10X20 W/LK WASHER IDN 		0-50041-020-0 04 1 9009-0512 ● ●
257 BOLT; RECLINING DEVICE
(A) DELETION M10X20 W/LK WASHER IDN 		0-50541-020-0 04 1 0601- ● ●
257 BOLT; RECLINING DEVICE
(B) DELETION M10X20 W/LK WASHER IDN 		8-94317-654-0 04 1 9009- ● ●
278 COLLAR; FRT SEAT
DELETION IDN 		8-94371-715-1 04 1 9009- ● ●
279 BOLT; FRT SEAT
PICK UP(TB**S*) M10X19 		8-94427-095-2 08 1 9009- ● ●
279 BOLT; FRT SEAT
WAGON(TB**V*) M10X19 		8-94427-095-2 20 1 9009- ● ●
450 BOLT; BRKT
WAGON SHORT(TB**VC) M6X10 FLANGE IDN 		0-28080-610-0 04 1 9610-0512 ● ●
450 BOLT; BRKT
WAGON SHORT(TB**VC) M6X10 FLANGE IDN 		0-28050-610-0 04 1 0601- ● ●
