7-40 — INSTRUMENT PANEL AND BOX (#95148) — 81 parça

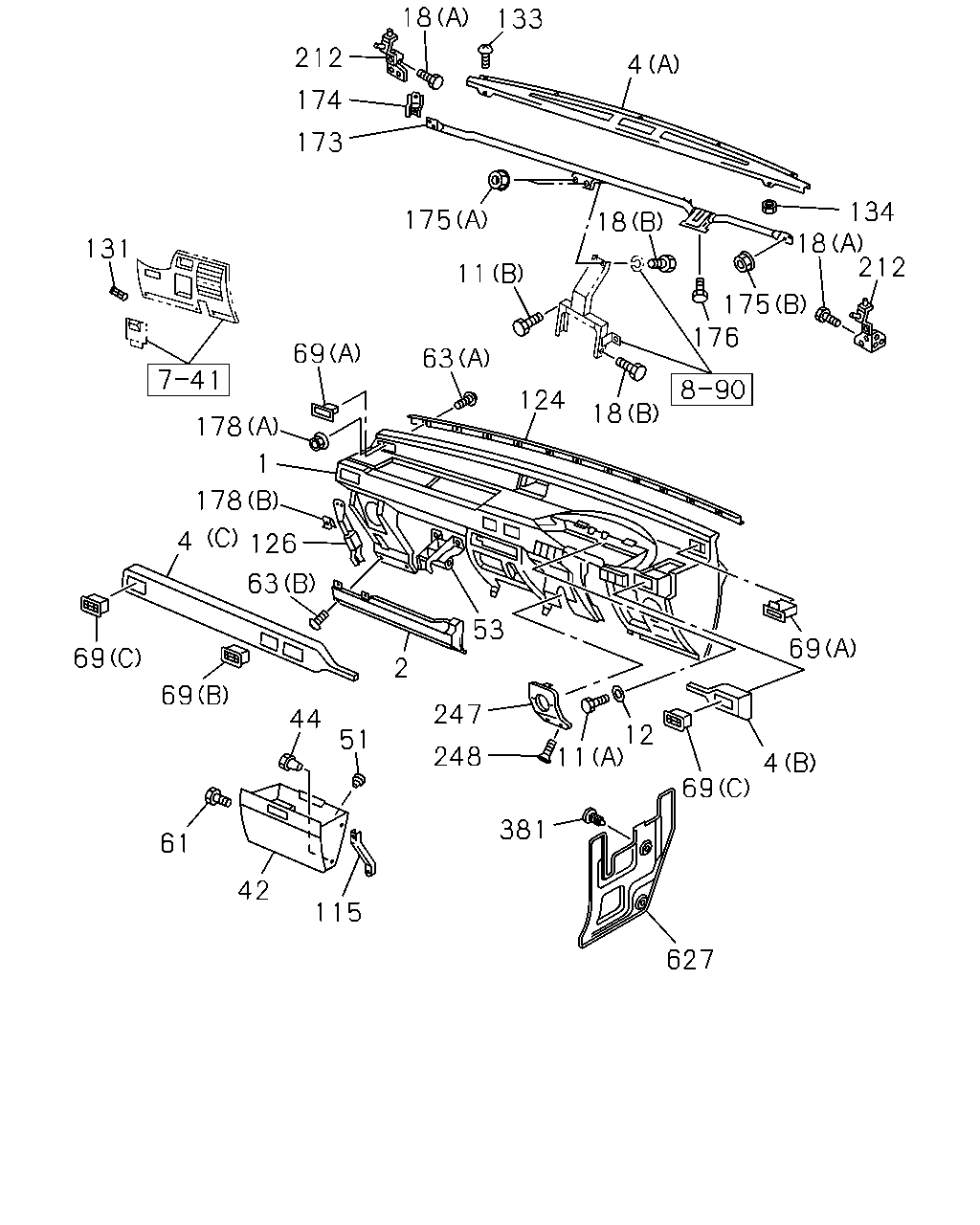

çizim 289821
4 134 212 18 175 176 18 11 175 133 18 212 173 174 18 124 63 69 131 178 178 4 126 63 69 69 2 247 248 51 44 115 42 61 53 69 4 12 11 69 381 627 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; INST
INTERIOR COLOR MUSHROOM(150) GRAY 		8-97000-404-3 01 1 9009- ● ● ● ●
1 PANEL; INST
INTERIOR COLOR BLACK(101) BLACK 		8-97000-403-3 01 1 9409-9601 ● ●
1 PANEL; INST
INTERIOR COLOR BLACK(101) BLACK 		8-97000-403-3 01 1 9602- ● ● ● ●
2 REINFORCEMENT; INST PNL,LWR 8-94450-175-3 01 1 9009- ● ● ● ●
4 COVER; INST PNL
(A) DELETION IDN 		8-94366-942-0 01 1 9009- ● ● ● ●
4 COVER; INST PNL
(C) DELETION GRAY 		8-94477-643-1 01 1 9009-9408 ● ● ● ●
4 COVER; INST PNL
INTERIOR COLOR MUSHROOM(150) (C) DELETION GRAY 		8-94477-643-1 01 1 9409- ● ● ● ●
4 COVER; INST PNL
(B) DELETION GRAY 		8-94477-640-1 01 1 9009-9408 ● ● ● ●
4 COVER; INST PNL
INTERIOR COLOR MUSHROOM(150) (B) DELETION GRAY 		8-94477-640-1 01 1 9409- ● ● ● ●
4 COVER; INST PNL
INTERIOR COLOR BLACK(101) (C) DELETION BLACK 		8-94387-514-1 01 1 9409-9601 ● ●
4 COVER; INST PNL
INTERIOR COLOR BLACK(101) (C) DELETION BLACK 		8-94387-514-1 01 1 9602- ● ● ● ●
4 COVER; INST PNL
INTERIOR COLOR BLACK(101) (B) DELETION BLACK 		8-94387-513-1 01 1 9409-9601 ● ●
4 COVER; INST PNL
INTERIOR COLOR BLACK(101) (B) DELETION BLACK 		8-94387-513-1 01 1 9602- ● ● ● ●
11 BOLT; INST PNL
(B) M6X12 		8-94136-136-0 02 1 9009- ● ● ● ●
11 BOLT; INST PNL
(A) M6X16 W/LK&PL WASHER IDN 		8-94139-963-0 05 1 9009- ● ● ● ●
12 WASHER; PL,INST PANEL
ID=6.4 OD=18 		9-09160-706-0 01 1 9009-0605 ● ● ● ●
12 WASHER; PL,INST PANEL
ID=6.4 OD=18 		0-91610-706-0 01 1 0606- ● ● ● ●
18 BOLT; BRKT
(A) M8X16 		8-94139-492-0 08 1 9009- ● ● ● ●
18 BOLT; BRKT
(B) M6X16 		8-94206-784-0 04 1 9009- ● ● ● ●
42 BOX; GLOVE,INST PNL
GRAY 		8-94475-857-6 01 1 9009-9408 ● ● ● ●
42 BOX; GLOVE,INST PNL
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94475-857-7 01 1 9409- ● ● ● ●
42 BOX; GLOVE,INST PNL
INTERIOR COLOR BLACK(101) BLACK 		8-94333-748-6 01 1 9409-9601 ● ●
42 BOX; GLOVE,INST PNL
INTERIOR COLOR BLACK(101) BLACK 		8-94333-748-7 01 1 9602- ● ● ● ●
44 PIN; GLOVE BOX 8-94129-687-2 02 1 9009- ● ● ● ●
51 CUSHION; STOPPER,GLOVE BOX 8-94389-122-0 03 1 9009- ● ● ● ●
53 STRIKER; GLOVE BOX 8-94310-754-1 01 1 9009- ● ● ● ●
61 SCREW; GLOVE BOX
M4X8 CK-HEAD 		9-03094-408-0 02 1 9009-9401 ● ● ● ●
61 SCREW; GLOVE BOX
M4X10 		8-97107-420-0 02 1 9402- ● ● ● ●
63 SCREW; BINDER HD
(A) M5X16 TAPPING 		9-09829-188-0 14 1 9009- ● ● ● ●
63 SCREW; BINDER HD
(B) M5X16 TAPPING 		9-09829-323-1 06 1 9009- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) GRAY 		8-94474-762-3 02 1 9009-9408 ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR MUSHROOM(150) (B) GRAY 		8-94474-762-4 02 1 9409- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(C) GRAY 		8-94474-766-3 01 1 9009-9408 ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR MUSHROOM(150) (C) GRAY 		8-94474-766-3 01 1 9409- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) GRAY 		8-94474-789-2 01 1 9009-9408 ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR MUSHROOM(150) (A) GRAY 		8-94474-789-2 01 1 9409- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(C) GRAY 		8-94474-764-3 01 1 9009-9408 ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR MUSHROOM(150) (C) GRAY 		8-94474-764-3 01 1 9409- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) GRAY 		8-94474-786-2 01 1 9009-9408 ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR MUSHROOM(150) (A) GRAY 		8-94474-786-2 01 1 9409- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101) (B) BLACK 		8-94333-730-4 02 1 9409-9601 ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101) (B) BLACK 		8-94333-730-4 02 1 9602- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101) (A) BLACK 		8-94333-735-2 01 1 9409-9601 ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101) (A) BLACK 		8-94333-735-2 01 1 9602- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101) (C) BLACK 		8-94388-773-3 01 1 9409-9601 ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101) (C) BLACK 		8-94388-773-3 01 1 9602- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101) (A) BLACK 		8-94333-734-2 01 1 9409-9601 ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101) (A) BLACK 		8-94333-734-2 01 1 9602- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101) (C) BLACK 		8-94388-772-3 01 1 9409-9601 ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101) (C) BLACK 		8-94388-772-3 01 1 9602- ● ● ● ●
115 RETAINER; GLOVE BOX 8-94339-842-0 01 1 9009- ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR 8-94449-374-4 01 1 9009- ● ● ● ●
126 STAY; GLOVE BOX SIDE 8-94339-844-1 01 1 9009- ● ● ● ●
126 STAY; GLOVE BOX SIDE 8-94339-843-1 01 1 9009- ● ● ● ●
131 GRILLE ASM; LAP VENT 8-94365-787-0 01 1 9009- ● ● ● ●
133 SCREW; COVER,INST PNL
M6X14 		8-94152-833-0 05 1 9009-9012 ● ● ● ●
134 NUT; FRT COVER,INST PANEL
M6 FLANGE 		8-94159-247-0 03 1 9009-9012 ● ● ● ●
134 NUT; FRT COVER,INST PANEL
M6 FLANGE 		8-94159-247-0 07 1 9101-9305 ● ● ● ●
134 NUT; FRT COVER,INST PANEL
M6 FLANGE 		8-97063-399-0 07 1 9306- ● ● ● ●
173 BEAM ASM; CROSS,INST PANEL
DELETION IDN 		8-94381-056-0 01 1 9009- ● ● ● ●
174 BRACKET; BEAM SIDE 8-94375-073-2 01 1 9009- ● ● ● ●
175 NUT; CROSS BEAM
(A) M6 W/DISHED WASHER IDN 		8-94170-192-0 03 1 9009- ● ● ● ●
175 NUT; CROSS BEAM
(B) M8 FLANGE 		8-94459-656-0 04 1 9009-9603 ● ● ● ●
175 NUT; CROSS BEAM
(B) M8 W/LK WASHER 		8-97065-435-0 04 1 9604- ● ● ● ●
176 BOLT; CROSS BEAM
M8X18 W/LK&PL WASHER 		9-01960-818-0 01 1 9009-9204 ● ● ● ●
176 BOLT; CROSS BEAM
M8X18 W/LK&PL WASHER 		0-50140-818-0 01 1 9205-9411 ● ● ● ●
176 BOLT; CROSS BEAM
M8X16 FLANGE 		0-28080-816-0 01 1 9412-0512 ● ● ● ●
176 BOLT; CROSS BEAM
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
178 NUT; INST PANEL
(B) M6 W/DISHED WASHER IDN 		8-94170-192-0 03 1 9009- ● ● ● ●
178 NUT; INST PANEL
(A) M5 SPIRE NUT 		8-94217-271-0 14 1 9009- ● ● ● ●
212 BRACKET; INST PNL SIDE
IDN 		8-94369-049-0 01 1 9009- ● ● ● ●
212 BRACKET; INST PNL SIDE
IDN 		8-94369-048-0 01 1 9009- ● ● ● ●
247 COVER; HAND BRAKE LEVER,INST PANEL
GRAY 		8-94478-314-3 01 1 9009-9408 ● ● ● ●
247 COVER; HAND BRAKE LEVER,INST PANEL
INTERIOR COLOR MUSHROOM(150) GRAY 		8-94478-314-3 01 1 9409- ● ● ● ●
247 COVER; HAND BRAKE LEVER,INST PANEL
INTERIOR COLOR BLACK(101) BLACK 		8-94333-736-3 01 1 9409-9601 ● ●
247 COVER; HAND BRAKE LEVER,INST PANEL
INTERIOR COLOR BLACK(101) BLACK 		8-94333-736-3 01 1 9602- ● ● ● ●
248 SCREW; HAND BRAKE LEVER COVER
M5X16 TAPPING 		9-09829-323-1 02 1 9009- ● ● ● ●
381 CLIP; HARNESS
BLACK 		8-94145-515-0 06 1 9602-9608 ● ● ● ●
381 CLIP; HARNESS
BLACK 		8-94145-515-0 04 1 9609- ● ● ● ●
627 TRIM
DELETION IDN 		8-97131-700-1 01 1 9602- ● ● ● ●
627 TRIM
DELETION IDN 		8-97131-699-1 01 1 9602- ● ● ● ●
