◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50663 - TBR(INDONESIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#95147) — 31 parça

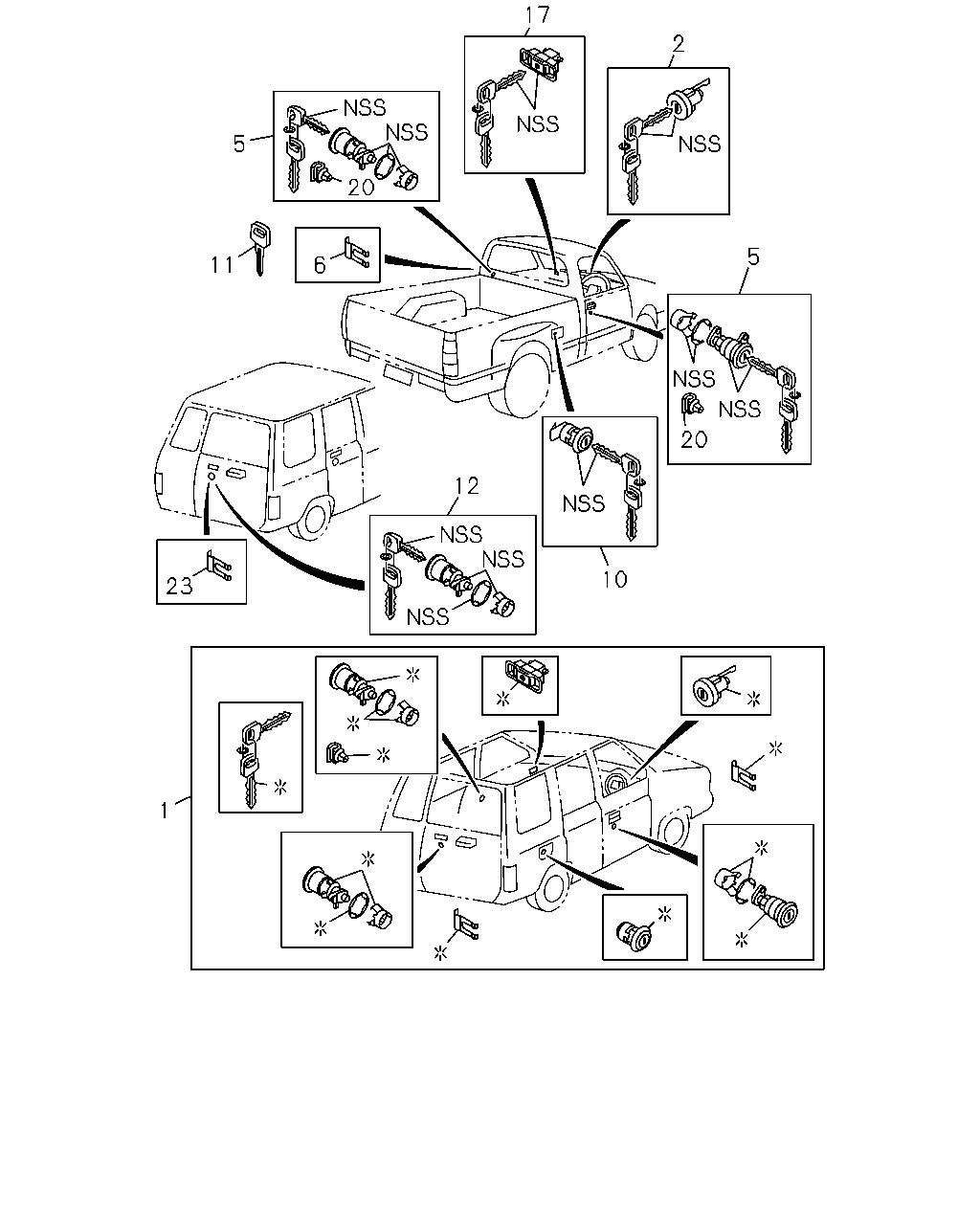

çizim 288933
1 10 12 23 5 20 2 17 5 20 6 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER SET; CAR LOCK
GRAY 		8-97001-080-1 01 1 9009-9601 ● ●
1 CYLINDER SET; CAR LOCK
INTERIOR COLOR MUSHROOM(150) GRAY 		8-97001-080-1 01 1 9602- ● ●
1 CYLINDER SET; CAR LOCK
INTERIOR COLOR BLACK(101) BLACK 		8-97151-123-1 01 1 9602- ● ●
1 CYLINDER SET; CAR LOCK
GRAY 		8-97002-623-2 01 1 9009-9408 ● ●
1 CYLINDER SET; CAR LOCK
INTERIOR COLOR MUSHROOM(150) GRAY 		8-97002-623-2 01 1 9409- ● ●
1 CYLINDER SET; CAR LOCK
INTERIOR COLOR BLACK(101) BLACK 		8-97151-124-2 01 1 9409- ● ●
2 BARREL ASM; W/KEY,STRG LOCK 8-94320-978-0 01 1 9009-9009 ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK 8-97044-641-0 01 1 9010- ● ● ● ●
5 CYLINDER ASM; DOOR LOCK 8-97030-598-0 01 1 9009- ● ● ● ●
5 CYLINDER ASM; DOOR LOCK 8-97030-597-0 01 1 9009- ● ● ● ●
6 RETAINER; DOOR LOCK CYL 8-94389-331-0 02 1 9010-9103 ● ●
6 RETAINER; DOOR LOCK CYL 8-94389-331-0 02 1 9104- ● ● ● ●
6 RETAINER; DOOR LOCK CYL 8-94139-506-1 02 1 9009-9009 ● ● ● ●
6 RETAINER; DOOR LOCK CYL 8-94139-506-1 02 1 9010-9103 ● ●
10 CYLINDER ASM; W/KEY,FUEL FILLER 8-94320-981-1 01 1 9009- ● ● ● ●
11 KEY; BLANK
WO/NOTCH 		8-94320-972-0 AR 1 9009- ● ● ● ●
11 KEY; BLANK
W/NOTCH 		8-94320-973-0 AR 1 9009- ● ● ● ●
12 CYLINDER ASM; W/KEY,BACK DOOR 8-97030-597-1 01 1 9009-9408 ● ●
12 CYLINDER ASM; W/KEY,BACK DOOR
INTERIOR COLOR MUSHROOM(150) 		8-97030-597-1 01 1 9409- ● ●
12 CYLINDER ASM; W/KEY,BACK DOOR
INTERIOR COLOR BLACK(101) 		8-97030-598-1 01 1 9409- ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
GRAY 		5-87410-281-0 01 1 9009-9009 ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
GRAY 		5-87410-306-0 01 1 9010-9408 ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
GRAY 		5-87410-306-0 01 1 9409-9601 ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
INTERIOR COLOR MUSHROOM(150) GRAY 		5-87410-306-0 01 1 9409-9601 ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
INTERIOR COLOR MUSHROOM(150) GRAY 		5-87410-306-0 01 1 9602- ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
INTERIOR COLOR BLACK(101) BLACK 		5-87410-559-0 01 1 9409-9601 ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
INTERIOR COLOR BLACK(101) BLACK 		5-87410-559-0 01 1 9602- ● ● ● ●
20 SNAP; DOOR LOCK CYL
YELLOW 		8-97040-452-0 01 1 9009- ● ● ● ●
20 SNAP; DOOR LOCK CYL
BROWN 		8-97040-453-0 01 1 9009- ● ● ● ●
23 RETAINER; BACK DOOR LOCK CYL 8-94139-506-1 01 1 9009-9103 ● ●
23 RETAINER; BACK DOOR LOCK CYL 8-94389-331-0 01 1 9104- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
