Isuzu WW
▶
AUV
▶
TBR
▶
50663 - TBR(INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

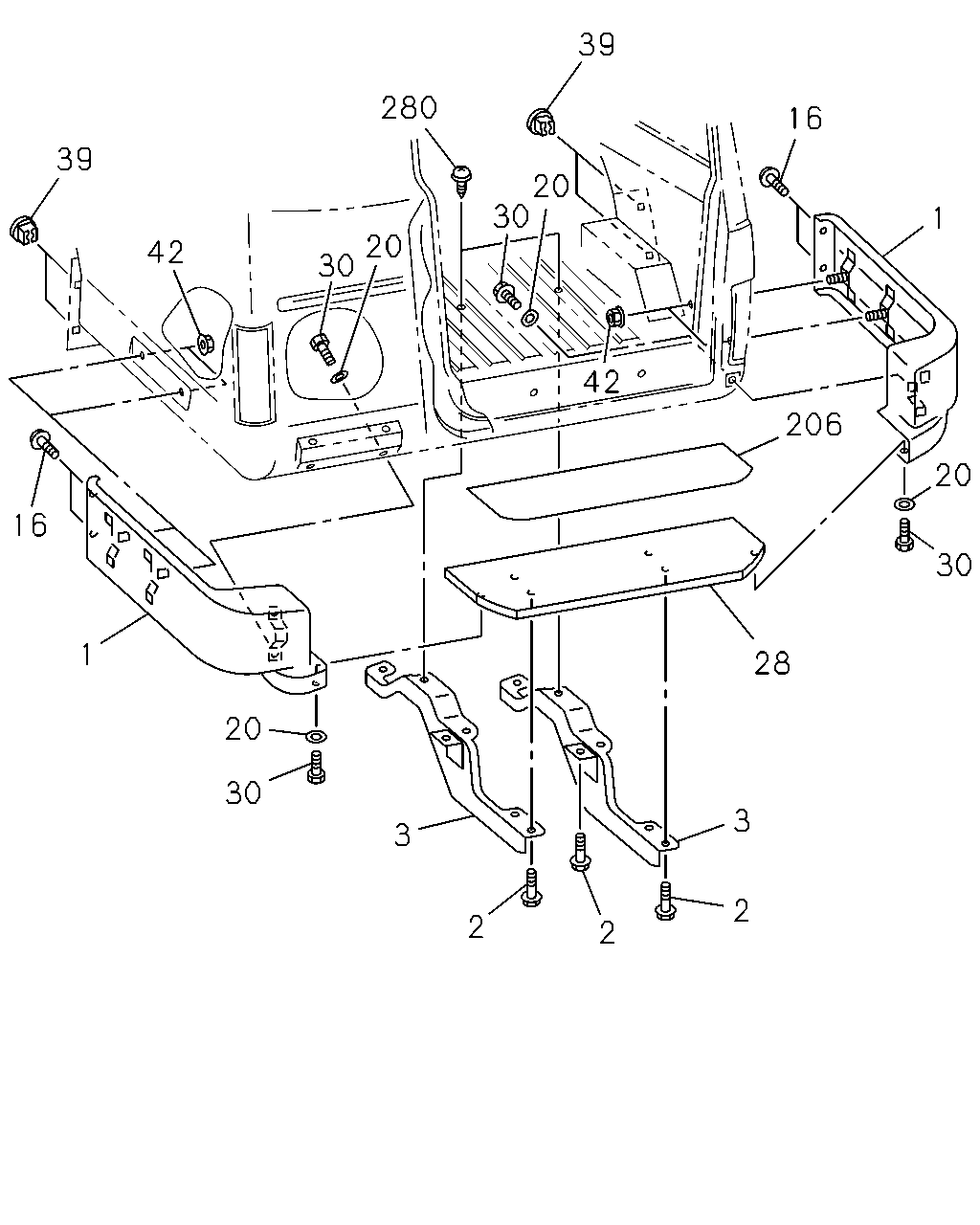

6-90 — REAR BUMPER
(#95143) — 23 parça
Tümü
A - GRADE BASIC
B - GRADE DELUXE
1
16
39
280
20
30
20
30
42
39
16
1
20
30
3
2
2
2
3
28
30
20
206
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BUMPER; RR
WAGON(TB**V*) DELETION IDN
8-94335-933-0
01
1
9009-9601
●
1
BUMPER; RR
WAGON(TB**V*) DELETION IDN
8-94335-933-0
01
1
9602-
●
●
1
BUMPER; RR
WAGON(TB**V*) DELETION IDN
8-94335-932-0
01
1
9009-9601
●
1
BUMPER; RR
WAGON(TB**V*) DELETION IDN
8-94335-932-0
01
1
9602-
●
●
1
BUMPER; RR
WAGON(TB**V*) DELETION IDN
8-94386-772-0
01
1
9009-9601
●
1
BUMPER; RR
WAGON(TB**V*) DELETION IDN
8-94386-771-0
01
1
9009-9601
●
2
BOLT; BACK BAR
WAGON(TB**V*) DELETION
0-28481-225-0
10
1
9009-0512
●
●
2
BOLT; BACK BAR
WAGON(TB**V*)
0-28451-225-0
10
1
0601-
●
●
3
BRACKET; BUMPER
WAGON(TB**V*) DELETION IDN
8-94367-074-2
02
1
9009-
●
●
16
SCREW; RR BUMPER
WAGON(TB**V*) DELETION M4X16 W/PL WASHER
8-94407-488-0
04
1
9009-9109
●
●
16
SCREW; RR BUMPER
WAGON(TB**V*) DELETION M5X16 IDN
8-94380-268-0
04
1
9110-
●
●
20
WASHER; PL,BUMPER
WAGON(TB**V*) DELETION ID=6.4 OD=18
9-09160-706-0
07
1
9009-0605
●
●
20
WASHER; PL,BUMPER
WAGON(TB**V*) ID=6.4 OD=18
0-91610-706-0
07
1
0606-
●
●
28
STEP ASM; RR
WAGON(TB**V*) DELETION IDN
8-94367-073-1
01
1
9009-9601
●
28
STEP ASM; RR
WAGON(TB**V*) DELETION IDN
8-94367-073-2
01
1
9602-
●
●
28
STEP ASM; RR
WAGON(TB**V*) DELETION IDN
8-94386-773-1
01
1
9009-9601
●
30
BOLT; STEP BUMPER TO CHASSIS
WAGON(TB**V*) DELETION M6X25 W/LK WASHER
9-01900-625-0
07
1
9009-9204
●
●
30
BOLT; STEP BUMPER TO CHASSIS
WAGON(TB**V*) DELETION M6X25 W/LK WASHER
0-50040-625-0
07
1
9205-0909
●
●
30
BOLT; STEP BUMPER TO CHASSIS
WAGON(TB**V*) M6X25 W/LK WASHER IDN
0-50540-625-0
07
1
0910-
●
●
39
GROMMET; SCREW,BUMPER BRKT
WAGON(TB**V*) DELETION IDN
8-94203-326-0
04
1
9009-
●
●
42
NUT; RR SIDE BUMPER
WAGON(TB**V*) DELETION M6 W/DISHED WASHER IDN
8-94170-192-0
04
1
9009-
●
●
206
SHEET; NON SLIP,RR BUMPER
WAGON(TB**V*) DELETION IDN
8-94382-891-0
01
1
9009-
●
●
280
SCREW; BACK BAR
WAGON(TB**V*) DELETION
9-03900-825-0
02
1
9009-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
