6-83 — BACK DOOR LOCK AND HANDLE (#95140) — 22 parça

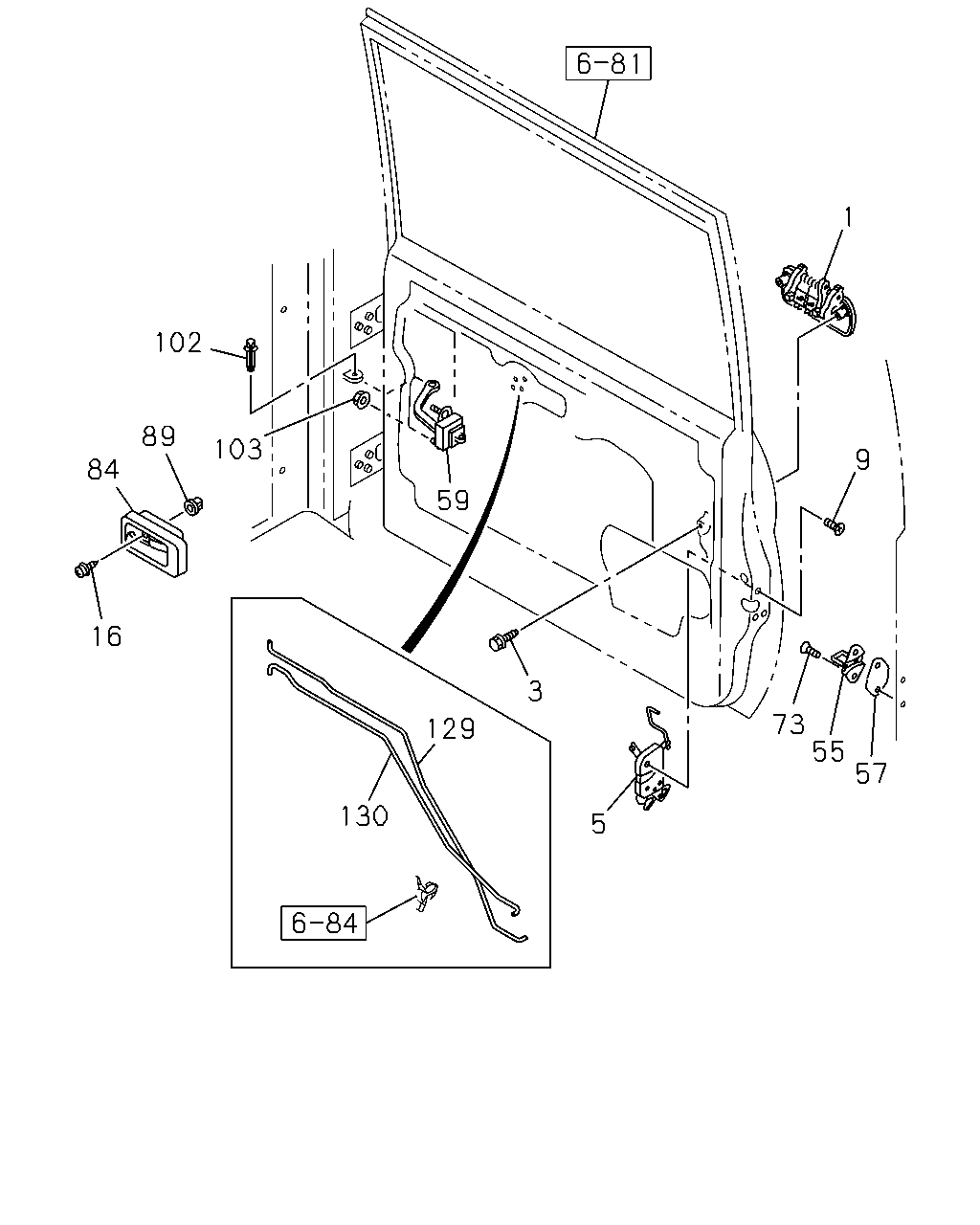

çizim 289185
57 55 73 5 3 129 130 16 84 89 103 102 59 1 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; OUTSIDE,BACK DOOR
DELETION 		8-94367-986-1 01 1 9009-9111 ● ●
1 HANDLE; OUTSIDE,BACK DOOR
DELETION IDN 		8-97072-484-1 01 1 9112- ● ●
3 BOLT; TAIL GATE HANDLE
DELETION M6X8 IDN 		8-94155-893-0 02 1 9009- ● ●
5 LOCK; BACK DOOR
DELETION 		8-94366-399-2 01 1 9009- ● ●
9 SCREW; LOCK TO BACK DOOR
DELETION M6X16 OVAL-HD IDN 		8-94172-523-0 03 1 9009- ● ●
16 SCREW; INSIDE LEVER,BACK DOOR
DELETION M5X14 IDN 		8-94152-495-0 01 1 9009- ● ●
55 STRIKER; BACK DOOR 8-94115-959-0 01 1 9009- ● ●
57 SEAT; DOOR STRIKER,BACK DOOR
IDN 		8-94239-378-0 AR 1 9009- ● ●
59 ARM ASM; CHECK,BACK DOOR
DELETION IDN 		8-97016-901-0 01 1 9009- ● ●
73 SCREW; STRIKER TO BACK DOOR
DELETION M8X20 IDN 		8-94327-388-0 02 1 9009- ● ●
84 HANDLE; INSIDE,BACK DOOR
GRAY IDN 		8-97000-865-0 01 1 9009-9408 ● ●
84 HANDLE; INSIDE,BACK DOOR
INTERIOR COLOR MUSHROOM(150) GRAY IDN 		8-97000-865-0 01 1 9409-0305 ● ●
84 HANDLE; INSIDE,BACK DOOR
INTERIOR COLOR MUSHROOM(150) GRAY IDN 		8-97398-371-0 01 1 0306- ● ●
84 HANDLE; INSIDE,BACK DOOR
INTERIOR COLOR BLACK(101) BLACK IDN 		8-97151-752-0 01 1 9409-0305 ● ●
84 HANDLE; INSIDE,BACK DOOR
INTERIOR COLOR BLACK(101) BLACK IDN 		8-97398-365-0 01 1 0306- ● ●
89 SCREW; HANDLE
DELETION IDN 		8-94152-494-0 01 1 9009- ● ●
102 PIN; DOOR CHECK ARM
DELETION IDN 		8-94111-468-0 01 1 9009- ● ●
103 NUT
DELETION M6 FLANGE 		0-91150-106-0 02 1 9009-0602 ● ●
103 NUT
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
129 LINK; DOOR LOCK
IDN 		8-94367-325-3 01 1 9009-9704 ● ●
129 LINK; DOOR LOCK
IDN 		8-97178-605-0 01 1 9705- ● ●
130 LINK; INSIDE LEVER
IDN 		8-94367-323-3 01 1 9009- ● ●
