Sayfa 0-81 - Isuzu EPC

0-81 — GOVERNOR; INJECTION PUMP (#9514) — 523 parça

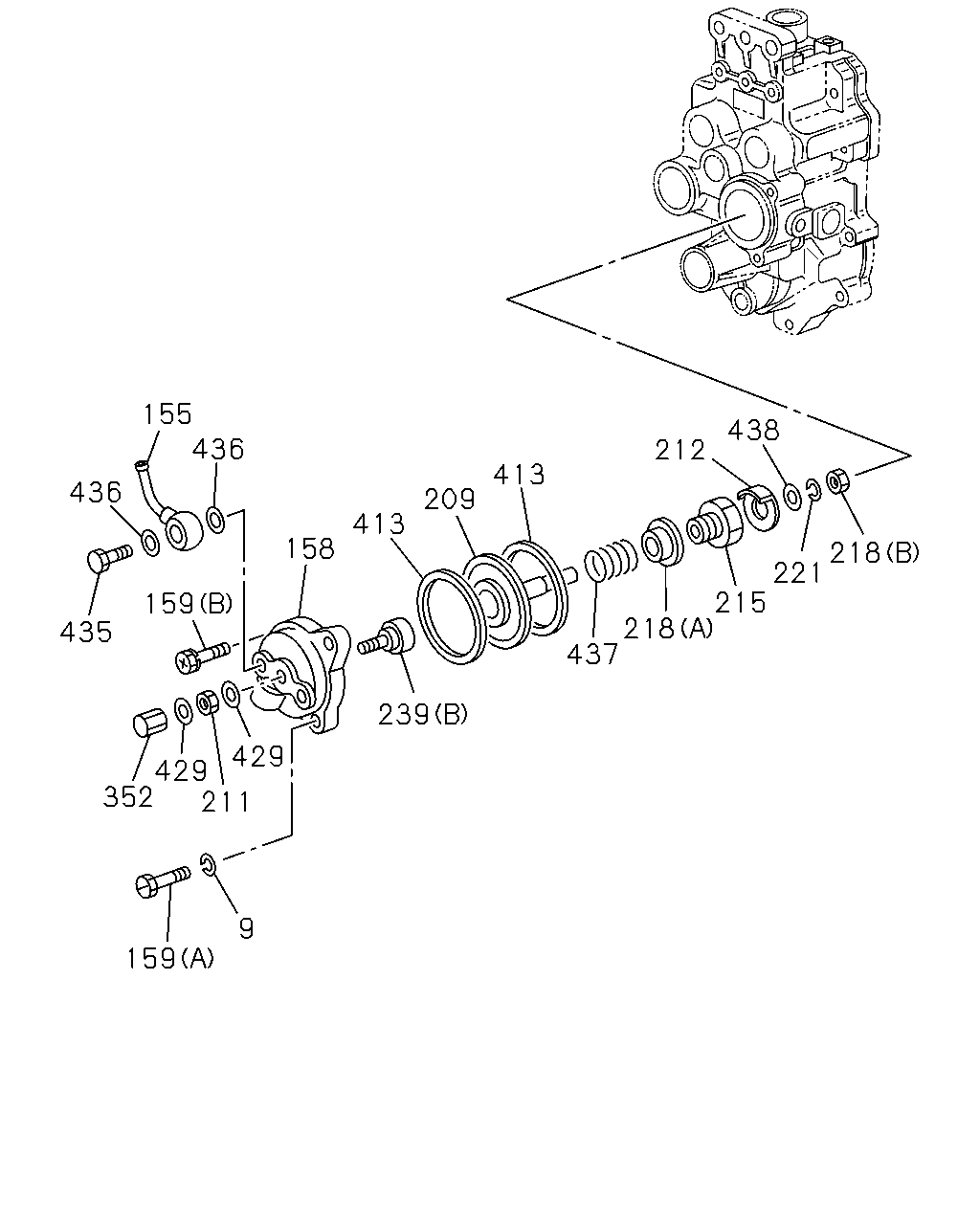

155 436 438 212 413 436 209 413 158 218 221 215 159 218 437 435 239 429 429 352 211 9 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: A = 8-94390-618-3	9-09150-506-0	02	1	-
155	JOINT; HOSE,HSG ASM PART: A = 8-94390-618-3	1-15779-527-0	01	1	-
158	COVER; GOV HSG ASM PART: A = 8-94390-618-3	1-15619-283-0	01	1	-
159	BOLT; COVER (A) ASM PART: A = 8-94390-618-3	1-15779-202-0	02	1	-
159	BOLT; COVER (B) ASM PART: A = 8-94390-618-3	9-81325-187-0	01	1	-
209	DIAPHRAGM; GOV ASM PART: A = 8-94390-618-3	1-15713-005-0	01	1	-
211	NUT; LOCK,GOV ASM PART: A = 8-94390-618-3	9-88410-525-0	01	1	-
212	PLATE; GOV ASM PART: A = 8-94390-618-3	8-94122-719-0	01	1	-
215	BOLT; DIAPH ASM PART: A = 8-94390-618-3	8-97037-284-0	01	1	-
218	NUT; DIAPH (B) ASM PART: A = 8-94390-618-3	1-15729-249-0	01	1	-
218	NUT; DIAPH (A) ASM PART: A = 8-94390-618-3	8-94122-726-0	01	1	-
221	WASHER; LK,DIAPH ID=6.1 ASM PART: A = 8-94390-618-3	9-09150-506-0	01	1	-
239	SCREW; GOV (B) ASM PART: A = 8-94390-618-3	1-15729-386-0	01	1	-
239	SCREW; GOV (A) ASM PART: A = 8-94390-618-3	1-15779-239-0	01	1	-
239	SCREW; GOV (C) ASM PART: B = 8-94391-333-0	8-94171-144-0	01	1	-
352	NUT; CAP CAP NUT ASM PART: A = 8-94390-618-3	1-15729-093-0	01	1	-
413	GASKET; GOV COVER ASM PART: A = 8-94390-618-3	1-15779-129-0	02	1	-
429	GASKET; CAP NUT ASM PART: A = 8-94390-618-3	1-15729-868-0	02	1	-
435	BOLT; EYE,GOV COVER ASM PART: A = 8-94390-618-3	1-15729-325-0	01	1	-
436	GASKET; EYE BOLT ASM PART: A = 8-94390-618-3	1-15729-849-0	02	1	-
437	SPRING; DIAPHRAGM ASM PART: A = 8-94390-618-3	1-15723-247-0	01	1	-
438	DISK; DIAPHRAGM ASM PART: A = 8-94390-618-3	1-15779-333-0	01	1	-

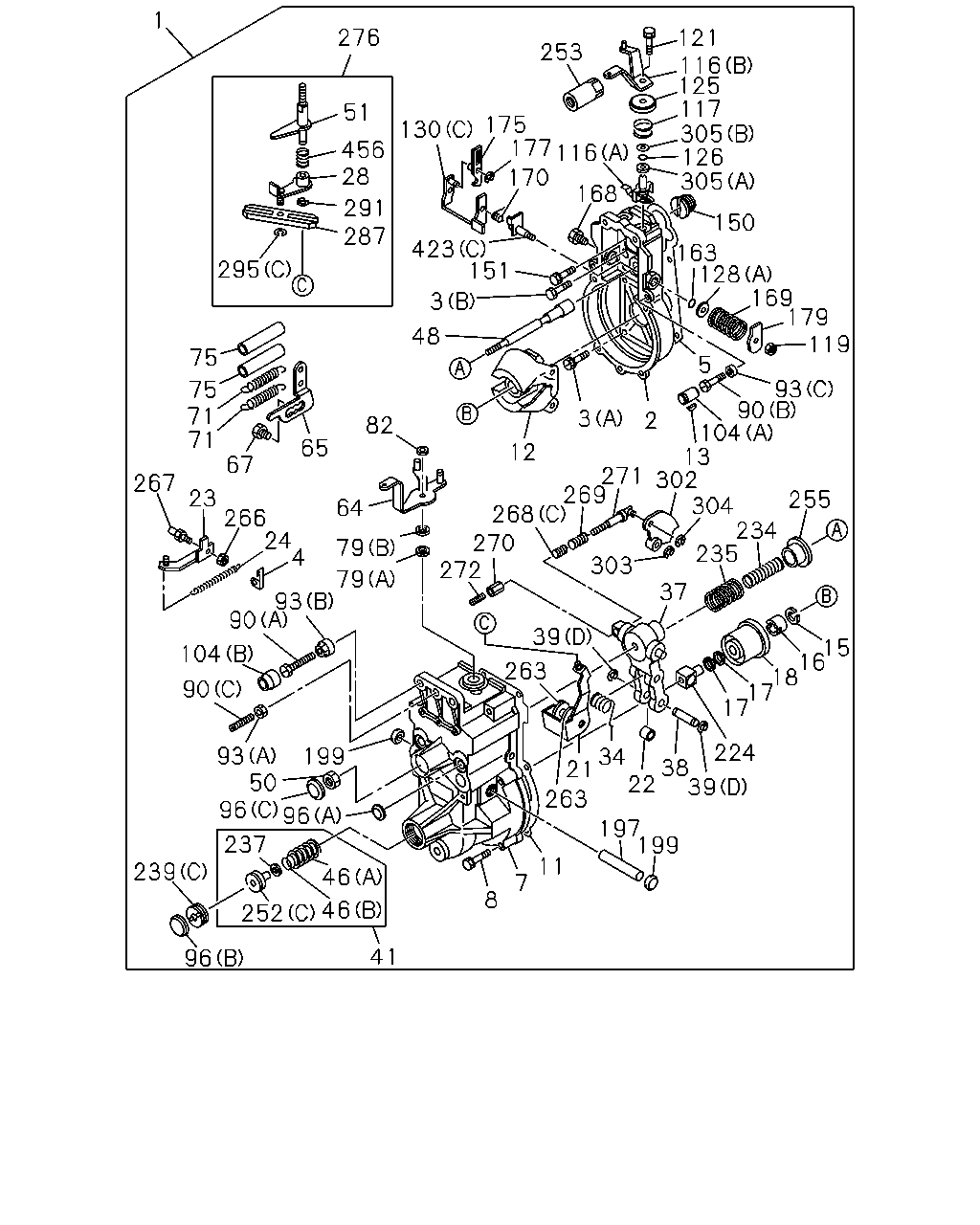

1 276 121 116 125 117 305 126 305 253 51 175 177 116 170 130 456 28 168 291 287 150 423 151 163 128 169 179 119 295 3 48 75 5 93 90 104 13 302 304 234 235 75 71 71 3 2 82 65 12 67 271 269 268 270 272 267 23 266 24 4 255 64 303 79 79 93 90 37 39 15 16 18 17 17 104 263 90 34 21 38 22 39 224 93 50 96 96 199 263 197 199 237 11 239 46 7 8 252 46 41 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 8-94391-333-0	1-15770-788-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 8-94390-618-3	1-15770-941-2	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: B = 8-94391-333-0	1-15721-265-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 8-94390-618-3	1-15721-343-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP (C) ASM PART: A = 8-94390-618-3	1-15779-226-0	08	1	-
3	BOLT; GOV HSG,INJ PUMP (A) ASM PART: B = 8-94391-333-0	5-15729-027-0	05	1	-
3	BOLT; GOV HSG,INJ PUMP (B) ASM PART: B = 8-94391-333-0	5-15729-071-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 8-94390-618-3	1-15779-524-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: B = 8-94391-333-0	8-94472-265-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: B = 8-94391-333-0	1-15779-106-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 8-94390-618-3	1-15779-529-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: B = 8-94391-333-0	1-15721-217-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 8-94390-618-3	1-15721-357-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP ASM PART: A = 8-94390-618-3	5-15729-033-0	09	1	-
8	BOLT; GOV COVER,INJ PUMP ASM PART: B = 8-94391-333-0	5-15729-033-0	07	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: B = 8-94391-333-0	1-15779-107-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 8-94390-618-3	1-15779-251-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: B = 8-94391-333-0	1-15722-014-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 8-94390-618-3	1-15722-024-0	01	1	-
13	KEY; FLYWEIGHT,GOV 16MM ASM PART: B = 8-94391-333-0	5-19619-049-0	01	1	-
13	KEY; FLYWEIGHT,GOV 13MM ASM PART: A = 8-94390-618-3	9-81325-030-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	5-15729-372-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: B = 8-94391-333-0	1-15725-291-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 8-94390-618-3	1-15725-899-0	01	1	-
22	COLLAR; LEVER,GOV ASM PART: B = 8-94391-333-0	8-94368-298-1	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 8-94390-618-3	1-15725-900-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: B = 8-94391-333-0	8-94171-149-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 8-94390-618-3	1-15723-450-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: B = 8-94391-333-0	5-15723-044-0	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: A = 8-94390-618-3	1-15725-780-0	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: B = 8-94391-333-0	8-94171-152-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 8-94390-618-3	1-15723-549-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: B = 8-94391-333-0	8-94171-140-1	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: B = 8-94391-333-0	1-15725-515-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 8-94390-618-3	1-15725-898-1	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: B = 8-94391-333-0	1-15729-370-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: A = 8-94390-618-3	1-15779-271-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (B) ASM PART: A = 8-94390-618-3	1-09588-170-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (A) ASM PART: A = 8-94390-618-3	8-94244-599-0	02	1	-
39	RING; SNAP,LEVER PIN,GOV (C) ASM PART: A = 8-94390-618-3	9-09185-404-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (D) ASM PART: B = 8-94391-333-0	9-88410-201-0	02	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 8-94390-618-3	1-15723-484-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: B = 8-94391-333-0	8-94173-991-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-94390-618-3	1-15723-480-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-94390-618-3	1-15723-481-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: B = 8-94391-333-0	8-97115-987-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: B = 8-94391-333-0	8-97115-988-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-94390-618-3	1-15779-240-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: B = 8-94391-333-0	8-94171-146-1	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	8-94171-147-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-94390-618-3	1-15779-528-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: B = 8-94391-333-0	8-94325-501-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: B = 8-94391-333-0	1-15725-667-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 8-94390-618-3	1-15725-897-0	01	1	-
65	BRACKET; RETURN SPRING,GOV ASM PART: B = 8-94391-333-0	8-94339-966-0	01	1	-
67	BOLT; SPRING BRKT,GOV ASM PART: B = 8-94391-333-0	5-15729-046-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: B = 8-94391-333-0	1-15723-380-0	02	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 8-94390-618-3	1-15723-552-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: A = 8-94390-618-3	1-15779-284-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: B = 8-94391-333-0	8-94433-757-0	02	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.95 ASM PART: B = 8-94391-333-0	1-15729-076-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.20 ASM PART: B = 8-94391-333-0	1-15729-077-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.25 ASM PART: B = 8-94391-333-0	1-15729-078-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.30 ASM PART: B = 8-94391-333-0	1-15729-079-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.35 ASM PART: B = 8-94391-333-0	1-15729-080-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.40 ASM PART: B = 8-94391-333-0	1-15729-081-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.50 ASM PART: B = 8-94391-333-0	1-15729-082-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.70 ASM PART: B = 8-94391-333-0	1-15729-617-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.90 ASM PART: B = 8-94391-333-0	1-15729-618-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.80 ASM PART: B = 8-94391-333-0	1-15729-619-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B) ASM PART: B = 8-94391-333-0	1-15729-822-0	01	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.60 ASM PART: B = 8-94391-333-0	1-15729-896-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: A = 8-94390-618-3	1-15729-988-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B) ASM PART: A = 8-94390-618-3	1-15779-232-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X62 ASM PART: B = 8-94391-333-0	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: B = 8-94391-333-0	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: B = 8-94391-333-0	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: B = 8-94391-333-0	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: B = 8-94391-333-0	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: B = 8-94391-333-0	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: B = 8-94391-333-0	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: B = 8-94391-333-0	1-15729-843-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: A = 8-94390-618-3	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: A = 8-94390-618-3	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: A = 8-94390-618-3	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: A = 8-94390-618-3	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C) ASM PART: A = 8-94390-618-3	1-15779-296-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C) ASM PART: B = 8-94391-333-0	5-15729-123-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: B = 8-94391-333-0	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: B = 8-94391-333-0	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-94390-618-3	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-94390-618-3	1-15779-278-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-94390-618-3	9-09111-410-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: B = 8-94391-333-0	9-84410-027-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: A = 8-94390-618-3	9-88410-525-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 8-94390-618-3	1-15779-293-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: B = 8-94391-333-0	5-15729-076-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 8-94390-618-3	5-15729-076-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: B = 8-94391-333-0	8-94171-145-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: B = 8-94391-333-0	8-94171-148-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 8-94390-618-3	8-94171-148-0	03	1	-
104	CAP; LOCK NUT,ADJ SCREW (A) ASM PART: B = 8-94391-333-0	8-97085-021-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-94390-618-3	8-97085-022-0	02	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: B = 8-94391-333-0	8-97085-022-0	01	1	-
116	LEVER; ENG STOP,GOV (B) ASM PART: B = 8-94391-333-0	1-15725-733-0	01	1	-
116	LEVER; ENG STOP,GOV (C) ASM PART: A = 8-94390-618-3	1-15725-896-0	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: B = 8-94391-333-0	5-15725-063-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: B = 8-94391-333-0	1-15723-439-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 8-94390-618-3	1-15723-471-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: B = 8-94391-333-0	1-15729-236-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 8-94390-618-3	1-15729-236-0	02	1	-
121	BOLT; ENG STOP LEVER,GOV M6X16 W/LK WASHER ASM PART: B = 8-94391-333-0	9-01900-616-0	01	1	-
125	CAP; STOP LEVER SPRING,GOV ASM PART: B = 8-94391-333-0	8-94336-926-0	01	1	-
126	GASKET; STOP LEVER,GOV ASM PART: B = 8-94391-333-0	1-15729-853-0	01	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.60 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.80 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.90 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.50 ASM PART: A = 8-94390-618-3	1-15779-230-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.20 ASM PART: A = 8-94390-618-3	1-15779-231-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C) ASM PART: A = 8-94390-618-3	1-15779-388-0	01	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.50 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.30 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.40 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.25 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.35 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.20 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV (C) ASM PART: B = 8-94391-333-0	1-15725-527-0	01	1	-
130	LEVER; CONT,GOV (B) ASM PART: A = 8-94390-618-3	1-15725-775-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: A = 8-94390-618-3	1-15725-895-0	01	1	-
150	ADAPTER; GOV HSG,INJ PUMP ASM PART: B = 8-94391-333-0	9-81315-065-0	01	1	-
151	BOLT; ADAPTER,GOV HSG,INJ PUMP M8X18 W/LK WASHER ASM PART: B = 8-94391-333-0	9-01900-818-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: B = 8-94391-333-0	1-15729-852-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: A = 8-94390-618-3	1-15779-227-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: B = 8-94391-333-0	1-15729-796-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: A = 8-94390-618-3	1-15779-285-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: A = 8-94390-618-3	1-15723-548-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: B = 8-94391-333-0	5-15723-032-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	5-15723-033-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: B = 8-94391-333-0	1-15725-808-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 8-94390-618-3	1-15725-893-0	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 8-94390-618-3	8-94324-735-0	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: B = 8-94391-333-0	9-81325-445-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: A = 8-94390-618-3	1-15725-894-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: B = 8-94391-333-0	8-94171-132-0	01	1	-
197	SHAFT; LEVER,GOV COVER ASM PART: B = 8-94391-333-0	5-15725-008-0	01	1	-
199	PLUG; LEVER SHAFT,GOV COVER ASM PART: B = 8-94391-333-0	5-15729-076-0	02	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: A = 8-94390-618-3	1-15779-334-0	01	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: B = 8-94391-333-0	8-94171-142-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: A = 8-94390-618-3	1-15723-479-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: B = 8-94391-333-0	8-94372-509-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 8-94390-618-3	1-15723-550-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: B = 8-94391-333-0	5-15723-040-0	01	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=2.00 ASM PART: A = 8-94390-618-3	1-15729-891-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=3.00 ASM PART: A = 8-94390-618-3	1-15729-892-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=4.00 ASM PART: A = 8-94390-618-3	1-15729-893-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: B = 8-94391-333-0	1-15729-966-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: B = 8-94391-333-0	1-15729-967-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.80 ASM PART: B = 8-94391-333-0	1-15729-968-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-94390-618-3	5-15729-286-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.50 ASM PART: A = 8-94390-618-3	5-15729-287-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.10 ASM PART: B = 8-94391-333-0	8-94472-268-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: B = 8-94391-333-0	8-94472-269-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.25 ASM PART: B = 8-94391-333-0	8-94472-270-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: B = 8-94391-333-0	8-94472-271-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 8-94390-618-3	9-81325-088-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-94390-618-3	9-81325-551-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.40 ASM PART: A = 8-94390-618-3	9-81325-552-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-94390-618-3	9-81325-553-0	AR	1	-
239	SCREW; GOV (B) ASM PART: A = 8-94390-618-3	1-15729-386-0	01	1	-
239	SCREW; GOV (A) ASM PART: A = 8-94390-618-3	1-15779-239-0	01	1	-
239	SCREW; GOV (C) ASM PART: B = 8-94391-333-0	8-94171-144-0	01	1	-
252	SCREW; GUIDE (C) ASM PART: B = 8-94391-333-0	1-15779-003-1	01	1	-
252	SCREW; GUIDE (A) ASM PART: A = 8-94390-618-3	1-15779-238-0	01	1	-
252	SCREW; GUIDE (B) ASM PART: A = 8-94390-618-3	1-15779-288-0	01	1	-
253	LIMITTER; GOV CONT ASM PART: B = 8-94391-333-0	8-94167-792-0	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: A = 8-94390-618-3	1-15779-241-0	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: B = 8-94391-333-0	8-94171-173-0	01	1	-
263	COLLAR; GUIDE LEVER,GOV ASM PART: B = 8-94391-333-0	5-15729-031-0	02	1	-
266	NUT; PIN TO LINK,CONT RACK,GOV M5 ASM PART: B = 8-94391-333-0	9-99110-405-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: B = 8-94391-333-0	1-15729-858-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 8-94390-618-3	1-15749-747-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (A) ASM PART: A = 8-94390-618-3	1-15723-445-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (B) ASM PART: A = 8-94390-618-3	1-15723-446-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (C) ASM PART: B = 8-94391-333-0	5-15723-056-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: A = 8-94390-618-3	1-15723-459-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: B = 8-94391-333-0	5-15723-070-1	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: A = 8-94390-618-3	1-15779-272-0	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: B = 8-94391-333-0	5-15729-051-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: A = 8-94390-618-3	1-15779-235-1	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: B = 8-94391-333-0	5-15725-009-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 8-94390-618-3	1-15779-289-0	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: B = 8-94391-333-0	8-94171-138-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: A = 8-94390-618-3	1-15725-901-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: B = 8-94391-333-0	8-94325-500-0	01	1	-
287	LEVER; GOV ASM PART: B = 8-94391-333-0	1-15725-542-0	01	1	-
287	LEVER; GOV ASM PART: A = 8-94390-618-3	1-15725-781-0	01	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: A = 8-94390-618-3	1-15779-196-0	02	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: B = 8-94391-333-0	9-81325-445-0	01	1	-
295	RING; SNAP (A) ASM PART: A = 8-94390-618-3	1-15779-273-0	02	1	-
295	RING; SNAP (B) ASM PART: A = 8-94390-618-3	5-15729-023-0	01	1	-
295	RING; SNAP (C) ASM PART: B = 8-94391-333-0	9-81325-445-0	01	1	-
302	PLATE; CAM,GOV ASM PART: B = 8-94391-333-0	1-15779-361-0	01	1	-
302	PLATE; CAM,GOV ASM PART: A = 8-94390-618-3	1-15779-521-0	01	1	-
303	RING; SNAP,CAM PLATE,GOV ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-09185-404-0	01	1	-
305	SHIM; STOP LEVER,GOV (B), T=0.20 ASM PART: B = 8-94391-333-0	8-97089-308-0	AR	1	-
305	SHIM; STOP LEVER,GOV (B), T=0.30 ASM PART: B = 8-94391-333-0	8-97089-309-0	AR	1	-
305	SHIM; STOP LEVER,GOV (B), T=0.40 ASM PART: B = 8-94391-333-0	8-97089-310-0	AR	1	-
305	SHIM; STOP LEVER,GOV (B), T=0.60 ASM PART: B = 8-94391-333-0	8-97089-311-0	AR	1	-
305	SHIM; STOP LEVER,GOV (B), T=0.80 ASM PART: B = 8-94391-333-0	8-97089-312-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=1.00 ASM PART: B = 8-94391-333-0	9-81325-553-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (C) ASM PART: B = 8-94391-333-0	1-15729-820-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: A = 8-94390-618-3	1-15779-525-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: A = 8-94390-618-3	1-15779-607-0	01	1	-
456	SPRING; LEVER,GOV ASM PART: A = 8-94390-618-3	1-15723-551-0	01	1	-
456	SPRING; LEVER,GOV ASM PART: B = 8-94391-333-0	8-94413-728-0	01	1	-

291 52 1 123 423 60 198 128 2 116 291 128 177 168 170 93 118 123 117 23 175 94 267 120 24 130 423 48 4 119 13 157 163 5 169 128 256 255 234 235 119 179 2 3 93 90 104 12 15 16 18 17 17 224 51 77 79 74 456 28 276 75 75 71 71 287 227 295 64 252 250 21 82 286 296 440 79 93 90 104 34 39 167 189 180 96 93 90 96 50 96 66 96 39 45 37 38 295 39 363 11 96 268 269 268 272 302 304 303 160 161 7 271 39 99 270 37 46 237 46 252 8 96 239 41 301 288 130 434 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 8-94391-333-0	1-15770-788-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 8-94390-618-3	1-15770-941-2	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: B = 8-94391-333-0	1-15721-265-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 8-94390-618-3	1-15721-343-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP (C) ASM PART: A = 8-94390-618-3	1-15779-226-0	08	1	-
3	BOLT; GOV HSG,INJ PUMP (A) ASM PART: B = 8-94391-333-0	5-15729-027-0	05	1	-
3	BOLT; GOV HSG,INJ PUMP (B) ASM PART: B = 8-94391-333-0	5-15729-071-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 8-94390-618-3	1-15779-524-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: B = 8-94391-333-0	8-94472-265-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: B = 8-94391-333-0	1-15779-106-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 8-94390-618-3	1-15779-529-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: B = 8-94391-333-0	1-15721-217-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 8-94390-618-3	1-15721-357-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP ASM PART: A = 8-94390-618-3	5-15729-033-0	09	1	-
8	BOLT; GOV COVER,INJ PUMP ASM PART: B = 8-94391-333-0	5-15729-033-0	07	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: B = 8-94391-333-0	1-15779-107-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 8-94390-618-3	1-15779-251-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: B = 8-94391-333-0	1-15722-014-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 8-94390-618-3	1-15722-024-0	01	1	-
13	KEY; FLYWEIGHT,GOV 16MM ASM PART: B = 8-94391-333-0	5-19619-049-0	01	1	-
13	KEY; FLYWEIGHT,GOV 13MM ASM PART: A = 8-94390-618-3	9-81325-030-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	5-15729-372-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: B = 8-94391-333-0	1-15725-291-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 8-94390-618-3	1-15725-899-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 8-94390-618-3	1-15725-900-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: B = 8-94391-333-0	8-94171-149-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 8-94390-618-3	1-15723-450-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: B = 8-94391-333-0	5-15723-044-0	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: A = 8-94390-618-3	1-15725-780-0	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: B = 8-94391-333-0	8-94171-152-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 8-94390-618-3	1-15723-549-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: B = 8-94391-333-0	8-94171-140-1	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: B = 8-94391-333-0	1-15725-515-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 8-94390-618-3	1-15725-898-1	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: B = 8-94391-333-0	1-15729-370-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: A = 8-94390-618-3	1-15779-271-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (B) ASM PART: A = 8-94390-618-3	1-09588-170-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (A) ASM PART: A = 8-94390-618-3	8-94244-599-0	02	1	-
39	RING; SNAP,LEVER PIN,GOV (C) ASM PART: A = 8-94390-618-3	9-09185-404-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (D) ASM PART: B = 8-94391-333-0	9-88410-201-0	02	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 8-94390-618-3	1-15723-484-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: B = 8-94391-333-0	8-94173-991-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-94390-618-3	1-15725-819-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-94390-618-3	1-15723-480-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-94390-618-3	1-15723-481-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: B = 8-94391-333-0	8-97115-987-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: B = 8-94391-333-0	8-97115-988-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-94390-618-3	1-15779-240-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: B = 8-94391-333-0	8-94171-146-1	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	8-94171-147-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-94390-618-3	1-15779-528-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: B = 8-94391-333-0	8-94325-501-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: A = 8-94390-618-3	1-15779-269-0	02	1	-
60	BOLT; COVER FIX,GOV COVER ASM PART: A = 8-94390-618-3	1-15789-098-0	02	1	-
64	LEVER; LOAD CONT,GOV ASM PART: B = 8-94391-333-0	1-15725-667-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 8-94390-618-3	1-15725-897-0	01	1	-
66	SHAFT; LEVER ASM PART: A = 8-94390-618-3	1-15779-234-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: B = 8-94391-333-0	1-15723-380-0	02	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 8-94390-618-3	1-15723-552-0	02	1	-
74	WASHER; LEVER SPR ASM PART: A = 8-94390-618-3	1-15779-232-0	01	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: A = 8-94390-618-3	1-15779-284-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: B = 8-94391-333-0	8-94433-757-0	02	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: A = 8-94390-618-3	5-15729-023-0	01	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.95 ASM PART: B = 8-94391-333-0	1-15729-076-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.20 ASM PART: B = 8-94391-333-0	1-15729-077-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.25 ASM PART: B = 8-94391-333-0	1-15729-078-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.30 ASM PART: B = 8-94391-333-0	1-15729-079-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.35 ASM PART: B = 8-94391-333-0	1-15729-080-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.40 ASM PART: B = 8-94391-333-0	1-15729-081-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.50 ASM PART: B = 8-94391-333-0	1-15729-082-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.70 ASM PART: B = 8-94391-333-0	1-15729-617-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.90 ASM PART: B = 8-94391-333-0	1-15729-618-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.80 ASM PART: B = 8-94391-333-0	1-15729-619-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B) ASM PART: B = 8-94391-333-0	1-15729-822-0	01	1	-
79	SHIM; LEVER SETTING,GOV (A), T=0.60 ASM PART: B = 8-94391-333-0	1-15729-896-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: A = 8-94390-618-3	1-15729-988-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B) ASM PART: A = 8-94390-618-3	1-15779-232-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X62 ASM PART: B = 8-94391-333-0	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: B = 8-94391-333-0	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: B = 8-94391-333-0	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: B = 8-94391-333-0	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: B = 8-94391-333-0	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: B = 8-94391-333-0	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: B = 8-94391-333-0	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: B = 8-94391-333-0	1-15729-843-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: A = 8-94390-618-3	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: A = 8-94390-618-3	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: A = 8-94390-618-3	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: A = 8-94390-618-3	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C) ASM PART: A = 8-94390-618-3	1-15779-296-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C) ASM PART: B = 8-94391-333-0	5-15729-123-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: B = 8-94391-333-0	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: B = 8-94391-333-0	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-94390-618-3	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-94390-618-3	1-15779-278-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-94390-618-3	9-09111-410-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: B = 8-94391-333-0	9-84410-027-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: A = 8-94390-618-3	9-88410-525-0	01	1	-
94	SCREW; ADJ,CONT LEVER,GOV ASM PART: A = 8-94390-618-3	1-15779-233-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 8-94390-618-3	1-15779-293-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: B = 8-94391-333-0	5-15729-076-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 8-94390-618-3	5-15729-076-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: B = 8-94391-333-0	8-94171-145-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: B = 8-94391-333-0	8-94171-148-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 8-94390-618-3	8-94171-148-0	03	1	-
99	PIN; TENSION LEVER,GOV ASM PART: A = 8-94390-618-3	1-15779-286-1	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A) ASM PART: B = 8-94391-333-0	8-97085-021-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-94390-618-3	8-97085-022-0	02	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: B = 8-94391-333-0	8-97085-022-0	01	1	-
116	LEVER; ENG STOP,GOV (B) ASM PART: B = 8-94391-333-0	1-15725-733-0	01	1	-
116	LEVER; ENG STOP,GOV (C) ASM PART: A = 8-94390-618-3	1-15725-896-0	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: B = 8-94391-333-0	5-15725-063-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: B = 8-94391-333-0	1-15723-439-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 8-94390-618-3	1-15723-471-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: A = 8-94390-618-3	1-15779-389-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: B = 8-94391-333-0	1-15729-236-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 8-94390-618-3	1-15729-236-0	02	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV ASM PART: A = 8-94390-618-3	1-83579-492-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 8-94390-618-3	1-15779-282-0	02	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.60 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.80 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.90 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.50 ASM PART: A = 8-94390-618-3	1-15779-230-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.20 ASM PART: A = 8-94390-618-3	1-15779-231-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C) ASM PART: A = 8-94390-618-3	1-15779-388-0	01	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.50 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.30 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.40 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.25 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.35 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.20 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV (C) ASM PART: B = 8-94391-333-0	1-15725-527-0	01	1	-
130	LEVER; CONT,GOV (B) ASM PART: A = 8-94390-618-3	1-15725-775-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: A = 8-94390-618-3	1-15725-895-0	01	1	-
157	BOLT; START SPRING PLATE,GOV ASM PART: A = 8-94390-618-3	1-15779-226-0	02	1	-
160	GASKET; PLUG TO HSG L=96 ASM PART: A = 8-94390-618-3	1-15729-066-0	01	1	-
161	PLUG; HSG ASM PART: A = 8-94390-618-3	8-97037-288-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: B = 8-94391-333-0	1-15729-852-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: A = 8-94390-618-3	1-15779-227-0	01	1	-
167	BOLT; PLATE M6X16 ASM PART: A = 8-94390-618-3	5-15729-071-0	02	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: B = 8-94391-333-0	1-15729-796-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: A = 8-94390-618-3	1-15779-285-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: A = 8-94390-618-3	1-15723-548-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: B = 8-94391-333-0	5-15723-032-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	5-15723-033-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: B = 8-94391-333-0	1-15725-808-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 8-94390-618-3	1-15725-893-0	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 8-94390-618-3	8-94324-735-0	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: B = 8-94391-333-0	9-81325-445-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: A = 8-94390-618-3	1-15725-894-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: B = 8-94391-333-0	8-94171-132-0	01	1	-
180	PLATE; GOV COVER ASM PART: A = 8-94390-618-3	1-15779-532-0	01	1	-
181	SPACER; BRKT ASM PART: A = 8-94390-618-3	1-15779-531-0	01	1	-
189	ROD; PUSH,GOV L=72.5 ASM PART: A = 8-94390-618-3	1-15779-336-0	01	1	-
189	ROD; PUSH,GOV L=73.0 ASM PART: A = 8-94390-618-3	1-15779-337-0	01	1	-
189	ROD; PUSH,GOV L=73.5 ASM PART: A = 8-94390-618-3	1-15779-338-0	01	1	-
189	ROD; PUSH,GOV L=74.0 ASM PART: A = 8-94390-618-3	1-15779-339-0	01	1	-
189	ROD; PUSH,GOV L=74.5 ASM PART: A = 8-94390-618-3	1-15779-340-0	01	1	-
189	ROD; PUSH,GOV L=75.0 ASM PART: A = 8-94390-618-3	1-15779-341-0	01	1	-
189	ROD; PUSH,GOV L=75.5 ASM PART: A = 8-94390-618-3	1-15779-342-0	01	1	-
189	ROD; PUSH,GOV L=76.0 ASM PART: A = 8-94390-618-3	1-15779-343-0	01	1	-
189	ROD; PUSH,GOV L=76.5 ASM PART: A = 8-94390-618-3	1-15779-344-0	01	1	-
189	ROD; PUSH,GOV L=77.0 ASM PART: A = 8-94390-618-3	1-15779-345-0	01	1	-
189	ROD; PUSH,GOV L=77.5 ASM PART: A = 8-94390-618-3	1-15779-346-0	01	1	-
189	ROD; PUSH,GOV L=78.0 ASM PART: A = 8-94390-618-3	1-15779-347-0	01	1	-
189	ROD; PUSH,GOV L=78.5 ASM PART: A = 8-94390-618-3	1-15779-348-0	01	1	-
189	ROD; PUSH,GOV L=79.0 ASM PART: A = 8-94390-618-3	1-15779-349-0	01	1	-
189	ROD; PUSH,GOV L=79.5 ASM PART: A = 8-94390-618-3	1-15779-350-0	01	1	-
189	ROD; PUSH,GOV L=80.0 ASM PART: A = 8-94390-618-3	1-15779-351-0	01	1	-
189	ROD; PUSH,GOV L=80.5 ASM PART: A = 8-94390-618-3	1-15779-352-0	01	1	-
189	ROD; PUSH,GOV L=81.0 ASM PART: A = 8-94390-618-3	1-15779-353-0	01	1	-
189	ROD; PUSH,GOV L=81.5 ASM PART: A = 8-94390-618-3	1-15779-354-0	01	1	-
189	ROD; PUSH,GOV L=82.0 ASM PART: A = 8-94390-618-3	1-15779-355-0	01	1	-
189	ROD; PUSH,GOV L=82.5 ASM PART: A = 8-94390-618-3	1-15779-356-0	01	1	-
189	ROD; PUSH,GOV L=83.0 ASM PART: A = 8-94390-618-3	1-15779-426-0	01	1	-
189	ROD; PUSH,GOV L=83.5 ASM PART: A = 8-94390-618-3	1-15779-427-0	01	1	-
189	ROD; PUSH,GOV L=84.0 ASM PART: A = 8-94390-618-3	1-15779-428-0	01	1	-
189	ROD; PUSH,GOV L=84.5 ASM PART: A = 8-94390-618-3	1-15779-429-0	01	1	-
189	ROD; PUSH,GOV L=85.0 ASM PART: A = 8-94390-618-3	1-15779-430-0	01	1	-
189	ROD; PUSH,GOV L=85.5 ASM PART: A = 8-94390-618-3	1-15779-431-0	01	1	-
189	ROD; PUSH,GOV L=86.0 ASM PART: A = 8-94390-618-3	1-15779-432-0	01	1	-
189	ROD; PUSH,GOV L=86.5 ASM PART: A = 8-94390-618-3	1-15779-433-0	01	1	-
189	ROD; PUSH,GOV L=87.0 ASM PART: A = 8-94390-618-3	1-15779-434-0	01	1	-
189	ROD; PUSH,GOV L=87.5 ASM PART: A = 8-94390-618-3	1-15779-435-0	01	1	-
189	ROD; PUSH,GOV L=88.0 ASM PART: A = 8-94390-618-3	1-15779-436-0	01	1	-
189	ROD; PUSH,GOV L=88.5 ASM PART: A = 8-94390-618-3	1-15779-437-0	01	1	-
189	ROD; PUSH,GOV L=89.0 ASM PART: A = 8-94390-618-3	1-15779-438-0	01	1	-
189	ROD; PUSH,GOV L=89.5 ASM PART: A = 8-94390-618-3	1-15779-439-0	01	1	-
189	ROD; PUSH,GOV L=90.0 ASM PART: A = 8-94390-618-3	1-15779-440-0	01	1	-
198	BRACKET; COVER ASM PART: A = 8-94390-618-3	1-15779-530-0	01	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: A = 8-94390-618-3	1-15779-334-0	01	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: B = 8-94391-333-0	8-94171-142-0	01	1	-
227	BOLT; GOV LEVER ASM PART: A = 8-94390-618-3	1-15719-005-0	03	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: A = 8-94390-618-3	1-15723-479-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: B = 8-94391-333-0	8-94372-509-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 8-94390-618-3	1-15723-550-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: B = 8-94391-333-0	5-15723-040-0	01	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=2.00 ASM PART: A = 8-94390-618-3	1-15729-891-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=3.00 ASM PART: A = 8-94390-618-3	1-15729-892-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=4.00 ASM PART: A = 8-94390-618-3	1-15729-893-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: B = 8-94391-333-0	1-15729-966-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: B = 8-94391-333-0	1-15729-967-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.80 ASM PART: B = 8-94391-333-0	1-15729-968-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-94390-618-3	5-15729-286-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.50 ASM PART: A = 8-94390-618-3	5-15729-287-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.10 ASM PART: B = 8-94391-333-0	8-94472-268-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: B = 8-94391-333-0	8-94472-269-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.25 ASM PART: B = 8-94391-333-0	8-94472-270-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: B = 8-94391-333-0	8-94472-271-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 8-94390-618-3	9-81325-088-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-94390-618-3	9-81325-551-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.40 ASM PART: A = 8-94390-618-3	9-81325-552-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-94390-618-3	9-81325-553-0	AR	1	-
239	SCREW; GOV (B) ASM PART: A = 8-94390-618-3	1-15729-386-0	01	1	-
239	SCREW; GOV (A) ASM PART: A = 8-94390-618-3	1-15779-239-0	01	1	-
239	SCREW; GOV (C) ASM PART: B = 8-94391-333-0	8-94171-144-0	01	1	-
250	NUT; GUIDE SCREW,GOV SHAFT ASM PART: A = 8-94390-618-3	1-15779-287-0	01	1	-
252	SCREW; GUIDE (C) ASM PART: B = 8-94391-333-0	1-15779-003-1	01	1	-
252	SCREW; GUIDE (A) ASM PART: A = 8-94390-618-3	1-15779-238-0	01	1	-
252	SCREW; GUIDE (B) ASM PART: A = 8-94390-618-3	1-15779-288-0	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: A = 8-94390-618-3	1-15779-241-0	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: B = 8-94391-333-0	8-94171-173-0	01	1	-
256	SEAT; GOV SPRING ASM PART: A = 8-94390-618-3	1-15779-242-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: B = 8-94391-333-0	1-15729-858-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 8-94390-618-3	1-15749-747-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (A) ASM PART: A = 8-94390-618-3	1-15723-445-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (B) ASM PART: A = 8-94390-618-3	1-15723-446-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (C) ASM PART: B = 8-94391-333-0	5-15723-056-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: A = 8-94390-618-3	1-15723-459-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: B = 8-94391-333-0	5-15723-070-1	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: A = 8-94390-618-3	1-15779-272-0	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: B = 8-94391-333-0	5-15729-051-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: A = 8-94390-618-3	1-15779-235-1	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: B = 8-94391-333-0	5-15725-009-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 8-94390-618-3	1-15779-289-0	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: B = 8-94391-333-0	8-94171-138-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: A = 8-94390-618-3	1-15725-901-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: B = 8-94391-333-0	8-94325-500-0	01	1	-
286	LEVER; GOV ASM PART: A = 8-94390-618-3	1-15725-782-0	01	1	-
287	LEVER; GOV ASM PART: B = 8-94391-333-0	1-15725-542-0	01	1	-
287	LEVER; GOV ASM PART: A = 8-94390-618-3	1-15725-781-0	01	1	-
288	BOLT; LEVER ASM PART: A = 8-94390-618-3	1-15729-197-0	02	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: A = 8-94390-618-3	1-15779-196-0	02	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: B = 8-94391-333-0	9-81325-445-0	01	1	-
295	RING; SNAP (A) ASM PART: A = 8-94390-618-3	1-15779-273-0	02	1	-
295	RING; SNAP (B) ASM PART: A = 8-94390-618-3	5-15729-023-0	01	1	-
295	RING; SNAP (C) ASM PART: B = 8-94391-333-0	9-81325-445-0	01	1	-
296	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 8-94390-618-3	8-97024-879-0	01	1	-
301	RING; SNAP ID=4 ASM PART: A = 8-94390-618-3	9-09185-404-0	01	1	-
302	PLATE; CAM,GOV ASM PART: B = 8-94391-333-0	1-15779-361-0	01	1	-
302	PLATE; CAM,GOV ASM PART: A = 8-94390-618-3	1-15779-521-0	01	1	-
303	RING; SNAP,CAM PLATE,GOV ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: A = 8-94390-618-3, B = 8-94391-333-0	9-09185-404-0	01	1	-
363	BOLT; LEVER FIX ASM PART: A = 8-94390-618-3	8-94247-029-0	02	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (C) ASM PART: B = 8-94391-333-0	1-15729-820-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: A = 8-94390-618-3	1-15779-525-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: A = 8-94390-618-3	1-15779-607-0	01	1	-
434	HANGER; GOV ASM PART: A = 8-94390-618-3	1-15619-347-0	01	1	-
440	RING; SNAP,LEVER ASM PART: A = 8-94390-618-3	1-15729-989-0	01	1	-
456	SPRING; LEVER,GOV ASM PART: A = 8-94390-618-3	1-15723-551-0	01	1	-
456	SPRING; LEVER,GOV ASM PART: B = 8-94391-333-0	8-94413-728-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
