Sayfa 6-82 - Isuzu EPC

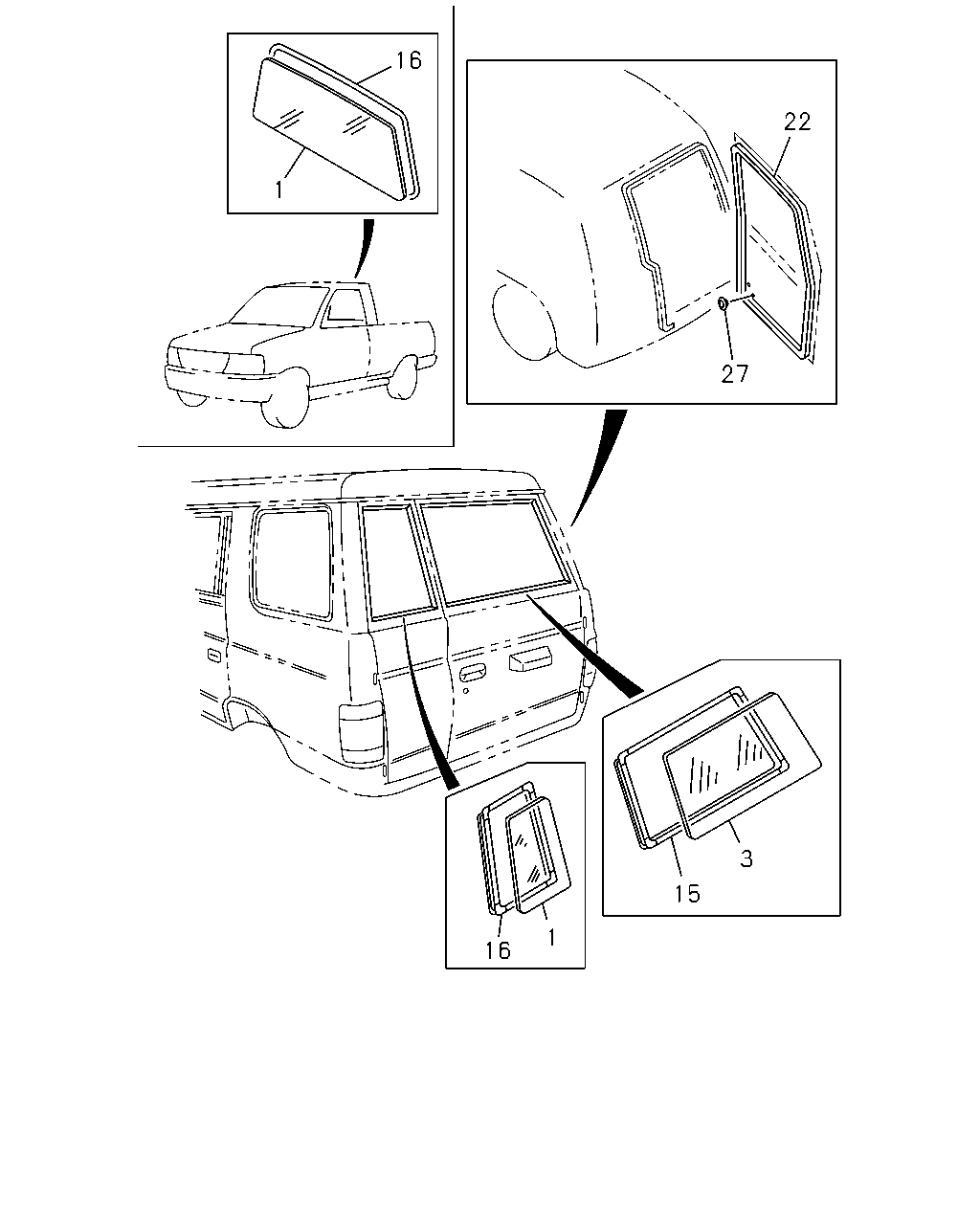

6-82 — BACK GLASS AND WEATHERSTRIP (#95139) — 8 parça

3 15 1 16 27 22 16 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	GLASS; BACKLIGHT DELETION IDN	8-94366-928-0	01	1	9009-	●	●
1	GLASS; BACKLIGHT DELETION IDN	8-94381-143-0	01	1	9009-			●	●
3	GLASS; BACK DOOR WINDOW DELETION IDN	8-94381-145-0	01	1	9009-			●	●
15	WEATHERSTRIP; BACK DOOR GLASS DELETION IDN	8-94382-886-0	01	1	9009-			●	●
16	WEATHERSTRIP; BACKLIGHT DELETION IDN	8-94366-929-0	01	1	9009-	●	●
16	WEATHERSTRIP; BACKLIGHT DELETION IDN	8-94381-144-0	01	1	9009-			●	●
22	WEATHERSTRIP; BACK DOOR DELETION IDN	8-94366-195-3	01	1	9009-			●	●
27	GROMMET; BACK DOOR DELETION OD=35 IDN	8-94122-971-0	02	1	9009-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
