◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50663 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#95134) — 36 parça

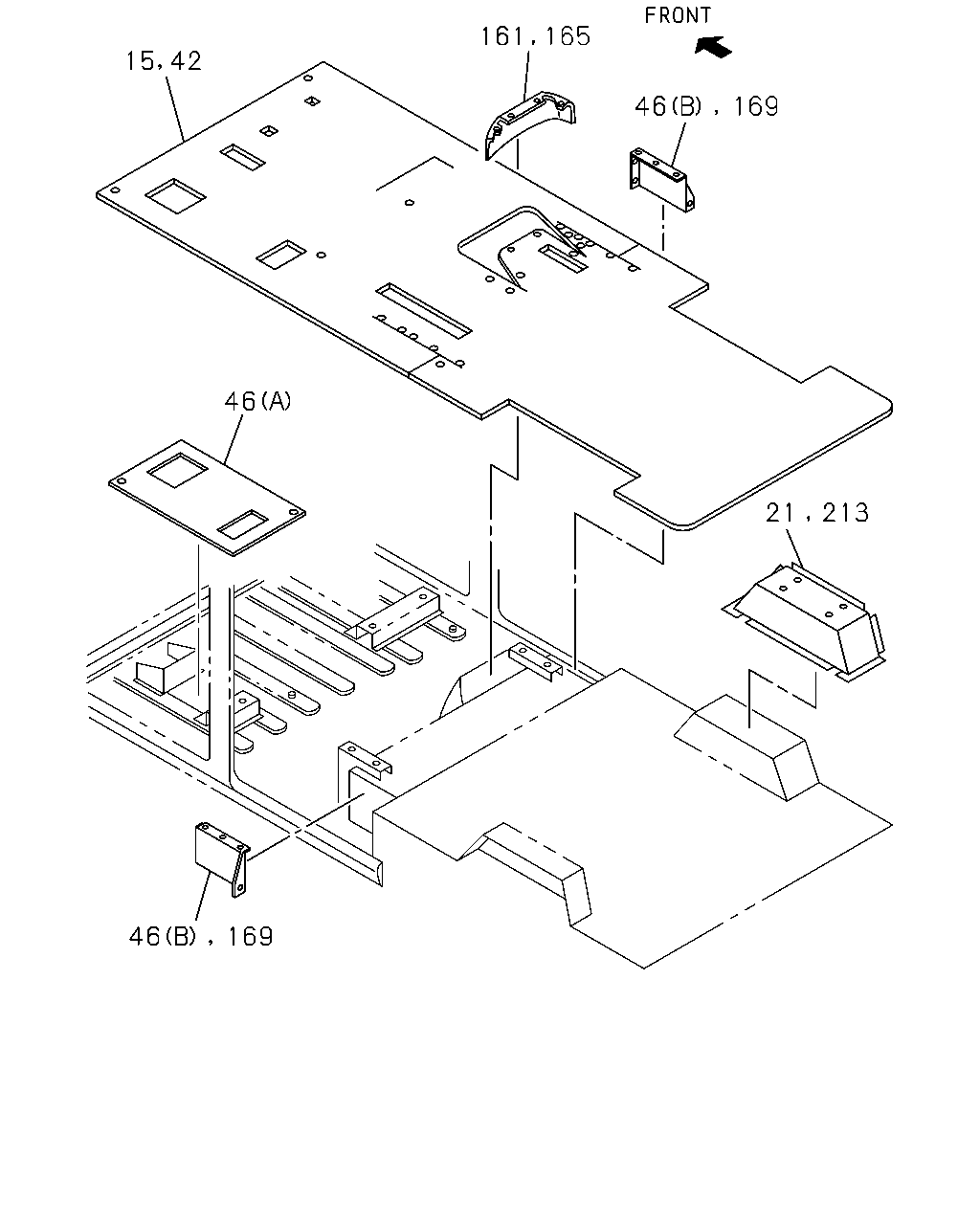

çizim 289068
46 169 165 161 42 15 46 21 213 169 46
BalonParca AdiParca NoAdetTipApplied Date A B
15 MAT; FLOOR REAR
WAGON SHORT(TB**VC) DELETION IDN 		8-97002-576-1 01 1 9009- ●
15 MAT; FLOOR REAR
WAGON LONG(TB**VF) DELETION IDN 		8-97002-577-1 01 1 9009- ●
21 CARPET; RR WHEEL HOUSE
WAGON(TB**V*) DELETION IDN 		8-97002-582-1 01 1 9009- ●
21 CARPET; RR WHEEL HOUSE
WAGON(TB**V*) DELETION IDN 		8-97002-581-1 01 1 9009- ●
42 CARPET; FLOOR,RR
WAGON SHORT(TB**VC) DELETION GRAY IDN 		8-97002-571-2 01 1 9009- ●
42 CARPET; FLOOR,RR
WAGON LONG(TB**VF) DELETION GRAY IDN 		8-97002-572-2 01 1 9009- ●
46 CARPET; FLOOR SIDE
PICK UP(TB**S*) (A) DELETION GRAY IDN 		8-97000-857-1 01 1 9009- ●
46 CARPET; FLOOR SIDE
PICK UP(TB**S*) (A) DELETION GRAY IDN 		8-97000-858-1 01 1 9009- ●
46 CARPET; FLOOR SIDE
WAGON(TB**V*) (B) DELETION GRAY IDN 		8-97002-574-0 01 1 9009- ●
46 CARPET; FLOOR SIDE
WAGON(TB**V*) (B) DELETION GRAY IDN 		8-97002-573-0 01 1 9009- ●
161 MAT; FLOOR,FUEL TANK COVER
WAGON SHORT(TB**VC) DELETION GRAY IDN 		8-97002-580-1 01 1 9009- ●
161 MAT; FLOOR,FUEL TANK COVER
WAGON LONG(TB**VF) DELETION GRAY IDN 		8-97003-537-0 01 1 9009- ●
165 CARPET; FUEL TANK COVER
WAGON SHORT(TB**VC) DELETION GRAY IDN 		8-97002-575-1 01 1 9009- ●
165 CARPET; FUEL TANK COVER
WAGON LONG(TB**VF) DELETION GRAY IDN 		8-97003-536-0 01 1 9009- ●
169 MAT; FLOOR,RR,SIDE
WAGON(TB**V*) DELETION GRAY IDN 		8-97002-579-0 01 1 9009- ●
169 MAT; FLOOR,RR,SIDE
WAGON(TB**V*) DELETION GRAY IDN 		8-97002-578-0 01 1 9009- ●
213 MAT; RR WHEEL HOUSE
WAGON(TB**V*) DELETION GRAY IDN 		8-97002-584-0 01 1 9009- ●
213 MAT; RR WHEEL HOUSE
WAGON(TB**V*) DELETION GRAY IDN 		8-97002-583-0 01 1 9009- ●
çizim 289070
140 99 99 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 DEADENER; FLOOR GEAR BOX FRT
WAGON(TB**V*) IDN 		8-97105-057-1 01 1 9409-9601 ● ●
6 DEADENER; FLOOR GEAR BOX FRT
IDN 		8-97105-057-1 01 1 9602- ● ●
99 DEADENER; FLOOR
WAGON(TB**V*) (A) IDN 		8-97105-060-0 02 1 9602- ● ●
99 DEADENER; FLOOR
WAGON(TB**V*) (B) IDN 		8-97105-061-0 04 1 9602- ● ●
140 DEADENER; DASH LWR PANEL
WAGON(TB**V*) IDN 		8-97105-059-0 02 1 9409-9601 ● ●
140 DEADENER; DASH LWR PANEL
IDN 		8-97105-059-0 02 1 9602- ● ●

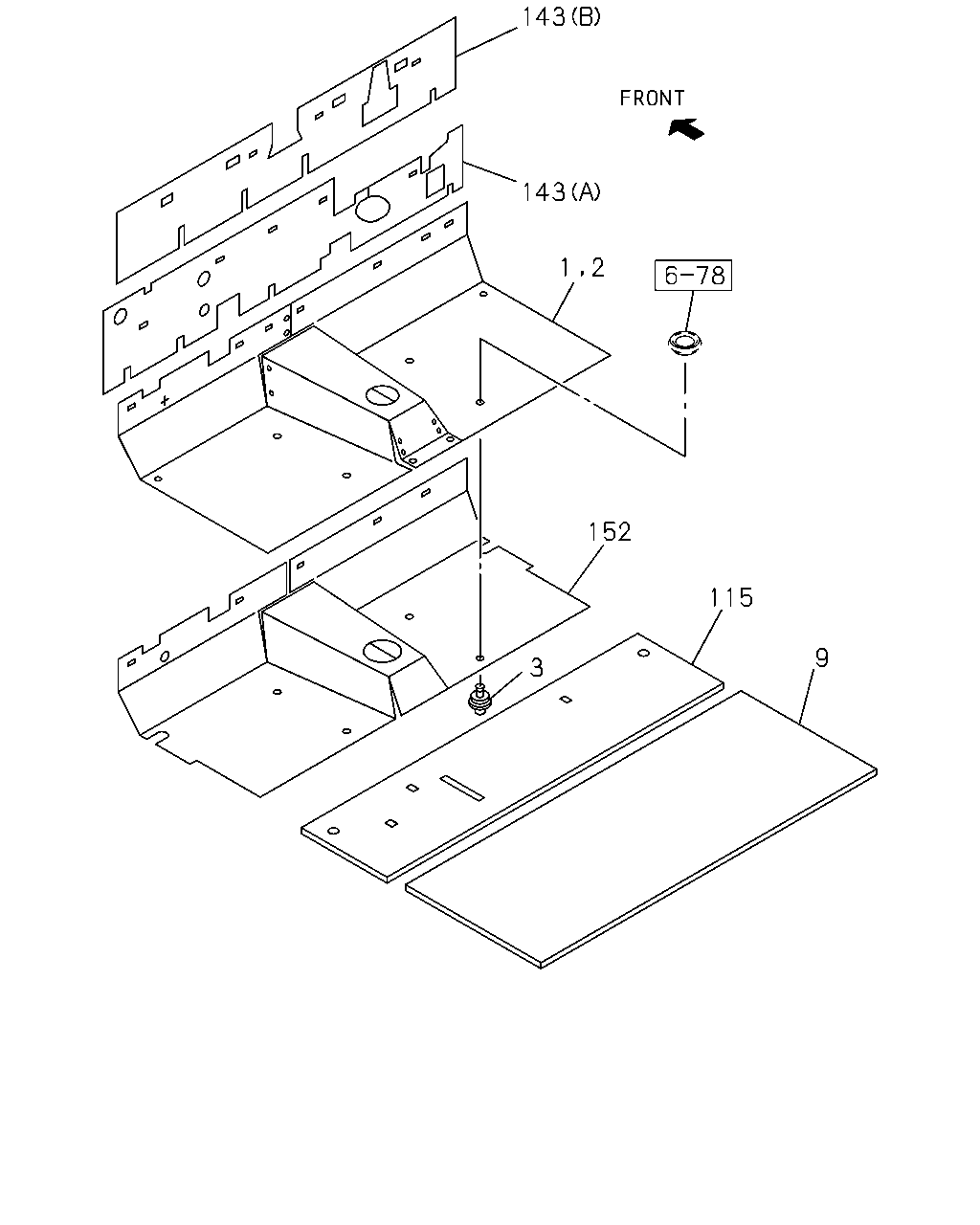

çizim 289815
9 115 152 3 1 2 143 143
BalonParca AdiParca NoAdetTipApplied Date A B
1 CARPET; FLOOR,FRT
DELETION GRAY IDN 		8-97000-856-2 01 1 9009- ●
2 MAT; FLOOR
DELETION GRAY IDN 		8-97000-859-2 01 1 9009- ●
3 CLIP; CARPET FIX
DELETION 		8-94321-035-0 10 1 9009- ● ●
9 INSULATION; PAD,RR FLOOR
WAGON SHORT(TB**VC) 		8-97132-712-2 01 1 9602- ● ●
9 INSULATION; PAD,RR FLOOR
WAGON LONG(TB**VF) 		8-97131-692-1 01 1 9602- ● ●
115 INSULATION; PAD,FRT TUNNEL,RR
WAGON(TB**V*) 		8-97131-691-2 01 1 9602- ● ●
143 INSULATION; DASH
(A) 		8-94367-258-3 01 1 9009-9601 ● ●
143 INSULATION; DASH
(A) LOWER 		8-97131-695-1 01 1 9602- ● ●
143 INSULATION; DASH
(B) UPPER 		8-97131-696-2 01 1 9602- ● ●
152 INSULATION; PAD,FRT TUNNEL
WAGON(TB**V*) 		8-97013-519-4 01 1 9009-9601 ●
152 INSULATION; PAD,FRT TUNNEL 8-97013-519-4 01 1 9009-9601 ●
152 INSULATION; PAD,FRT TUNNEL 8-97131-690-2 01 1 9602- ● ●
