◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50663 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#95133) — 34 parça

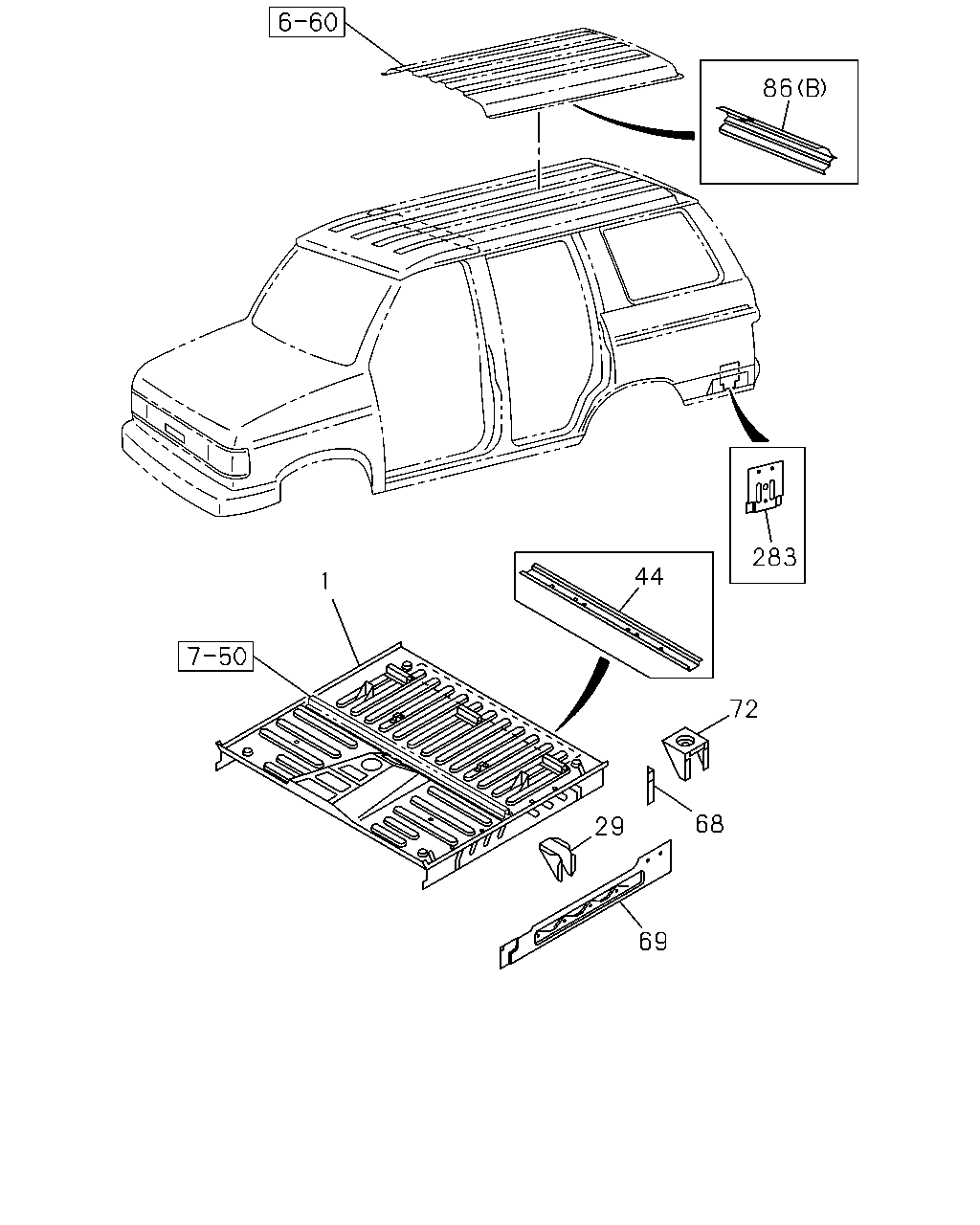

çizim 288968
86 283 44 1 72 68 29 69
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; FLOOR
DELETION IDN 		8-94385-329-0 01 1 9009- ● ●
1 PANEL; FLOOR
DELETION IDN 		8-97013-894-0 01 1 9009- ● ●
29 GUSSET
DELETION IDN 		8-94366-724-0 02 1 9009- ● ● ● ●
44 BAR; FRT COMPT PAN,RR
DELETION IDN 		8-97026-888-2 01 1 9009- ● ●
68 PANEL; ROCKER INNER,CENTER
FRONT DELETION IDN 		8-97011-996-0 02 1 9009- ● ● ● ●
68 PANEL; ROCKER INNER,CENTER
REAR DELETION IDN 		8-94384-837-0 01 1 9009- ●
68 PANEL; ROCKER INNER,CENTER
REAR DELETION IDN 		8-94384-836-0 01 1 9009- ●
68 PANEL; ROCKER INNER,CENTER
REAR DELETION IDN 		8-94384-839-0 01 1 9009- ●
68 PANEL; ROCKER INNER,CENTER
REAR DELETION IDN 		8-94384-838-0 01 1 9009- ●
69 PANEL; ROCKER INNER
DELETION IDN 		8-94366-726-0 01 1 9009-9910 ● ● ● ●
69 PANEL; ROCKER INNER
IDN 		8-97955-253-0 01 1 9911- ● ● ● ●
69 PANEL; ROCKER INNER
DELETION IDN 		8-94366-725-0 01 1 9009-9910 ● ● ● ●
69 PANEL; ROCKER INNER
IDN 		8-97955-252-0 01 1 9911- ● ● ● ●
72 BRACKET; CAB MTG,RR
DELETION IDN 		8-94366-723-2 04 1 9009- ● ● ● ●
86 BAR; RR END
(A) DELETION IDN 		8-94384-860-0 01 1 9009- ● ●
86 BAR; RR END
(B) DELETION IDN 		8-94384-868-0 01 1 9009- ● ●
283 CLOSING; FRAME FLOOR,RR
DELETION IDN 		8-94384-844-0 02 1 9009- ● ●

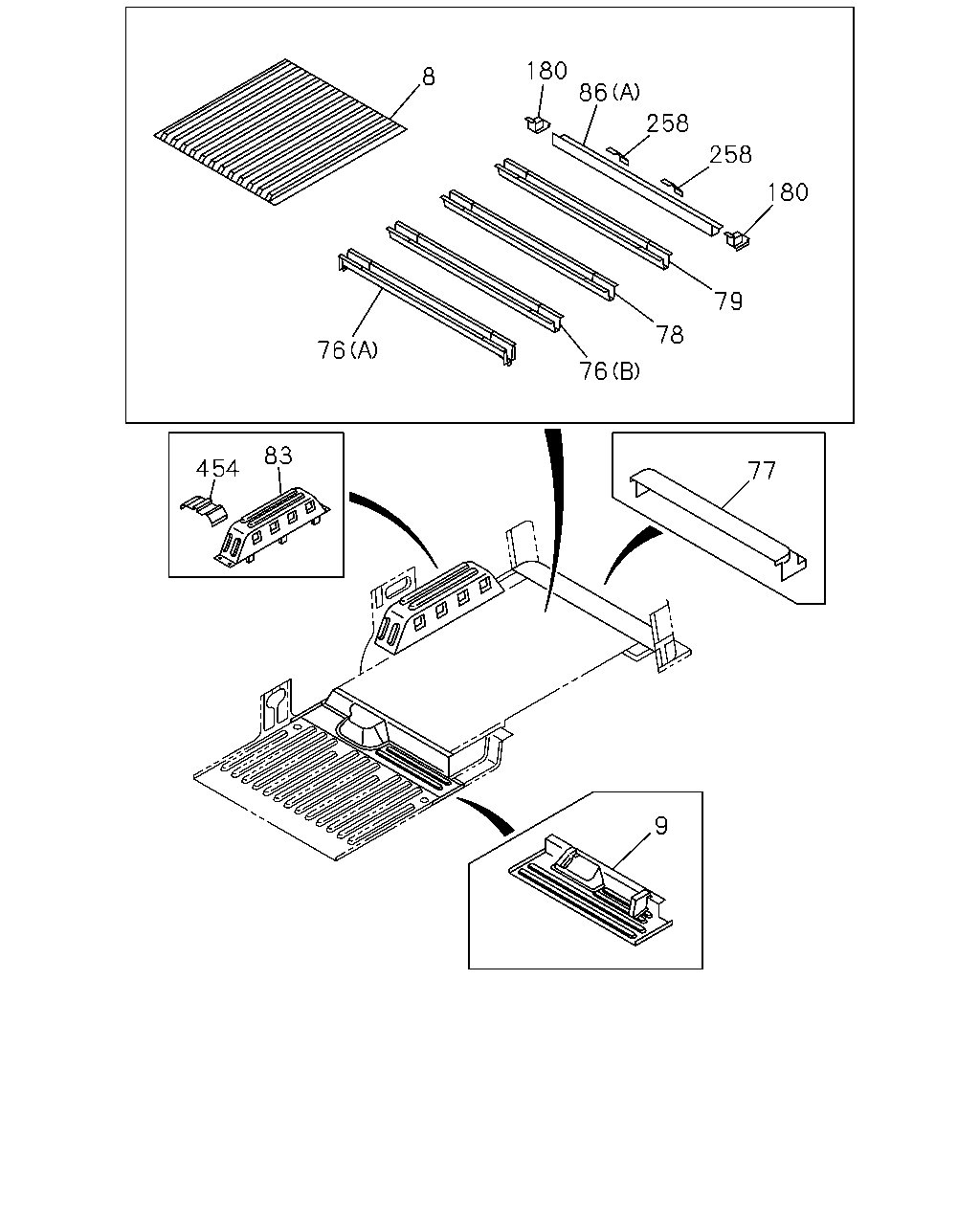

çizim 289004
77 9 83 454 76 76 78 79 180 258 258 86 180 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 PANEL; RR FLOOR,RR
DELETION IDN 		8-94384-796-1 01 1 9009- ● ●
9 PANEL; RR FLOOR,FRT
DELETION IDN 		8-94384-798-2 01 1 9009- ●
9 PANEL; RR FLOOR,FRT
DELETION IDN 		8-94384-799-2 01 1 9009- ●
76 BOLSTER ASM; RR FLOOR NO 1
(A) DELETION IDN 		8-94384-847-0 01 1 9009- ● ●
76 BOLSTER ASM; RR FLOOR NO 1
(B) DELETION IDN 		8-94384-848-1 01 1 9009-9509 ● ●
76 BOLSTER ASM; RR FLOOR NO 1
(B) DELETION IDN 		8-97126-618-2 01 1 9510-9601 ● ●
77 BOLSTER ASM; END
DELETION IDN 		8-94384-852-0 01 1 9009- ● ●
78 BOLSTER ASM; RR FLOOR NO 2
DELETION IDN 		8-94384-851-0 01 1 9009- ● ●
79 BOLSTER ASM; RR FLOOR NO 3
DELETION IDN 		8-97018-920-0 01 1 9009- ● ●
83 ARCH ASM; WHEEL
DELETION IDN 		8-94384-825-1 01 1 9009- ● ●
83 ARCH ASM; WHEEL
DELETION IDN 		8-94384-824-1 01 1 9009- ● ●
86 BAR; RR END
(A) DELETION IDN 		8-94384-860-0 01 1 9009- ● ●
86 BAR; RR END
(B) DELETION IDN 		8-94384-868-0 01 1 9009- ● ●
180 GUSSET; RR END
DELETION IDN 		8-97028-367-2 01 1 9009- ● ●
180 GUSSET; RR END
DELETION IDN 		8-97028-366-0 01 1 9009- ● ●
258 STAY; FLOOR BOARD,LWR
DELETION IDN 		8-94384-861-0 03 1 9009- ● ●
454 PATCH; 3RD SEAT
IDN 		8-94384-830-0 02 1 9602- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
