◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50663 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#95132) — 21 parça

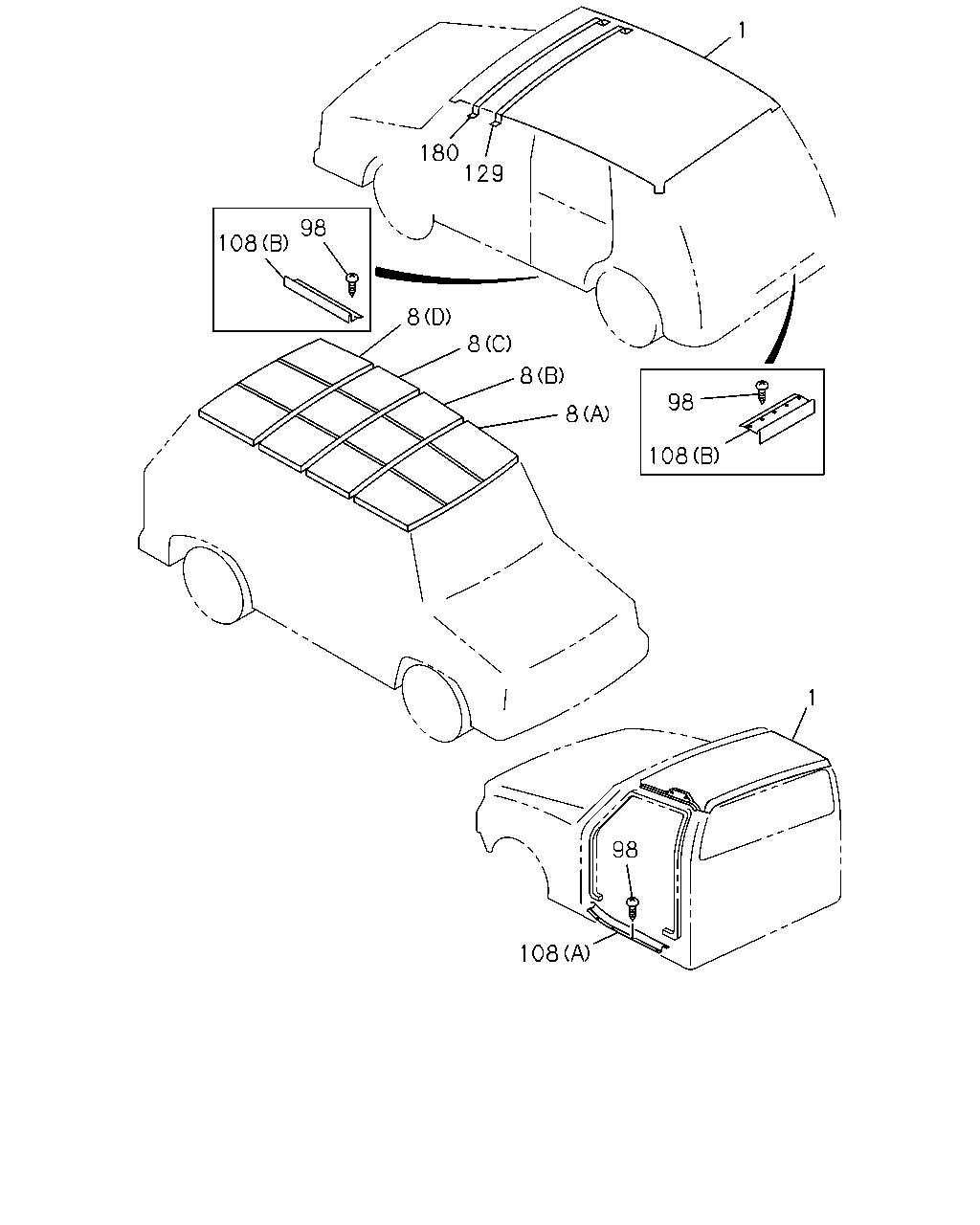

çizim 288931
129 180 98 108 8 8 8 8 98 108 1 1 98 108
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINING; HD
PICK UP(TB**S*) DELETION BEIGE IDN 		8-97000-863-1 01 1 9009- ●
1 LINING; HD
WAGON SHORT(TB**VC) DELETION BEIGE IDN 		8-97002-585-1 01 1 9009- ●
1 LINING; HD
WAGON LONG(TB**VF) DELETION BEIGE IDN 		8-97002-587-1 01 1 9009- ●
1 LINING; HD
PICK UP(TB**S*) DELETION IDN 		8-97000-864-1 01 1 9009- ●
1 LINING; HD
WAGON SHORT(TB**VC) DELETION BEIGE IDN 		8-97002-586-1 01 1 9009- ●
1 LINING; HD
WAGON LONG(TB**VF) DELETION BEIGE IDN 		8-97002-588-1 01 1 9009- ●
8 PAD; HEADLINING
WAGON(TB**V*) (A) DELETION IDN 		8-97025-102-0 01 1 9009- ● ●
8 PAD; HEADLINING
WAGON(TB**V*) (C) DELETION IDN 		8-97025-105-0 01 1 9009- ● ●
8 PAD; HEADLINING
WAGON(TB**V*) (D) DELETION IDN 		8-97025-106-0 01 1 9009- ● ●
8 PAD; HEADLINING
WAGON SHORT(TB**VC) (B) DELETION IDN 		8-97025-103-0 01 1 9009- ● ●
8 PAD; HEADLINING
WAGON LONG(TB**VF) (B) DELETION IDN 		8-97025-104-0 01 1 9009- ● ●
98 SCREW; TREAD PLATE
PICK UP(TB**S*) M4X16 TAPPING 		0-71090-416-0 08 1 9009- ● ●
98 SCREW; TREAD PLATE
WAGON SHORT(TB**VC) M4X16 TAPPING 		0-71090-416-0 19 1 9009- ● ●
98 SCREW; TREAD PLATE
WAGON LONG(TB**VF) M4X16 TAPPING 		0-71090-416-0 21 1 9009- ● ●
108 PLATE; TREAD
(A) DELETION IDN 		8-94366-940-2 02 1 9009- ● ●
108 PLATE; TREAD
WAGON(TB**V*) (B) BACK DOOR DELETION IDN 		8-94385-351-1 01 1 9009- ● ●
108 PLATE; TREAD
WAGON SHORT(TB**VC) (B) SIDE DELETION IDN 		8-94385-350-1 02 1 9009- ● ●
108 PLATE; TREAD
WAGON LONG(TB**VF) (B) SIDE DELETION IDN 		8-97023-128-1 02 1 9009- ● ●
129 RAIL; LISTING,NO 2
WAGON SHORT(TB**VC) DELETION IDN 		8-97027-405-0 07 1 9009- ● ●
129 RAIL; LISTING,NO 2
WAGON LONG(TB**VF) DELETION IDN 		8-97027-405-0 08 1 9009- ● ●
180 RAIL; LISTING,NO 1
WAGON(TB**V*) DELETION IDN 		8-97015-220-0 01 1 9009- ● ●
