Isuzu WW
▶
AUV
▶
TBR
▶
50663 - TBR(INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

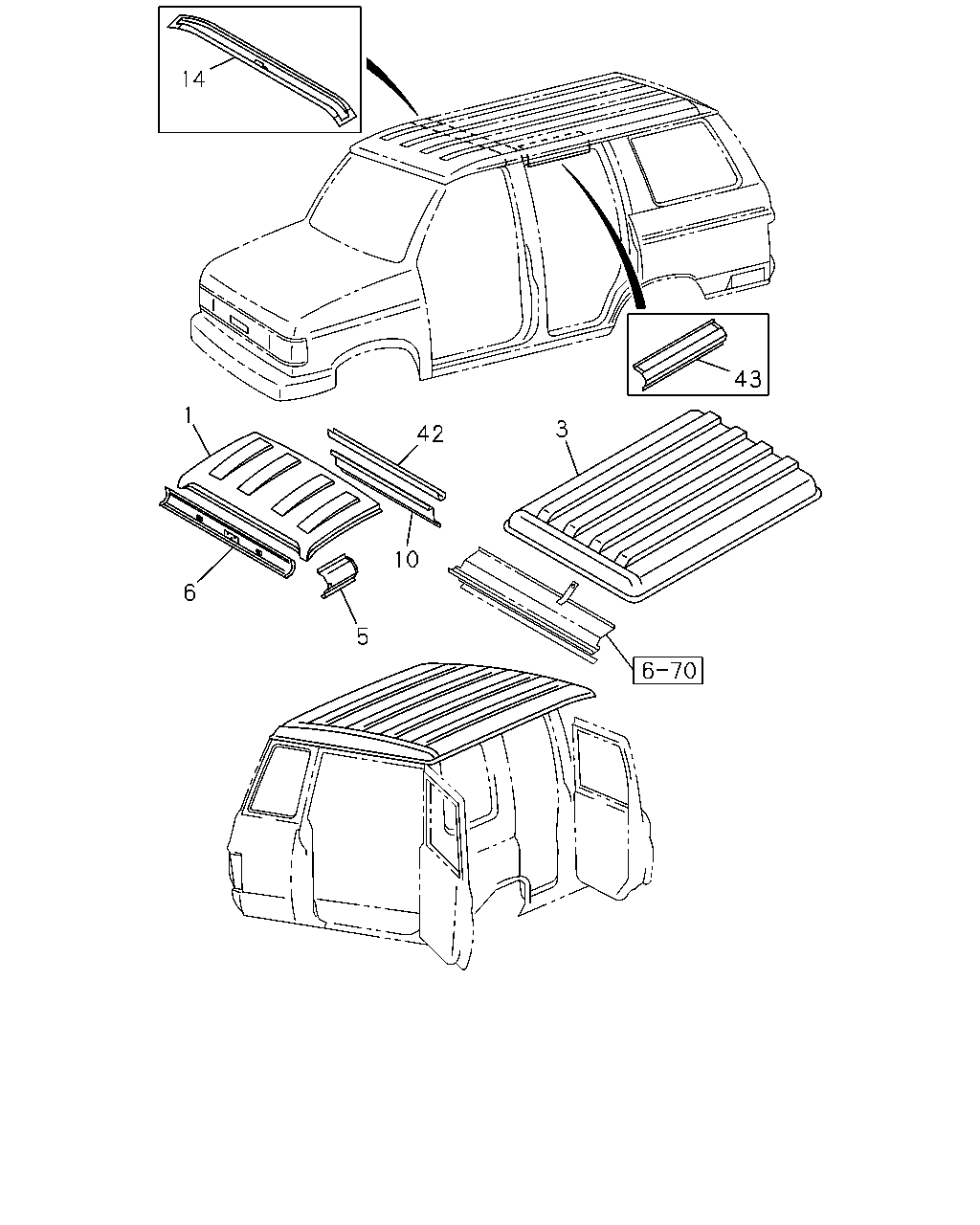

6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#95131) — 15 parça
Tümü
A - TBB5SC
B - TBB5SF
C - TBB5VC
D - TBB5VF
43
3
42
10
5
6
1
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
PANEL; ROOF
DELETION IDN
8-94366-487-0
01
1
9009-
●
●
1
PANEL; ROOF
DELETION IDN
8-94384-863-1
01
1
9009-
●
●
3
PANEL; ROOF,RR
DELETION IDN
8-94384-865-0
01
1
9009-
●
3
PANEL; ROOF,RR
DELETION IDN
8-94384-866-0
01
1
9009-
●
5
RAIL; WINDOW SHIELD HEADER
DELETION IDN
8-94366-419-0
01
1
9009-
●
●
●
●
5
RAIL; WINDOW SHIELD HEADER
DELETION IDN
8-94366-418-0
01
1
9009-
●
●
●
●
6
FRAME; ROOF FRT
DELETION IDN
8-94366-488-0
01
1
9009-9601
●
●
6
FRAME; ROOF FRT
IDN
8-94366-488-0
01
1
9602-
●
●
●
●
10
FRAME; ROOF RR
DELETION IDN
8-94366-483-0
01
1
9009-
●
●
10
FRAME; ROOF RR
DELETION IDN
8-94384-871-1
01
1
9009-
●
●
14
SUPPORT; ROOF
DELETION IDN
8-94384-867-0
03
1
9009-
●
●
42
RAIL; DRIP,ROOF RR
IDN
8-94384-870-1
01
1
9602-
●
●
42
RAIL; DRIP,ROOF RR
DELETION
8-94366-482-1
01
1
9009-
●
●
43
CLOSING; ROOF RAIL,RR
DELETION IDN
8-97027-489-0
02
1
9009-
●
43
CLOSING; ROOF RAIL,RR
DELETION IDN
8-97027-490-0
02
1
9009-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
