◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50663 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-55 - REAR DOOR TRIM ▶
6-55 — REAR DOOR TRIM (#95130) — 39 parça

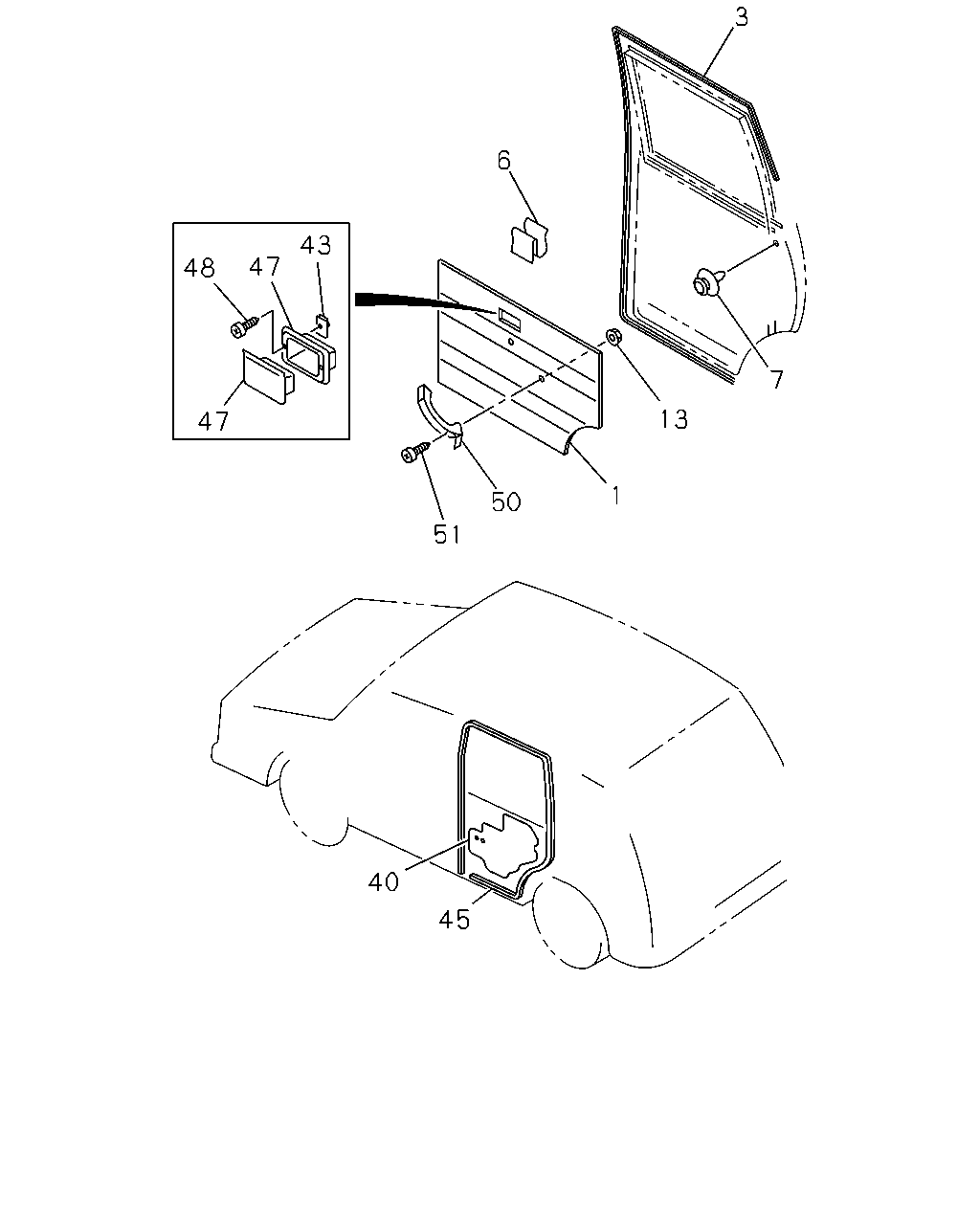

çizim 289355
45 40 51 50 1 13 7 6 3 43 47 47 48
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,RR DOOR
WAGON SHORT(TB**VC) GRAY IDN 		8-97002-611-2 01 1 9009- ●
1 PAD; TRIM,RR DOOR
WAGON SHORT(TB**VC) GRAY IDN 		8-97002-610-2 01 1 9009- ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) GRAY IDN 		8-97002-615-2 01 1 9009- ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) GRAY IDN 		8-97002-614-2 01 1 9009- ●
1 PAD; TRIM,RR DOOR
WAGON SHORT(TB**VC) GRAY IDN 		8-97002-613-2 01 1 9009- ●
1 PAD; TRIM,RR DOOR
WAGON SHORT(TB**VC) GRAY IDN 		8-97002-612-2 01 1 9009- ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) GRAY IDN 		8-97002-617-2 01 1 9009- ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) GRAY IDN 		8-97002-616-2 01 1 9009- ●
3 WEATHERSTRIP; RR DOOR
WAGON SHORT(TB**VC) DELETION IDN 		8-94384-658-2 01 1 9009- ● ●
3 WEATHERSTRIP; RR DOOR
WAGON SHORT(TB**VC) DELETION IDN 		8-94384-657-2 01 1 9009- ● ●
3 WEATHERSTRIP; RR DOOR
WAGON LONG(TB**VF) DELETION IDN 		8-94384-660-2 01 1 9009- ● ●
3 WEATHERSTRIP; RR DOOR
WAGON LONG(TB**VF) DELETION IDN 		8-94384-659-2 01 1 9009- ● ●
6 CLIP; DOOR PAD
WAGON(TB**V*) DELETION B=8.4 H=16 CR-PLATED IDN 		8-94116-002-3 06 1 9009- ●
7 CLIP; DOOR PAD
WAGON SHORT(TB**VC) DELETION H=16.7 IDN 		8-94133-935-2 18 1 9009- ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) DELETION H=16.7 IDN 		8-94133-935-2 18 1 9009- ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) DELETION H=16.7 IDN 		8-94133-935-2 22 1 9009- ●
7 CLIP; DOOR PAD
WAGON SHORT(TB**VC) DELETION H=16.7 IDN 		8-94133-935-2 16 1 9009- ●
13 GROMMET; SCREW,ARM REST
WAGON(TB**V*) DELETION IDN 		8-94481-286-2 04 1 9009- ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON SHORT(TB**VC) DELETION IDN 		8-97017-863-0 01 1 9009- ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON SHORT(TB**VC) DELETION IDN 		8-97017-862-0 01 1 9009- ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) DELETION IDN 		8-97017-865-0 01 1 9009- ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) DELETION IDN 		8-97017-864-0 01 1 9009- ● ●
43 RETAINER; ASH TRAY,RR DOOR
WAGON(TB**V*) DELETION IDN 		8-94123-300-5 04 1 9009- ● ●
45 FINISHER; RR DOOR
WAGON SHORT(TB**VC) DELETION GRAY IDN 		8-97000-871-2 02 1 9009-9410 ● ●
45 FINISHER; RR DOOR
WAGON SHORT(TB**VC) INTERIOR COLOR MUSHROOM(150) DELETION GRAY IDN 		8-97000-871-2 02 1 9411- ● ●
45 FINISHER; RR DOOR
WAGON SHORT(TB**VC) INTERIOR COLOR BLACK(101) DELETION BLACK IDN 		8-97153-223-2 02 1 9411- ● ●
45 FINISHER; RR DOOR
WAGON LONG(TB**VF) DELETION GRAY IDN 		8-97002-618-1 02 1 9009-9410 ● ●
45 FINISHER; RR DOOR
WAGON LONG(TB**VF) INTERIOR COLOR MUSHROOM(150) DELETION GRAY IDN 		8-97002-618-1 02 1 9411- ● ●
45 FINISHER; RR DOOR
WAGON LONG(TB**VF) INTERIOR COLOR BLACK(101) DELETION BLACK IDN 		8-97153-224-1 02 1 9411- ● ●
47 TRAY; ASH,RR
WAGON(TB**V*) DELETION GRAY IDN 		8-94476-917-1 02 1 9009-9410 ● ●
47 TRAY; ASH,RR
WAGON(TB**V*) INTERIOR COLOR MUSHROOM(150) DELETION GRAY IDN 		8-94476-917-1 02 1 9411- ● ●
47 TRAY; ASH,RR
WAGON(TB**V*) INTERIOR COLOR BLACK(101) DELETION BLACK IDN 		8-94375-826-1 02 1 9411- ● ●
48 SCREW; RET,ASH TRAY
WAGON(TB**V*) DELETION M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 04 1 9009- ● ●
50 GRIP; ASSIST,RR DOOR TRIM
WAGON(TB**V*) DELETION GRAY IDN 		8-94448-488-2 02 1 9009-9408 ● ●
50 GRIP; ASSIST,RR DOOR TRIM
WAGON(TB**V*) INTERIOR COLOR BLACK(101) DELETION BLACK IDN 		8-94484-616-2 02 1 9409-9612 ● ●
50 GRIP; ASSIST,RR DOOR TRIM
WAGON(TB**V*) INTERIOR COLOR BLACK(101) DELETION BLACK IDN 		8-97159-031-0 02 1 9701- ● ●
50 GRIP; ASSIST,RR DOOR TRIM
WAGON(TB**V*) INTERIOR COLOR MUSHROOM(150) DELETION GRAY IDN 		8-97002-368-2 02 1 9409-9612 ● ●
50 GRIP; ASSIST,RR DOOR TRIM
WAGON(TB**V*) INTERIOR COLOR MUSHROOM(150) DELETION GRAY IDN 		8-97159-000-0 02 1 9701- ● ●
51 SCREW; ASSIST GRIP,RR DOOR TRIM
WAGON(TB**V*) DELETION M6X25 TAPPING 		9-07077-625-0 04 1 9009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
