6-52 — REAR DOOR LOCK AND HANDLE (#95129) — 37 parça

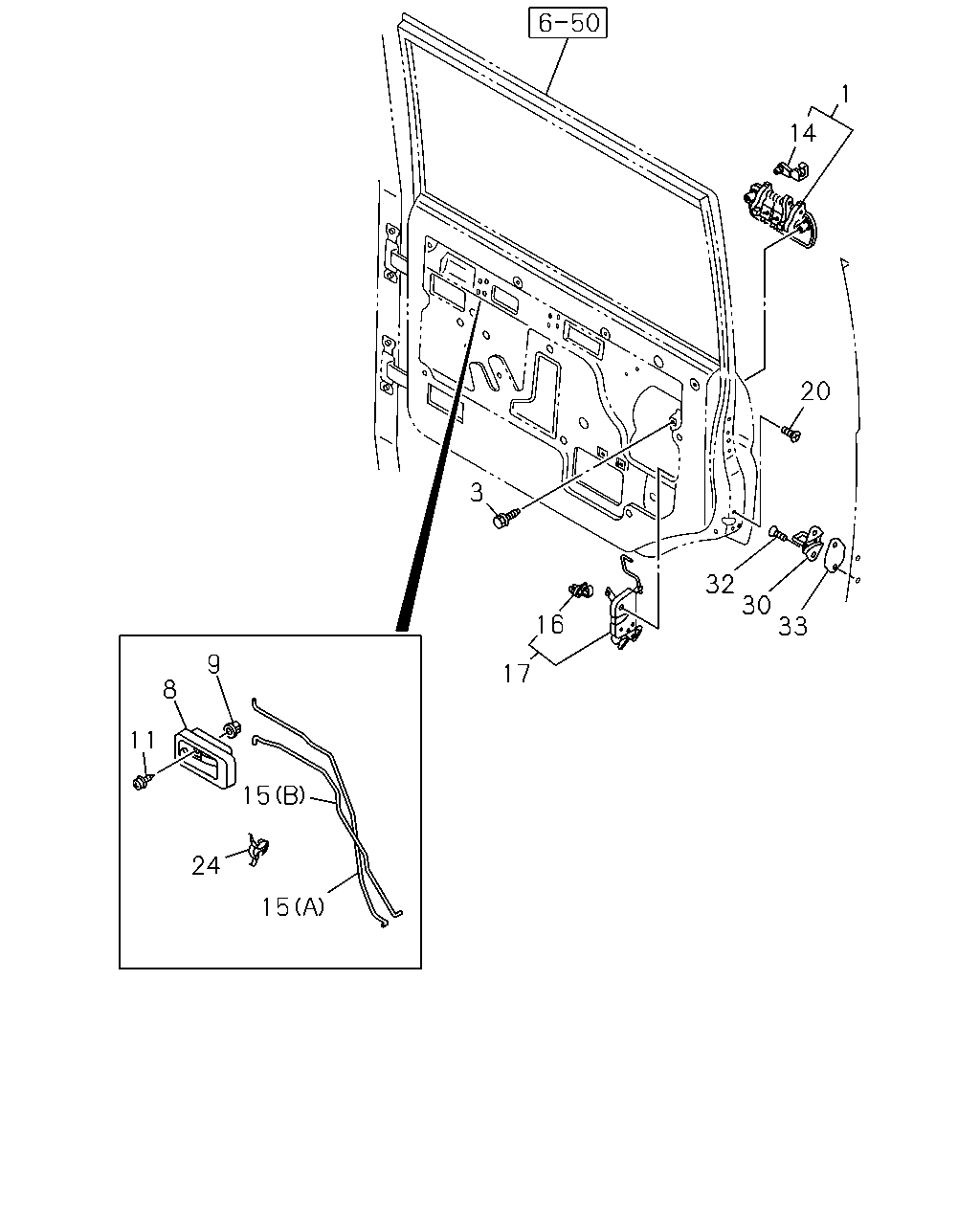

çizim 289319
1 14 20 33 30 32 16 17 3 15 24 15 11 8 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; OUTSIDE,RR DOOR 8-94367-987-1 01 1 9009-9111 ● ●
1 HANDLE; OUTSIDE,RR DOOR
DELETION IDN 		8-97072-485-1 01 1 9112- ● ●
1 HANDLE; OUTSIDE,RR DOOR 8-94367-986-1 01 1 9009-9111 ● ●
1 HANDLE; OUTSIDE,RR DOOR
DELETION IDN 		8-97072-484-1 01 1 9112- ● ●
3 BOLT; DOOR OUTSIDE HANDLE
DELETION M6X8 IDN 		8-94155-893-0 04 1 9009- ● ●
8 HANDLE; INSIDE,RR DOOR
DELETION GRAY IDN 		8-97000-866-0 01 1 9009-9408 ● ●
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR MUSHROOM(150) DELETION GRAY IDN 		8-97000-866-0 01 1 9409-0305 ● ●
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR MUSHROOM(150) GRAY IDN 		8-97398-372-0 01 1 0306- ● ●
8 HANDLE; INSIDE,RR DOOR
DELETION GRAY IDN 		8-97000-865-0 01 1 9009-9408 ● ●
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR MUSHROOM(150) DELETION GRAY IDN 		8-97000-865-0 01 1 9409-0305 ● ●
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR MUSHROOM(150) GRAY IDN 		8-97398-371-0 01 1 0306- ● ●
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR BLACK(101) DELETION BLACK IDN 		8-97151-753-0 01 1 9409-0305 ● ●
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR BLACK(101) BLACK IDN 		8-97398-366-0 01 1 0306- ● ●
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR BLACK(101) DELETION BLACK IDN 		8-97151-752-0 01 1 9409-0305 ● ●
8 HANDLE; INSIDE,RR DOOR
INTERIOR COLOR BLACK(101) BLACK IDN 		8-97398-365-0 01 1 0306- ● ●
9 GROMMET; SCREW,INSIDE HANDLE
DELETION IDN 		8-94152-494-0 02 1 9009- ● ●
11 SCREW; INSIDE HANDLE
DELETION M5X14 IDN 		8-94152-495-0 02 1 9009- ● ●
14 HOLDER; DOOR LK ROD
DELETION BROWN IDN 		8-97037-509-0 01 1 9009- ● ●
14 HOLDER; DOOR LK ROD 8-97044-833-0 01 1 9009-9111 ● ●
14 HOLDER; DOOR LK ROD
DELETION IDN 		8-97037-508-0 01 1 9112- ● ●
15 LINK; RR DOOR LK
(A) DELETION IDN 		8-97029-037-2 01 1 9009- ●
15 LINK; RR DOOR LK
(B) DELETION IDN 		8-97029-041-2 01 1 9009- ●
15 LINK; RR DOOR LK
(A) DELETION IDN 		8-97029-036-2 01 1 9009- ●
15 LINK; RR DOOR LK
(B) DELETION IDN 		8-97029-040-2 01 1 9009- ●
15 LINK; RR DOOR LK
(A) DELETION IDN 		8-97029-039-2 01 1 9009- ●
15 LINK; RR DOOR LK
(B) DELETION IDN 		8-97029-043-2 01 1 9009- ●
15 LINK; RR DOOR LK
(A) DELETION IDN 		8-97029-038-2 01 1 9009- ●
15 LINK; RR DOOR LK
(B) DELETION IDN 		8-97029-042-2 01 1 9009- ●
16 CLIP; DOOR LK LINK
DELETION 		8-97041-588-0 02 1 9009- ● ●
16 CLIP; DOOR LK LINK
DELETION 		8-97041-587-0 02 1 9009- ● ●
17 LOCK; DOOR,RR DOOR
DELETION 		8-94384-654-1 01 1 9009- ● ●
17 LOCK; DOOR,RR DOOR
DELETION 		8-94384-653-1 01 1 9009- ● ●
20 SCREW; DOOR LK
DELETION M6X16 OVAL-HD IDN 		8-94172-523-0 06 1 9009- ● ●
24 ANTIRATTLER; DOOR INSIDE HANDLE
DELETION IDN 		8-94342-940-0 04 1 9009- ● ●
30 STRIKER; RR DOOR 8-94115-959-0 02 1 9009- ● ●
32 SCREW; DOOR STRIKER
DELETION M8X20 IDN 		8-94327-388-0 04 1 9009- ● ●
33 SHEET; ADJ,RR DOOR STRIKER
DELETION IDN 		8-94239-378-0 AR 1 9009- ● ●
