6-51 — REAR DOOR GLASS AND REGULATOR (#95128) — 37 parça

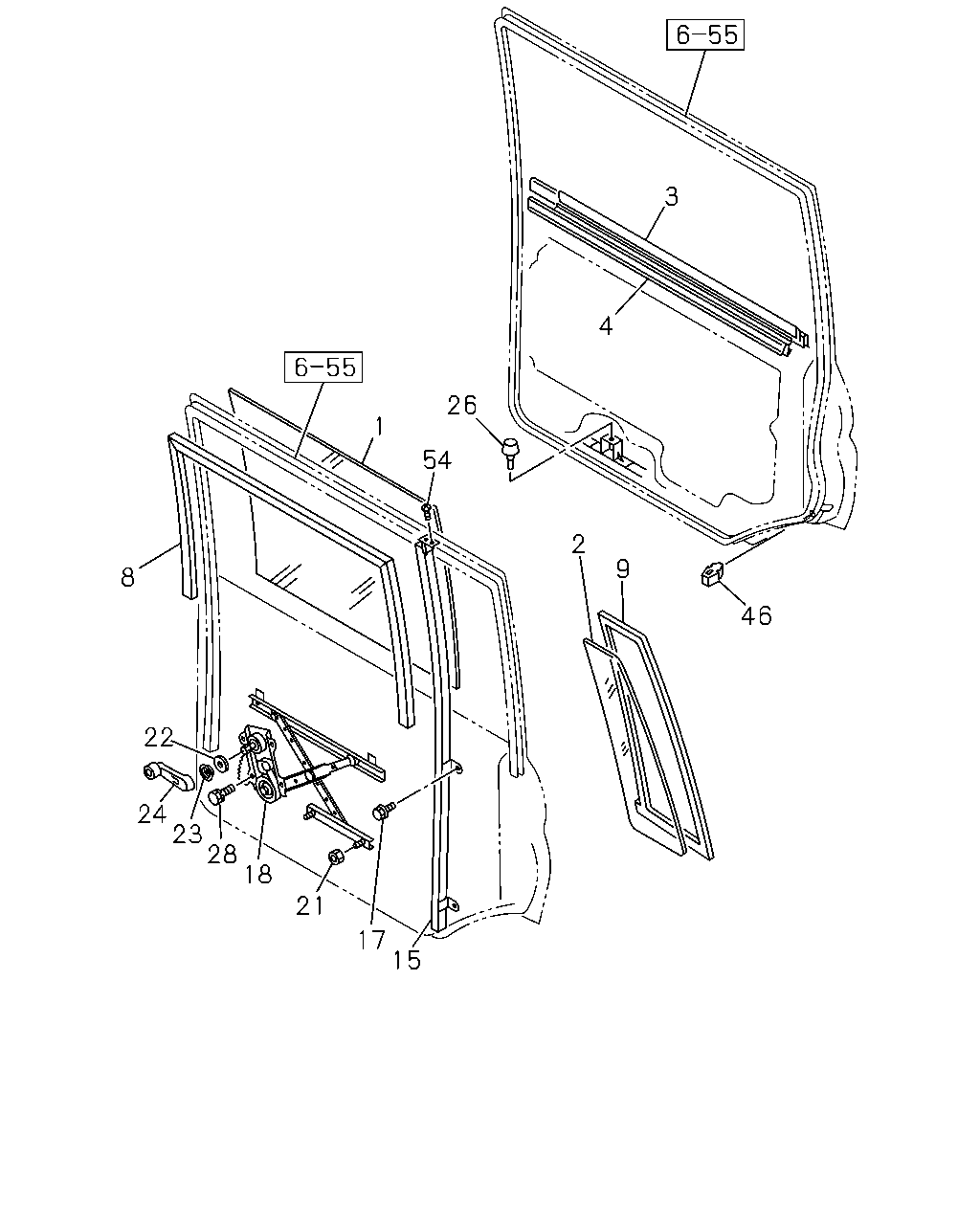

çizim 289247
3 4 46 9 2 26 54 1 8 22 24 23 28 18 21 17 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; RR DOOR
IDN 		8-94384-640-1 01 1 9009- ●
1 GLASS; RR DOOR
IDN 		8-94384-639-1 01 1 9009- ●
1 GLASS; RR DOOR
IDN 		8-94384-642-1 01 1 9009- ●
1 GLASS; RR DOOR
IDN 		8-94384-641-1 01 1 9009- ●
2 GLASS; RR DOOR,RR
DELETION IDN 		8-94384-650-0 01 1 9009- ● ●
2 GLASS; RR DOOR,RR
DELETION IDN 		8-94384-649-0 01 1 9009- ● ●
3 SEAL; RR DOOR OUTER WAIST
DELETION IDN 		8-94384-664-0 01 1 9009- ●
3 SEAL; RR DOOR OUTER WAIST
DELETION IDN 		8-94384-663-0 01 1 9009- ●
3 SEAL; RR DOOR OUTER WAIST
DELETION IDN 		8-94384-666-0 01 1 9009- ●
3 SEAL; RR DOOR OUTER WAIST
DELETION IDN 		8-94384-665-0 01 1 9009- ●
4 SEAL; RR DOOR GLASS
DELETION IDN 		8-94384-668-0 01 1 9009-0003 ●
4 SEAL; RR DOOR GLASS
DELETION IDN 		8-94384-667-0 01 1 9009-0003 ●
4 SEAL; RR DOOR GLASS
IDN 		8-94384-667-0 02 1 0004- ●
4 SEAL; RR DOOR GLASS
DELETION IDN 		8-94384-670-0 01 1 9009-0003 ●
4 SEAL; RR DOOR GLASS
DELETION IDN 		8-94384-669-0 01 1 9009-0003 ●
4 SEAL; RR DOOR GLASS
IDN 		8-94384-669-0 02 1 0004- ●
8 RUN; GLASS,RR DOOR
DELETION IDN 		8-94384-790-0 02 1 9009- ●
8 RUN; GLASS,RR DOOR
DELETION IDN 		8-94384-791-0 02 1 9009- ●
9 WEATHERSTRIP; RR DOOR
DELETION IDN 		8-94384-652-0 01 1 9009- ● ●
9 WEATHERSTRIP; RR DOOR
DELETION IDN 		8-94384-651-0 01 1 9009- ● ●
15 RAIL; RR GUIDE,RR DOOR
DELETION IDN 		8-94384-672-1 01 1 9009- ● ●
15 RAIL; RR GUIDE,RR DOOR
DELETION IDN 		8-94384-671-1 01 1 9009- ● ●
17 BOLT; RR GUIDE RAIL
DELETION M6X8 IDN 		8-94155-893-0 04 1 9009- ● ●
18 REGULATOR; WINDOW,RR DOOR
IDN 		8-94384-656-0 01 1 9009- ● ●
18 REGULATOR; WINDOW,RR DOOR
IDN 		8-94384-655-0 01 1 9009- ● ●
21 NUT; FLANGE,WINDOW REG
DELETION M6 FLANGE 		0-91150-106-0 04 1 9009-0602 ● ●
21 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
22 GASKET; DUST SEAL,WINDOW REG
DELETION IDN 		8-94106-830-1 02 1 9009- ● ●
23 ESCUTCHEON; HANDLE,WINDOW REG
IDN 		8-94220-668-1 02 1 9009- ● ●
24 HANDLE; WINDOW REG,RR DOOR
GRAY IDN 		8-94436-757-0 02 1 9009-9408 ● ●
24 HANDLE; WINDOW REG,RR DOOR
INTERIOR COLOR MUSHROOM(150) GRAY IDN 		8-94436-757-0 02 1 9409- ● ●
24 HANDLE; WINDOW REG,RR DOOR
INTERIOR COLOR BLACK(101) BLACK IDN 		8-94403-144-0 02 1 9409- ● ●
26 BUFFER; GLASS STOP
DELETION IDN 		8-94203-615-0 02 1 9009- ●
28 BOLT; WINDOW REG
DELETION M6X8 IDN 		8-94155-893-0 12 1 9009- ● ●
46 BUFFER; RR DOOR
DELETION IDN 		8-03468-771-1 02 1 9009-9610 ● ●
46 BUFFER; RR DOOR
IDN 		8-97955-217-0 02 1 9611- ● ●
54 SCREW; GUIDE RAIL
DELETION 		9-03094-406-0 04 1 9009- ● ●
